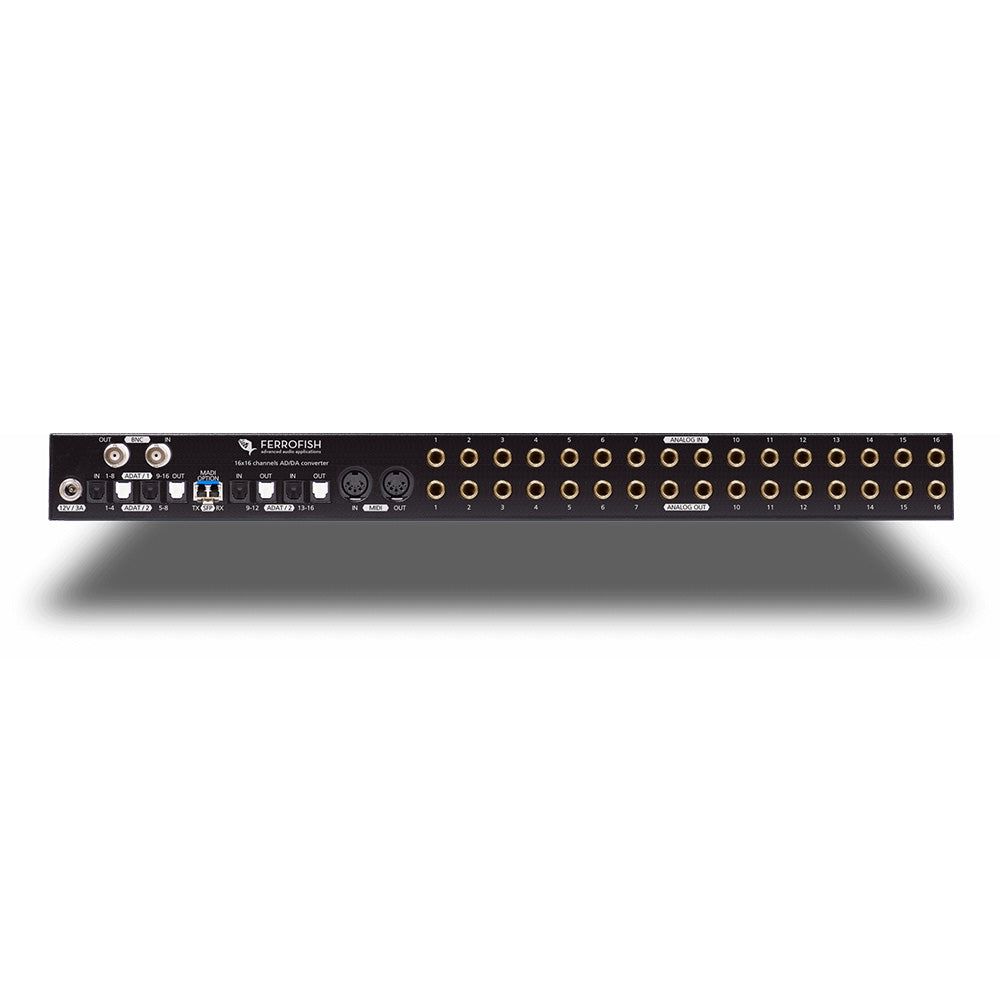

Ferrofish PULSE16 MX - 16x16 Channel Analog to ADAT Audio Converter with 64x64 MADI SFP


  • Dale #:

    FERR-PULSE16MX
  • Availability:

    Not in Stock - Reserve Yours
  • This item usually ships within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The PULSE16 MX is the high-quality solution to connect a wide range of Analog, MADI and ADAT equipment to a mixer or a computer interface – with up to 192 kHz. The high-density converter provides 16 x 16 balanced analoge TRS-I/Os and can handle pro studio levels up to +20dBu – adjustable in 1 dB... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The PULSE16 MX is the high-quality solution to connect a wide range of Analog, MADI and ADAT equipment to a mixer or a computer interface – with up to 192 kHz.

The high-density converter provides 16 x 16 balanced analoge TRS-I/Os and can handle pro studio levels up to +20dBu – adjustable in 1 dB steps. The PULSE16 is using the recent high-performance low-latency converter generation from Cirrus Logic. Combined with a temperature-compensated high-precision clock and an active jitter reduction hardware design, the 226-channel MX delivers an exceptional detailed sound.

On the digital side, the multi-format device provides an optical MADI I/O with 64 I/Os. 2 x 4 ADAT ports can convert all 16 analog I/Os – even with up to 96 kHz.

The Pulse16MX incorporates a Word Clock I/O and a MIDI I/O for embedding signals and remote control of the unit. Many popular features from the flagship A32 have been added as well: Preset Management, Panel Lock and the sophisticated routing matrix.

All in all the fan-less, small footprint device is a huge problem solver for studio and live sound applications.

Optical MADI I/O
The PULSE16 MX provides a MADI SFP module with optical LC connector. The MADI I/O supports daisy-chain delay compensation and carries MIDI-over-MADI. The default Multimode module can be exchanged with a Singlemode module.

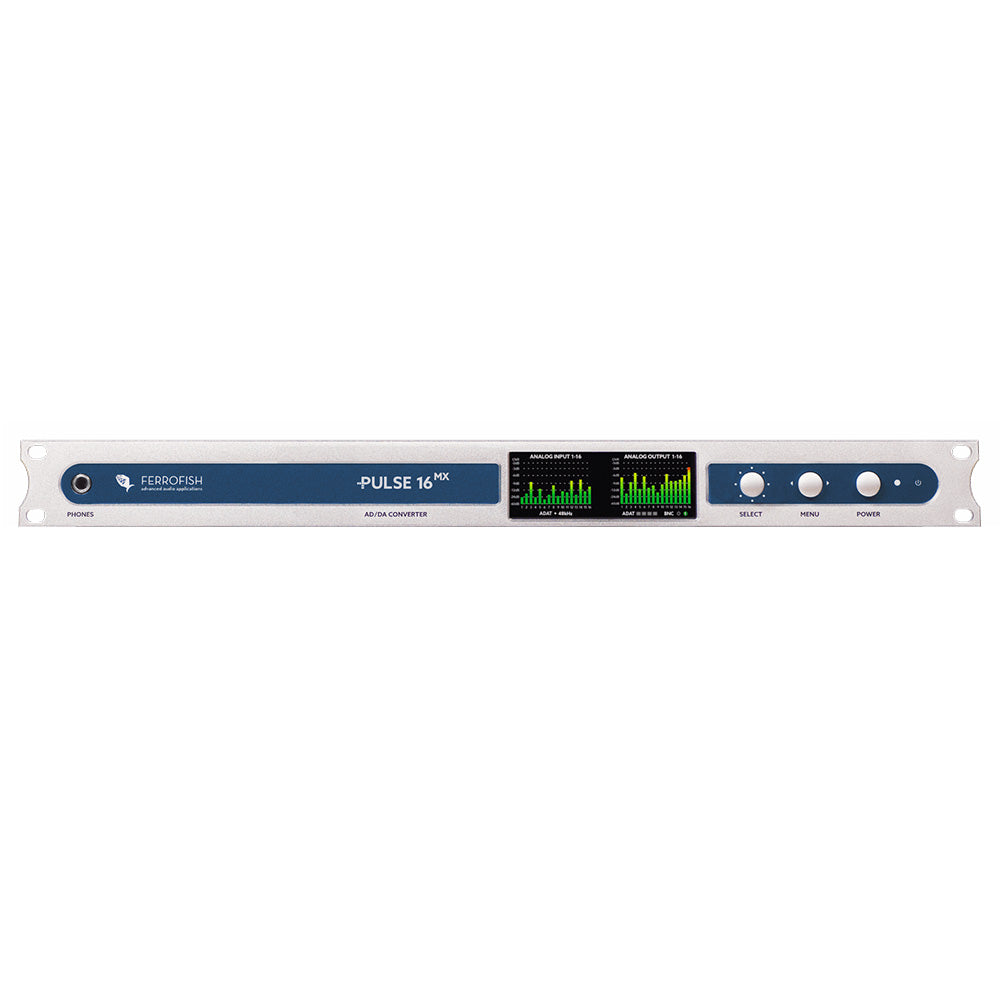

Dual TFT Display
Two high-resolution TFT displays provide detailed level information for all 2 x 16 analog signals – allowing the overview of the signal flow in and out of the unit. The innovative on-board contextual help, much loved by Ferrofish users, allows it to use the high-tech device, without reaching for the manual.

Internal Routing Matrix
The PULSE16 MX provides a sophisticated internal matrix for the free routing and splitting of all 112 Ins to all 112 Outs in blocks of 8 channels. The headphone output on the front allows it to monitor every mono or stereo I/O directly on the unit.

More +

Product Specs

MADI I/O (AES10)
Type SFP port for MADI optical Multimode or Singlemode SFP module
Processing 64 channels @32kHz, 44.1kHz, 48kHz
32 channels @64kHz, 88.2kHz, 96kHz
16 channels @128kHz, 176.4kHz, 192kHz
Support of MIDI over MADI Yes
Latency 2 samples
Analog Inputs (AD)
Processing 2 x CS5368 (Cirrus Logic)
Connectors 16 x TRS ¼” (6.3mm), female
Analog switches +20dBu, +13dBu, +4dBu
Digital gain +20dBu ... -8dBu, 1dB steps
Latency @48kHz: 7.8/fs, 0.16ms
@96kHz: 5.4/fs, 0.06ms
@192kHz: 6.6/fs, 0.03ms
OpAmps RC4580
Level indicator TFT screen, 28 levels
Analog Outputs (DA)
Processing 2 x CS4365 (Cirrus Logic)
Connectors 16 x TRS ¼” (6.3mm), female
Digital gain +20dBu ... -8 dBu, 1dB steps
Latency @48kHz: 12/fs, 0.25ms
@96kHz: 9/fs, 0.09ms
@192kHz: 5/fs, 0.03ms
OpAmps RC4580
Headphones Out
Connection 1 x ¼” (6.3mm) TRS jack, stereo
Controls Selectable mono or stereo source.
Digitally controlled volume level.
ADAT I/O
Connection 4+4 optical ports (8 channels each with 48 kHz)
Conversion 16 channels @32kHz, 44.1kHz, 48kHz
16 channels @64kHz, 88.2kHz, 96kHz
8 channels @128kHz, 176.4kHz, 192kHz (SMUX4 - only with installed MADI MX option)
Latency 2 samples
MIDI I/O
Connection 2 x DIN5 connector for remote control of the unit
Conversion MIDI <> MIDI over MADI possible (MADI MX option required.)
Wordclock I/O
Type BNC: 1 x input, 1 x output
75 Ohm Termination switchable for input
Power Supply
Rating 12V, 3A
1 x power supply included
Connection 1 x input jack with screw lock.
Power required 12VA in operation, 0,1VA in standby mode
(Efficiency Level VI)
Circuit Protection Internal resettable polyfuse
Additional Features SMUX4 with 192 kHz operation (requires installed MADI option).
Delay-compensation for MADI chain (requires installed MADI option).
MIDI over MADI Preset Management (requires installed MADI option)
Internal Clock
Type TCXO (temp. compensated oscillator) with high accuracy
Initial accuracy +/-1.5ppm
Over temperature range +/-2.5ppm
Aging +/-1ppm
PLL
Type Digitally controlled PLL / Jitter reduction system
Output jitter 50ps ... 100ps typ.
LCD Displays
Type 2 x TFT Color Screens for the complete control of all analog I/O levels and all settings of the unit
Control One Key Control provides an easy control of all functions.
Multi language help pages guides available (No need to study the manual.)
Dimensions
Rack Space 1RU
Depth 19cm (7.5”) (including connectors)
Weight 2 kg (4.4lbs)
Ambient temperature 41°F up to 113°F (+5°C up to +45°C)
