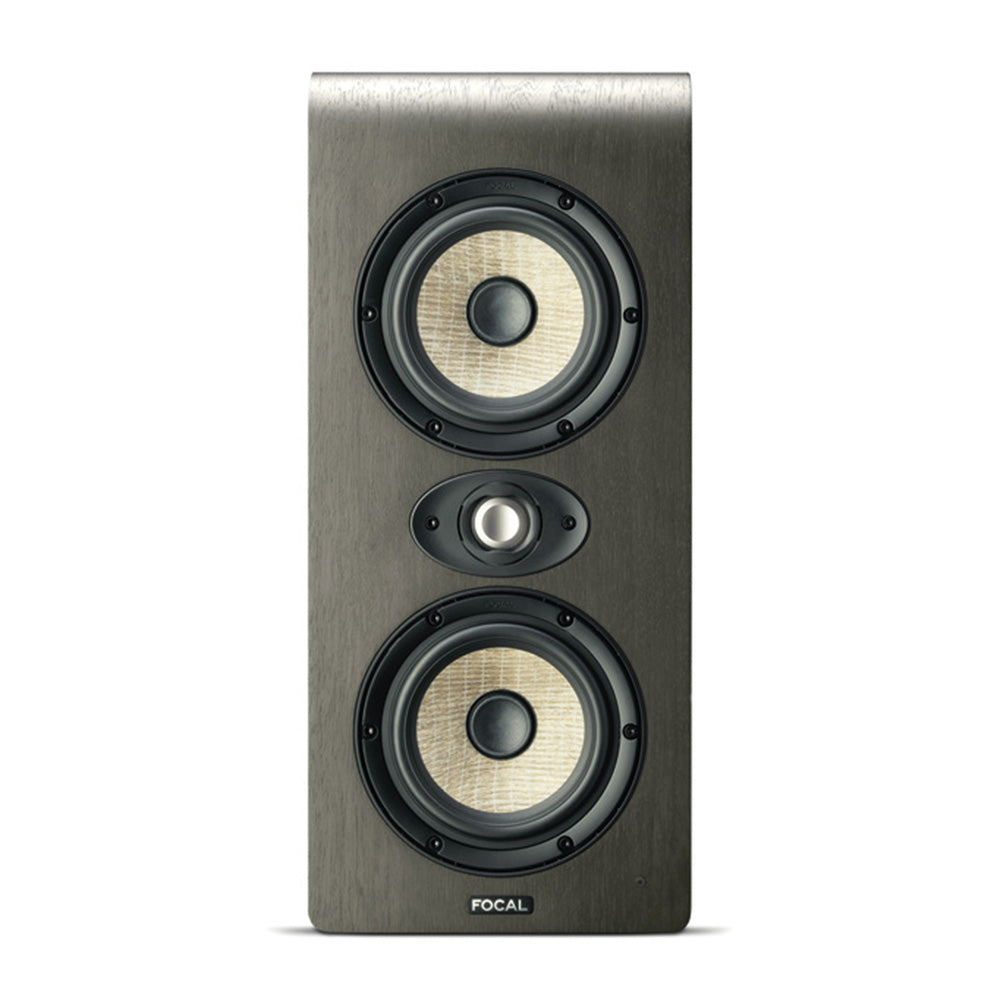

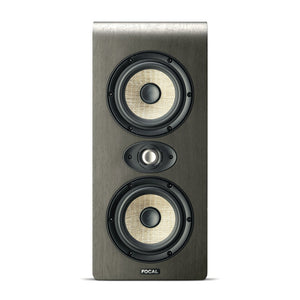

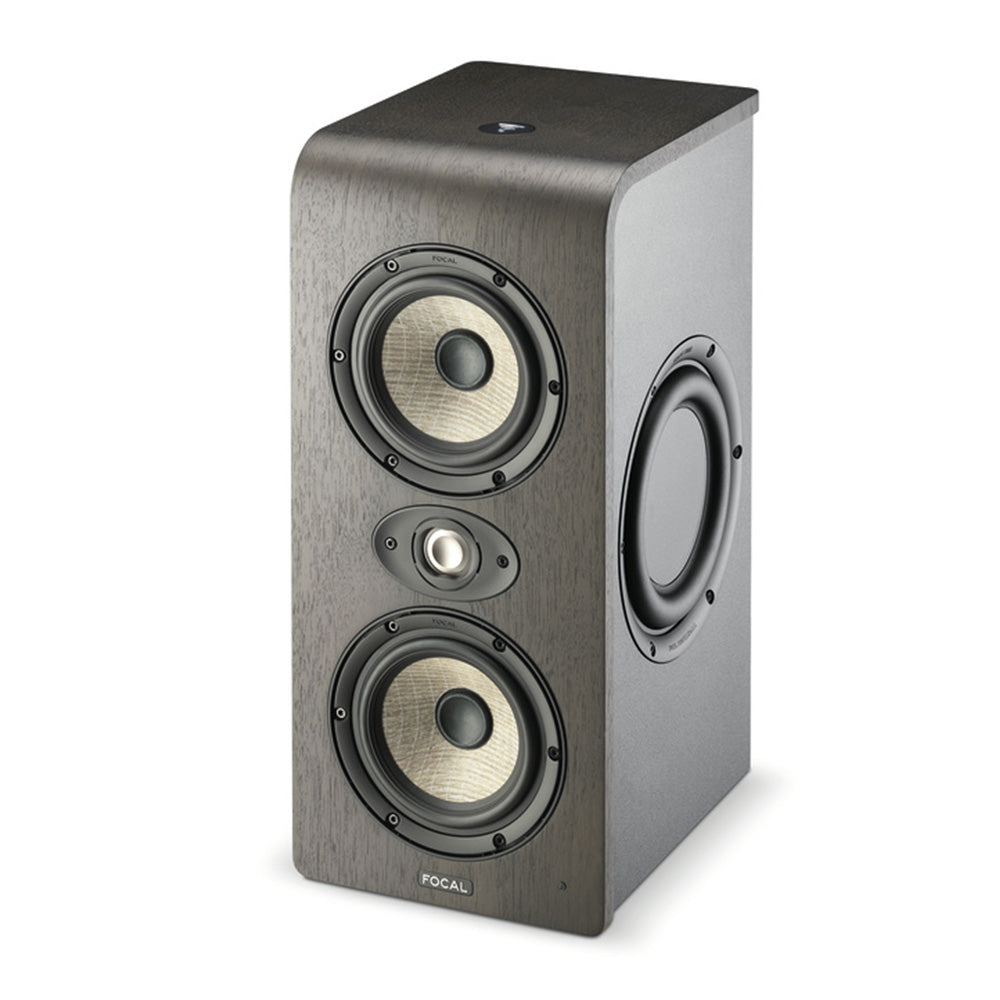

Focal Professional Shape Twin - Active Dual 5-Inch Studio Monitor (Single)

  • Dale #:

    FOCA-SHAPETWIN
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Shape Twin is the standard bearer of the Shape series and stands out through its excellent rendering of the whole audio spectrum, in addition to its broad frequency response in the low end, and to its high SPL considering its size. The compact design makes it easy to integrate, even into the most... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Shape Twin is the standard bearer of the Shape series and stands out through its excellent rendering of the whole audio spectrum, in addition to its broad frequency response in the low end, and to its high SPL considering its size. The compact design makes it easy to integrate, even into the most cramped of rooms. Its 2.5-way design gives it a decisive advantage when it comes to controlling the bass and lower mid-range registers which are the hardest to control in small rooms. This monitor will express its full potential from a listening distance of three feet away (1 metre).

Features:

  • Tweeter with very low directivity for a exible sweet spot
  • Designed without a port (double passive radiator) allowing it to be placed near a wall
  • 2.5 channels to provide optimal control of bass and low mid-range registers
  • Numerous settings for optimal integration
  • Accurate control, even in the very high frequencies
  • Flax sandwich cone: controlled and articulated bass, natural and detailed lower mid-range and upper
    mid-range registers
  • Fastening mechanisms for mounting to the ceiling or a wall (fastening accessories not supplied)

More +

Product Specs

System
Frequency response (+/- 3dB) 40Hz - 35kHz
Maximum SPL (of musical signals) 110.5dB SPL (peak at @ 1m)
Electronics
Inputs / Impedance
Type XLR: balanced 10 kOhms
RCA connectors: unbalanced 10 kOhms with sensitivity compensation
Mid-range and low frequency amplifier 2 x 80W, class AB
High frequency amplifier 50W, class AB
Automatic standby Approximately 30 minutes with no signal
Deactivate standby Signal detection > 3mV
Voltage 220-240V (fuse T2AL / 250V) or 100-120V (fuse T3.15AL / 250V)
Power supply IEC connector and detachable power cable
Settings
High-pass filter Adjustable Full range 45/60/90Hz
Bass level (0 - 250Hz) Adjustable, +/-6 dB
Midrange/bass (160 Hz, Q=1) Adjustable, +/-3 dB
Treble level (4.5 - 35kHz) Adjustable, +/-3 dB
Power on/off On/off switch on rear panel
Power consumption in standby < 0.5W
Displays and controls LED for power on/o and standby
Transducers
Woofers 2 x 5" (13cm) Flax Cone woofers
Tweeter 1" (25mm) 'M'-shaped Aluminum/Magnesium
Cabinet
Construction 0.6" (15mm) MDF
Finish Vinyl, real walnut and black paint
Dimensions including 4 rubber feet (HxLxD) 18.8 x 8.3 x 11" (478 x 211 x 279mm)
Weight 24lbs (11kg)
Recommended mounting kits
Wall mounting kit K&M® 24471 + K&M® 24359 adapter
Ceiling mounting kit K&M® 24496 + K&M® 24359 adapter

More +
