Focal Professional Sub 12 - High-Efficiency Studio Subwoofer
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

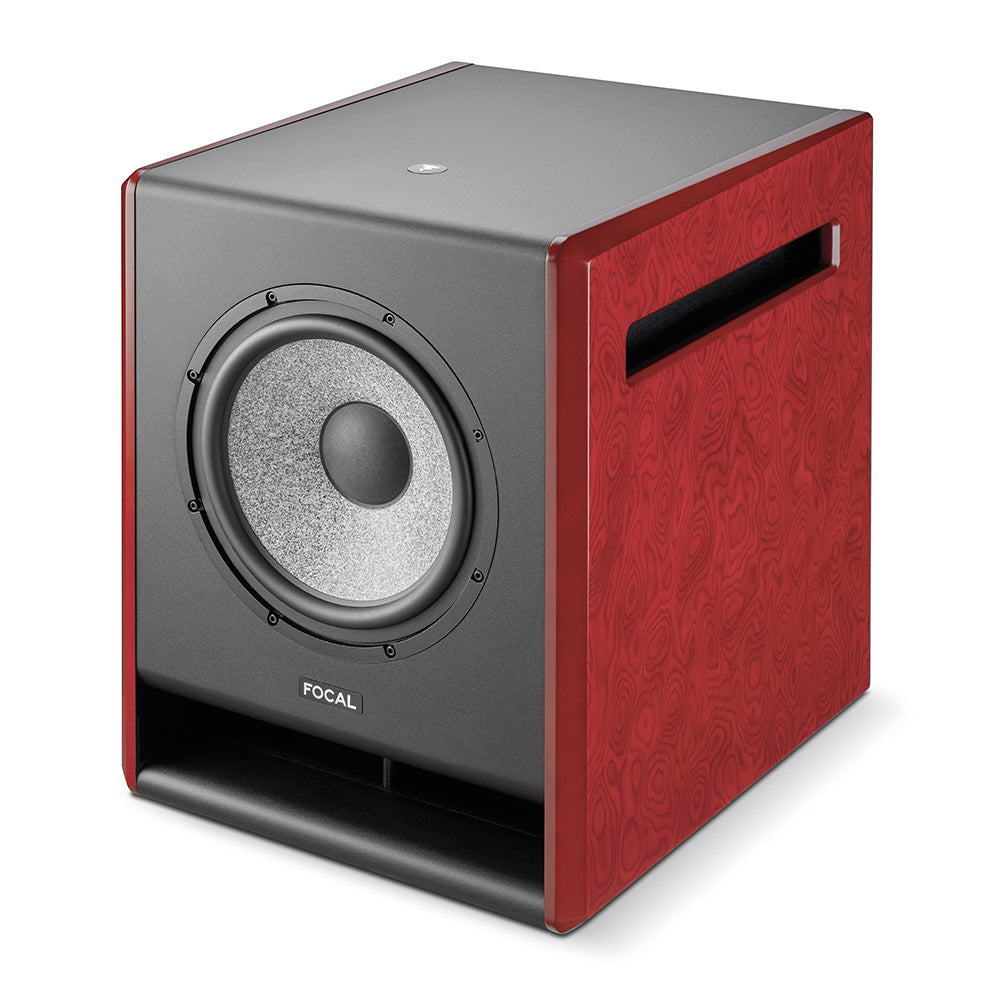

For producers and sound engineers looking for deep sub-bass, here is the answer: Sub12. Made in France in Focal's own workshops, this subwoofer delivers unrivalled articulation, impact and depth. Thanks to its 13" (33cm) speaker driver with 'W'-shaped cone and very high excursion, as well as its BASH amplifier with 600W RMS and 1000W peak-to-peak power, the sound reproduction is more impactful and faithful than ever.

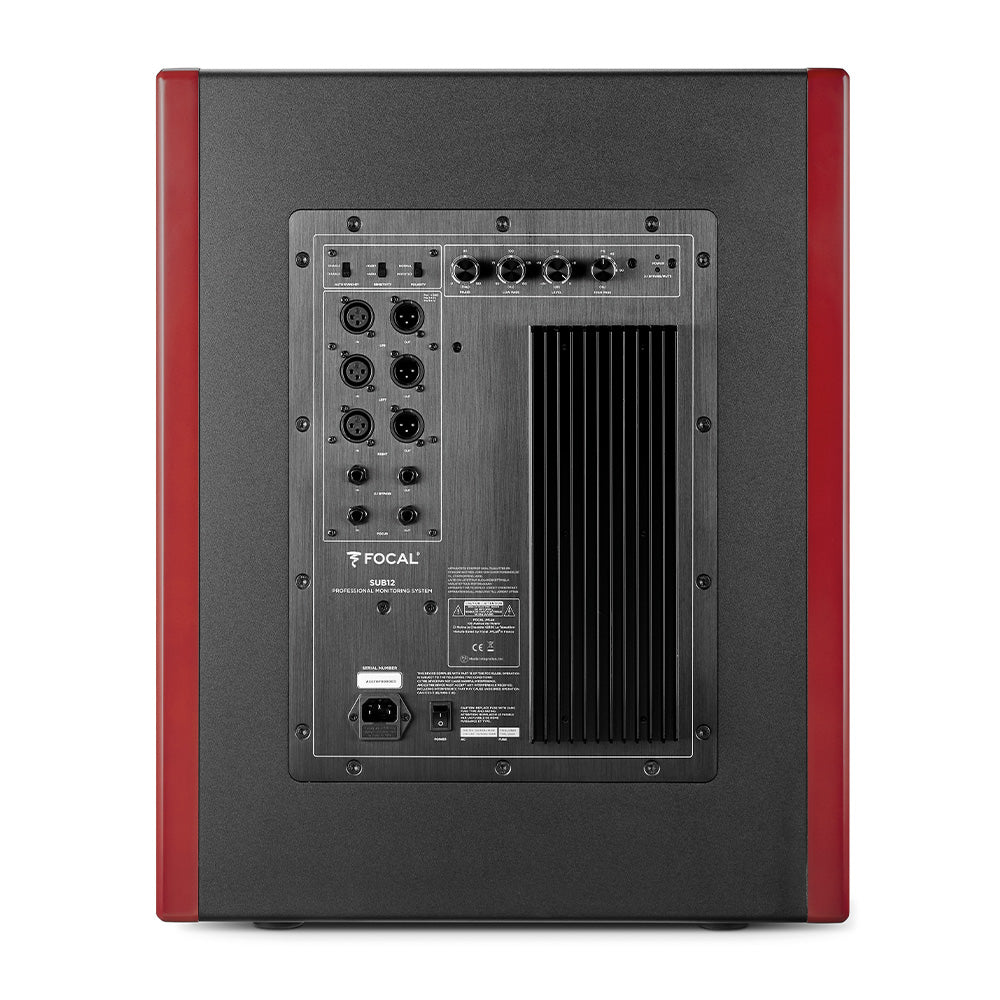

In addition, there are optimised braces and a front vent inspired by Focal's Trio11 monitors, as well as internal and external vents to reduce noise and distortion. At the back, a full set of bass controls can be used to perfectly adjust the settings for any system - low-pass, high-pass and variable phases - making Sub12 a truly remarkable professional tool.
Features:
- Composite sandwich 'W'-cone: sound neutrality, no distortion
- Large laminar port: no port noises or distortion
- Automatic disengageable stand-by mode
- Amplification: 600W RMS, 1000W peak
- Carry handle
| Type | Subwoofer |
| Frequency response (@ -3dB) | 30Hz - 400Hz |
| Low cut-off frequency (@ -6dB) | 28Hz |
| Maximum SPL (Average CEA2010B 30-200 Hz free field @ 1m) | 124.5dB |
| Inputs | Balanced XLR LFE 10k½, Left and Right 10k½ |
| Outputs | Balanced XLR LFE (in parallel), Left and Right 50½ |
| Bass amplifier stage | 600W RMS |
| Nominal power supply | ~100Ð120 VAC/220Ð240 VAC 50/60Hz |
| User controls | Sensitivity, Stand-by, Polarity, Phase, LPF, Volume, HPF |
| Fuses | ~100-120V, T10AL/250V ~220-240V, T5AL/250V |
| Internal signal processing and functions- Subwoofer section | Left/right mono summation LFE + mono low-pass 24dB/octave Phase adjustment Polarity selection Switchable high-pass crossover, frequency cut-off selection 24dB/octave |
| Outputs (to satellites) | Right, left |
| Type/Impedance | Electronically balanced / 50½ |
| Connector | 3-point male XLR |
| Bass | 1 x 13" (33cm) x ÔWÕ cone |
| Shielding | No |

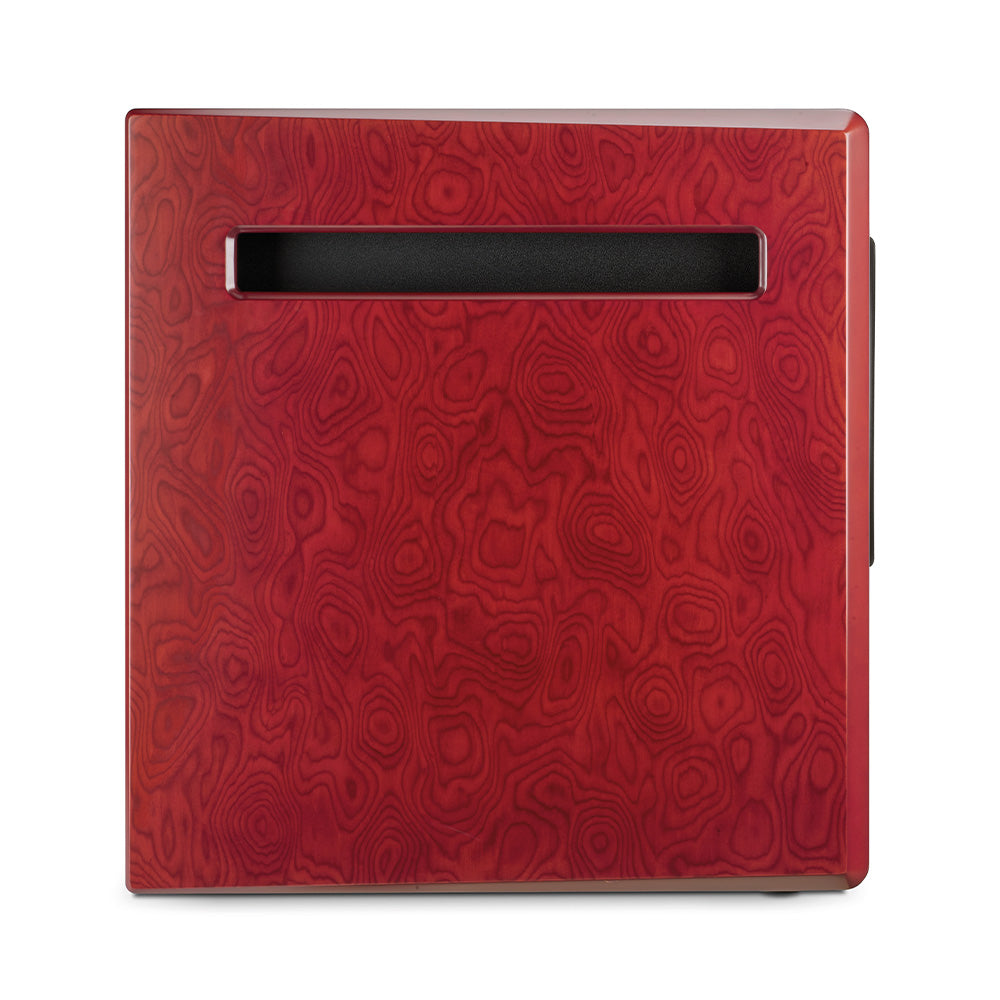

| Construction | Dark red natural veneering side panels, black body |
| Dimensions (HxWxD) | 23 5/8x19 1/8x22 3/8" (60x48.7x56.8cm) |
| Weight | 127.8lbs (58kg) |
| Temperature range | During use: 5-35¡C In storage: 0-50¡C |
For producers and sound engineers looking for deep sub-bass, here is the answer: Sub12. Made in France in Focal's own workshops, this subwoofer delivers unrivalled articulation, impact and depth. Thanks to its 13" (33cm) speaker driver with 'W'-shaped cone and very high excursion, as well as its BASH amplifier with 600W RMS and 1000W peak-to-peak power, the sound reproduction is more impactful and faithful than ever.
In addition, there are optimised braces and a front vent inspired by Focal's Trio11 monitors, as well as internal and external vents to reduce noise and distortion. At the back, a full set of bass controls can be used to perfectly adjust the settings for any system - low-pass, high-pass and variable phases - making Sub12 a truly remarkable professional tool.
Features:
- Composite sandwich 'W'-cone: sound neutrality, no distortion
- Large laminar port: no port noises or distortion
- Automatic disengageable stand-by mode
- Amplification: 600W RMS, 1000W peak
- Carry handle
| Type | Subwoofer |
| Frequency response (@ -3dB) | 30Hz - 400Hz |
| Low cut-off frequency (@ -6dB) | 28Hz |
| Maximum SPL (Average CEA2010B 30-200 Hz free field @ 1m) | 124.5dB |
| Inputs | Balanced XLR LFE 10k½, Left and Right 10k½ |
| Outputs | Balanced XLR LFE (in parallel), Left and Right 50½ |
| Bass amplifier stage | 600W RMS |
| Nominal power supply | ~100Ð120 VAC/220Ð240 VAC 50/60Hz |
| User controls | Sensitivity, Stand-by, Polarity, Phase, LPF, Volume, HPF |
| Fuses | ~100-120V, T10AL/250V ~220-240V, T5AL/250V |
| Internal signal processing and functions- Subwoofer section | Left/right mono summation LFE + mono low-pass 24dB/octave Phase adjustment Polarity selection Switchable high-pass crossover, frequency cut-off selection 24dB/octave |
| Outputs (to satellites) | Right, left |
| Type/Impedance | Electronically balanced / 50½ |
| Connector | 3-point male XLR |
| Bass | 1 x 13" (33cm) x ÔWÕ cone |
| Shielding | No |
| Construction | Dark red natural veneering side panels, black body |
| Dimensions (HxWxD) | 23 5/8x19 1/8x22 3/8" (60x48.7x56.8cm) |
| Weight | 127.8lbs (58kg) |
| Temperature range | During use: 5-35¡C In storage: 0-50¡C |
