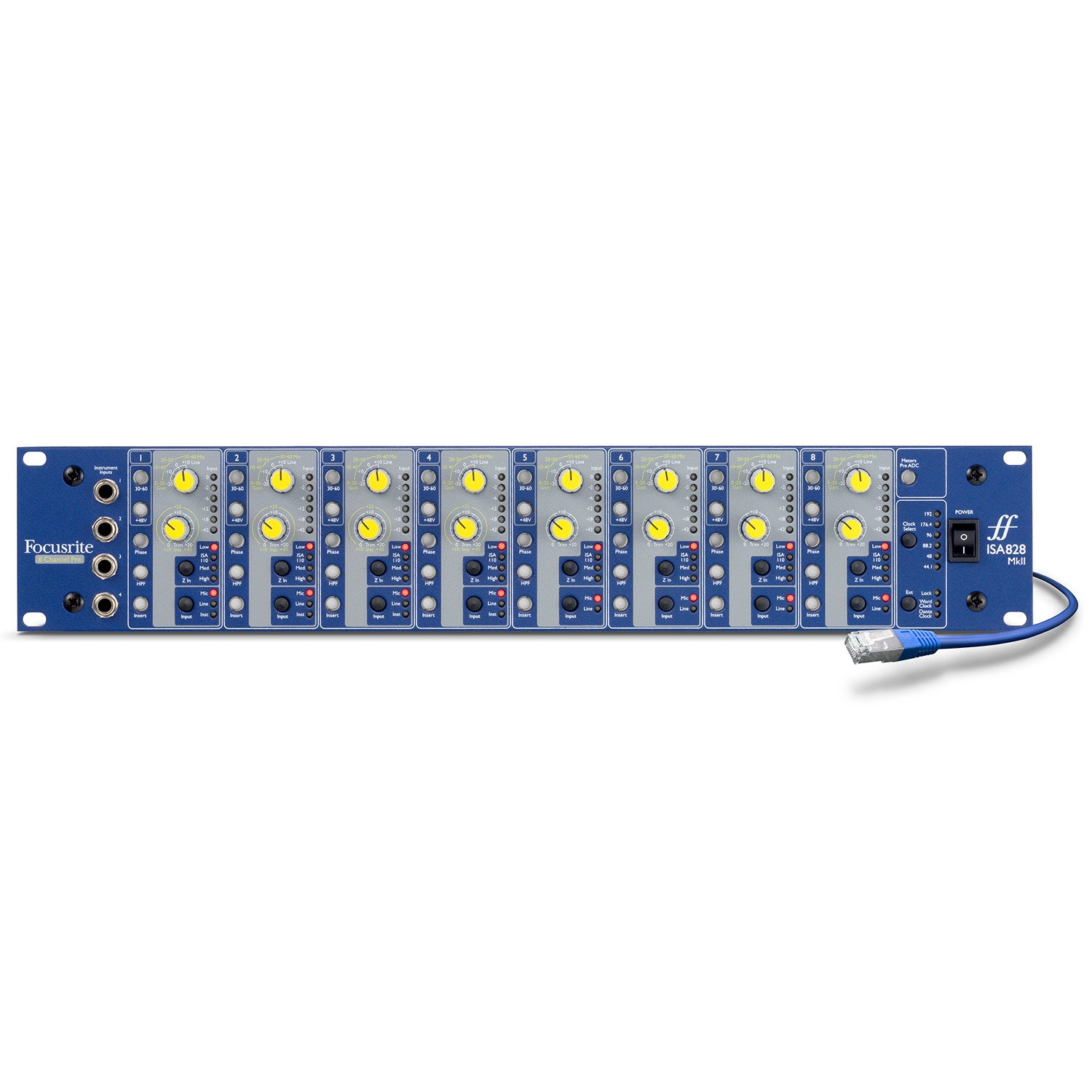

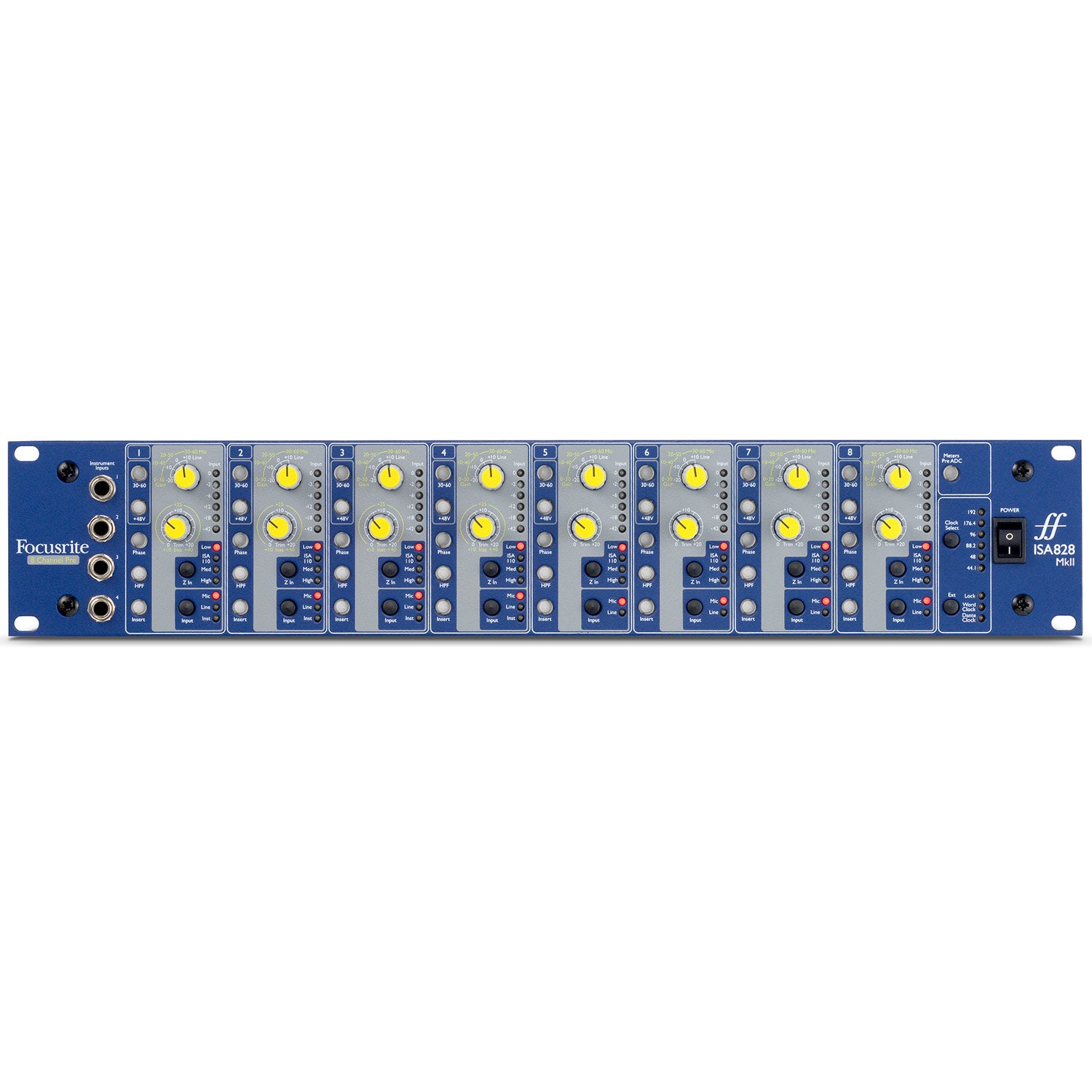

Focusrite ISA 828 MkII - Eight-Channel ISA Mic Preamp Featuring Lundahl Input Transformers

  • Dale #:

    FOCU-AMSISA828MKII
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Sharing the simple mic preamp design of the original Focusrite ISA 110 module from the Focusrite Studio Console, ISA 828 MkII incorporates eight of Focusrite's classic mic preamps, with Lundahl LL1538 transformers on every input. Each channel has the option of mic or line inputs, while inputs 1-4... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Sharing the simple mic preamp design of the original Focusrite ISA 110 module from the Focusrite Studio Console, ISA 828 MkII incorporates eight of Focusrite's classic mic preamps, with Lundahl LL1538 transformers on every input. Each channel has the option of mic or line inputs, while inputs 1-4 also feature instrument inputs on the front panel. Each mic pre has variable input impedance, to provide a range of subtly different sonic options when using microphones, including an 'ISA 110' setting, which replicates the impedance of the original Focusrite mic pre.

Features:

  • Optional A-D card with up to 192kHz, 24-bit sampling offers high-quality, precision digital audio conversion to Dante, ADAT and AES3
  • Classic ISA mic preamp design featuring Lundahl LL1538 input transformer
  • Switching power supply design allows for efficient and cool operation
  • Front-panel instrument inputs to first four channels
  • Line inputs with dedicated input connectors and front-panel switch
  • Switchable input impedance including classic ISA 110 setting
  • High-pass filters
  • Switchable insert points when used with A-D card
  • Calibratable, per-channel six-segment LED peak-level meters

Up to 60dB of gain is available, with a further +20dB of continuously variable trim, providing a huge 80dB gain range. The high-pass filter features variable cut-off frequency between 16 and 420Hz. ISA 828 MkII features high-pass filters, calibratable per-channel, six-segment LED meters, and switchable rear-panel insert points, which allow the use of inline processors such as compressors or EQs.

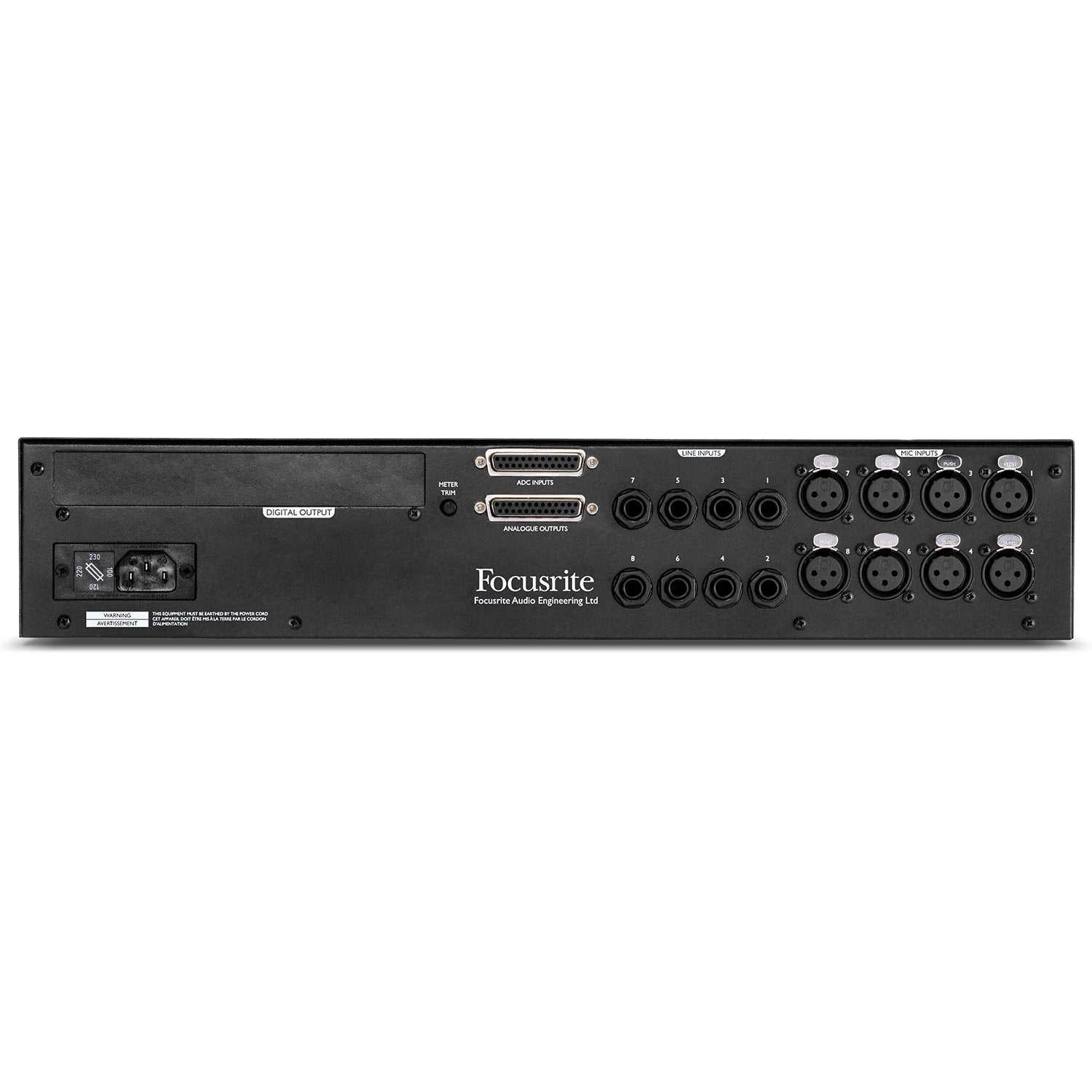

Dedicated connectors for mic and line-level inputs allow all sources to be connected simultaneously, making ISA 828 MkII perfect for permanent installation in a rack. New to the ISA 828 MkII is an updated power supply that allows for more efficient power consumption, a reduction in heat generation, and extremely reliable operation. The optional ISA ADN8 analogue-to-digital expansion card provides eight Dante, ADAT and AES3 outputs at rates of up to 24-bit/192kHz.

In the Box:

  • ISA 828 MkII
  • 1 x IEC mains cables
  • Important Information Guide
  • Registration code giving access to online resources

Focusrite now offers a 3-Year Warranty on this and all other Focusrite products.

Red, RedNet, and ISA customers get a free plug-in from Focusrite and Brainworx!
Brainworx bx_console Focusrite recreates the analogue signal paths of Focusrite’s revered ISA 110 and ISA 130 modules which were a part of the Focusrite Studio Console.

Designed and coded by the DSP geniuses at acclaimed software house Brainworx, the new bx_console Focusrite VST/AU/AAX plugin for Mac and PC faithfully captures the sound, feel and styling of our original iconic hardware.

With bx_console Focusrite retailing separately for $349, its inclusion for free with all Red, RedNet, and ISA purchases is a huge deal!
