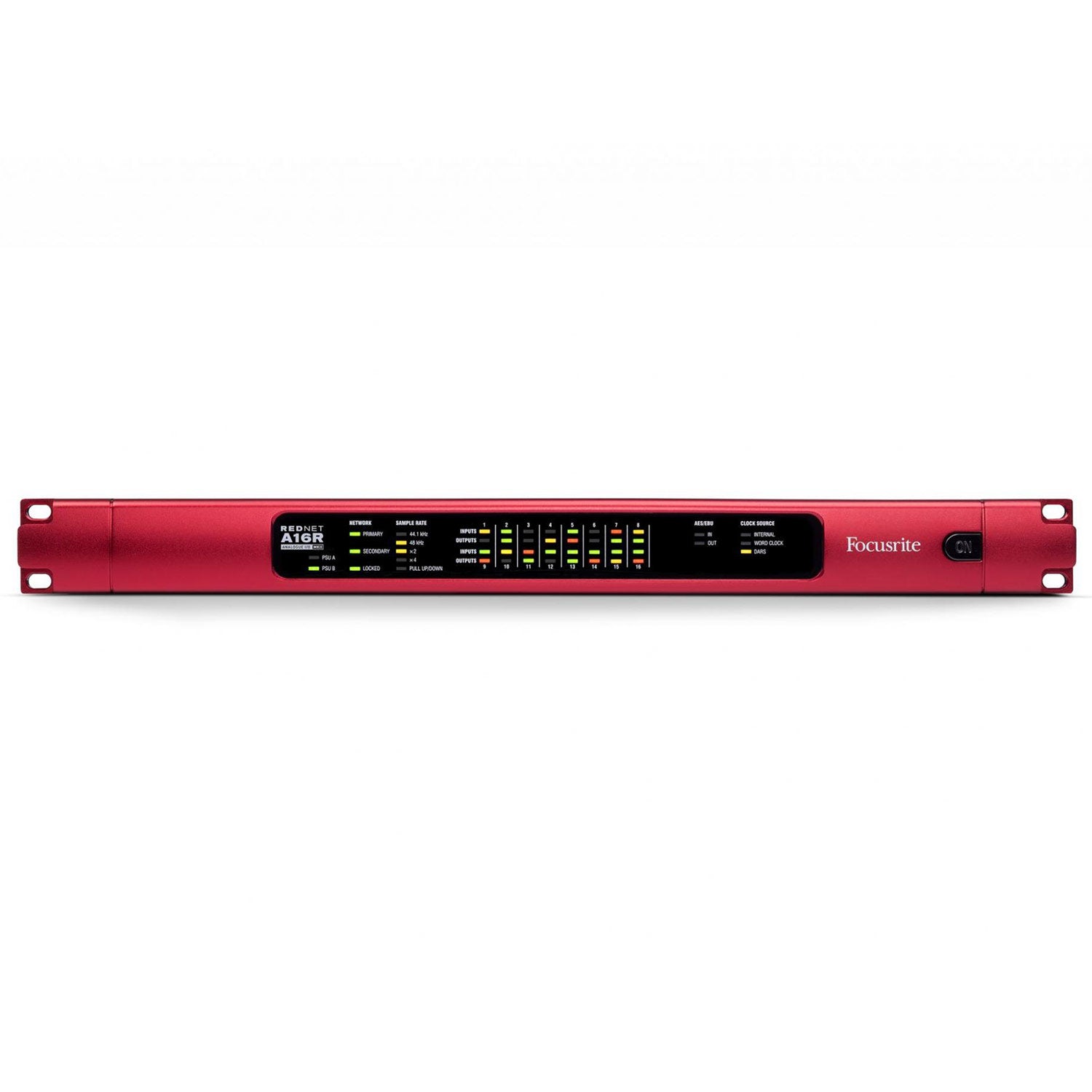

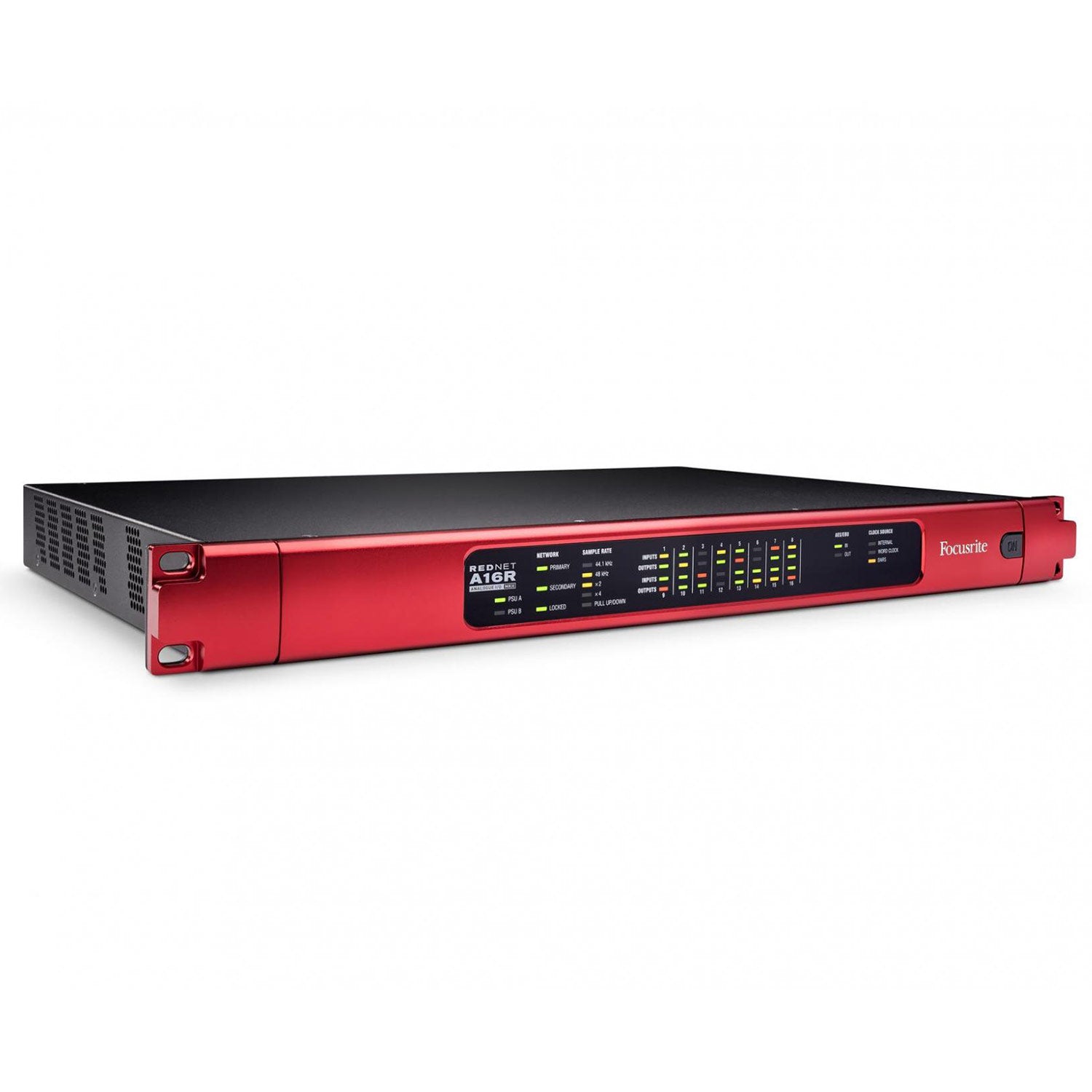

RedNet A16R MkII is a 16-channel analogue Interface for Dante networks, with two channels of AES3 I/O. Individual input and output channel level controls allow for precise adjustment of all I/O levels using RedNet Control. With two power supplies and primary and secondary etherCON network connectors, RedNet A16R MkII is perfect for critical-path applications in recording, post-production, live sound and broadcast. Built-in redundancy features allow for silent fail-over in the event of power or network outage, providing reassurance for system technicians.
Features:
- 16-channel bi-directional analogue interface for Dante networks, with additional two-channel AES3 I/O.
- Precision A-D and D-A conversion with 119dB dynamic range, flat from 20Hz - 20 kHz (+/- 0.15dB).
- Individual input/output channel level control using RedNet Control software.
- Dual PSUs with locking IEC inlets.
- Dual locking etherCON connectors for Primary and Secondary network connections.
- Power supply and ethernet redundancy with auto switchover in case of failure.
- Front-panel LED indicators for PSU, network, sample rate, signal present and clock source status.
- Sample rate conversion on the AES3 inputs allows external equipment to run at any sample rate.
- Analogue I/O on four AES59 standard DB25 connectors.
- Digital I/O on a pair of XLR connectors (AES3).
- Rear panel XLR connector can either be used as a DARS input or as a traditional AES3 audio input.
- BNC connectors for Word Clock input and output.
- Compact 1U chassis allows maximum functionality in minimum rack space.
- AES67 and AES70 compliant
- SMPTE ST 2110 compliant (requires Dante Domain Manager, sold separately)
- Full operability with Focusrite RedNet and Red interfaces, plus all Dante devices from hundreds of manufacturers.
- Remote control and device management with RedNet Control. Routing and audio subscription management using Dante Controller.
Analogue inputs and outputs are connected through four rear-panel AES59-configured DB25 connectors, while an additional pair of AES3 I/O is provided through male and female XLR for added flexibility. The XLR input can accept DARS signals in addition to AES3. Word Clock I/O on BNC connectors allows external devices to clock to RedNet A16R MkII, or alternatively allows RedNet A16R MkII to act as a network clock grand master, synchronised to external input. RedNet A16R MkII is well suited to permanent installation and repeated strike and setup: all connectors lock and remain terminated even under stress, providing worry-free installation and peace of mind once situated in a rack. In addition, all Focusrite Pro products come with a three-year warranty and award-winning customer support.
What's in the box:
- RedNet A16R MkII
- 2x IEC AC mains cables
- 2x IEC retaining clips
- Focusrite Pro important information guide provides links to:
- RedNet Control
- RedNet PCIe drivers (included with RedNet Control download)
- Audinate Dante Controller (installed with RedNet Control)
System Requirements:
-
Mac OS X
- 10.13 macOS High Sierra
- 10.14 macOS Mojave
- 10.15 macOS Catalina
- 10.16 macOS Big Sur
-
Windows
- Windows 10
Red, RedNet, and ISA customers get a free plug-in from Focusrite and Brainworx!
Brainworx bx_console Focusrite recreates the analogue signal paths of Focusrite’s revered ISA 110 and ISA 130 modules which were a part of the Focusrite Studio Console.
Designed and coded by the DSP geniuses at acclaimed software house Brainworx, the new bx_console Focusrite VST/AU/AAX plugin for Mac and PC faithfully captures the sound, feel and styling of our original iconic hardware.
With bx_console Focusrite retailing separately for $349, its inclusion for free with all Red, RedNet, and ISA purchases is a huge deal!
| Input / Output Trim | |
| Input Trim | -78 to 0dB in 1dB steps (per channel) |
| Output Trim | -78 to 0dB in 1dB steps (per channel) |
| Line Inputs All measurements taken at +24dBu reference level, Rs = 50? | |
| 0dBFS Reference Levels | +18 or +24dBu (switchable) |
| Frequency Response | 20h Ð 20kHz ± 0.1dB |
| THD + N | <-105dB (0.0005623%) unweighted, 20Hz Ð 20kHz; -1dBFS input |
| EIN | -95dBu 'A'-Weighted (typical) |
| Signal-to-Noise Ratio | 119dB 'A'-Weighted (typical) |
| Converter Dynamic Range | 120dB 'A'-Weighted (typical), 10Hz Ð 20kHz |
| Line Outputs All measurements taken at +24dBu reference level, RL = 100k? | |
| 0 dBFS Reference Levels | +18 or +24dBu (switchable) |
| Frequency Response | 20Hz Ð 20kHz ± 0.1dB |
| THD + N | <-100dB (0.001%) unweighted, 20Hz Ð 20kHz; +23dBu input |
| Noise in Presence of Signal | -94dBu 'A'-Weighted (typical) |
| Dynamic Range | 118dB 'A'-Weighted (typical) |
| Converter Dynamic Range | 120dB 'A'-Weighted (typical), 10Hz Ð 20kHz |
| Crosstalk | |
| Input to Output or Input | <-100dB unweighted, 20Hz Ð 20kHz; +23dBu input |
| Output to Input or Output | <-100dB unweighted, 20Hz Ð 20kHz; -1dBFS input |
| Digital Input Sample Rate Converters | |
| Sample Rate Range | 32kHz to 216kHz |
| Gain Error | -0.3dB |
| Dynamic Range | >138dB |
| THD + N | <-130dB (0.00003%) |
| Latency | 11 to 45 samples (network and sample rate dependent) |
| Digital Performance | |
| Supported Sample Rates | 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24 bit |
| Clock Sources | Internal, Word Clock, DARS or from Dante Network Master. |
| External Word Clock Range | Nominal sample rate ±7.5% |
| Rear Panel Connectivity | |
| Analogue Inputs | |
| Line Inputs | 2 x DB-25 connectors |
| Analogue Outputs | |
| Line Outputs | 2 x DB-25 connectors |
| AES3 | |
| Channel Count | 2 x 2 AES3 channels |
| Input (optional DARS) | 1 x Female XLR (Switchable with analogue input channels 15 and 16 at quad rates) |
| Output | 1 x Male XLR (Duplicate of analogue output channels 15 and 16 at quad rates) |
| Word Clock | |
| Word Clock Input | 1 x BNC 75? port (switchable termination) |
| Word Clock Output | 1 x BNC 75? port |
| PSU / Network Connections | |
| PSU | 2 x IEC Inputs with retaining clips. |
| Network | 2 x etherCON NE8FBH-S, also compatible with standard RJ45 connectors (Accomodates rugged etherCON NE8MC*. Does not intermate with Cat 6 cable connector NE8MC6-MO and NKE65* cable) |
| Front Panel Indicators | |
| Primary PSU (A) | Green LED. Illuminates when an AC input is applied and all DC outputs are present. |
| Secondary PSU (B) | Green LED. Illuminates when an AC input is applied and all DC outputs are present. |
| Primary Network | Green LED. Indicates that a network connection is present on primary port when in redundant mode. When in Switched mode, a valid network connection at either Primary or Secondary network port will cause this LED to illuminate. |
| Secondary Network | Green LED. Indicates that a network connection is present on secondary port when in redundant mode. Not used in switched mode. |
| Network Locked | Green LED. When unit is network slave, shows valid network lock. When unit is network master, shows lock to internal clock. |
| Sample Rate | Orange LED for each: 44.1 kHz, 48 kHz, x2, x4. |
| Pull Up/Down | Orange LED. Indicates that the unit is set to operate on a Dante pull up/down domain. |
| Channel Signal Level | 16 Input and 16 Output tri-state signal level LEDs: Green LED (> -42dB), Orange LED (> -6dB) and Red (> 0dB) |
| AES3 signal indicators | 2 I/O signal indicator LEDs (one input, one output). Green LED illuminates>-127dBFS |
| Clock Source | Orange LED for each: Internal, Word Clock and DARS |
| Network Modes | |
| Redundant | Allows unit to connect to two independent networks. |
| Switched | Connects both ports to integrated network switch allowing daisy-chaining of devices. |
| Power | |
| PSU | 2 x Internal, 100-240V, 50/60Hz, consumption 30W |
| Heat Performance | |
| Operating Temperature | Operates at up to an ambient temperature of 50 degrees Celcius |
| Fan | Two-step Dual Fans which increase in speed when reaching temperatures towards 50 degrees ambient temperature |
