DALE SKU # FOCU-AMSREDNETHD32R

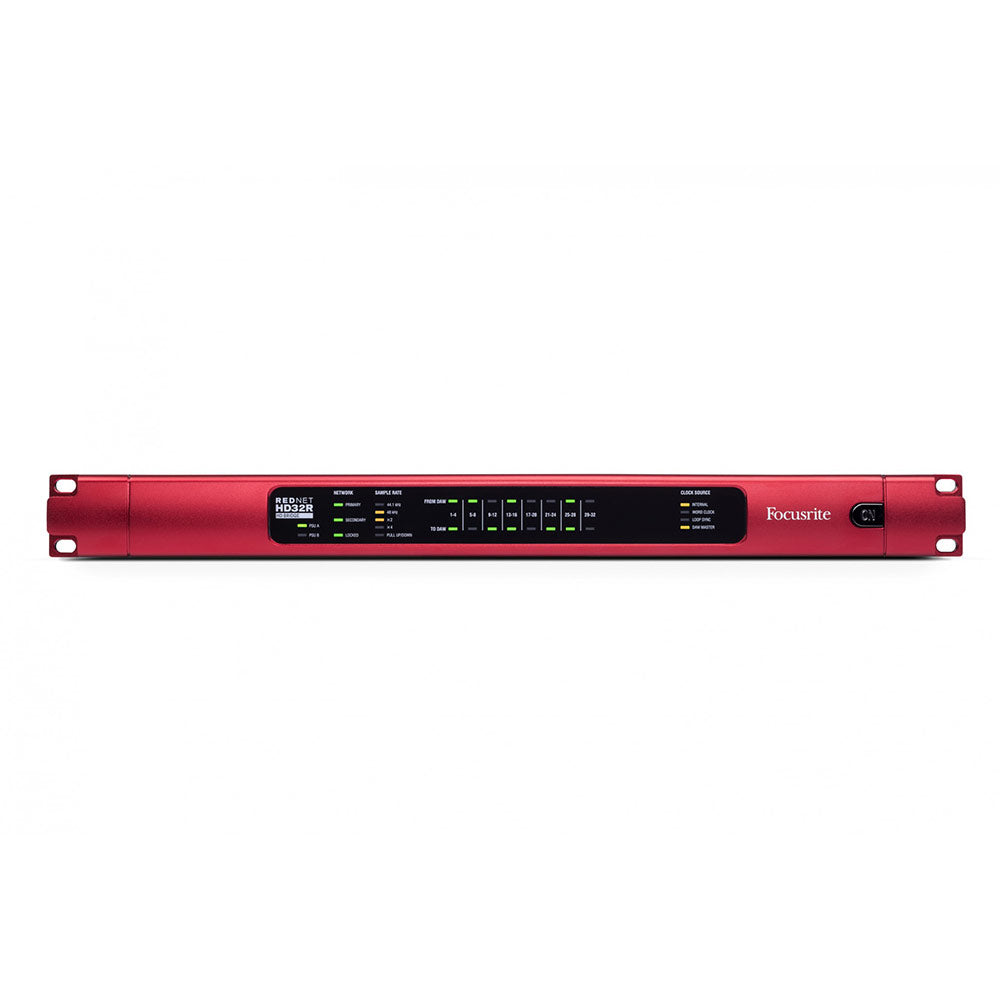

Focusrite RedNet HD32R 32x32 Pro Tools|HD to Dante Audio Network Interface

Sale price$2,499.99
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    RedNet HD32R is a 1U, 19in rack-mount Dante interface that allows Pro Tools|HD users direct access to the full benefits of the Dante digital audio networking system, including its uniquely flexible network topology and premium quality audio interfaces. The Pro Tools system is connected to the HD32R via standard Mini DigiLink ports. HD32R acts as a 64-channel (32 in/32 out) digital break in/out box, operating in the same way as a standard interface, and supporting a wide range of Pro Tools|HDX and HD cards. Up to six HD32R modules can be used with a Pro Tools|HDX system and three with Pro Tools|HD, allowing the maximum channel count for either. The HD32R features a rugged, roadworthy exterior and high internal build quality, with Ethernet and power supply redundancy. In addition, it offers a compact 1U rack-mount form factor for a full 32 channels of I/O.

    Features:

    • Allows Dante Ethernet-based audio networking products to interoperate fully with Pro Tools|HD & Pro Tools|HDX
    • Ethernet and power supply redundancy with auto switchover in case of failure and locking connectors
    • Provides the vital link to create an extensive high-quality audio network based on standard Cat 5e or Cat 6 wiring, bringing the latest advances in digital audio networking to Pro Tools|HD
    • Cost-effectively increase audio I/O quality and flexibility with RedNet interfaces
    • Permits multiple workstations to access the same interface hardware and I/O
    • No changes to Pro Tools workflow required – simple, logical assignment of RedNet I/O to Pro Tools|HD inputs and outputs
    • Up to 32 I/O with Pro Tools|HD over single DigiLink connection per RedNet HD32R
    • Additional Avid/Digidesign interfaces may be connected to expansion ports
    • Upgrade to RedNet interfaces while remaining fully compatible with TDM- or AAX-DSP-based plugins and saved sessions

    Red, RedNet, and ISA customers get a free plug-in from Focusrite and Brainworx!
    Brainworx bx_console Focusrite recreates the analogue signal paths of Focusrite’s revered ISA 110 and ISA 130 modules which were a part of the Focusrite Studio Console.

    Designed and coded by the DSP geniuses at acclaimed software house Brainworx, the new bx_console Focusrite VST/AU/AAX plugin for Mac and PC faithfully captures the sound, feel and styling of our original iconic hardware.

    With bx_console Focusrite retailing separately for $349, its inclusion for free with all Red, RedNet, and ISA purchases is a huge deal!

    Digital Performance
    Supported Sample Rates44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24 bit
    Clock SourcesInternal, Word Clock, Loop Sync (master or slave) or from Dante Network Master.
    External Word Clock Range Nominal sample rate ±7.5%
    Rear Panel Connectivity
    Pro Tools|HDPrimary Port
    1 x Mini DigiLink
    Expansion Port
    1 x Mini DigiLink
    Loop Sync
    Word Clock Input1 x BNC 75 port
    Word Clock Output1 x BNC 75 port
    Word Clock
    Word Clock Input1 x BNC 75 port (switchable termination)
    Word Clock Output1 x BNC 75 port
    PSU / Network Connections
    PSU2 x IEC Inputs with retaining clips.
    Network2 x etherCON connectors, also compatible with standard RJ45 connectors.
    Front Panel Indicators
    Primary PSU (A)Green LED. Illuminates when an AC input is applied and all DC outputs are present.
    Primary PSU (B)Green LED. Illuminates when an AC input is applied and all DC outputs are present.
    Primary NetworkGreen LED. Indicates that a network connection is present on primary port when in redundant mode. When in Switched mode, a valid network connection at either Primary or Secondary network port will cause this LED to illuminate.
    Secondary NetworkGreen LED. Indicates that a network connection is present on secondary port when in redundant mode. Not used in switched mode.
    Network LockedGreen LED. When unit is network slave, shows valid network lock. When unit is network master, shows lock to indicated clock source. Flashing indicates external clock is selected but not connected.
    Sample RateOrange LED for each: 44.1 kHz, 48 kHz, x2, x4.
    Pull Up/DownOrange LED. Indicates unit is set to operate on a Dante pull up/down domain.
    Signal Indicators16 Green LEDs, 8 input/8 output indicators. Illuminate @ -126dBFS.
    Clock SourceOrange LED for each: Internal, Word Clock, Loop Sync and DAW Master.
    Network Modes
    RedundantAllows unit to connect two independent networks.
    SwitchedConnects both ports to integrated network switch allowing daisy-chaining of device.
    DimensionsHeight
    44.5mm/ 1.75"
    Width
    482.6mm/ 19"
    Depth
    263mm/ 10.35"
    Weight3.9kg
    PowerPSU
    2 x Internal, 100-240V, 50/60Hz, consumption 30VA.

    RedNet HD32R is a 1U, 19in rack-mount Dante interface that allows Pro Tools|HD users direct access to the full benefits of the Dante digital audio networking system, including its uniquely flexible network topology and premium quality audio interfaces. The Pro Tools system is connected to the HD32R via standard Mini DigiLink ports. HD32R acts as a 64-channel (32 in/32 out) digital break in/out box, operating in the same way as a standard interface, and supporting a wide range of Pro Tools|HDX and HD cards. Up to six HD32R modules can be used with a Pro Tools|HDX system and three with Pro Tools|HD, allowing the maximum channel count for either. The HD32R features a rugged, roadworthy exterior and high internal build quality, with Ethernet and power supply redundancy. In addition, it offers a compact 1U rack-mount form factor for a full 32 channels of I/O.

    Features:

    • Allows Dante Ethernet-based audio networking products to interoperate fully with Pro Tools|HD & Pro Tools|HDX
    • Ethernet and power supply redundancy with auto switchover in case of failure and locking connectors
    • Provides the vital link to create an extensive high-quality audio network based on standard Cat 5e or Cat 6 wiring, bringing the latest advances in digital audio networking to Pro Tools|HD
    • Cost-effectively increase audio I/O quality and flexibility with RedNet interfaces
    • Permits multiple workstations to access the same interface hardware and I/O
    • No changes to Pro Tools workflow required – simple, logical assignment of RedNet I/O to Pro Tools|HD inputs and outputs
    • Up to 32 I/O with Pro Tools|HD over single DigiLink connection per RedNet HD32R
    • Additional Avid/Digidesign interfaces may be connected to expansion ports
    • Upgrade to RedNet interfaces while remaining fully compatible with TDM- or AAX-DSP-based plugins and saved sessions

    Red, RedNet, and ISA customers get a free plug-in from Focusrite and Brainworx!
    Brainworx bx_console Focusrite recreates the analogue signal paths of Focusrite’s revered ISA 110 and ISA 130 modules which were a part of the Focusrite Studio Console.

    Designed and coded by the DSP geniuses at acclaimed software house Brainworx, the new bx_console Focusrite VST/AU/AAX plugin for Mac and PC faithfully captures the sound, feel and styling of our original iconic hardware.

    With bx_console Focusrite retailing separately for $349, its inclusion for free with all Red, RedNet, and ISA purchases is a huge deal!

    Digital Performance
    Supported Sample Rates44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24 bit
    Clock SourcesInternal, Word Clock, Loop Sync (master or slave) or from Dante Network Master.
    External Word Clock Range Nominal sample rate ±7.5%
    Rear Panel Connectivity
    Pro Tools|HDPrimary Port
    1 x Mini DigiLink
    Expansion Port
    1 x Mini DigiLink
    Loop Sync
    Word Clock Input1 x BNC 75 port
    Word Clock Output1 x BNC 75 port
    Word Clock
    Word Clock Input1 x BNC 75 port (switchable termination)
    Word Clock Output1 x BNC 75 port
    PSU / Network Connections
    PSU2 x IEC Inputs with retaining clips.
    Network2 x etherCON connectors, also compatible with standard RJ45 connectors.
    Front Panel Indicators
    Primary PSU (A)Green LED. Illuminates when an AC input is applied and all DC outputs are present.
    Primary PSU (B)Green LED. Illuminates when an AC input is applied and all DC outputs are present.
    Primary NetworkGreen LED. Indicates that a network connection is present on primary port when in redundant mode. When in Switched mode, a valid network connection at either Primary or Secondary network port will cause this LED to illuminate.
    Secondary NetworkGreen LED. Indicates that a network connection is present on secondary port when in redundant mode. Not used in switched mode.
    Network LockedGreen LED. When unit is network slave, shows valid network lock. When unit is network master, shows lock to indicated clock source. Flashing indicates external clock is selected but not connected.
    Sample RateOrange LED for each: 44.1 kHz, 48 kHz, x2, x4.
    Pull Up/DownOrange LED. Indicates unit is set to operate on a Dante pull up/down domain.
    Signal Indicators16 Green LEDs, 8 input/8 output indicators. Illuminate @ -126dBFS.
    Clock SourceOrange LED for each: Internal, Word Clock, Loop Sync and DAW Master.
    Network Modes
    RedundantAllows unit to connect two independent networks.
    SwitchedConnects both ports to integrated network switch allowing daisy-chaining of device.
    DimensionsHeight
    44.5mm/ 1.75"
    Width
    482.6mm/ 19"
    Depth
    263mm/ 10.35"
    Weight3.9kg
    PowerPSU
    2 x Internal, 100-240V, 50/60Hz, consumption 30VA.
