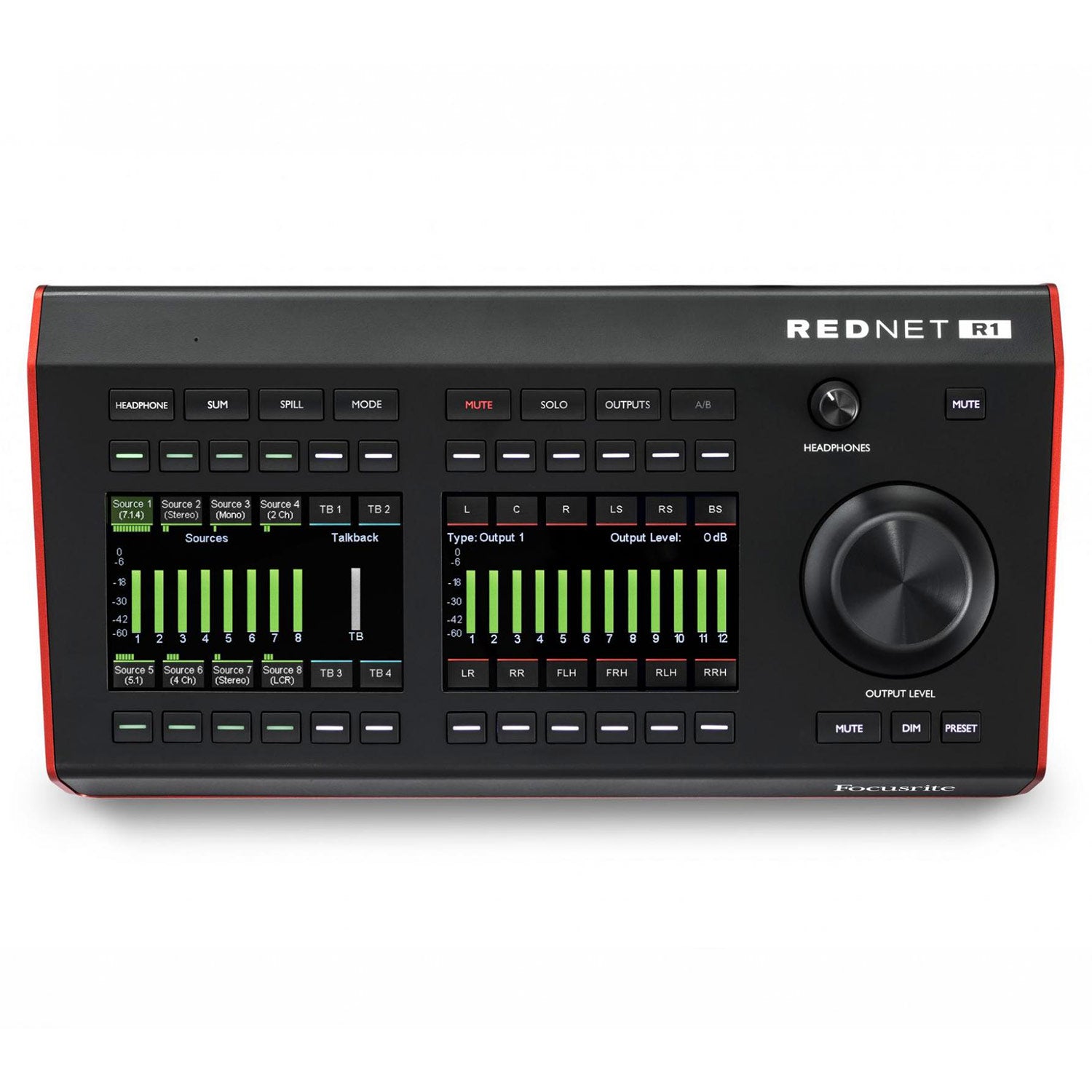

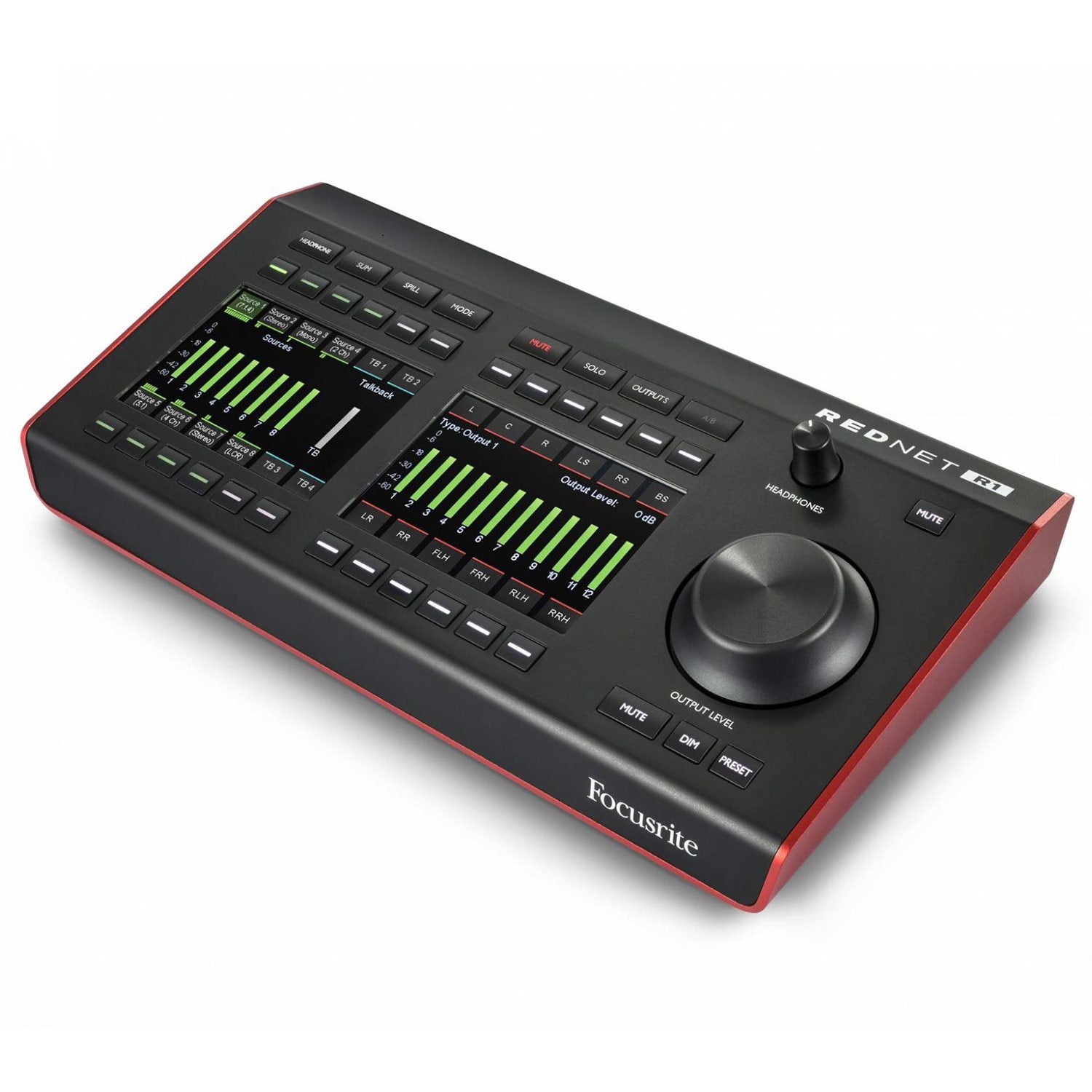

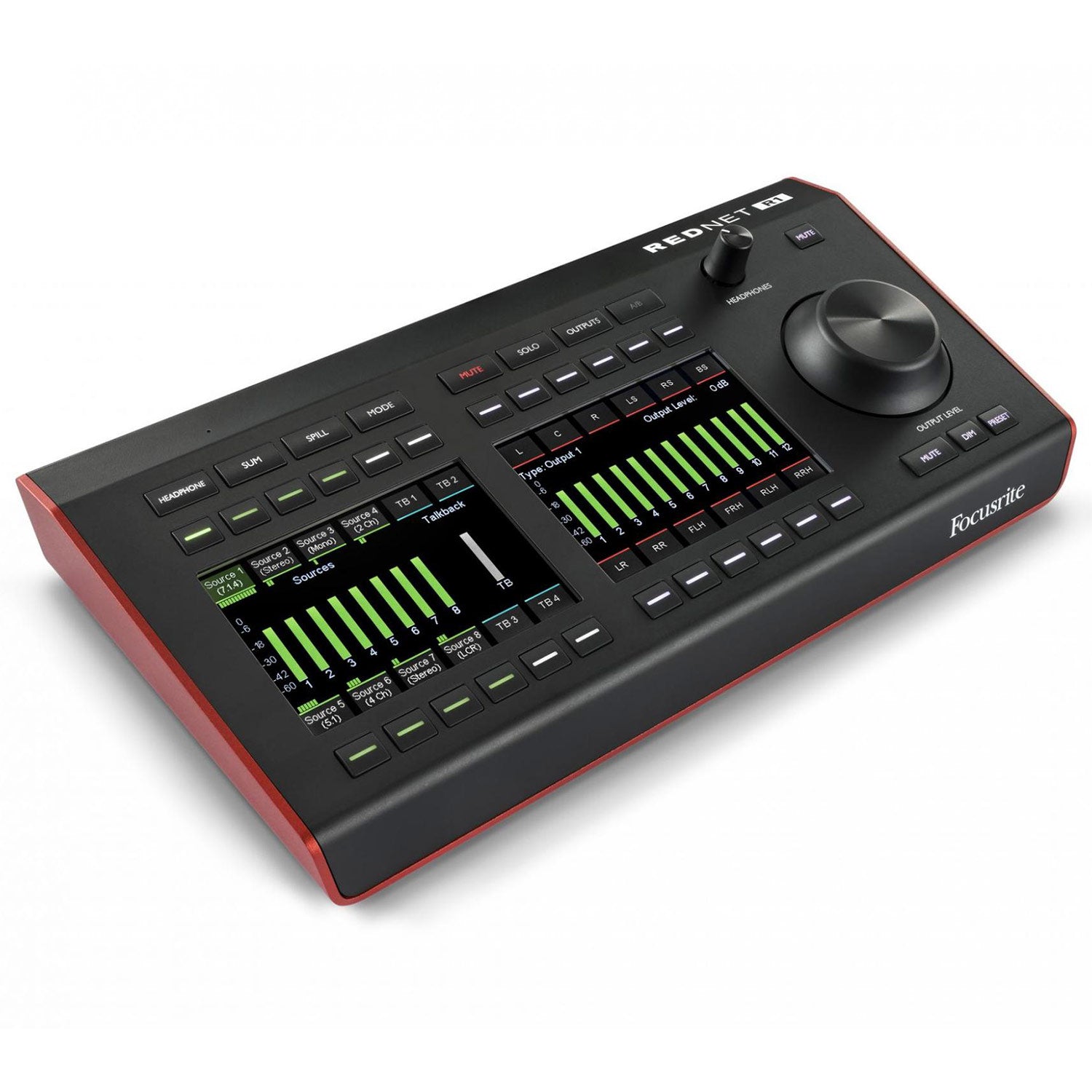

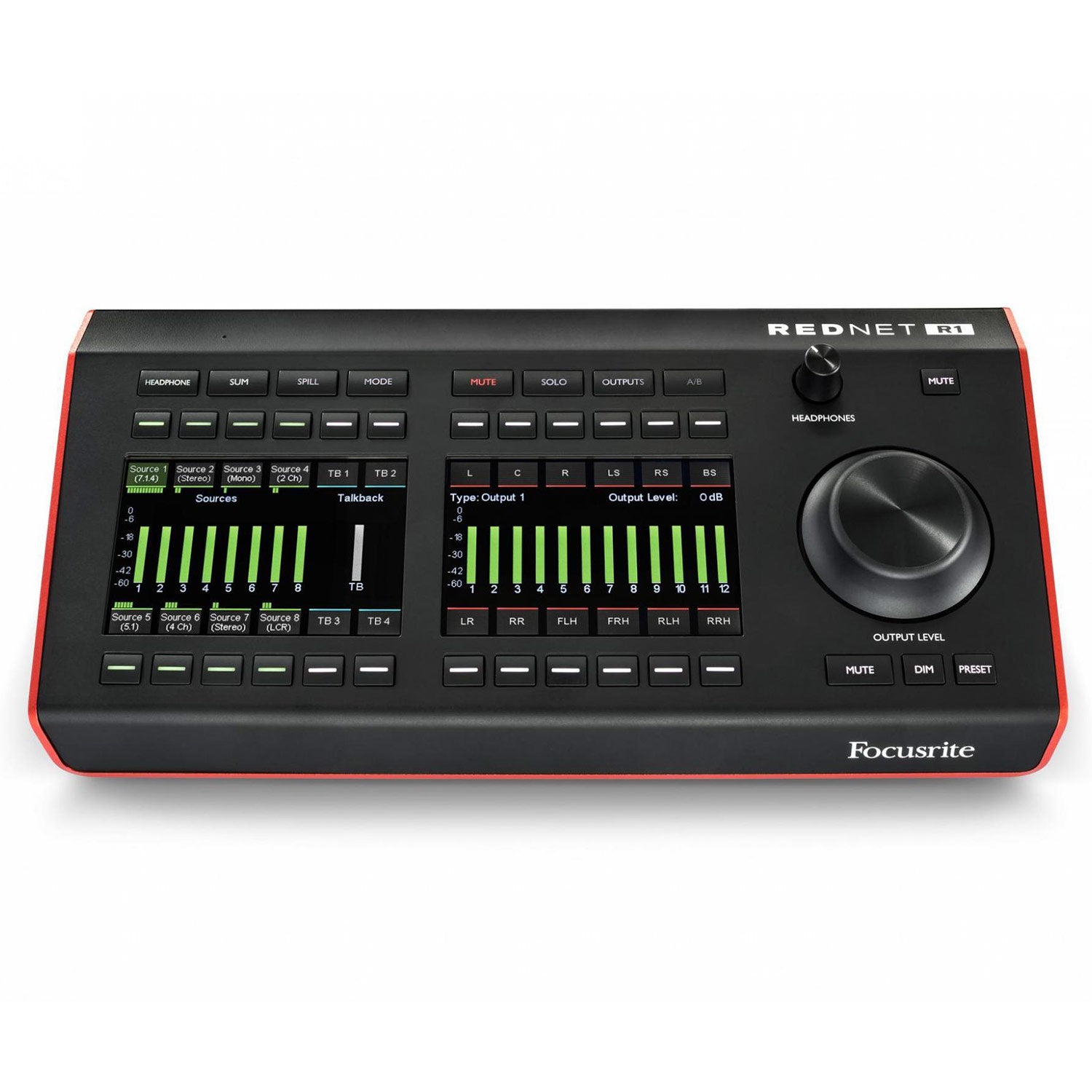

Focusrite RedNet R1 Dante, Pro Tools | HD and Thunderbolt Interface System with Monitor Controller

  • Dale #:

    FOCU-AMSREDNETR1
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

RedNet R1 enables users to interact with their audio system like never before. It provides the flexibility to control a range of different monitor output setups, ranging from mono through to 7.1.4 surround, including Dolby Atmos® and other immersive audio workflows. Alternatively, completely cust... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

RedNet R1 enables users to interact with their audio system like never before. It provides the flexibility to control a range of different monitor output setups, ranging from mono through to 7.1.4 surround, including Dolby Atmos® and other immersive audio workflows. Alternatively, completely custom setups of up to 12 outputs can be configured for bespoke speaker configurations. RedNet R1 can be used to control groups of outputs from a Red interface's multitude of sources and destinations, including from Pro Tools | HD and other DAWs, analogue inputs and outputs, ADAT and S/PDIF connections, and from entire Dante audio ecosystems, simultaneously and interchangeably.

Features:

  • Desktop remote controller for Red audio interfaces
    • The first Dante®, Pro Tools | HD™ and Thunderbolt™ interface system with a monitor controller.
  • Switch and sum
    • Supports a maximum of eight channels, each of up to 12 sources per channel, from 32 available audio sources.
  • Flexible monitor control
    • Controls include level, reference level, preset selection, cut, dim, mute, A/B switch, and a variety of solo modes.
  • Monitor fold-downs
    • Up to four fold-down presets allow fast switching for checking downmixes.
  • Talkback & headphones functionality
    • Four destination groups when used with a Red interface, or a single talkback group when used with other Dante devices. High-fidelity output can take its source from a multitude of sources.
  • Built-in Microphone
    • RedNet R1 has an internal talkback microphone, or users can connect their own, via the rear-panel XLR.
  • Precision metering and display
    • Two LCD displays for highly accurate level metering of the outputs, sources and headphone outputs, and for giving visual cues for navigating around menus.
  • Software setup with hardware-focussed workflow
    • RedNet Control is designed for quickly setting up simple or complex configurations.
  • Footswitch input
    • Quarter-inch jack socket accepts a footswitch, for talkback management, LFE muting and more.
  • Power-over-Ethernet (PoE) support
    • Powered via Ethernet (using the PoE standard), or using a DC power supply.

RedNet R1 supports a maximum of eight input sources from 32 available audio channels, across analogue, digital, DAW and Dante connections, and mixes and routes signals to up to 12 monitor output channels. Top-panel control includes level, reference level preset selection, cut, dim, mute and a variety of solo modes. There's an A/B switch for switching between numerous monitoring presets, and up to four fold-down presets allow fast switching for checking downmixes. Custom cue mixes can be sent to talent from any of the 32 available inputs.

RedNet R1 also features a Dante-enabled talkback section, internal mic-pre and a high-powered headphones output, so you can interact with your Dante system like never before. Up to four talkback destination groups are available when used with a Red interface. (When used with other Dante devices, a single talkback group is available.) RedNet R1 has an internal microphone, or users can connect their own microphone via the rear-panel XLR. The high-fidelity headphone output is powerful enough to deliver high-SPL audio to high-impedance headphones.

RedNet R1 features two LCD displays for highly accurate level metering of the outputs, sources and headphone outputs, and for giving visual cues for navigating around menus. The unit is configured using RedNet Control 2, the software manager designed primarily for ease of use in quickly setting up both simple and complex monitoring and routing configurations. Other features of the RedNet R1 include a quarter-inch jack socket, which accepts a footswitch for talkback management, LFE muting and more. It can be powered via Ethernet to reduce cabling complexity (using the PoE standard), or by a DC power supply.

Warranty - Enjoy three years of warranty
Wherever you happen to be in the world, you can rely on a three-year warranty if any Focusrite hardware needs repairing or replacing due to a manufacturing fault. Focusrite will send you replacement gear in the UK and the US, and they'll cover the shipping costs both ways. In the UK, they'll send you a replacement before you return your hardware to them.

What's in the box:

  • RedNet R1
  • 1 x 12V 1.2A DC - 1.8m power supply cable (2.5mm locking plug)
  • 1 x Cat 6 RJ45 Ethernet Cable
  • Important Information Guide
  • Registration code giving access to online resources

Included Software:

  • RedNet Control
    • Software mixer with a hardware-focussed workflow, which is designed to allow quick setup of both simple and complex monitoring and routing configurations.

System Requirements:

  • Mac OS X
    • 10.13 macOS High Sierra
    • 10.14 macOS Mojave
    • 10.15 macOS Catalina
    • 10.16 macOS Big Sur
  • Windows
    • Windows 10

Red, RedNet, and ISA customers get a free plug-in from Focusrite and Brainworx!
Brainworx bx_console Focusrite recreates the analogue signal paths of Focusrite’s revered ISA 110 and ISA 130 modules which were a part of the Focusrite Studio Console.

Designed and coded by the DSP geniuses at acclaimed software house Brainworx, the new bx_console Focusrite VST/AU/AAX plugin for Mac and PC faithfully captures the sound, feel and styling of our original iconic hardware.

With bx_console Focusrite retailing separately for $349, its inclusion for free with all Red, RedNet, and ISA purchases is a huge deal!

More +

Product Specs

Internal Talkback All measurements taken at maximum gain unless otherwise stated, Rs = 150?
Gain Range0dB to 55dB
TypeElectronically Balanced, Zin = 3k?
Max. Input Level+10dBu ± 0.5dB
External Talkback All measurements taken at maximum gain unless otherwise stated, Rs = 150?
Gain Range0dB to 55dB
TypeElectronically Balanced, Zin = 3k?
Max. Input Level+10dBu ± 0.5dB
Frequency Response20Hz - 20kHz ± 2dB
THD + N< -98dB (0.0012%) @ -1dBFS
EIN< -128dBu 'A'-Weighted (typical)
Signal-to-Noise Ratio-111dB 'A'-Weighted (typical), min gain
Common-Mode Rejection Ratio50/60Hz CMRR: <-77dB
Headphone Output All measurements taken at +19dBm reference level, maximum gain, RL = 600?
0 dBFS Reference Levels+11dBm
Frequency Response20Hz to 20kHz ±0.5dB
THD + N-100dB (0.001%) @ -1dBFS, Rs = 150R
Dynamic Range108dB 'A'-weighted (typical), 20Hz - 20kHz
Noise in Presence of Signal (NiPoS)> -97 dBu 'A-Weighted'
Output Impedance5?
Headphone Impedance32? - 600?
Crosstalk
Microphone/ Line Crosstalk
Mic Input to Headphone Output< -122dB; 20Hz - 20kHz (all other channels at 0dBFS)
Headphone Output to Mic Input< -84dB; 20Hz - 20kHz (all other channels at 0dBFS)
Headphone Crosstalk
Left to Right< -85dB; 20Hz - 20kHz (all other channels at 0dBFS)
Right to Left< -85dB; 20Hz - 20kHz (all other channels at 0dBFS)
Digital Performance
Supported Sample Rates44.1 / 48 / 88.2 / 96 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24 bit
Clock SourcesInternal or from Dante Network Master.
Rear Panel Connectivity, Pots & Switches
Inputs
External Talkback Mic Input1 x XLR (F)
Foot Switch1 x 1/4" stereo jack
Outputs
Headphone Outputs1 x 1/4" stereo jack
Pots & Switches
Power Switch1 x Switch
Talkback Gain Pot1 x Pot
Talkback Switch1 x Tri-State Switch (External Talkback + 48V, External Talkback and Internal Talkback).
PSU & Network Connections
PSU (PoE and DC)1 x PoE Input and 1 x DC 12V Locking Barrel Input Connector.
Network1 x Standard RJ45 connector.
Top Panel Indicators
LCD Screens2 x Screens (Control, Status, Metering & Menus)
Control Functions2 x Continuous Pot (Level & Dim). 1 x Pot (Headphone Output).
24 x Multi-Function Switches(Sources, Talkback, Monitor Outputs & Menu Items).
12 x Single-Function Switches (Headphones, Sum, Spill, Mode, Mute, Solo, Outputs, A/B, Cut x 2, Dim & Output Lock).
Power
Power over Ethernet (PoE)Complies with IEEE 802.3af class 0 Power-over-Ethernet standard (PoE A or PoE B compatible)
DC Power Supply1 x 12V 1.2A DC Power Supply.
Power ConsumptionPoE: 10.3W - DC: 9W (When using supplied DC PSU)
Heat Performance
Operating TemperatureOperates at up to an ambient temperature of 40 degrees Celsius
