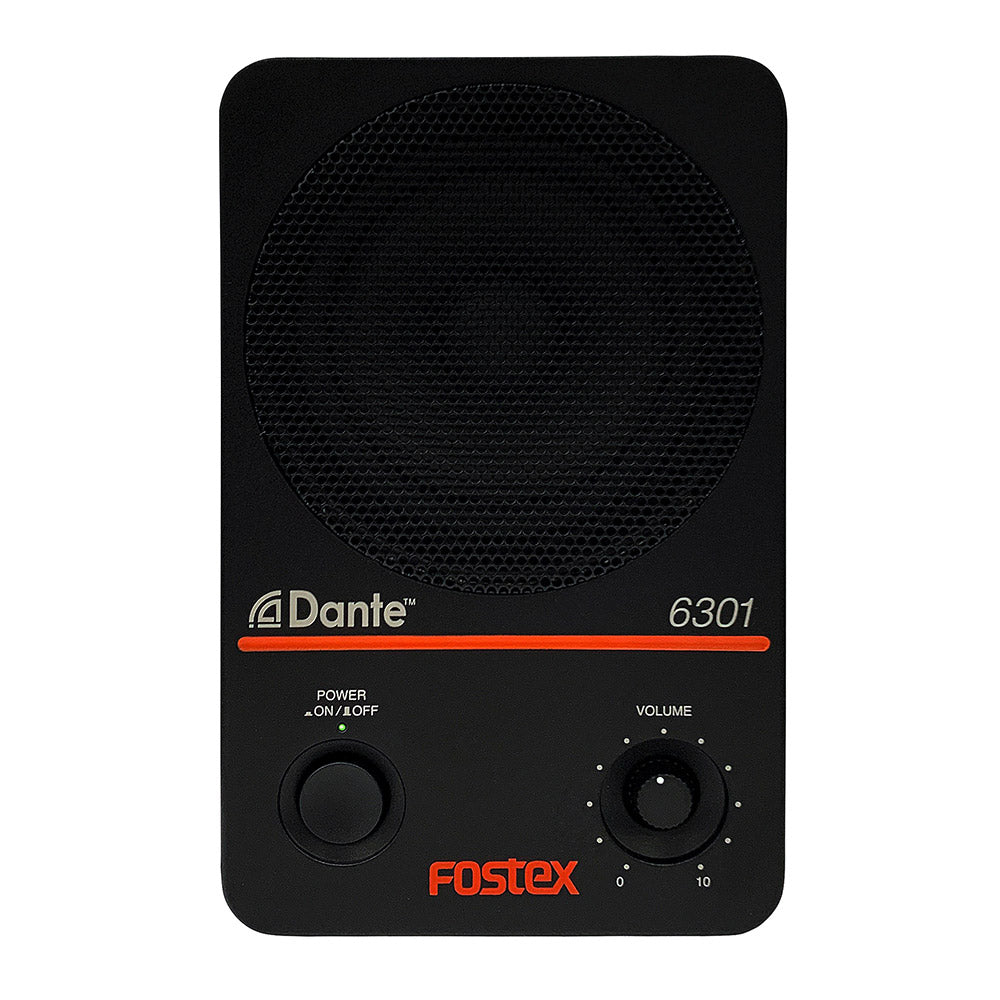

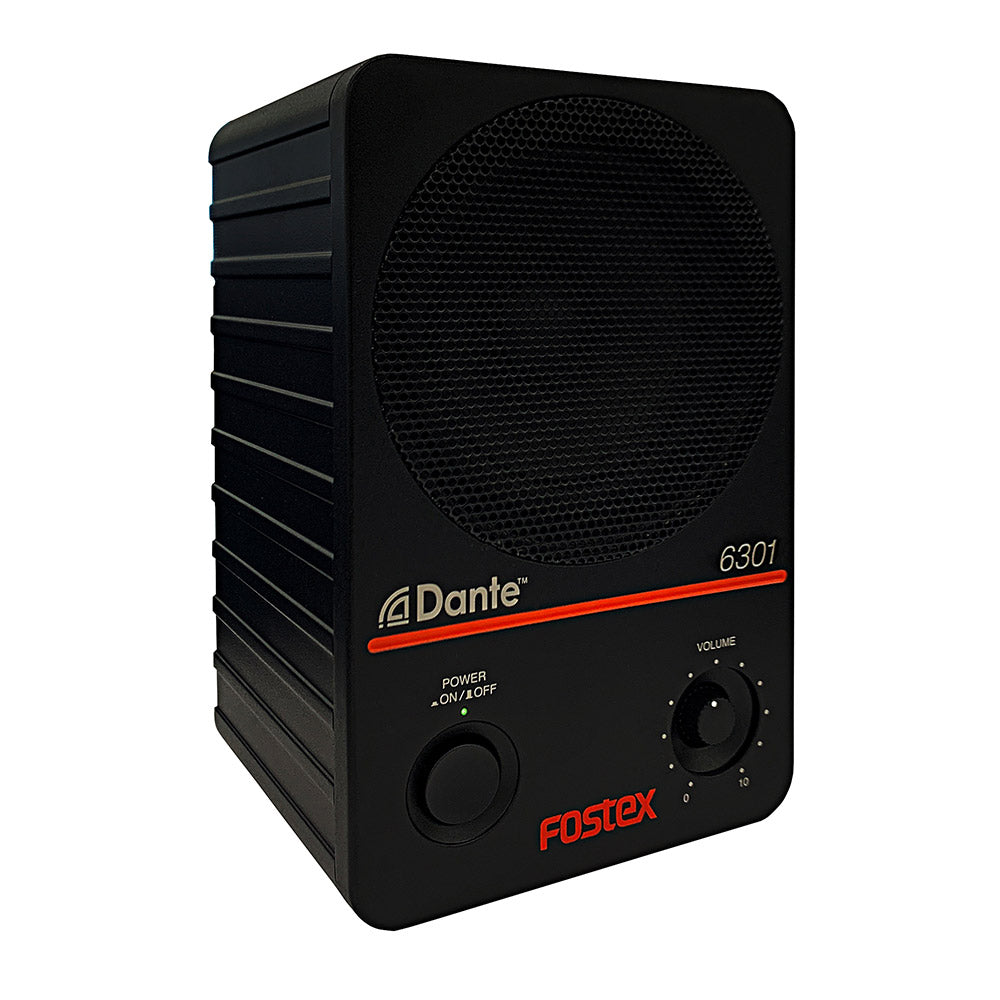

Fostex 6301DT Powered D-Class Confidence Monitor (Dante Inputs)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
The industry standard 6301N Active Monitor series now includes the model Dante version : 6301DT.
The new model has the exact physical dimensions as the current 6301N, the 6301DT offers playing back any two channels of Dante network audio signals.
Features:
- 20W Class-D power amplifier for higher output level and less power consumption.
- Dedicated 4-inch full range driver for clear audio reproduction.
- RJ45 Dante or 1/4" TS analog inputs.
- Supports sample rates up to 96kHz via Audinate's Ultimo chip.

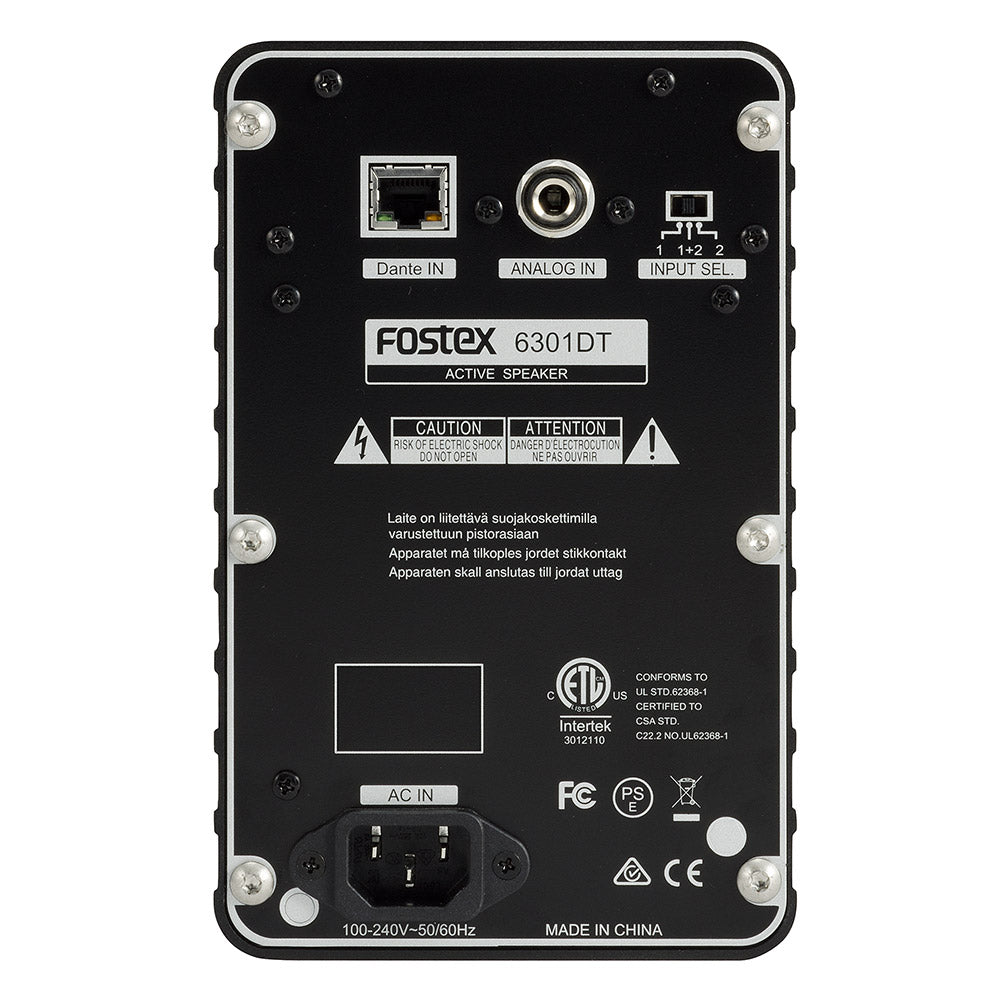

- Two channels of monitoring in one monitor: acts as a two-channel device on the Dante network, with a switch on the back panel to select channel 1, 2 or 1+2 (mixed) for output.
- Ultra-rugged die-cast aluminum enclosure.
- Recessed front-panel knob, switch and speaker grille to prevent inadvertent damage in case of a fall.
- Switching power supply accepts 100 V to 240 V AC.
- Physical dimensions identical to the rest of the 6301N series for easy upgrade.
- Optional EB-6301 mounting bracket allows easy surface-mounting at any angle.
| SPEAKER SECTION | |
| Enclosure type | closed |
| Unit | 4Ó full range |
| Frequency response | 70 Hz Ð 15k Hz |
| Sound Pressure Level | 85dB / W (1m) |
| Maximum SPL | 98dB |
| AMPLIFIER SECTION | |
| Inputs | Digital Network: RJ45 (Dante) Analog Input: 1/4Ó TS Phone (unbalanced) Input Impedance: 10k ohm or more |
| Rated output | 20W |
| Distortion (T.H.D.) | 0.05% (1kHz / 1W output) |
| Residual Noise | -65dBV (DT) |
| Input Sensitivity | 1/4Ó TS phone: -14dBV (0.2Vr.m.s.) |
| Auto Stand-by | active after approx. 25 min. of continuous input lower than the threshold level |
| GENERAL | |
| Dimensions | 120 (W) x 189 (H) x 120 (D) mm |
| Weight | 2.3kgs |
| Power Requirement | AC 100 Ð 240V (50/60Hz) |
| Power Consumption | 10W (less than 0.5W in stand-by mode) |
The industry standard 6301N Active Monitor series now includes the model Dante version : 6301DT.
The new model has the exact physical dimensions as the current 6301N, the 6301DT offers playing back any two channels of Dante network audio signals.
Features:
- 20W Class-D power amplifier for higher output level and less power consumption.
- Dedicated 4-inch full range driver for clear audio reproduction.
- RJ45 Dante or 1/4" TS analog inputs.
- Supports sample rates up to 96kHz via Audinate's Ultimo chip.
- Two channels of monitoring in one monitor: acts as a two-channel device on the Dante network, with a switch on the back panel to select channel 1, 2 or 1+2 (mixed) for output.
- Ultra-rugged die-cast aluminum enclosure.
- Recessed front-panel knob, switch and speaker grille to prevent inadvertent damage in case of a fall.
- Switching power supply accepts 100 V to 240 V AC.
- Physical dimensions identical to the rest of the 6301N series for easy upgrade.
- Optional EB-6301 mounting bracket allows easy surface-mounting at any angle.
| SPEAKER SECTION | |
| Enclosure type | closed |
| Unit | 4Ó full range |
| Frequency response | 70 Hz Ð 15k Hz |
| Sound Pressure Level | 85dB / W (1m) |
| Maximum SPL | 98dB |
| AMPLIFIER SECTION | |
| Inputs | Digital Network: RJ45 (Dante) Analog Input: 1/4Ó TS Phone (unbalanced) Input Impedance: 10k ohm or more |
| Rated output | 20W |
| Distortion (T.H.D.) | 0.05% (1kHz / 1W output) |
| Residual Noise | -65dBV (DT) |
| Input Sensitivity | 1/4Ó TS phone: -14dBV (0.2Vr.m.s.) |
| Auto Stand-by | active after approx. 25 min. of continuous input lower than the threshold level |
| GENERAL | |
| Dimensions | 120 (W) x 189 (H) x 120 (D) mm |
| Weight | 2.3kgs |
| Power Requirement | AC 100 Ð 240V (50/60Hz) |
| Power Consumption | 10W (less than 0.5W in stand-by mode) |
