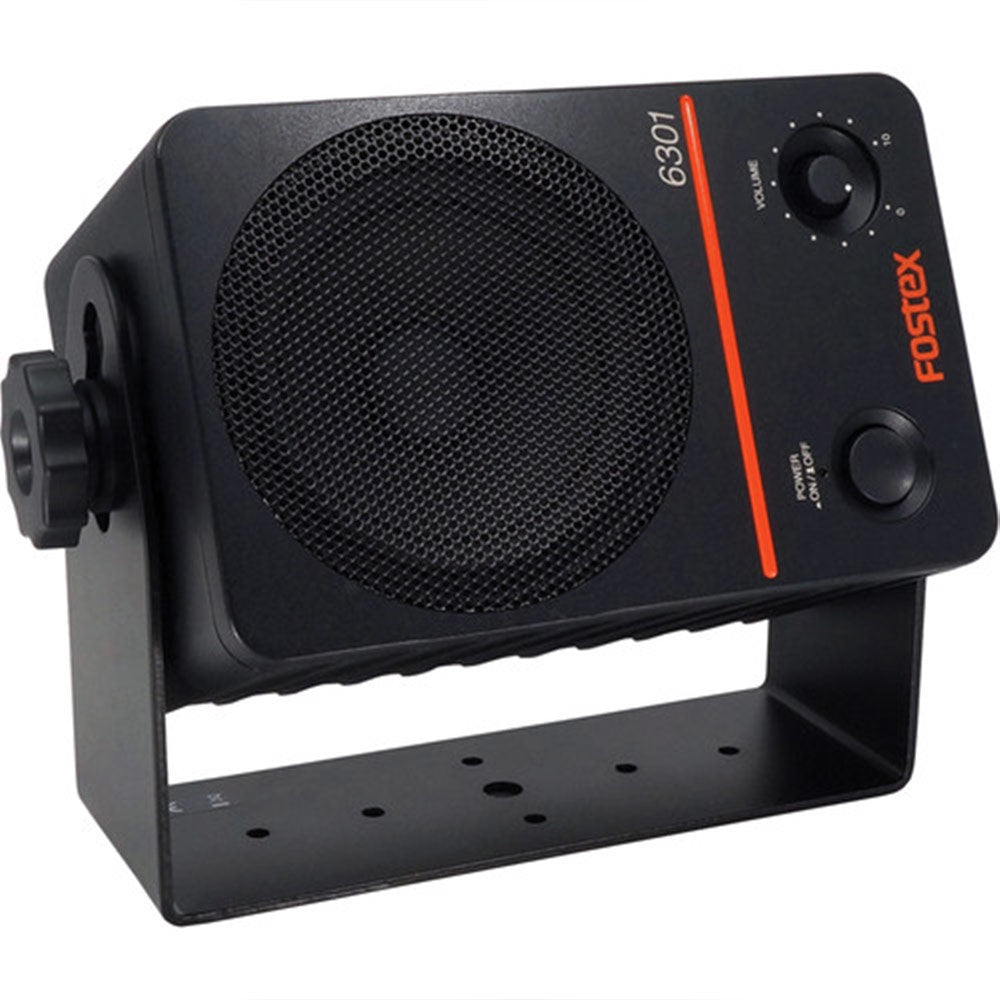

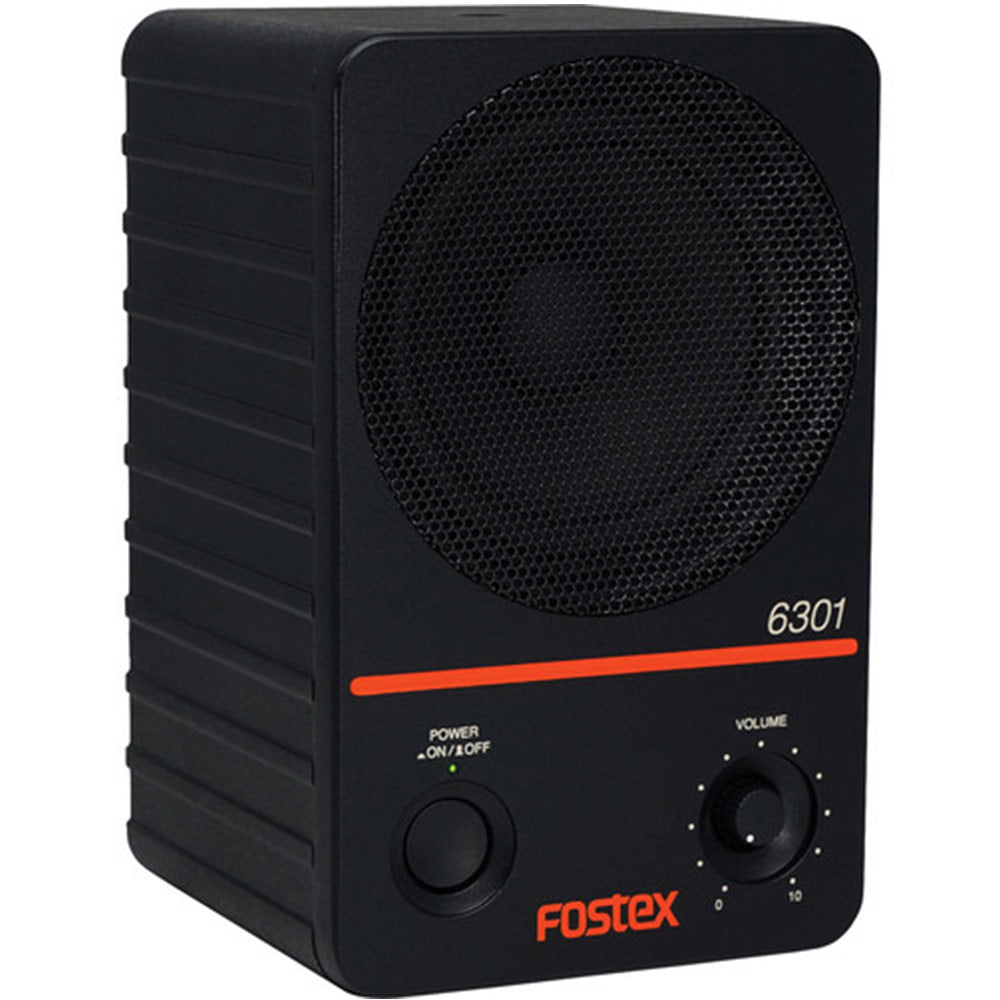

Fostex 6301NB Powered D-Class Confidence Monitor (Unbalanced Inputs)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
6301NB model with unbalanced TRS inputs.
Model 6301-series have been on the market since 1982 as the standard active monitor speaker in the broadcast and production facilities and now we have re-design the speakers with the latest D-class power amplifier and new driver unit featuring energy saving "auto stand-by" function.
Features:
- 20W D-class power amplifier for higher output level and less power consumption with no heat sink
- Dedicated 4-inch full range driver for clear audio reproduction
- Traditional rugged enclosure of aluminum die-cast with the physically identical height and width to the current B-series
- Flat panel design to avoid inadvertent power-off or level change
- Auto Stand-by mode (compliant to ErP directive) for energy saving
- Detachable IEC type power inlet with multi-voltage power handling
- Newly designed mounting bracket (EB-6301) for wall mounting with variable angle adjustments (sold separately)
| Speaker Section | Enclosure type: closed Unit: 4” full range Frequency response: 70 Hz Ð 15k Hz Sound Pressure Level: 85dB / W (1m) Maximum SPL: 98dB |
| Inputs | Connector: 1/4” TS Phone (unbalanced) Input Impedance: 10k ohm or more |
| Rated output | 20W |
| Distortion (T.H.D.) | 0.05% (1kHz / 1W output) |
| Residual Noise | -70dBV or less |
| Input Sensitivity | 1/4” TS phone: -14dBV (0.2Vr.m.s.) |
| Auto Stand-by | active after approx. 25 min. of continuous input lower than the threshold level |
| Dimensions | 120 (W) x 189 (H) x 120 (D) mm |
| Weight | 2.2kgs |
| Power Requirement | AC 100 Ð 240V (50/60Hz) |
| Power Consumption | 10W (less than 0.5W in stand-by mode) |
6301NB model with unbalanced TRS inputs.
Model 6301-series have been on the market since 1982 as the standard active monitor speaker in the broadcast and production facilities and now we have re-design the speakers with the latest D-class power amplifier and new driver unit featuring energy saving "auto stand-by" function.
Features:
- 20W D-class power amplifier for higher output level and less power consumption with no heat sink
- Dedicated 4-inch full range driver for clear audio reproduction
- Traditional rugged enclosure of aluminum die-cast with the physically identical height and width to the current B-series
- Flat panel design to avoid inadvertent power-off or level change
- Auto Stand-by mode (compliant to ErP directive) for energy saving
- Detachable IEC type power inlet with multi-voltage power handling
- Newly designed mounting bracket (EB-6301) for wall mounting with variable angle adjustments (sold separately)
| Speaker Section | Enclosure type: closed Unit: 4” full range Frequency response: 70 Hz Ð 15k Hz Sound Pressure Level: 85dB / W (1m) Maximum SPL: 98dB |
| Inputs | Connector: 1/4” TS Phone (unbalanced) Input Impedance: 10k ohm or more |
| Rated output | 20W |
| Distortion (T.H.D.) | 0.05% (1kHz / 1W output) |
| Residual Noise | -70dBV or less |
| Input Sensitivity | 1/4” TS phone: -14dBV (0.2Vr.m.s.) |
| Auto Stand-by | active after approx. 25 min. of continuous input lower than the threshold level |
| Dimensions | 120 (W) x 189 (H) x 120 (D) mm |
| Weight | 2.2kgs |
| Power Requirement | AC 100 Ð 240V (50/60Hz) |
| Power Consumption | 10W (less than 0.5W in stand-by mode) |
