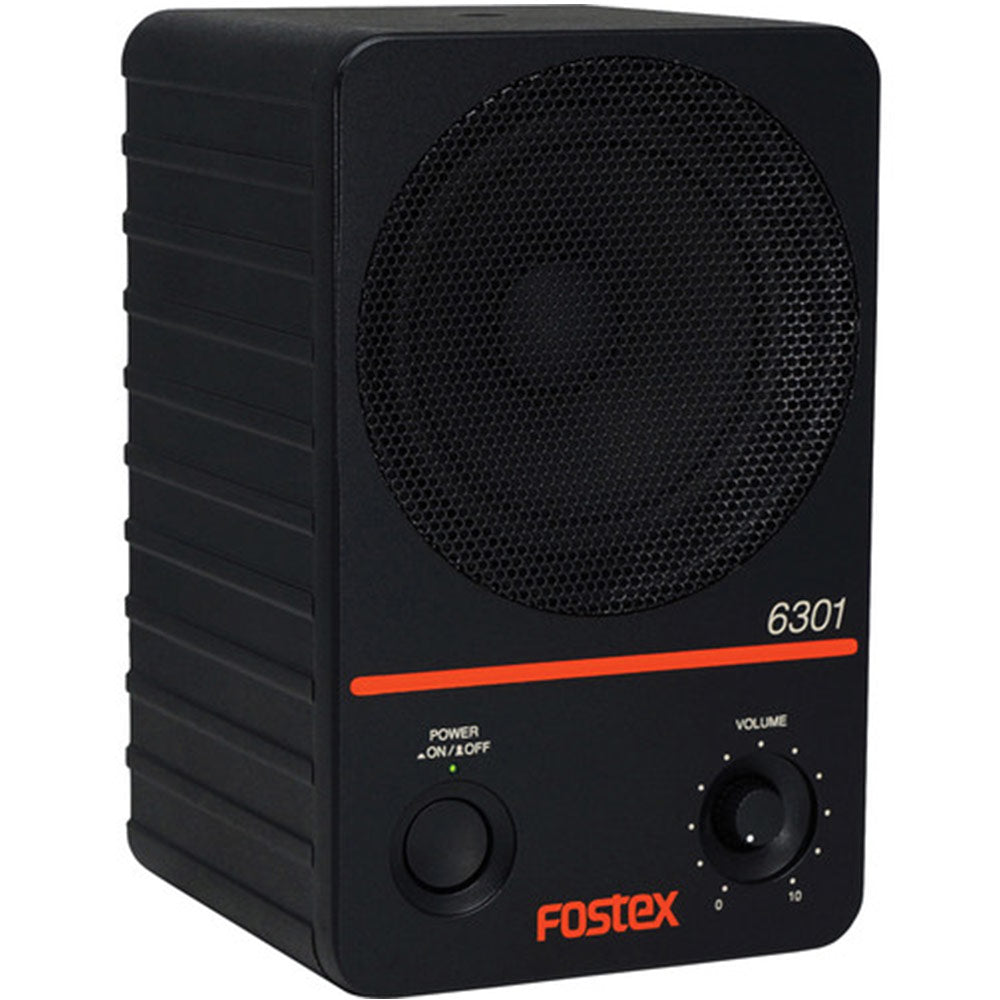

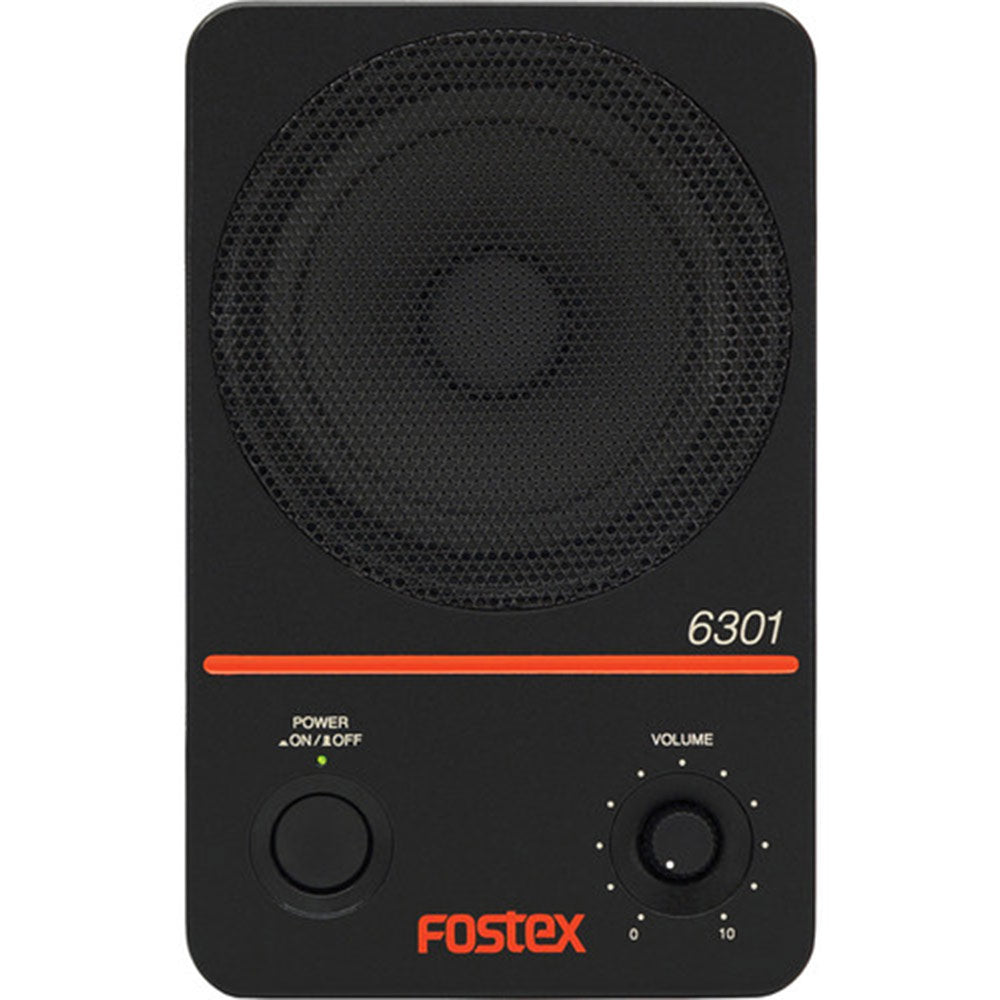

Fostex 6301NX Powered D-Class Confidence Monitor (Transformer Balanced Inputs)

  • Dale #:

    FOST-6301NX
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

6301NX model with transformer balanced TRS inputs. Model 6301-series have been on the market since 1982 as the standard active monitor speaker in the broadcast and production facilities and now we have re-design the speakers with the latest D-class power amplifier and new driver unit featuring en... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

6301NX model with transformer balanced TRS inputs.

Model 6301-series have been on the market since 1982 as the standard active monitor speaker in the broadcast and production facilities and now we have re-design the speakers with the latest D-class power amplifier and new driver unit featuring energy saving “auto stand-by” function.

Features:

  • 20W D-class power amplifier for higher output level and less power consumption with no heat sink
  • Dedicated 4-inch full range driver for clear audio reproduction
  • Traditional rugged enclosure of aluminum die-cast with the physically identical height and width to the current B-series
  • Flat panel design to avoid inadvertent power-off or level change
  • Auto Stand-by mode (compliant to ErP directive) for energy saving
  • Detachable IEC type power inlet with multi-voltage power handling

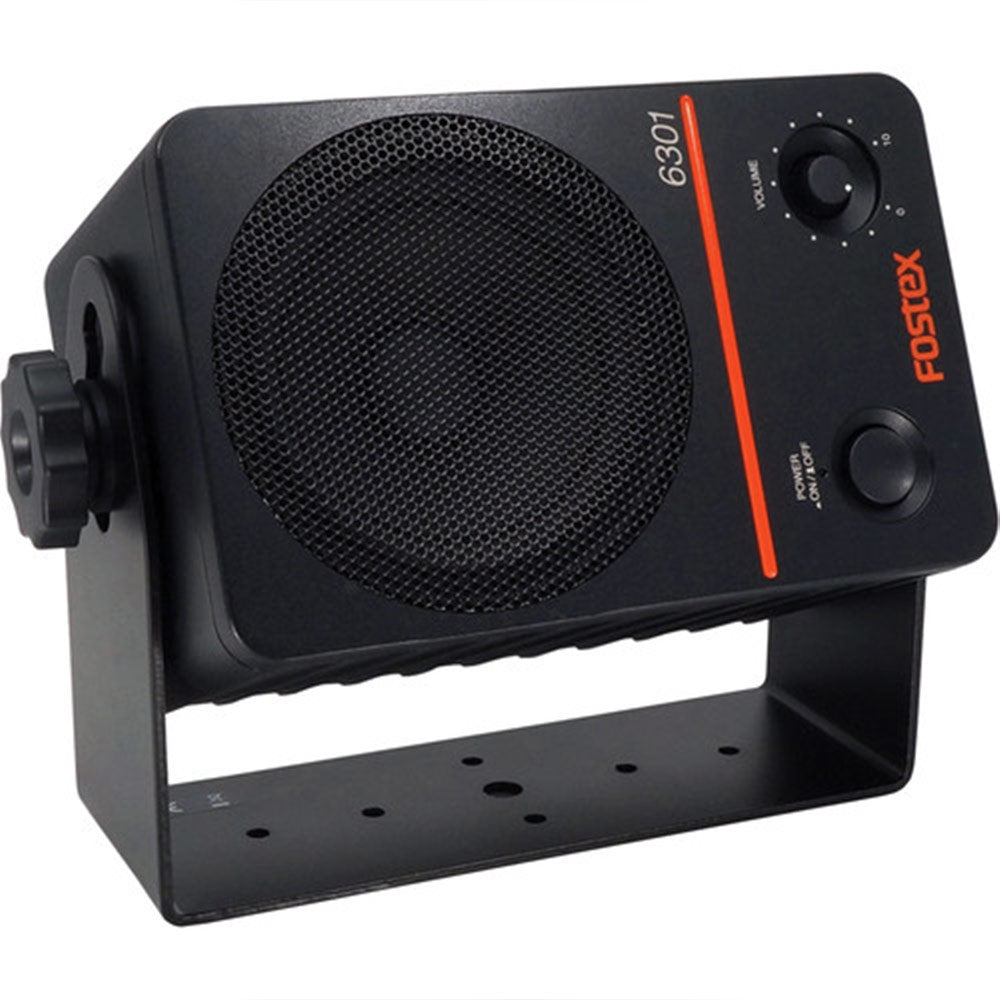

  • Newly designed mounting bracket (EB-6301) for wall mounting with variable angle adjustments (sold separately)

More +

Product Specs

Speaker Section Enclosure type:    closed
Unit:    4” full range
Frequency response:    70 Hz – 15k Hz
Sound Pressure Level:    85dB / W (1m)
Maximum SPL:    98dB

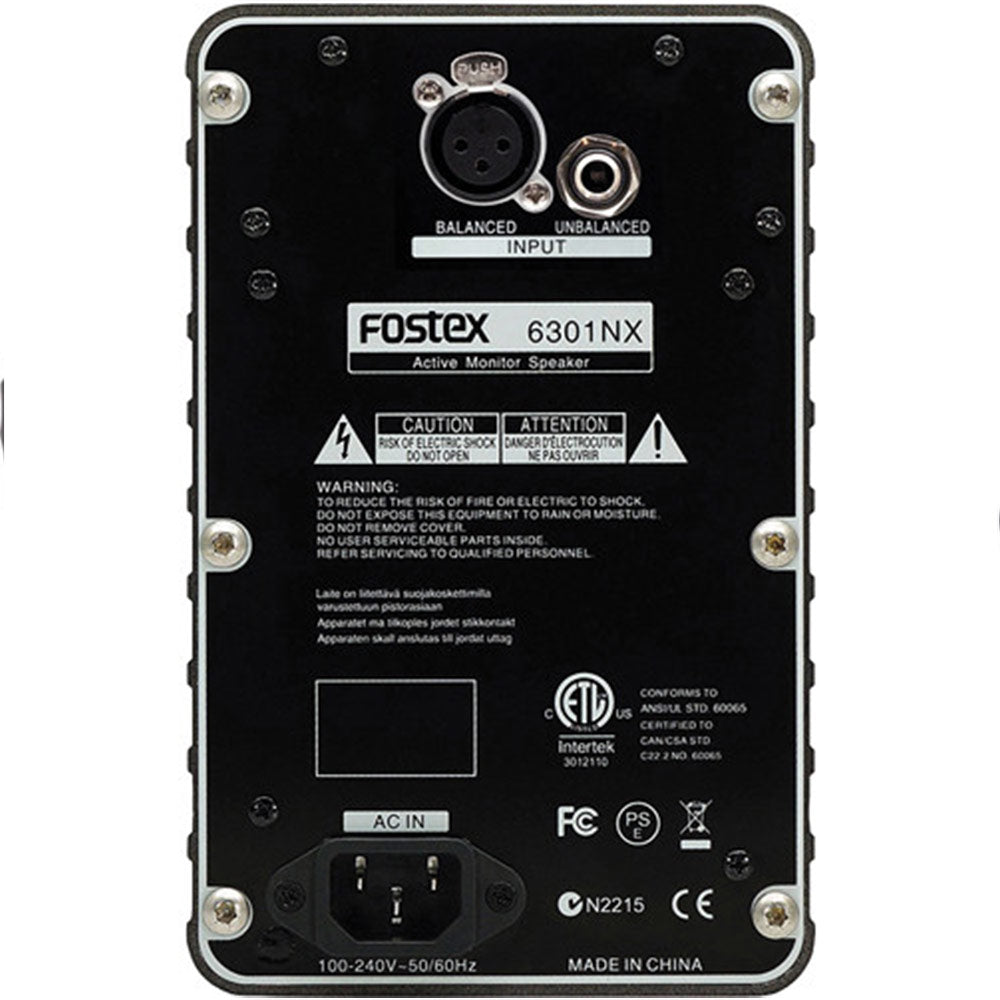

Inputs Connector:    1/4” TS Phone (unbalanced)
    Input Impedance:    10k ohm or more
Connector:    XLR-3-31 (transformer balanced)
    Input Impedance:    10k ohm or more
Rated output 20W
Distortion (T.H.D.) 0.05% (1kHz / 1W output)
Residual Noise -70dBV or less
Input Sensitivity 1/4” TS phone:    -14dBV (0.2Vr.m.s.)
XLR:    +4dBu (1.2Vr.m.s.)
Auto Stand-by active after approx. 25 min. of continuous input lower than the threshold level
Dimensions 120 (W) x 189 (H) x 120 (D) mm
Weight 2.3kgs
Power Requirement AC 100 – 240V (50/60Hz)
Power Consumption 10W (less than 0.5W in stand-by mode)
