Fostex RM-3 Rack Mount Monitoring System
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description

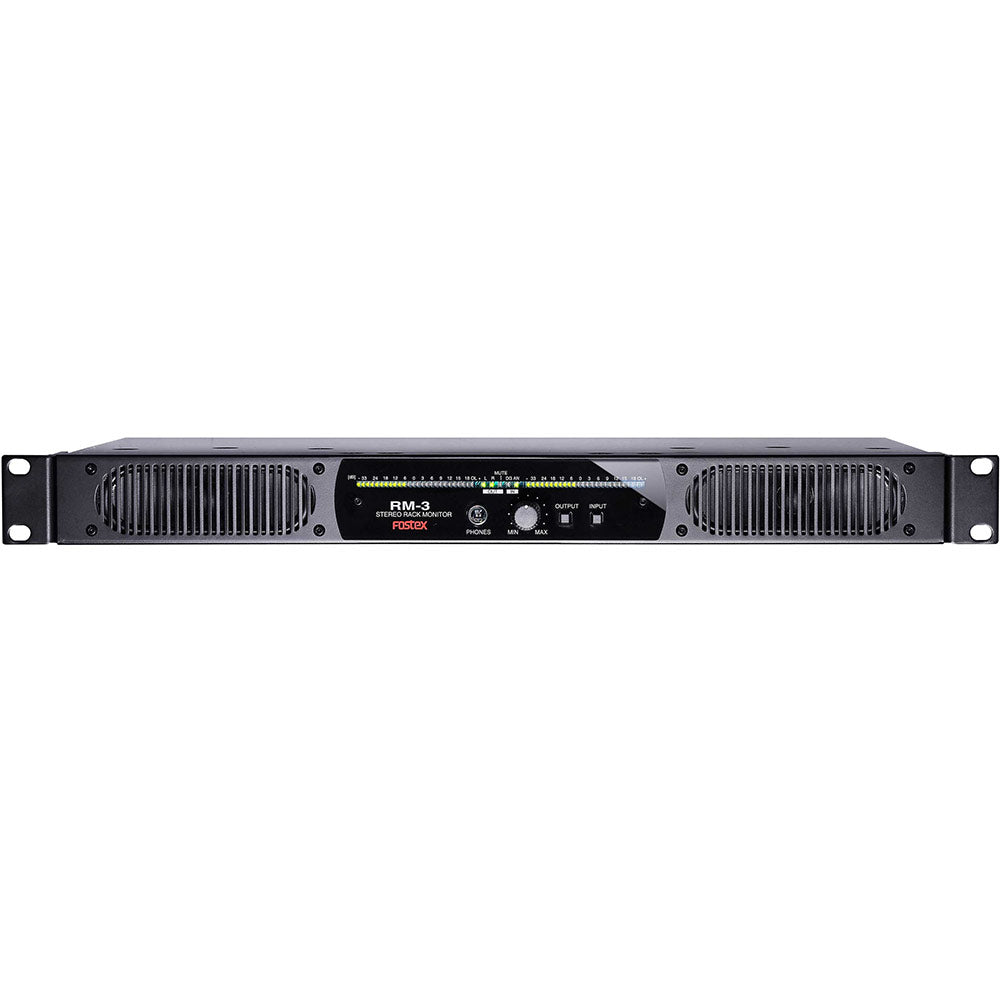

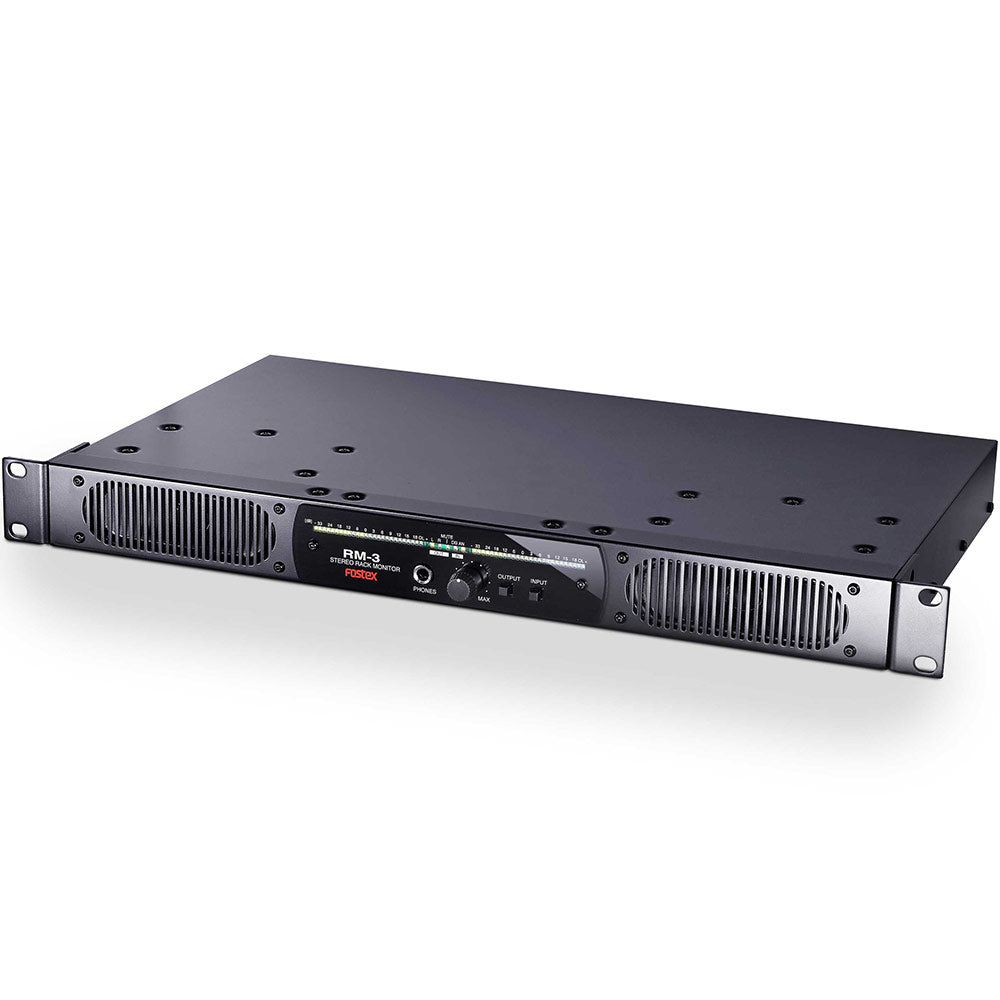

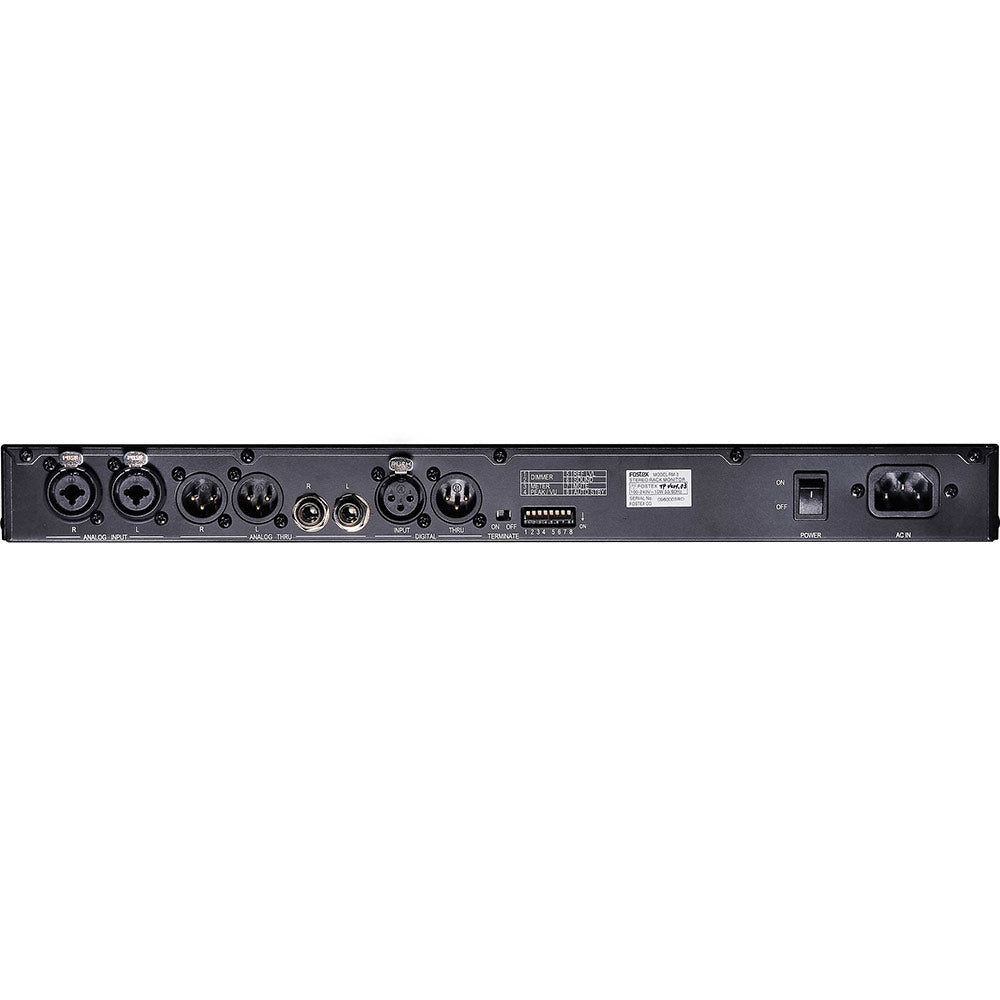

Model RM-3 is a rack stereo powered monitor speaker system to succeed the classic model RM-2. New features include a THRU OUT, brightness adjustment of LED, and auto memory of Input / Output status etc. via newly added DIP switch on the rear panel.The RM-3 is the ideal solution for monitoring needs in various space-challenged environments such as machine rooms, video monitoring, surveillance, mobile and stationary control rooms, theme park applications where audio monitoring is needed in a compact environment.
Features:
- Rack mount stereo monitor speaker system with built-in 10W+10W D-class amplifier and 110x40mm elongated shape speaker units.
- Accepts both Analog input (XLR & 1/4"TS phone) and Digital Input (AES/EBU).
- Headphone out for headphone monitoring. When switching from headphone out to speaker out or vice versa, the output signal fades in to avoid unexpected level difference.
- Mute switch works as total mute or -20dB attenuation
- Highly visible 26-dot LED meter (L&R) with 4-step brightness adjustment
- Flexible meter setting for both Analog and Digital inputs such as VU+Peak, VU+Peakhold, Peak+Peakhold and VU only.
- Reference level (0dB) is selectable between +4dBu and 0dBu.
- Audio characteristics can be selected between the conventional VOICE mode and new MUSIC mode for wider frequency range music source.
| Speaker Section | Units 110 x 40 mm antimagnetic cone speakers Frequency Response: 200 Hz Ð 20 kHz |
| Rated Output Power | 10W x 2 |
| Digital Input | XLR-3-31 connector (AES/EBU) Sampling Frequency: 44.1kHz to 96kHz |
| Analog Inputs | XLR-3-31 connector (balanced) Rated input level: +4/0dBu Input Impedance: 10k ohm or more 1/4” Phone jack (unbalanced) Rated input level: -10/-14 dBV Input Impedance: 10k ohm or more |
| Digital THRU | XLR-3-31 connector (AES/EBU) |
| Analog THRU | XLR-3-31 / 1/4” TS phone |
| Phones | 1/4” stereo phones Adapted load impedance: 16 ohm or more Maximum output: 20mW + 20mW (32ohm, 1kHz) |
| Level Meter | 26-dot LED x 2 Reference Level: Digital -20dBFS Analog XLR +4/9dBu; TS phone -10/-14dBV Distortion (T.H.D.) 0.1% or less |
| Dimensions | 482 (H) x 44 (W) x 284 (D) mm (including protruding parts) |
| Weight | approx. 3.5 kgs |
| Power Requirement | AC 100V to 240V 50/60Hz |
| Power Consumption | 10 W (0.5W or less in standby mode) |
Model RM-3 is a rack stereo powered monitor speaker system to succeed the classic model RM-2. New features include a THRU OUT, brightness adjustment of LED, and auto memory of Input / Output status etc. via newly added DIP switch on the rear panel.The RM-3 is the ideal solution for monitoring needs in various space-challenged environments such as machine rooms, video monitoring, surveillance, mobile and stationary control rooms, theme park applications where audio monitoring is needed in a compact environment.
Features:
- Rack mount stereo monitor speaker system with built-in 10W+10W D-class amplifier and 110x40mm elongated shape speaker units.
- Accepts both Analog input (XLR & 1/4"TS phone) and Digital Input (AES/EBU).
- Headphone out for headphone monitoring. When switching from headphone out to speaker out or vice versa, the output signal fades in to avoid unexpected level difference.
- Mute switch works as total mute or -20dB attenuation
- Highly visible 26-dot LED meter (L&R) with 4-step brightness adjustment
- Flexible meter setting for both Analog and Digital inputs such as VU+Peak, VU+Peakhold, Peak+Peakhold and VU only.
- Reference level (0dB) is selectable between +4dBu and 0dBu.
- Audio characteristics can be selected between the conventional VOICE mode and new MUSIC mode for wider frequency range music source.
| Speaker Section | Units 110 x 40 mm antimagnetic cone speakers Frequency Response: 200 Hz Ð 20 kHz |
| Rated Output Power | 10W x 2 |
| Digital Input | XLR-3-31 connector (AES/EBU) Sampling Frequency: 44.1kHz to 96kHz |
| Analog Inputs | XLR-3-31 connector (balanced) Rated input level: +4/0dBu Input Impedance: 10k ohm or more 1/4” Phone jack (unbalanced) Rated input level: -10/-14 dBV Input Impedance: 10k ohm or more |
| Digital THRU | XLR-3-31 connector (AES/EBU) |
| Analog THRU | XLR-3-31 / 1/4” TS phone |
| Phones | 1/4” stereo phones Adapted load impedance: 16 ohm or more Maximum output: 20mW + 20mW (32ohm, 1kHz) |
| Level Meter | 26-dot LED x 2 Reference Level: Digital -20dBFS Analog XLR +4/9dBu; TS phone -10/-14dBV Distortion (T.H.D.) 0.1% or less |
| Dimensions | 482 (H) x 44 (W) x 284 (D) mm (including protruding parts) |
| Weight | approx. 3.5 kgs |
| Power Requirement | AC 100V to 240V 50/60Hz |
| Power Consumption | 10 W (0.5W or less in standby mode) |
