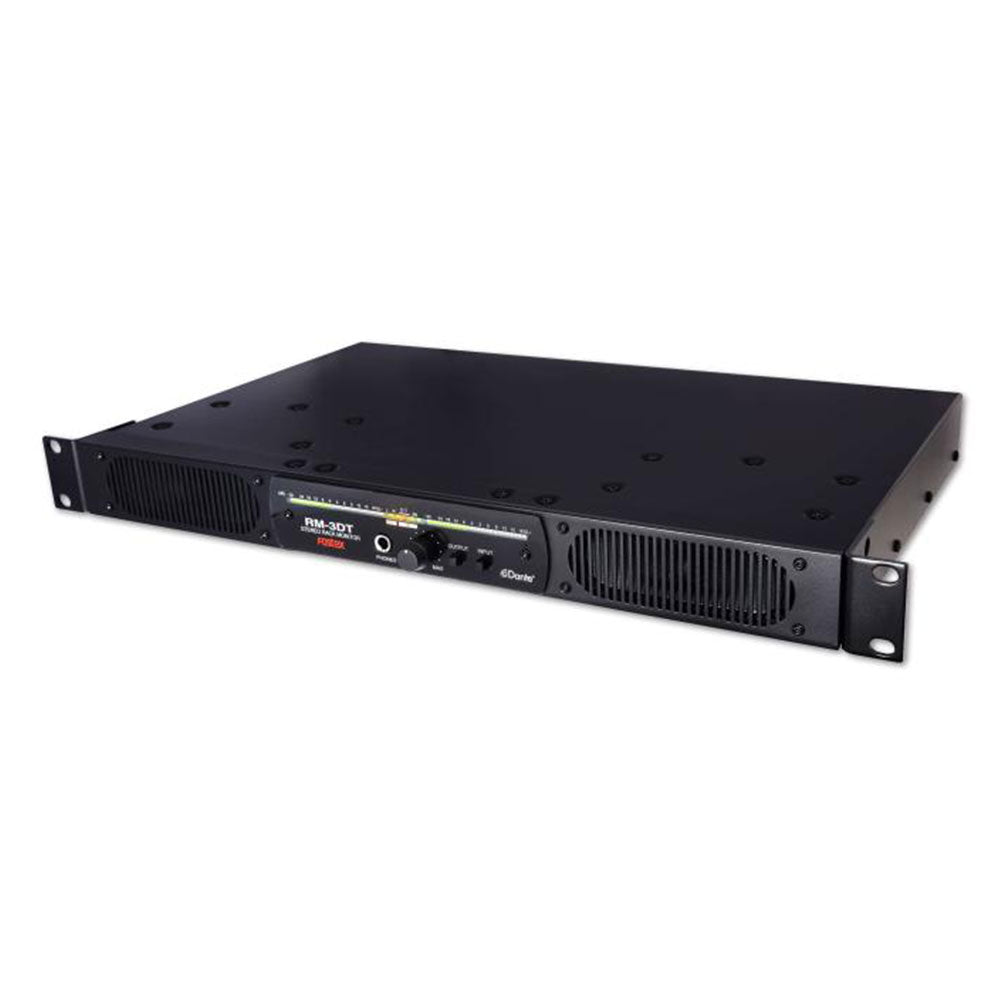

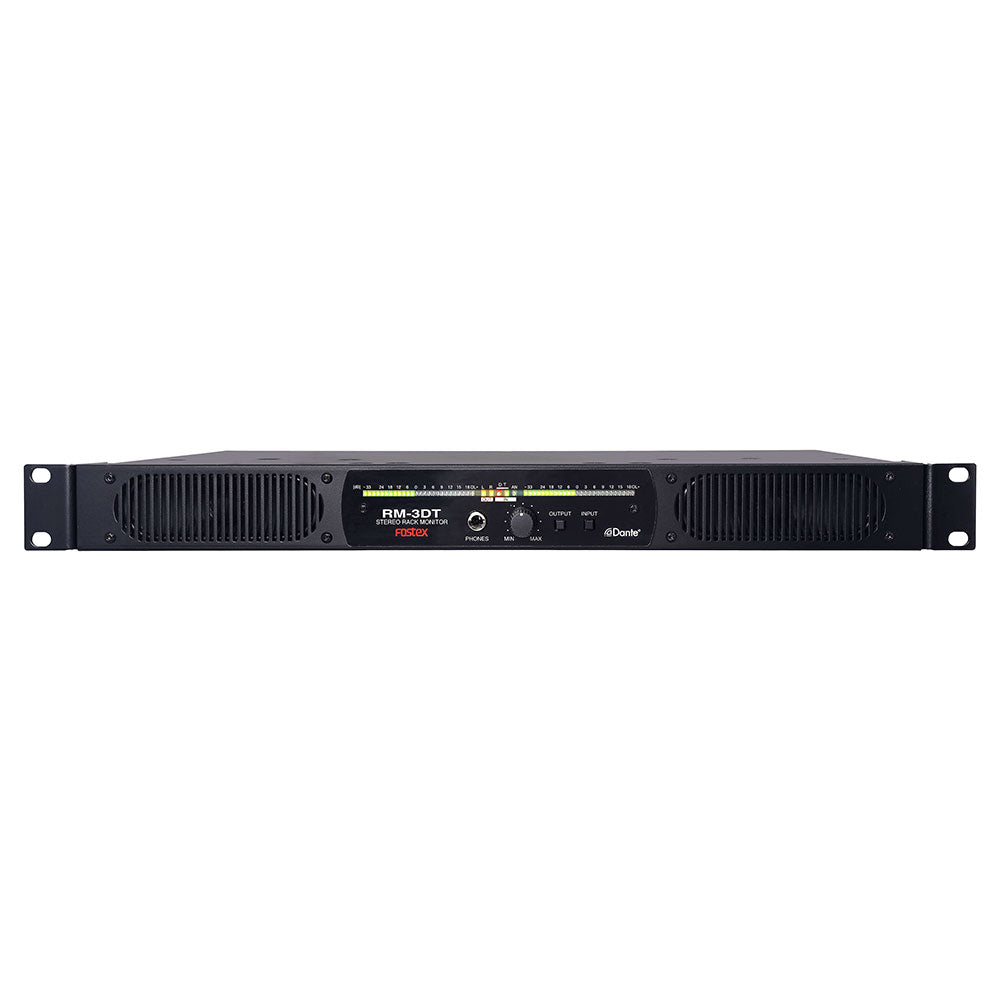

Fostex RM-3DT - Active Rack Mount Monitor Speaker with Dante Inputs
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Fostex RM-3DT - Active Rack Mount Monitor Speaker with Dante Inputs
Sale price$1,099.99
Regular price$1,429.99
Description
The new Fostex RM-3DT marries Fostex’s venerable rack-mount active stereo monitor speaker with Dante, the uncompressed digital audio signal transfer protocol from Audinate®.
Features:
- Accepts Balanced Analog Input and Dante® Input.
- Power saving design by the digital amplifier and switching power supply.

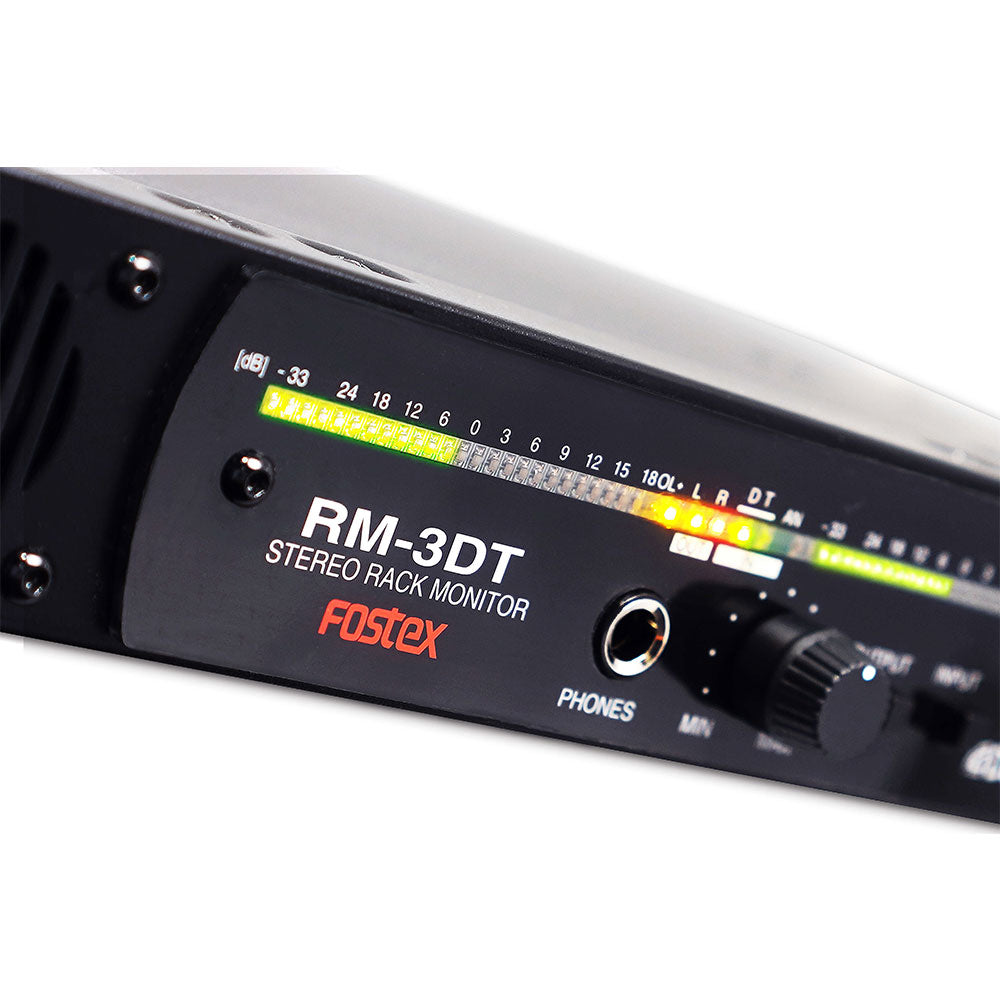

- 26-dot LED meter indicates either of VU, VU+PEAK, VU+PEAK HOLD, PEAK+PEAK HOLD.
- The display brightness can be adjusted in four levels.
- Outputs either or both of any 2-channel digital signals extracted from Dante network signals.
- Supported sampling frequencies: 44.1/48/88.2/96 kHz.
- Physical dimensions are identical to the conventional RM-3 for easy replacement.
| SPEAKER SECTION | Unit: 110 x 40mm rectangle cone type Impedance: 8 ohm Sound Pressure Level: 84dB / W (1m) Frequency response: 200 Hz Ð 20k Hz |
| AMPLIFIER SECTION | Rated output: 10W x 2 Residual Noise: -50dBV or less (DIN AUDIO) Distortion (T.H.D.): less than 0.1% |

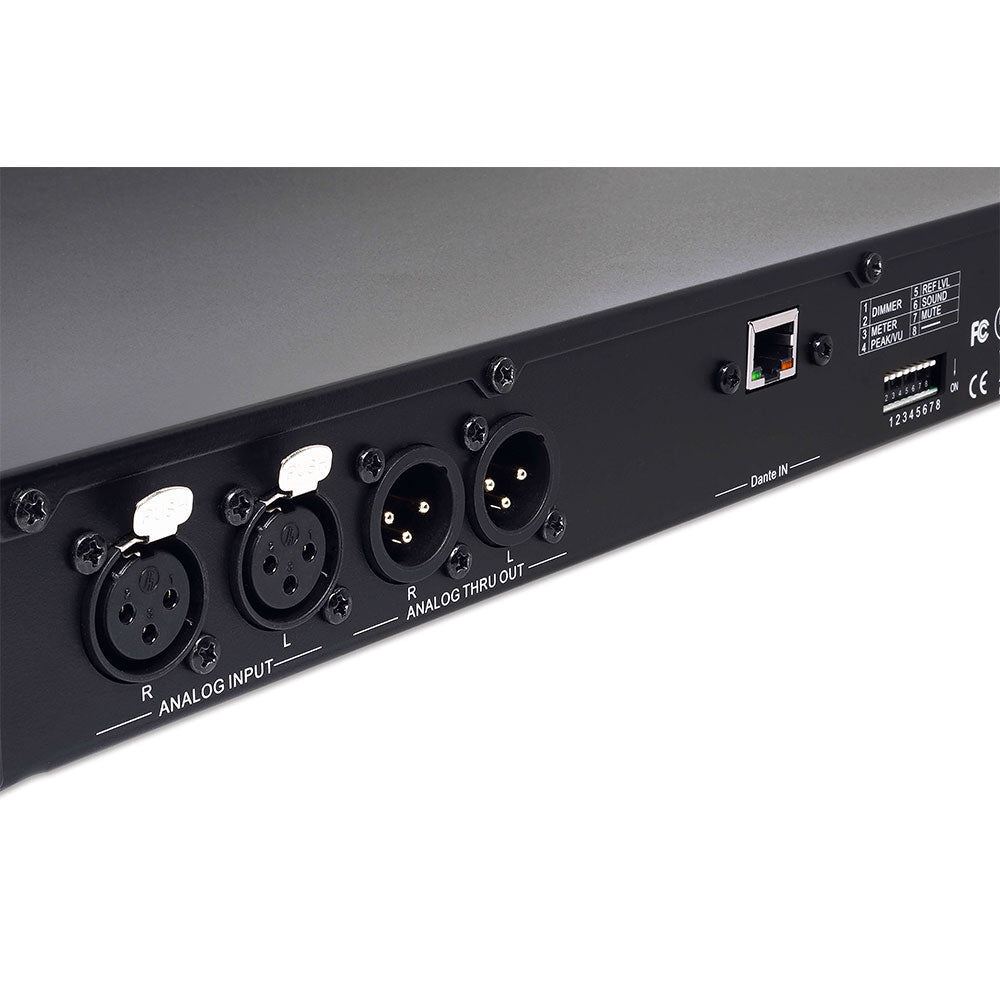

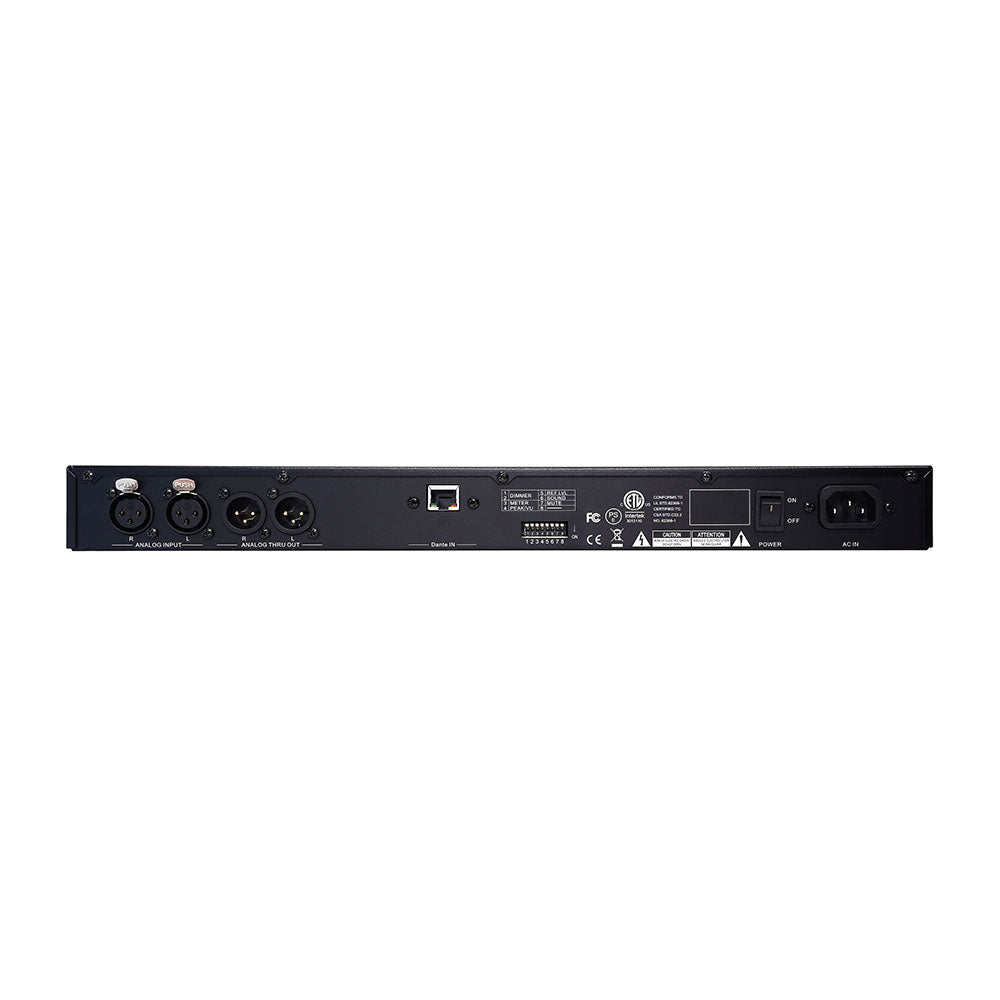

| INPUTS | Connector: Dante Input (RJ45), XLR-3-31 (balanced) Analog Input Level: +4/0 dBu (balanced) Analog Input Impedance: 10k ohm or more THROUGH OUT Connector: XLR-3-32 (balanced) |
| PHONES | Connector: 1/4Ó Stereo Phone Input Impedance: 16 ohm or higher Maximum Output Level: 20mW + 20mW (32 ohm, 1kHz) |
| LEVEL METER | Display: 26 dot LED x 2 Reference Level: XLR: +4/0 dBu (analog) |
| GENERAL | Dimensions: 482 (W) x 44 (H) x 284 (D) mm (incl. protruded parts) Weight: approx. 3.5kg Power Requirement: AC 100 Ð 240V (50/60Hz) Power Consumption: 10W |
The new Fostex RM-3DT marries Fostex’s venerable rack-mount active stereo monitor speaker with Dante, the uncompressed digital audio signal transfer protocol from Audinate®.
Features:
- Accepts Balanced Analog Input and Dante® Input.
- Power saving design by the digital amplifier and switching power supply.
- 26-dot LED meter indicates either of VU, VU+PEAK, VU+PEAK HOLD, PEAK+PEAK HOLD.
- The display brightness can be adjusted in four levels.
- Outputs either or both of any 2-channel digital signals extracted from Dante network signals.
- Supported sampling frequencies: 44.1/48/88.2/96 kHz.
- Physical dimensions are identical to the conventional RM-3 for easy replacement.
| SPEAKER SECTION | Unit: 110 x 40mm rectangle cone type Impedance: 8 ohm Sound Pressure Level: 84dB / W (1m) Frequency response: 200 Hz Ð 20k Hz |
| AMPLIFIER SECTION | Rated output: 10W x 2 Residual Noise: -50dBV or less (DIN AUDIO) Distortion (T.H.D.): less than 0.1% |
| INPUTS | Connector: Dante Input (RJ45), XLR-3-31 (balanced) Analog Input Level: +4/0 dBu (balanced) Analog Input Impedance: 10k ohm or more THROUGH OUT Connector: XLR-3-32 (balanced) |
| PHONES | Connector: 1/4Ó Stereo Phone Input Impedance: 16 ohm or higher Maximum Output Level: 20mW + 20mW (32 ohm, 1kHz) |
| LEVEL METER | Display: 26 dot LED x 2 Reference Level: XLR: +4/0 dBu (analog) |
| GENERAL | Dimensions: 482 (W) x 44 (H) x 284 (D) mm (incl. protruded parts) Weight: approx. 3.5kg Power Requirement: AC 100 Ð 240V (50/60Hz) Power Consumption: 10W |
