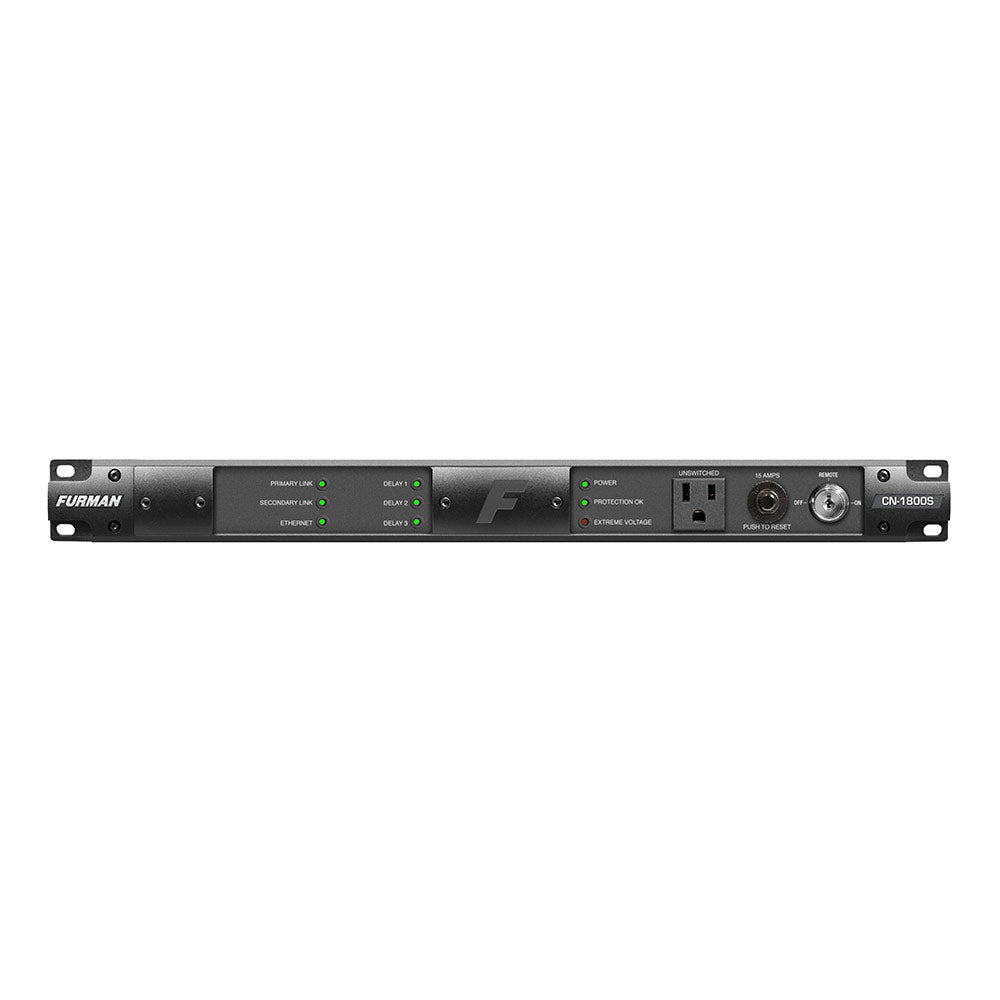

Furman CN-1800S Remote Start Smart Sequencer with SMP Protection


  • Dale #:

    FURM-CN1800S
  • Availability:

    In Stock
  • Available for immediate shipment and pick-up from our Jamaica, New York location. In-store pick-up is available Monday through Friday from 9:30 am to 5:30 pm

Description

Designed for Commercial A/V Installers, the CN-1800S combines robust control capabilities via SmartSequencing Technology, advanced AC protection, AC noise filtration, and optional compatibility with the BlueBOLT Remote Power and Energy Management Platform (BB-RS232 adapter required, sold separate... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Designed for Commercial A/V Installers, the CN-1800S combines robust control capabilities via SmartSequencing Technology, advanced AC protection, AC noise filtration, and optional compatibility with the BlueBOLT Remote Power and Energy Management Platform (BB-RS232 adapter required, sold separately).

The new CN-1800S is one of the first products to feature Furman's SmartSequencing technology, which allows large and complex A/V systems to be safely powered on and off with a simple press of a button or turn of a key, even by nontechnical personnel. SmartSequencing's bidirectional communications between installed units enables a primary unit to control and sequence multiple secondary units, ensuring multizone electronic systems are powered on and off safely and dependably from a single control point across an entire installation. Units can be connected via current loop at runs of more than 1,000 feet with backwards compatibility with Furman's legacy sequencers.

In addition, the CN-1800S offers robust control options, equipped with RS-232 ports and command sets for integration with control systems. An optional RS-232-to-Ethernet adaptor (sold separately) adds full IP-addressability to the unit, allowing it to be controlled, programmed, and monitored from a smartphone, tablet, PC, or any Web-enabled device via Telnet, direct HTTP connection, or Panamax/Furman's BlueBOLT-hosted remote power and energy management platform.


Surge Protection
Series Multi-Stage Protection (SMP)Technology provides the highest level ofsurge & spike protection available.

Noise Filtration
Linear Filtration Technology (LiFT) reduces AC noise linearly across a very wide bandwidth for unequaled audio & video clarity.

Voltage Protection
Extreme Voltage Shutdown (EVS) circuity safely powers down itself and connected equipment during unsafe voltage periods.

SmartSequencing
SmartSequencing allows bidirectional, safe sequenced power up/down operations via the push of a button or turn of a key.

Diagnostic Lights
Diagnostic lights provide valuable system information including power quality, €œProtectection Ok€ indicator, and Extreme Voltage indicator.

15 Amp Output Current
15 amp maximum current capacity with incorporated 15 amp thermal circuit breaker.

Remote Access (RS-232)
RS-232 compatibility & command set provide integration with control systems, open source and control programming.

BlueBOLT Compatible
BlueBOLT provides remote access to reboot components, power equipemnt on/off, and monitor power quality via the internet from anywhere in the world.

Nine Total Outlets
The CN-1800S contains eight rear panel NEMA 5-15R outlets and one front panel NEMA 5-15R outlet.

More +

Product Specs

AC Voltage Input Range 90-139VAC, 50/60Hz
Maximum AC Current Rating 15 amps (Thermal breaker)
AC Cord 3/14AWG, 10 feet, black, fixed, NEMA 5-15P plug
AC Receptacles Rear Panel Outlets: 2 Unswitched NEMA 5 15R's (1 duplex), 6 Sequenced NEMA 5-15R's (3 duplexes each controlled by separate relay)
Front Panel: One NEMA 5-15R Convenience Outlet, Unswitched
Surge/Under-Overvoltage Protection AC Surge Protection: SMP Spike Protection Mode: Line to neutral, zero ground leakage Spike Clamping Voltage: 188VAC peak @ 6,000 volts/3,000 amps Response Time: 1 nanosecond Maximum Surge Current: 6,500 Amps AC Undervoltage Protection: EVS, 77VAC+/-3VAC AC Overvoltage Protection: EVS, 145VAC+/-5VAC AC Overvoltage Reset Modes: Manual and Auto-reset (configurable)
AC Filtering LiFT
Noise Attenuation: Linear, 10dB @10KHz, 40dB@100KHz, 50dB@500KHz
Operating Temperature Range 5C (40F) to 40C (105F) degrees
Humidity Range <90% rH (Relative Humidity)
User Interface Key-switch: Front panel, 3-position key-switch (On, Off, Remote) Keys: Included, 1 pair Push-button Switch: Front panel, hidden by security cover Circuit Breaker: Front panel, push-button, 15A Thermal Breaker Front panel diagnostic indicators: Primary link, Secondary link, Ethernet, Remote off, Delay 1, Delay 2, Delay 3, Power, Protection OK, Extreme Voltage Front Panel DIP Switches: Front panel. Hidden by security cover, 1 Minute Delay, 2 Minute Delay, 4 Minute Delay, Force Off NO/NC, 12V Mode On/Off BND Mode On, Momentary/Maintained, Primary/Secondary, EVS Reset Auto/Manual Potentiometer: Front panel, hidden by security cover, fine tune delay adjust
Control/Status/Triggering (Rear Panel) Remote Terminal: +5-30VDC In, 12VDC (12mA) Out SmartSequencing: Phoenix 4-Pin Connector, Screw Terminals, Primary & Secondary Links (Current Loop - 1000' nominal) Remote Terminal: Phoenix 4-Pin Connector With Screw Terminals; +12V, STAT, REM, GND (Class 2 Wiring) Force Off/Delay 3 Terminal: Phoenix 5-Pin Connector With Screw Terminals, FORCE OFF, DELAY 3 (Class 2 Wiring) RS-232 Compatible: Yes, DB-9 Connector IP Addressability: Optional, via BB-RS232 Ethernet/RS-232 Adapter (sold separately) for IP control via Telnet, HTTP, BlueBOLT® Voltmeter: Available with RS-232/Ethernet option, ± 2VAC accuracy Ammeter: Available with RS-232/Ethernet option, ±1A accuracy
Power Consumption (No Load) 10 Watts
Safety Agency NRTL-C, RoHS Compliant
