Gefen EXT-VGAA-HD-SC VGA and Audio to HDMI Scaler
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
The Gefen EXT-VGAA-HD-SC scales and converts video from a VGA source to digital video from an HDMI output. It can also embed analog L/R audio into HDMI. Video can be scaled up to 1080p Full HD and 1920 x 1200 (WUXGA). An intuitive and comprehensive on-screen display (OSD) menu allows easy set-up and control. This product can be configured and updated using the Gefen Syner-G™ software suite. The Gefen Syner-G™ is a powerful set of software tools specifically designed to help discover, configure/customize, manage, monitor, and upgrade Gefen products. Wide power supply operating range of 6V to 24V DC offers installation flexibility for mobile use, in complex studio systems with a common power supply, and with remotely located power sources. A locking power supply connector, small footprint, and a surface-mountable enclosure facilitate easy and secure installation.
Features:
- Converts and scales VGA and L/R analog audio to HDMI
- Input resolutions up to 1920 x 1200 (WUXGA)
- Output resolutions up to 1080p60 and 1920 x 1200 (WUXGA)
- On-screen display (OSD) menu allows easy set-up and control
- Aspect Ratio Control: Full Screen, Panoramic, Letter/Pillar, Extract/Crop
- Test Pattern Generator for quick system configuration
- Embeds 2-channel analog stereo audio in HDMI signal
- Gefen Syner-G™ simplifies in-field firmware updates and advanced EDID management including custom input timings
- USB port for use with Gefen Syner-G™
- Wide power supply operating range (6V to 24V DC)
- Locking power supply connector
- Surface mountable
| Maximum Pixel Clock | 165 MHz |
| Maximum TMDS Clock | 225 MHz |

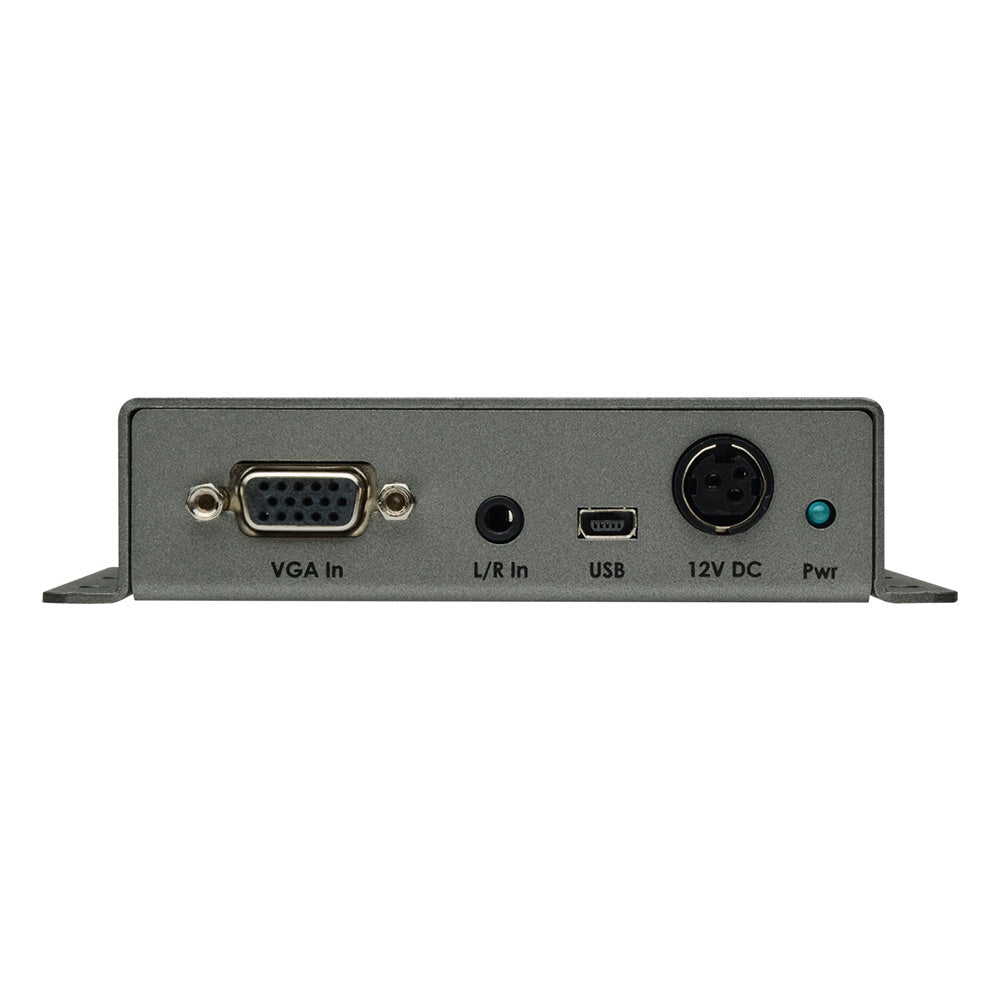

| Video Input Connector | (1) VGA HD-15, female |

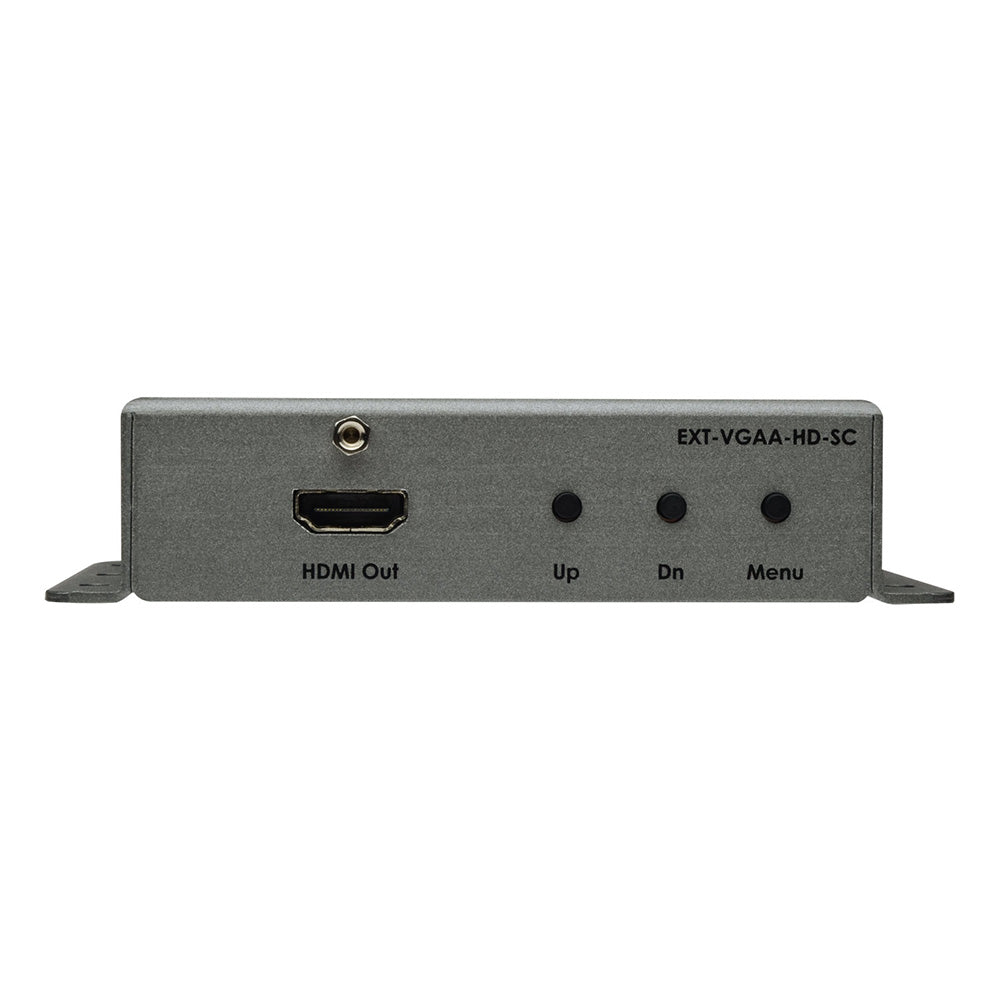

| Video Output Connector | (1) HDMI Type A 19-pin, female, locking |
| Audio Input Connector | (1) 3.5mm mini-stereo jack |
| USB Connector | (1) Mini-B |
| Menu/Navigation Switches | (3) tact-type |
| Power Indicator | (1) LED, blue |
| Power Supply Connector | (1) 3-pin, locking |
| Power Supply | 12V DC (6V to 24V DC operating range) |
| Power Consumption | 2.6W maximum |
| Operating Temperature | +32 to +122 F (0 to +50 C) |
| Operating Humidity | 5% to 90% RH, non-condensing |
| Storage Temperature | -4 to +185 F (-20 to +85 C) |
| Storage Humidity | 0% to 95% RH, non-condensing |
| MTBF | 50000 hours |
| Dimensions (excluding connectors, W x H x D) | 4.9" x 1" x 3.2" (123mm x 26mm x 82mm) |
| Net Unit Weight | 0.4 lbs. (0.2kg) |
| In The Box |
|
