Glensound AoIP22u - Two-Channel Unbalanced Analog to Dante / AES67 Interface
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Packaged in a small and rugged format and designed for outside broadcast, theatre and location applications. The AoIP22u is designed to easily and quickly interface unbalanced, domestic level analogue equipment to a Dante® / AES67 network audio system. Being powered by PoE means that only one cable needs to be connected to the network to carry both audio and power, providing flexibility and saving time on installation. 12VDC power is also an option if PoE is not available.
Robust proven construction techniques, simple reliable interface and excellent specification will help make your technician’s life hassle free, whilst the low cost and long asset life will keep the accountant satisfied.
EASY TO USE
Dante® Controller by Audinate is a free application that controls all your Dante® enabled devices on your network.
It will automatically find the AoIP22u and allow you, just by the click of a mouse, to route audio circuits to/ from it.
Dante® network audio has become very popular because it just works and it’s so easy to use. Yet underneath the simple trouble free setup is a very sophisticated Audio over IP (AoIP) protocol working in real time across standard network switches with clever digital clock synchronisation to keep all equipment working in perfect harmony.
RUBBER FEET
If the AoIP22u is to be sat on a desk or the back of a workbench, the fitted rubber feet will stop it sliding around.
CABLE TIE HOLES
All four front corners of the AoIP22u feature large extremely strong holes that are ideal for threading cable ties through. This makes temporarily installing the unit in out of the way locations very easy.

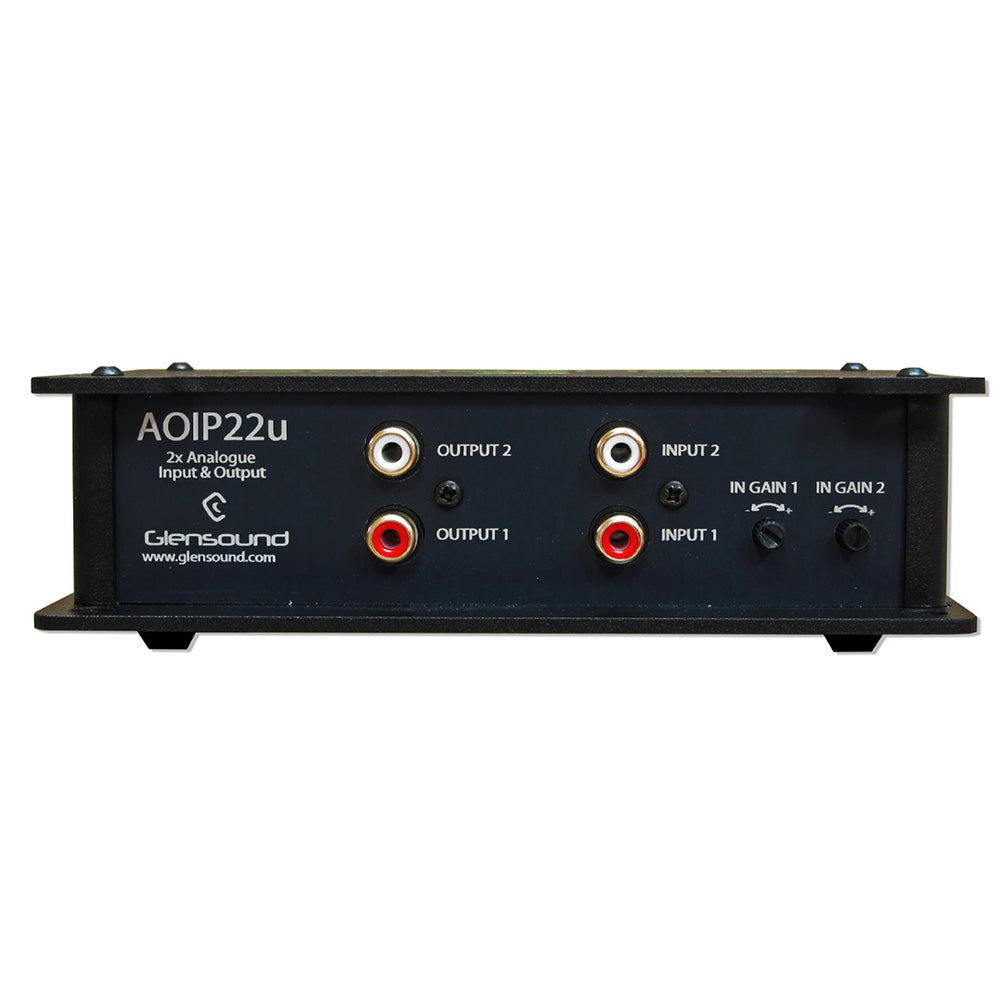

Features:
- 2 unbalanced analogue audio inputs on RCA/phono connectors
- 2 unbalanced analogue audio outputs on RCA/phono connectors
- Adjustable input gain control per channel
- Neutrik Ethercon RJ45 network connector
- Connection to Dante / AES67 network for control and configuration
- 44.1 - 96kS/s Dante network interface
- 48kS/s AES67 network interface
- Simple AoIP audio interface for professional location work
- Robust, reliable lightweight aluminium enclosure
- Rubber feet annd cable tie mounting points
- Powered by PoE or 12V DC
| AUDIO | |
| Input Type | unbalanced RCA/phono |
| Input Impedence | tbd |
| Output Impedence | tbd |
| Output Type | unbalanced RCA/phono |
| Max Input before clip | +18dBu |
| Max output | +18dbu |
| Frequency Response | 20Hz to 22KHz <=+/-0.25dB |
| Noise | THD+N Analogue In to Network Out: Relative (1k +18dBu) THD+N Dante In to Analogue Out: Relative (1k +18dBu) |
| Dynamic Range | 108dBs |
| Crosstalk (0dBu input to output 1k tone | tbd |
| Digital Full Scale | +18dBu = 0dBFs |
| NETWORK AUDIO | |
| Compatible Audio Networks | Dante uncompressed, low latency audio / AES67 |
| AES67 Compliant | The Audinate Ultimo chipset that we use in this product is AES67 compliant |
| Network Connection | Neutrik RJ45 EtherCON |
| Dante Network resolution | 24bit |
| Dante Network sample rate | 44.1/ 48/ 88.2 / 96kS/s |
| AES67 Network sample rate | 48kHz |
| POWER | |
| PoE | Can be powered by PoE |
| Consumption | 2.6 Watts |
| DC | 12V |
| PHYSICAL | |
| Size | 153 x 105 x 41mm (WxDxH) |
| Weight | 420g |
| Mechanics | All aluminium construction, anodized and laser etched |
| ENVIRONMENTAL | |
| Operating Temperature | 0 to +50¡C (32 to 122¡F) |
| Storage Temperature | -20 to +70¡C (-4 to 158¡F) |
| Relative Humidity | 0 to 95% non-condensing |
| INCLUDED ITEMS | |
| In The Box | Handbook available by download RJ45 Network Cable: 2 metre Cat5 RJ45 plug to RJ45 plug cable |
Packaged in a small and rugged format and designed for outside broadcast, theatre and location applications. The AoIP22u is designed to easily and quickly interface unbalanced, domestic level analogue equipment to a Dante® / AES67 network audio system. Being powered by PoE means that only one cable needs to be connected to the network to carry both audio and power, providing flexibility and saving time on installation. 12VDC power is also an option if PoE is not available.
Robust proven construction techniques, simple reliable interface and excellent specification will help make your technician’s life hassle free, whilst the low cost and long asset life will keep the accountant satisfied.
EASY TO USE
Dante® Controller by Audinate is a free application that controls all your Dante® enabled devices on your network.
It will automatically find the AoIP22u and allow you, just by the click of a mouse, to route audio circuits to/ from it.
Dante® network audio has become very popular because it just works and it’s so easy to use. Yet underneath the simple trouble free setup is a very sophisticated Audio over IP (AoIP) protocol working in real time across standard network switches with clever digital clock synchronisation to keep all equipment working in perfect harmony.
RUBBER FEET
If the AoIP22u is to be sat on a desk or the back of a workbench, the fitted rubber feet will stop it sliding around.
CABLE TIE HOLES
All four front corners of the AoIP22u feature large extremely strong holes that are ideal for threading cable ties through. This makes temporarily installing the unit in out of the way locations very easy.
Features:
- 2 unbalanced analogue audio inputs on RCA/phono connectors
- 2 unbalanced analogue audio outputs on RCA/phono connectors
- Adjustable input gain control per channel
- Neutrik Ethercon RJ45 network connector
- Connection to Dante / AES67 network for control and configuration
- 44.1 - 96kS/s Dante network interface
- 48kS/s AES67 network interface
- Simple AoIP audio interface for professional location work
- Robust, reliable lightweight aluminium enclosure
- Rubber feet annd cable tie mounting points
- Powered by PoE or 12V DC
| AUDIO | |
| Input Type | unbalanced RCA/phono |
| Input Impedence | tbd |
| Output Impedence | tbd |
| Output Type | unbalanced RCA/phono |
| Max Input before clip | +18dBu |
| Max output | +18dbu |
| Frequency Response | 20Hz to 22KHz <=+/-0.25dB |
| Noise | THD+N Analogue In to Network Out: Relative (1k +18dBu) THD+N Dante In to Analogue Out: Relative (1k +18dBu) |
| Dynamic Range | 108dBs |
| Crosstalk (0dBu input to output 1k tone | tbd |
| Digital Full Scale | +18dBu = 0dBFs |
| NETWORK AUDIO | |
| Compatible Audio Networks | Dante uncompressed, low latency audio / AES67 |
| AES67 Compliant | The Audinate Ultimo chipset that we use in this product is AES67 compliant |
| Network Connection | Neutrik RJ45 EtherCON |
| Dante Network resolution | 24bit |
| Dante Network sample rate | 44.1/ 48/ 88.2 / 96kS/s |
| AES67 Network sample rate | 48kHz |
| POWER | |
| PoE | Can be powered by PoE |
| Consumption | 2.6 Watts |
| DC | 12V |
| PHYSICAL | |
| Size | 153 x 105 x 41mm (WxDxH) |
| Weight | 420g |
| Mechanics | All aluminium construction, anodized and laser etched |
| ENVIRONMENTAL | |
| Operating Temperature | 0 to +50¡C (32 to 122¡F) |
| Storage Temperature | -20 to +70¡C (-4 to 158¡F) |
| Relative Humidity | 0 to 95% non-condensing |
| INCLUDED ITEMS | |
| In The Box | Handbook available by download RJ45 Network Cable: 2 metre Cat5 RJ45 plug to RJ45 plug cable |
