DALE SKU # GLEN-AOIP44

Glensound AoIP44 Dante / AES67 Audio Network 4 Input / 4 Output Analog Break Out Box

Sale price$992.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

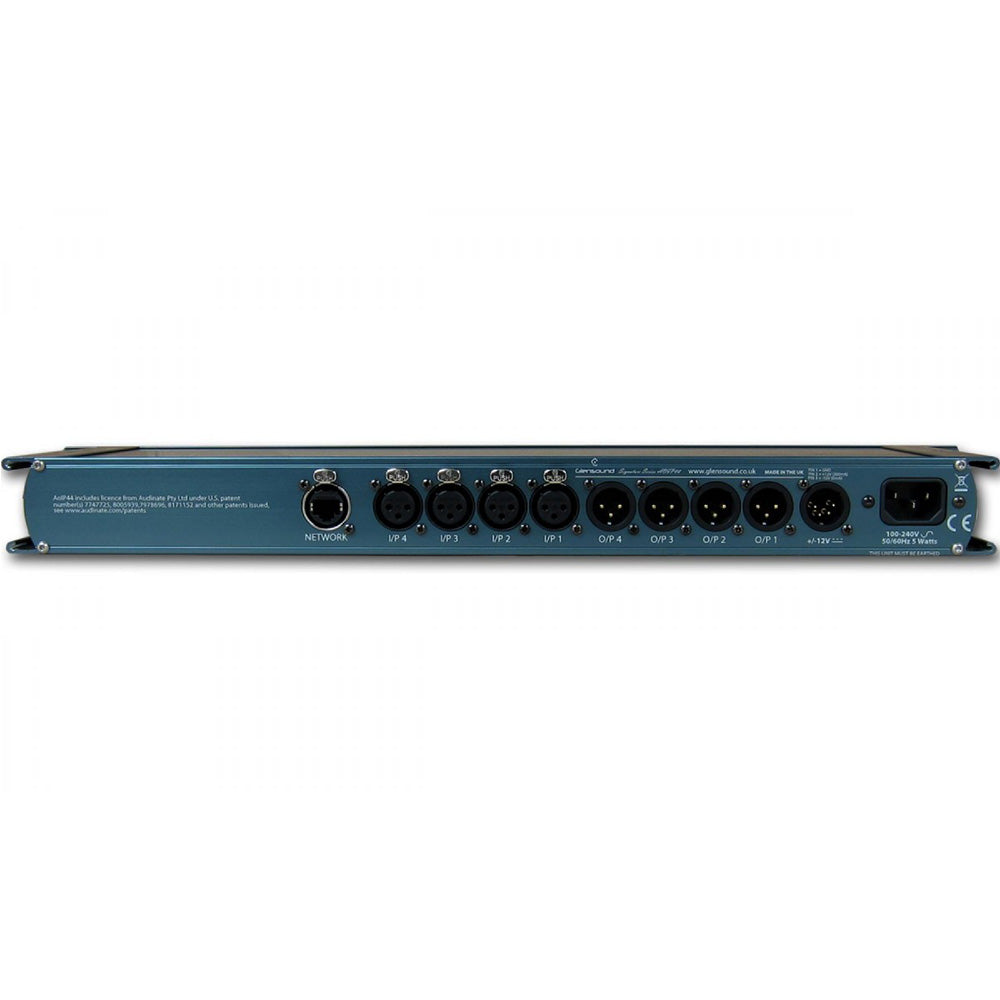

    The AoIP44 is an economical subrack designed to interface balanced analog audio circuits to and from a Network audio system featuring Dante. It provides 4 audio inputs to the network and also 4 audio outputs from the network on balanced 3 pin XLRs. As well as being mains powered with the standard signature backup DC powering option, the AoIP44 can be powered from an external PoE source via its network interface.

    The AoIP can be used as a simple low cost audio I/O break out unit on a large Dante audio network where it can be integrated extremely easily using the Dante controller and is fully compatible with any manufacturer's Dante equipment. It can also be used in very simple audio over IP scenarios where just 4 bi-directional audio circuits are needed to be distributed across a buildings network infrastructure, in which case 2 x AoIP44 units can be used connected together across the network. The AoIP44 is equally suited for high integrity broadcast purposes, intercom, just simple paging facilities or simple distribution of non-critical audio.

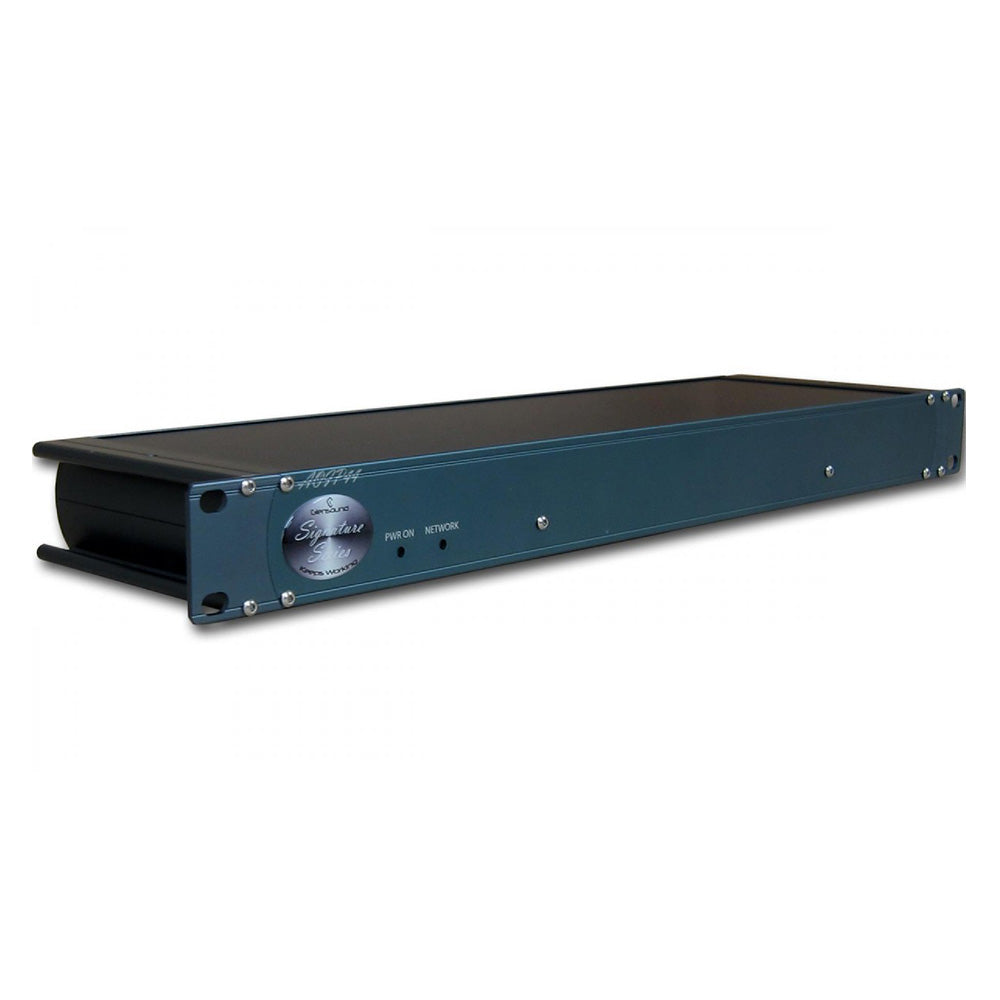

    Being part of the Signature Range the AoIP44 comes as standard with removable rack ears (to allow front or rear mounting in 19" racks), mounting holes to allow under desk mounting (the holes are equally suited for screwing the unit into odd places!) and an optional external DC power supply for applications requiring redundant power supplies. It is housed in an all anodized aluminium chassis.

    Features:

    • Simple economical Audio Over IP (AoIP) interface featuring Dante / AES67
    • 4 balanced audio inputs to the network
    • 4 balanced audio outputs from the network
    • 19" 1RU subrack
    • Subrack can be mounted with audio/ mains/ network connectors at the front or rear of the subrack
    • High quality audio circuits (designed for Broadcast)
    • Internal switch mode mains power supply
    • Can be powered by PoE
    • Back up DC power supply option
    • Single Cat5 copper Ethernet interface on Neutrik Ethercon
    AUDIO
    Input Type Electronically balanced (can be wired un-balanced) Neutrik 3 pin XLR Socket
    Input Impedence >20k
    Output Impedence 50 ohms
    Output Type Electronically balanced (can be wired un-balanced) Neutrik 3 pin XLR Plug
    Max Input before clip +18dBu
    Max output +18dbu
    Frequency Response(+-0.25dB) Flat until 22K
    Noise Residual -94.6dBu
    THD+N Relative (1k +8dBu) 0.00134%
    Dynamic Range 112.6dB's
    Crosstalk (0dBu input to ouput 1k tone) -94.7dBu
    NETWORK AUDIO
    Compatible Audio Network Dante uncompressed, low latency audio.
    AES67 Compliant The Audinate Ultimo chipset that we use in this product is AES67 compliant
    Network Connection Neutrik RJ45 EtherCON
    Dante Network resolution 24bit
    Dante Network sample rate 4 Bi-directional channels @ 44.1/ 48kHz
    2 Bi-directional channels @ 88.2/96kHz
    POWER
    DC Power +12v 240mA, -12v N/A
    Mains Input Filtered IEC 100 - 240VAC 47-63Hz
    PoE Can be powered by PoE
    AC Consumption 4.3 Watts
    Internal Mains Fuse 20mm 1A Anti Surge
    PHYSICAL
    Size 445 x 123 x 44mm (LxDxH) no rack ears, 482mm length (19" 1RU) with rack ears
    Weight 1.2Kg
    Shipping Weight 2.7Kg

    The AoIP44 is an economical subrack designed to interface balanced analog audio circuits to and from a Network audio system featuring Dante. It provides 4 audio inputs to the network and also 4 audio outputs from the network on balanced 3 pin XLRs. As well as being mains powered with the standard signature backup DC powering option, the AoIP44 can be powered from an external PoE source via its network interface.

    The AoIP can be used as a simple low cost audio I/O break out unit on a large Dante audio network where it can be integrated extremely easily using the Dante controller and is fully compatible with any manufacturer's Dante equipment. It can also be used in very simple audio over IP scenarios where just 4 bi-directional audio circuits are needed to be distributed across a buildings network infrastructure, in which case 2 x AoIP44 units can be used connected together across the network. The AoIP44 is equally suited for high integrity broadcast purposes, intercom, just simple paging facilities or simple distribution of non-critical audio.

    Being part of the Signature Range the AoIP44 comes as standard with removable rack ears (to allow front or rear mounting in 19" racks), mounting holes to allow under desk mounting (the holes are equally suited for screwing the unit into odd places!) and an optional external DC power supply for applications requiring redundant power supplies. It is housed in an all anodized aluminium chassis.

    Features:

    • Simple economical Audio Over IP (AoIP) interface featuring Dante / AES67
    • 4 balanced audio inputs to the network
    • 4 balanced audio outputs from the network
    • 19" 1RU subrack
    • Subrack can be mounted with audio/ mains/ network connectors at the front or rear of the subrack
    • High quality audio circuits (designed for Broadcast)
    • Internal switch mode mains power supply
    • Can be powered by PoE
    • Back up DC power supply option
    • Single Cat5 copper Ethernet interface on Neutrik Ethercon
    AUDIO
    Input Type Electronically balanced (can be wired un-balanced) Neutrik 3 pin XLR Socket
    Input Impedence >20k
    Output Impedence 50 ohms
    Output Type Electronically balanced (can be wired un-balanced) Neutrik 3 pin XLR Plug
    Max Input before clip +18dBu
    Max output +18dbu
    Frequency Response(+-0.25dB) Flat until 22K
    Noise Residual -94.6dBu
    THD+N Relative (1k +8dBu) 0.00134%
    Dynamic Range 112.6dB's
    Crosstalk (0dBu input to ouput 1k tone) -94.7dBu
    NETWORK AUDIO
    Compatible Audio Network Dante uncompressed, low latency audio.
    AES67 Compliant The Audinate Ultimo chipset that we use in this product is AES67 compliant
    Network Connection Neutrik RJ45 EtherCON
    Dante Network resolution 24bit
    Dante Network sample rate 4 Bi-directional channels @ 44.1/ 48kHz
    2 Bi-directional channels @ 88.2/96kHz
    POWER
    DC Power +12v 240mA, -12v N/A
    Mains Input Filtered IEC 100 - 240VAC 47-63Hz
    PoE Can be powered by PoE
    AC Consumption 4.3 Watts
    Internal Mains Fuse 20mm 1A Anti Surge
    PHYSICAL
    Size 445 x 123 x 44mm (LxDxH) no rack ears, 482mm length (19" 1RU) with rack ears
    Weight 1.2Kg
    Shipping Weight 2.7Kg
