Glensound AoIP4I - 4-Channel Analog Input to Dante/AES67 Interface
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

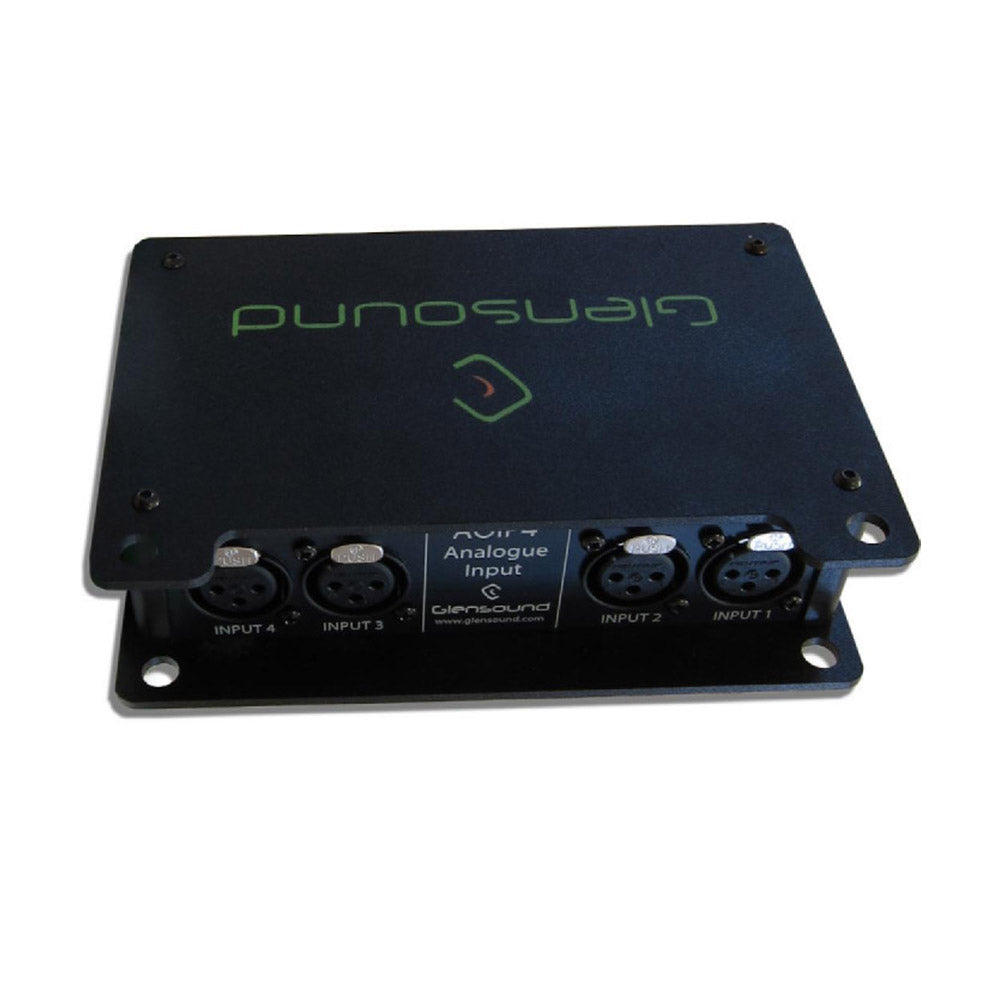

The Glensound AoIP4I is packaged in a small and rugged format and designed for outside broadcast, theatre and location applications.
Both the AoIP4O and AoIP4I units are designed to easily and quickly interface existing analogue equipment to a Dante® / AES67 network audio system. Being powered by PoE means that only one cable needs to be connected to the network to carry both audio and power, providing flexibility and saving time on installation.
AoIP4I provides 4 balanced analogue audio inputs to a Dante®/AES67 audio network.
Robust proven construction techniques, simple reliable interface and excellent specification will help make your technician’s life hassle free, whilst the low cost and long asset life will keep the accountant satisfied.
PoE Powering
For ease of setup only 1 single cable is needed to transport both power and audio to the AoIP units. The network cable carrying audio can also power the device using standard Power Over Ethernet (PoE) technology when connected to a suitable network switch or to a mid span PoE injector.
EXTERNAL DC POWER INPUT
An industry standard barrel connector is used for powering the AoIP units from an external 12V DC power source.
REDUNDANT POWER
If both PoE and DC power sources are connected then power supply redundancy is automatically enabled, meaning that either one of the power sources can be lost and the AoIP unit will continue working.
POWER ON LED
A bright blue rear panel LED indicates that the device is turned on.
OPTIONAL BELT CLIP
An optional removable beltclip can be fitted to one side of the AoIP4. Although unlikely to be used to fasten the unit to a belt, it is flexible enough to be used to fix the unit in lots of different places.
RUBBER FEET
The AoIP units are supplied with stick on rubber feet so if the AoIP4 is to be sat on a desk or the back of a workbench, then the rubber feet are fitted to stop it sliding around.
FIXING HOLES
All four front corners of the AoIP4 feature large extremely strong holes that are ideal for threading cable ties through. Alternatively for a permanent fixing solution, screws can be used instead.

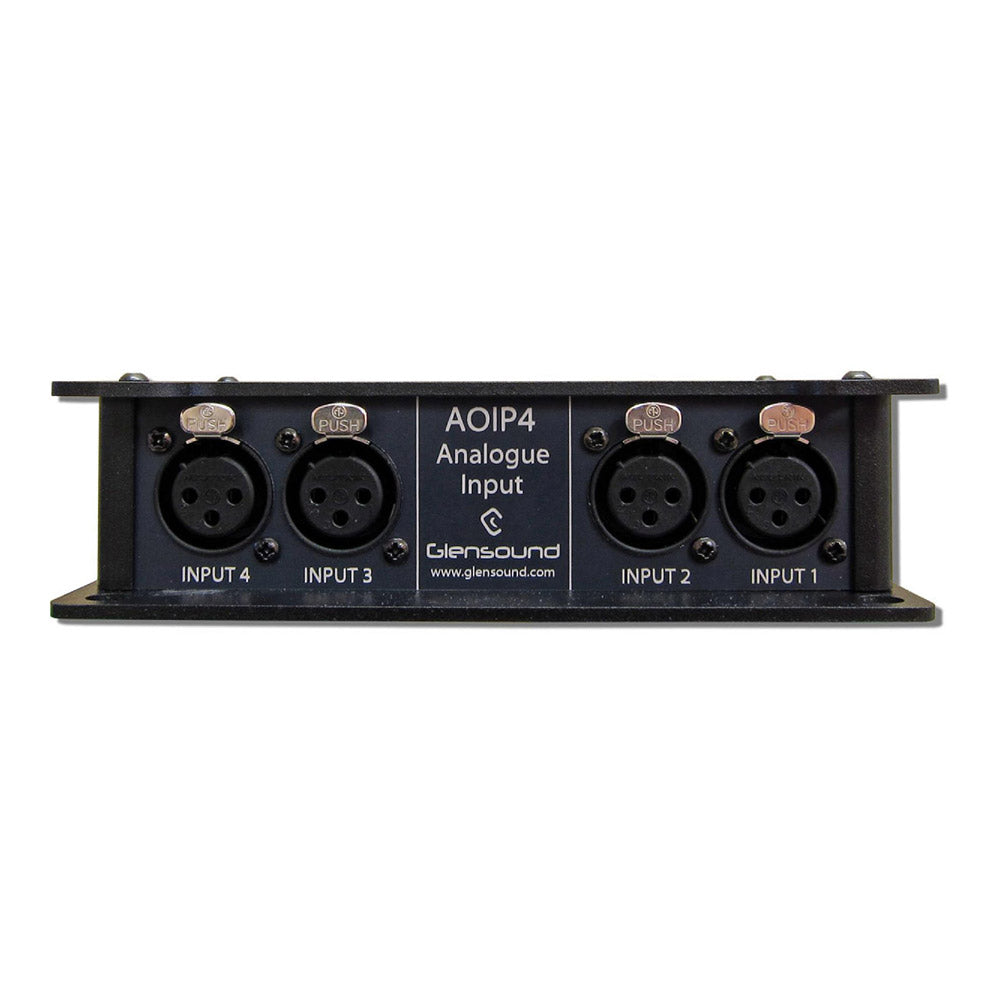

NEUTRIK XLRs
For audio integrity and reliability we only use high quality gold plated Neutrik XLRs.
FULLY PROTECTED ELECTRONICALLY BALANCED CIRCUITS
Not all electronically balanced audio circuits offer the same performance and reliability. With many years of specific broadcast audio experience, we’ve designed exceptionally robust and noise free circuits that have been proven to be best in class time and time again.
BELT CLIP
Can be purchased with or without a belt clip.
| AUDIO | |
| Frequency Response | 20Hz to 22kHz ± 0.25dB |
| Maximum Input Before Clip | +18dBu |
| Maximum Output Level | +18dBu |
| Input Impedance | >20 k Ohms |
| Output Impedance | 50 Ohms |
| Distortion (Analogue in to Dante Out) | 0.0013% THD+N @ 1kHz Reference to +18dBu output |
| Distortion (Dante in to Analogue Out) | 0.0026% THD+N @ 1kHz Reference to +18dBu output |
| Noise (Analogue In / Out @ 0dBu) | -92dBu (Residual) |
| Dynamic Range | 108dBs |
| Crosstalk (0dBu input to output 1kHz tone) | -135dBu |
| Output Type | Electronically balanced (can be wired unbalanced) on Neutrik 3 pin XLR socket |
| Input Type | Electronically balanced (can be wired unbalanced) on Neutrik 3 pin XLR plug |
| Digital Full Scale | +18dBu = 0dBFs |
| NETWORK AUDIO | |
| Compatible Audio Networks | Dante¨ uncompressed, low latency audio. AES67 |
| Connector | Neutrik EtherCON (also mates with standard RJ45s) |
| Dante Network Sample Rate | 4 Audio Channels: 44.1k, 48k, 2 Audio Channels: 88.2k, 96k |
| Resolution | Up to 24 Bit |
| AES67 Network Sample Rate | 48k |
| Ethernet Interface | 100BASE-TX |
| Chipset | Ultimo UXT-01-004 (Note: Audinate recommends no more than 10 Ultimo chipsets on one network UNLESS another Dante¨ device such as the Brooklyn is present) |
| POWER | |
| DC Input | 2.5mm Barrel, Centre +Ve, 9 - 15 Volts |
| Consumption | PoE:May be powered by PoE Complies to: IEEE 802.3af-2003 Classification Class 0 |
| Power On LED | Bright Blue |
| PHYSICAL | |
| Size | 153 x 105 x 41mm (WxDxH)Excluding Beltclip |
| Weight | 420g |
| Mechanics | All aluminium construction, anodized and laser etched |
| ENVIRONMENTAL | |
| Operating Temperature | 0 to +50¡C (32 to 122¡F) |
| Storage Temperature | -20 to +70¡C (-4 to 158¡F) |
| Relative Humidity | 0 to 95% non-condensing |
| INCLUDED ITEMS | Handbook: Paper Copy (Download also available) RJ45 Network Cable: 2 metre Cat5 RJ45 plug/ RJ45 plug cable Rubber Feet: 4 x stick on rubber feet |
