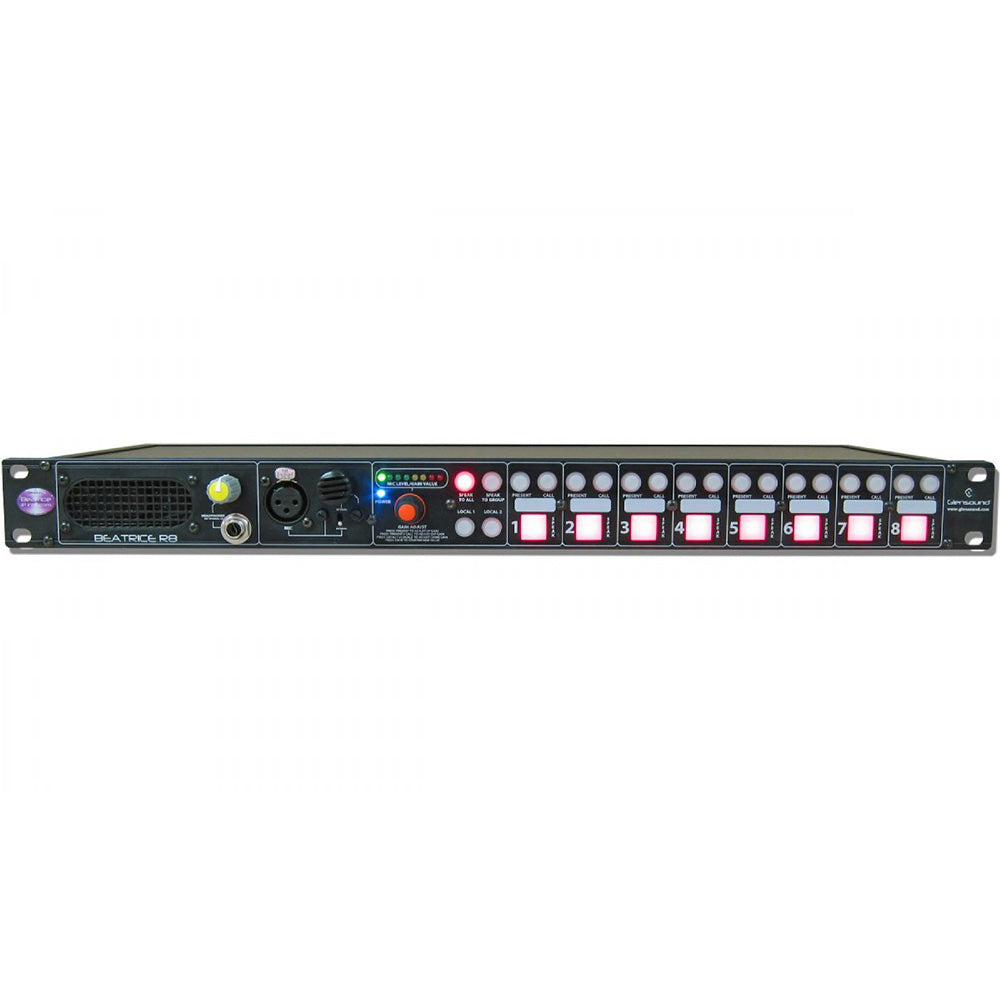

The Glensound BEATRICE R8 is a versatile and fully featured 8 channel rackmount intercom with crystal clear audio designed for broadcast,theatre and professional audio applications.
It is part of the Beatrice intercom system that utilizes the reliable and proven Dante network audio transmission protocol to allow real time distribution of uncompressed audio across standard networks, it is also AES67 compliant. As such the BEATRICE R8 is fully compatible with other manufacturers' equipment using the Dante and/ or AES67 protocols.

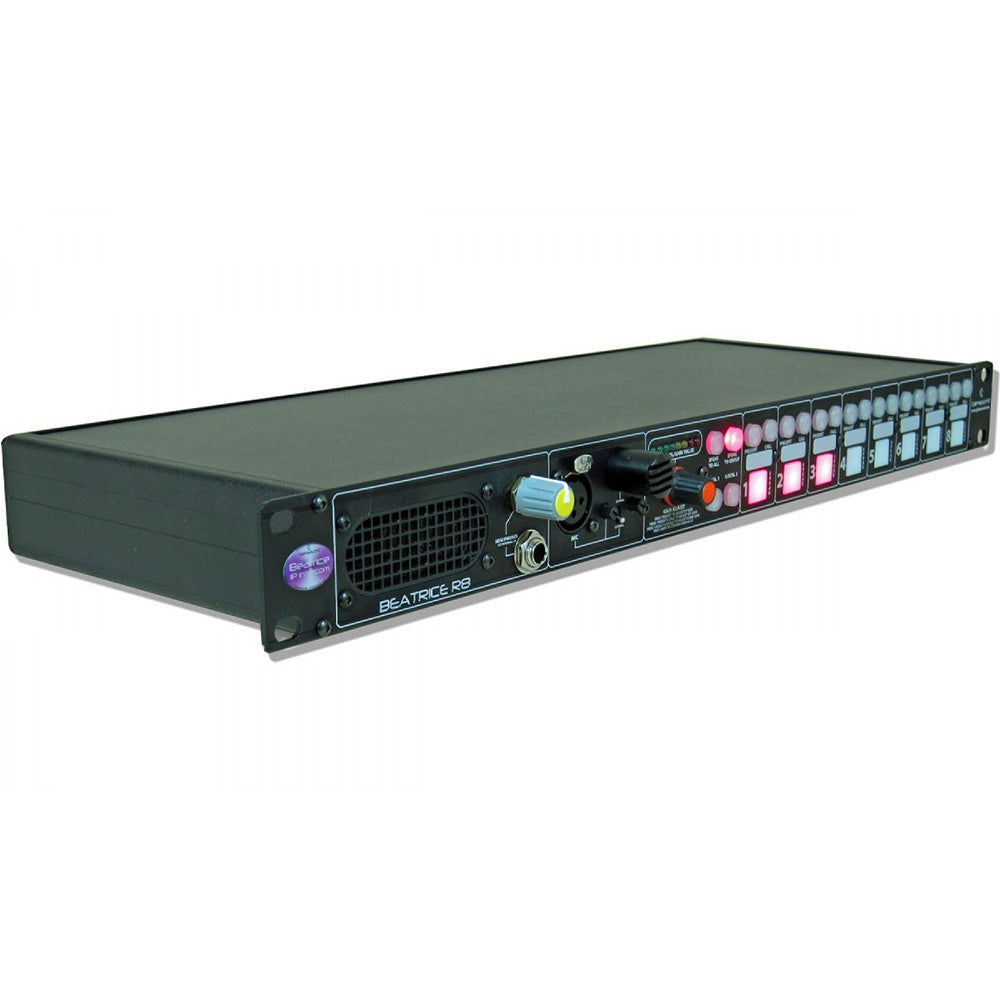

This 1RU rackmount intercom was designed to be very easy to use for the operator and simple to setup for the technician. It includes all the basic functionality required for small intercom systems and none of the overly complex installation requirements normally associated with large systems.
8 Channels Of Intercom
One single user connected to the unit can listen and communicate with 8 separate locations on the network. Depending upon how the Dante network has been routed the incoming audio circuits and outgoing circuits can be different locations.
2 Racks make 16 Channels
Two Beatrice R8 racks can be joined together by just a pair of digital S/PDIF cables making a fully featured 2RU 16 channel intercom unit, with groups, mics, speakers and other resources shared between the 2 units.
Dante Routing & Partyline
Audio routing to/ from other devices is setup using Dante controller which allows for point to multipoint routing on outgoing circuits (but only 1 single incoming circuit for each of the 8 channels). Therefore it includes an inbuilt fixed ratio 14 input 19 output mixer matrix with inputs and outputs connected directly to the Dante / AES67 network which allows for setting up partyline and complex group circuits.
Onboard Mic & External Mic Input
A good quality, clear sounding microphone amplifier designed for communication purposes is fitted which also has the benefit of a compressor/ limiter circuit to help keep levels and intelligibility consistent even when the operator gets overly excited. This microphone amp has two microphone sources, either the inbuilt front panel mounted electret capsule which provides good voice intelligibility from normal working distances or a balanced XLR input for connecting external gooseneck microphones to. Twelve Volt Phantom power is also available and can be turned on/ off as required via an internal link.
High Output Intelligible Loudspeaker
What's the point of an intercom unit if the onboard speaker is so cheap that you can't understand what is being said to you? Glensound tried hundreds of different drive units before settling on the one used in the Beatrice R8. They chose it because it had a much cleaner sound and better frequency response for vocals than any other speaker on the market that would fit in a 1RU subrack
Mains or PoE Powered
An inbuilt wide range switch mode mains power supply is fitted for powering the Beatrice R8. It is terminated with a standard IEC plug, making it easy to plug in wherever you are in the World. The unit can also be powered via the Ethernet cable by standard PoE (Power over Ethernet) on either of the copper Ethernet ports. The PoE power can be supplied by an external PoE switch or a midspan power injector.

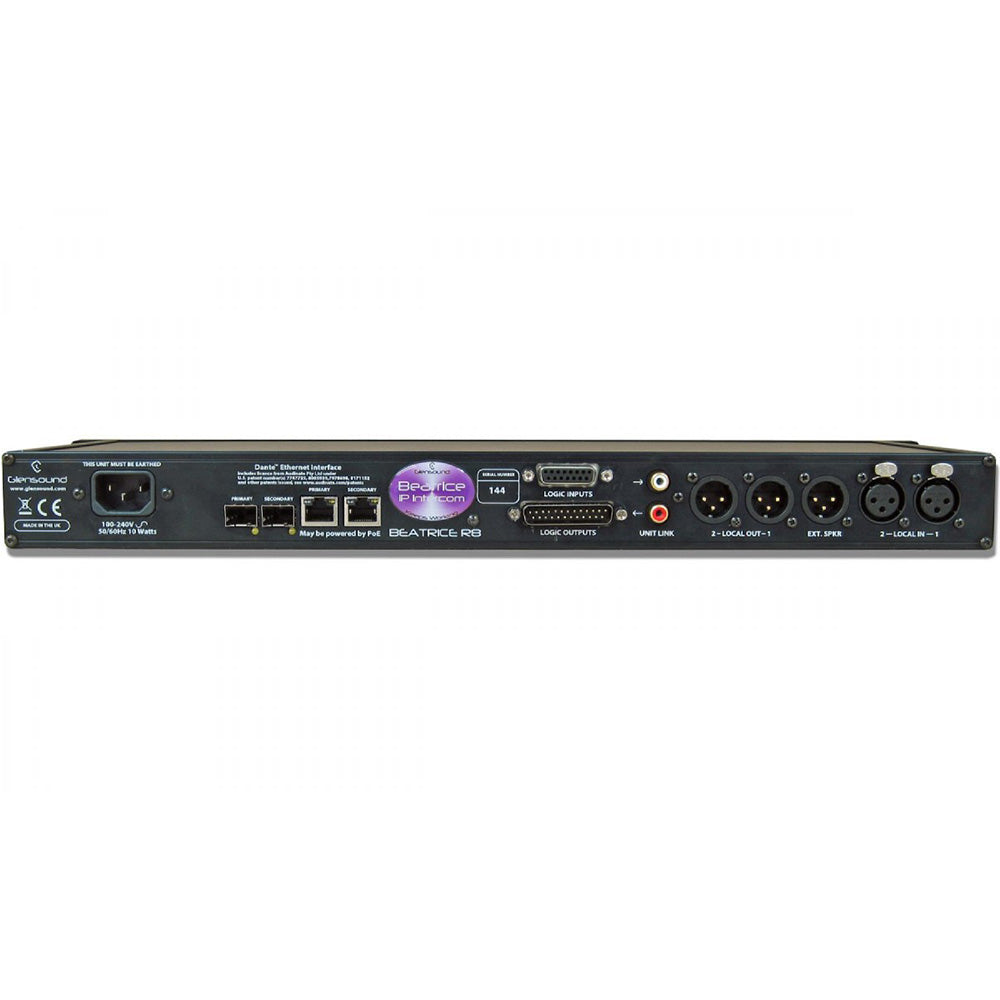

Redundant Twin Copper & Twin Fibre Ethernet Interface
When ultra reliable communications is needed for the utmost important jobs glitch free redundant network circuits can be set up using the primary and TM secondary Dante network ports. There are 2 copper Ethernet ports on Neutrik Ethercons and also 2 fibre Ethernet ports presented as SFP slots (SFP modules not included). Redundant networks can be set up across any of these ports. These ports can also be setup as a network switch.
There are nine solid state relay outputs. One of these outputs is triggered when any speak key is on (useful for dimming external loudspeakers or red light controls), the other eight are triggered individually when their associated channel receives a call. In total there are 12 loop closure inputs. 10 of these control the talk keys (the 8 channels, talk to group & talk to all) and the other 2 provide internal & external LS cuts
Microphone Level Meter
An eight LED front panel multipurpose indicator is used to indicate the outgoing microphone level.
Channel Input and Output Gain Controls
For maximum flexibility gain can be applied to incoming audio signals and outgoing signals separately. A row of LEDs indicate the current gain setting when a channels input or output is being adjusted.
A simple call function is inbuilt allowing the operator of one unit to call/alert other users that they want to communicate with. A bright front panel illuminated yellow round switch is used for calling the other party and also illuminates to indicate that you have been called. As well as illuminating a LED at the receiving end of the call an audible 'beep' can be set to alert the user that an incoming call has been placed to them.
A front panel illuminated red switch is used to indicate the presence of incoming audio on that channel.When audio is detected on the channel the switches internal red LED is illuminated, the red LED then stays on for a short period after the incoming audio stops to help the operator identify who has been talking to them.
As well as the front panel internal loudspeaker a balanced analogue output is provided for connecting to an external powered loudspeaker
Two traditional analogue 4-wire circuits can be connected to two of the R8's intercom channels by utilising the versatile analogue inputs and outputs.
Local Input and Output Circuits
For increased versatility there are 2 local balanced analogue audio inputs and 2 local balanced analogue outputs. The inputs have input gain controls and presence detectors on them (just like an intercom's channel input) and are routed directly to two output channels on the Dante / AES67 network. The outputs are fed directly from two input channels from the Dante / AES67 network.
Mixer Matrix For Partyline
For setting up more complex groups and partyline circuits that could not be achieved via Dante controller or your AES67 router, an inbuilt fixed ratio mixer is supplied. It has 14 audio inputs direct from the network and 19 mix outputs to the network. 5 of the mixers have inbuilt automatic audio ducking circuits.
|Physical Interface||2 off RJ45 Neutrik Ethercons and 2 off SFP slots|
|Audio Sample Frequency||48kS/s|
|Dante Chipset||Brooklyn II (Note: suitable for acting as a master clock for a network incorporating many Ultimo Chipsets)|
|AES67 Compliant||The Audinate Brooklyn module used is AES67 compliant|
|Mic Gain Range||+61 to +21dB|
|Phantom Power||12 Volts (set by internal link)|
|Equivalent Input Noise||-126dB (20Hz to 20kHz A weighted 150 Ohms)|
|Headphone Impedance||32 - 1000 Ohms|
|Max Headphone Output Level||+14dB into 600 Ohms|
|Headphone Connector||6.35mm (1/4") TRS socket|
|Band Pass Filter||50Hz to 15kHz|
|Inband Calling Frequency||20kHz|
|Duration Of Signal||2 seconds|
|Compatibility||All Glensound Beatrice units and Studio Technologies|
|Mains Voltage||100 to 240 VAC +/-10%|
|Mains Frequency||50 to 60Hz|
|Power Over Ethernet (PoE)||48 Volts|
|Redundancy||Mains and PoE are dioded together for glitch free redundancy|
|Mechanics||All aluminium with laser etched anodised panels and light textured black powder coated sides, base and lid|
|Size||19" 1RU high 164mm deep|
|Shipping Size||61 x 41 x 12cms|
|Shipping Carton||Rugged export quality cardboard carton|
|GPO||Solid State Relays wired Normally Open & Normally Closed|
|GPI||Logic level pull down to ground to operate|
|Handbook||Physical A5 (Download .pdf also available)|
|Network Cable||2 meter RJ45 to R45 cable|
