Glensound Charon 8P - Portable 8 Channel Dante/SDI Embedder and De-Embedder
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Charon 8P is a very simple 3G-SDI audio embedder/de-embedder.
- Incoming 3G-SDI has audio channels 1-8 de-embedded. These are embedded to Dante output channels 1-8
- Incoming Dante channels 1-8 are embedded into 3G-SDI output
There are no controls on the Charon and audio is just passed simutaneously bi-directionally, 1 input to 1 output as above. This simplicity of operation is intentional for situations where basic 3G-SDI audio embed/de-embed functions are required without the excess functions of other units that inevitably cost more.
Network connections are fully redundant with primary and seconday connections via CAT5 copper Ethernet, or fibre via primary and secondary SFP cages.
The SDI input and output is via 2 x 75ohm unbalanced BNC connectors.
At this time, tha Charon is 3G-SDI (SMPTE 424M) only, and 6G or 12G are not supported.

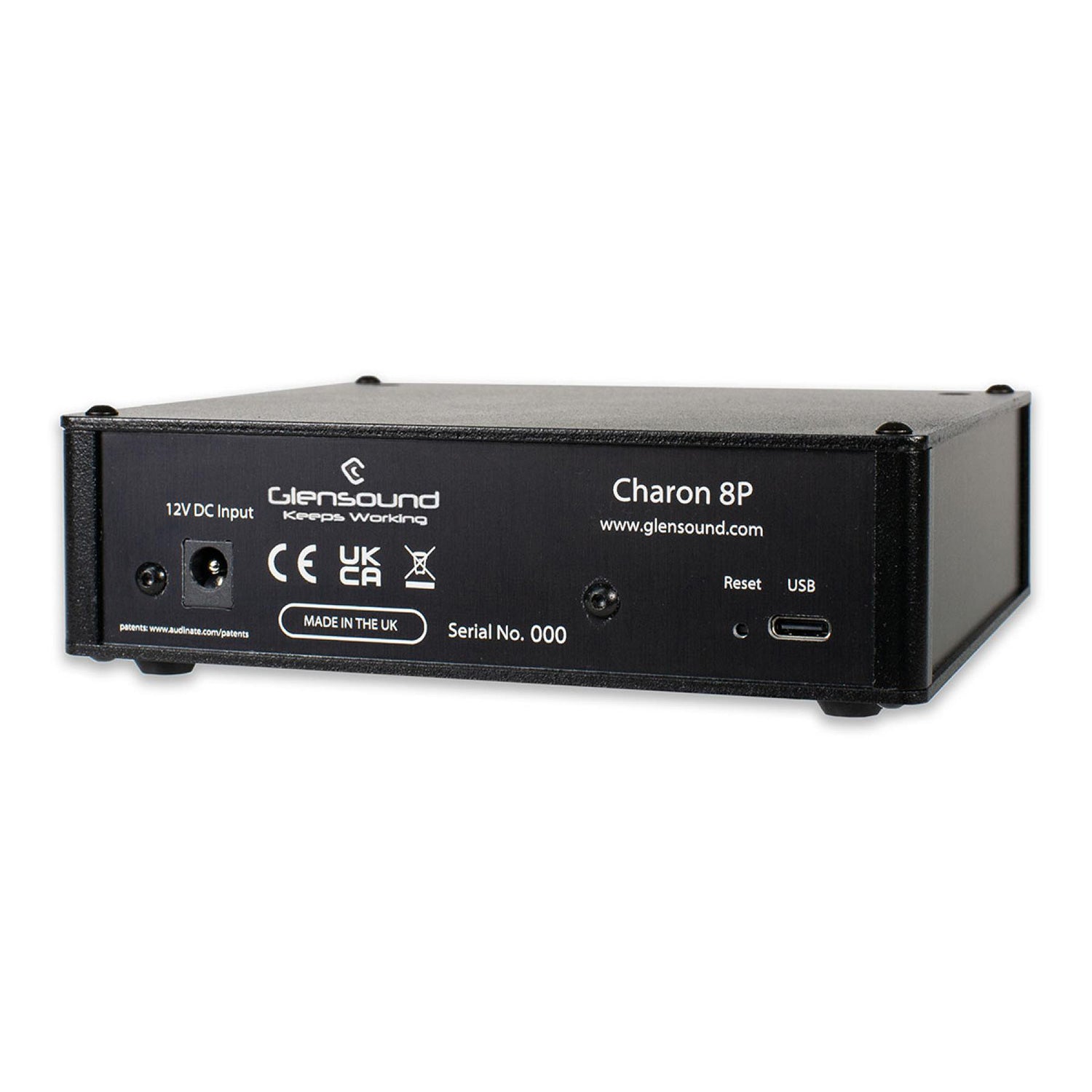

The Charon 8P is available as a portable unit, with PoE or 12VDC for power.
The Charon supports de-embedding and embedding audio from/to an SDI video feed.
The Charon can support speeds of 2.970Gb/s, 2.970/1.001Gb/s, 1.485Gb/s,
1.485/1.001Gb/s, and 270Mb/s and is compliant to SMPTE ST 425 (Level A and Level B), SMPTE ST 424, SMPTE 292 and SMPTE ST 259-C.
The SDI input supports typical equalized length of Belden 1694A cable up to:
- 200m at 2.97Gb/s
- 280m at 1.485Gb/s
- 500m at 270Mb/s
With the SDI output capable of typically driving at least 800mV at 75Ohms.
De-embedding
The Charon can de-embed the first 8 channels of an SDI video stream.
Embedding
In accordance with SMPTE ST 272 and SMPTE ST 299, the Charon can embed 8 channels of audio at 48kHz.
Note: A valid SDI video input signal must be present on the Input BNC connector for the Charon to be able to embed audio to an outgoing SDI video feed.
