DALE SKU # GLEN-COMEDIAV

Glensound Comedia-V - PoE 4 Input Active DSP & Network Control Amp

Sale price$724.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The Comedia-V is a network audio loudspeaker amplifier powered by Power over Ethernet (PoE) and boasts the very latest low noise high output class D power amplifier.

    Features:

    • Intelligent 10W Class D audio amplifier for Dante/AES67 networks

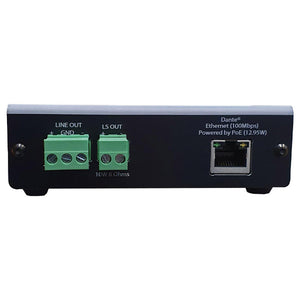

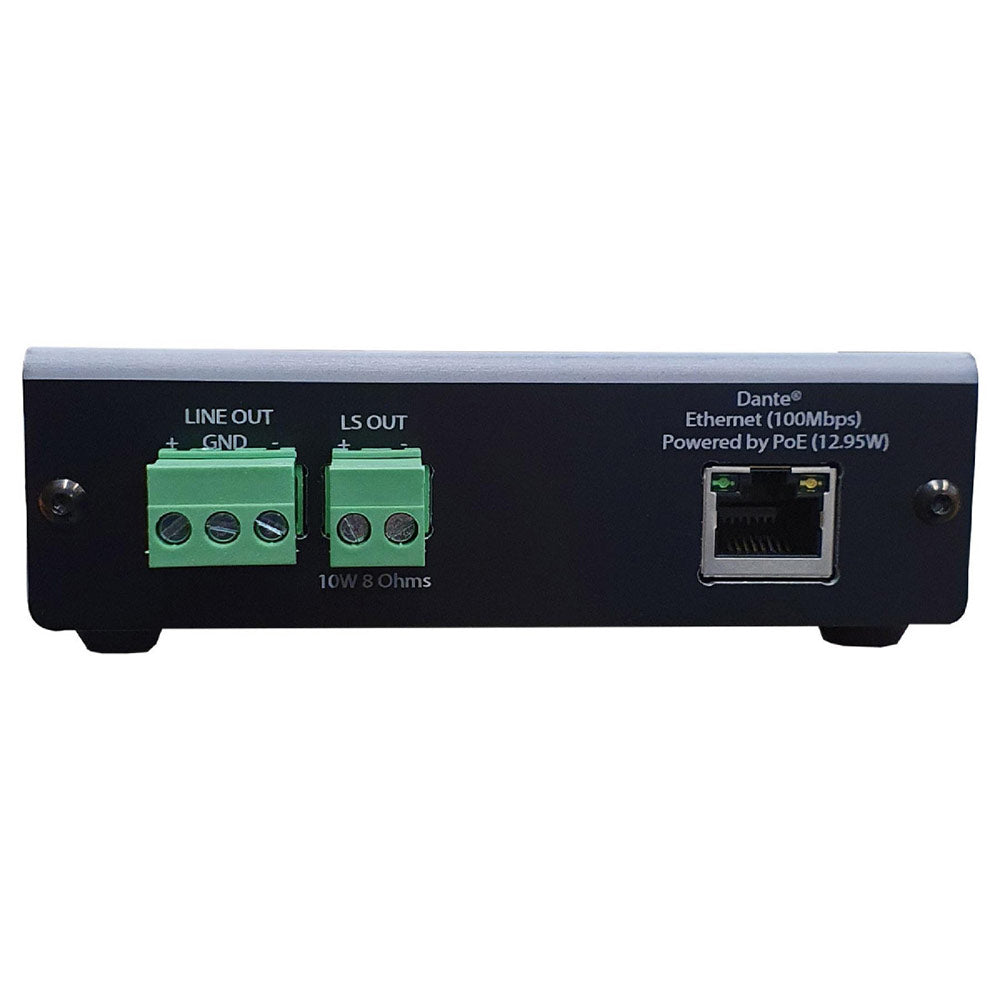

    • Speaker terminal output plus line level
    • PoE powered so just a single cable connection
    • Monitors 4 incoming Dante/AES67 channels
    • Set priority override on one input to interrupt another
    • Multi mode tricolour LED PPM meters
    • Can be remote controlled via the GlenController

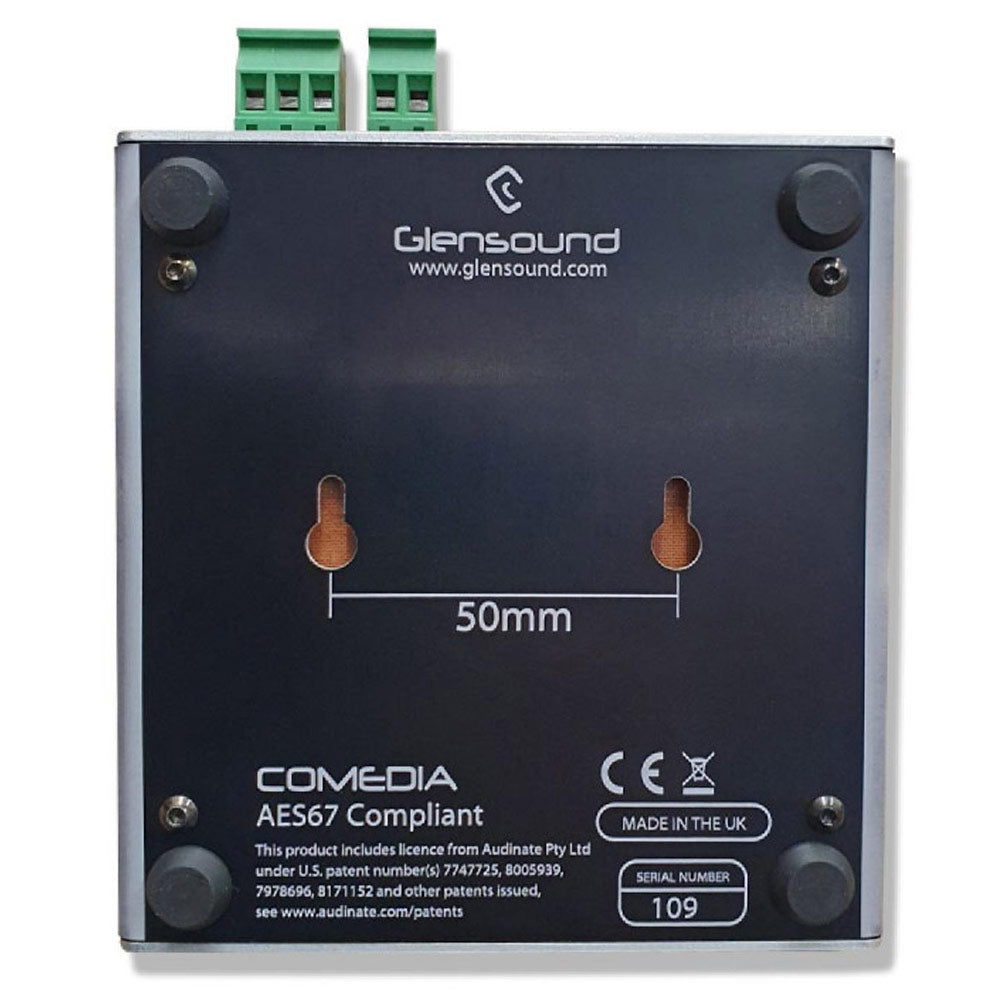

    Internally a Digital Signal Processor (DSP) takes particular care of the audio signals, including state of the art compression and limiting circuits. Control of setup and day to day operation of the Comedia is also available on our Windows 10 application Glensound Controller including the ability to group together multiple Comedia units and control their level simultaneously. The rugged and lightweight aluminium enclosure has holes to allow for wall or ceiling mounting.

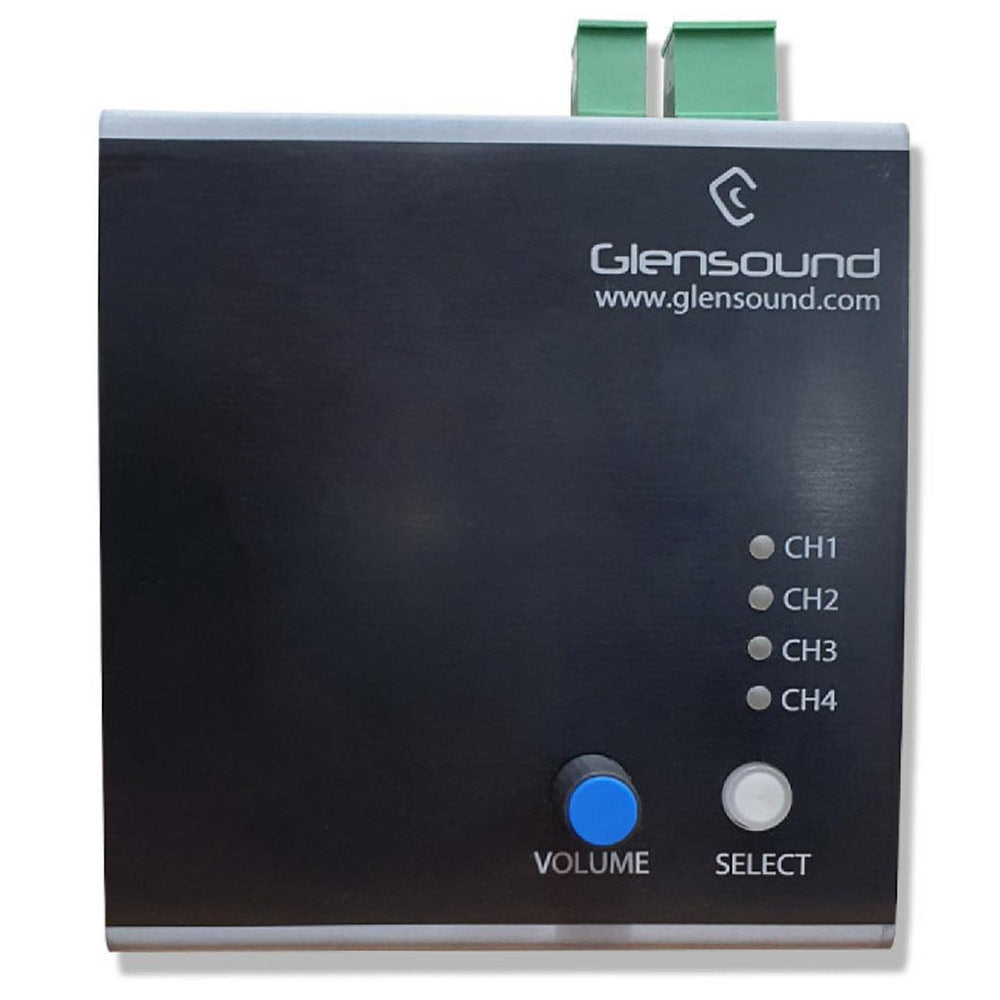

    Comedia-V can receive up to four Dante (AES67 compliant) audio over IP (AoIP) inputs. These inputs can be selected by the user on the front panel with a button and four LEDs to indicate the channel. The four audio inputs can also be easily mixed together and their individual levels adjusted.

    A priority system is provided to allow one (or more) of the inputs to automatically duck another. This can be very useful if you want to monitor one source but also listen to another when audio is present, such as sending show relay to dressing rooms in a theatre but having the stage managers call and building fire alarm take precedence when they’re active.

    Different preset EQs and an LF cut can all be set in the user menu to allow the Comedia to be used for a variety of applications.

    AUDIO
    Amplifier TypeLow Noise Class D
    Amplifier Power10 Watts
    Amplifier THD + Noise0.02% @ 1 Watt @ 1kHz
    Digital Line Up User selectable-24, -20 -18 dBFs
    Input Gain Boost0, +6, +12 +18dB
    Input Channel Gain Trim+/-16 dB
    Loudspeaker Impedance8 Ohms
    LF CutUser selectable (on/off ) Knee X Hz 12dB/Octave
    Voice EQ Frequency Settings300Hz to 3kHz 12dB/ Octave
    NETWORK
    ConnectorNeutrik EtherCON (mates with standard RJ45)
    Type100 Mbit/s
    AoIP AudioDante¨ Audinate Ultimo chipset (AES67 Compliant)
    AoIP Audio Sample Frequency4 channels @ 48k or 2 channels @ 96k (Dante¨ only)
    AoIP ResolutionUp to 24 Bit
    POWER
    PoEPowered by PoE, Complies to: IEEE 802.3af-2003, Classification Class 0
    Consumption12.8 Watts
    PoE SourceCan be powered by PoE enabled network switches or Mid-Span PoE injectors
    Energy Saving ModeAutomatic energy saving mode (shuts down power amplifier when no audio present)
    User settable delay15, 30 / 60 mins.
    ENVIRONMENTAL
    Operating Temperature0 to +50¡C (32 to 122¡F)
    Storage Temperature-20 to +70¡C (-4 to 158¡F)
    Relative Humidity0 to 95% non-condensing
    INCLUDED ITEMSRJ45 Network Cable 2 metre Cat5 RJ45 plug /RJ45 plug cable

    The Comedia-V is a network audio loudspeaker amplifier powered by Power over Ethernet (PoE) and boasts the very latest low noise high output class D power amplifier.

    Features:

    • Intelligent 10W Class D audio amplifier for Dante/AES67 networks
    • Speaker terminal output plus line level
    • PoE powered so just a single cable connection
    • Monitors 4 incoming Dante/AES67 channels
    • Set priority override on one input to interrupt another
    • Multi mode tricolour LED PPM meters
    • Can be remote controlled via the GlenController

    Internally a Digital Signal Processor (DSP) takes particular care of the audio signals, including state of the art compression and limiting circuits. Control of setup and day to day operation of the Comedia is also available on our Windows 10 application Glensound Controller including the ability to group together multiple Comedia units and control their level simultaneously. The rugged and lightweight aluminium enclosure has holes to allow for wall or ceiling mounting.

    Comedia-V can receive up to four Dante (AES67 compliant) audio over IP (AoIP) inputs. These inputs can be selected by the user on the front panel with a button and four LEDs to indicate the channel. The four audio inputs can also be easily mixed together and their individual levels adjusted.

    A priority system is provided to allow one (or more) of the inputs to automatically duck another. This can be very useful if you want to monitor one source but also listen to another when audio is present, such as sending show relay to dressing rooms in a theatre but having the stage managers call and building fire alarm take precedence when they’re active.

    Different preset EQs and an LF cut can all be set in the user menu to allow the Comedia to be used for a variety of applications.

    AUDIO
    Amplifier TypeLow Noise Class D
    Amplifier Power10 Watts
    Amplifier THD + Noise0.02% @ 1 Watt @ 1kHz
    Digital Line Up User selectable-24, -20 -18 dBFs
    Input Gain Boost0, +6, +12 +18dB
    Input Channel Gain Trim+/-16 dB
    Loudspeaker Impedance8 Ohms
    LF CutUser selectable (on/off ) Knee X Hz 12dB/Octave
    Voice EQ Frequency Settings300Hz to 3kHz 12dB/ Octave
    NETWORK
    ConnectorNeutrik EtherCON (mates with standard RJ45)
    Type100 Mbit/s
    AoIP AudioDante¨ Audinate Ultimo chipset (AES67 Compliant)
    AoIP Audio Sample Frequency4 channels @ 48k or 2 channels @ 96k (Dante¨ only)
    AoIP ResolutionUp to 24 Bit
    POWER
    PoEPowered by PoE, Complies to: IEEE 802.3af-2003, Classification Class 0
    Consumption12.8 Watts
    PoE SourceCan be powered by PoE enabled network switches or Mid-Span PoE injectors
    Energy Saving ModeAutomatic energy saving mode (shuts down power amplifier when no audio present)
    User settable delay15, 30 / 60 mins.
    ENVIRONMENTAL
    Operating Temperature0 to +50¡C (32 to 122¡F)
    Storage Temperature-20 to +70¡C (-4 to 158¡F)
    Relative Humidity0 to 95% non-condensing
    INCLUDED ITEMSRJ45 Network Cable 2 metre Cat5 RJ45 plug /RJ45 plug cable
