Glensound DARK1616DR - Ravenna Network Audio 8x AES3 Inputs 8x AES3 Outputs Interface
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

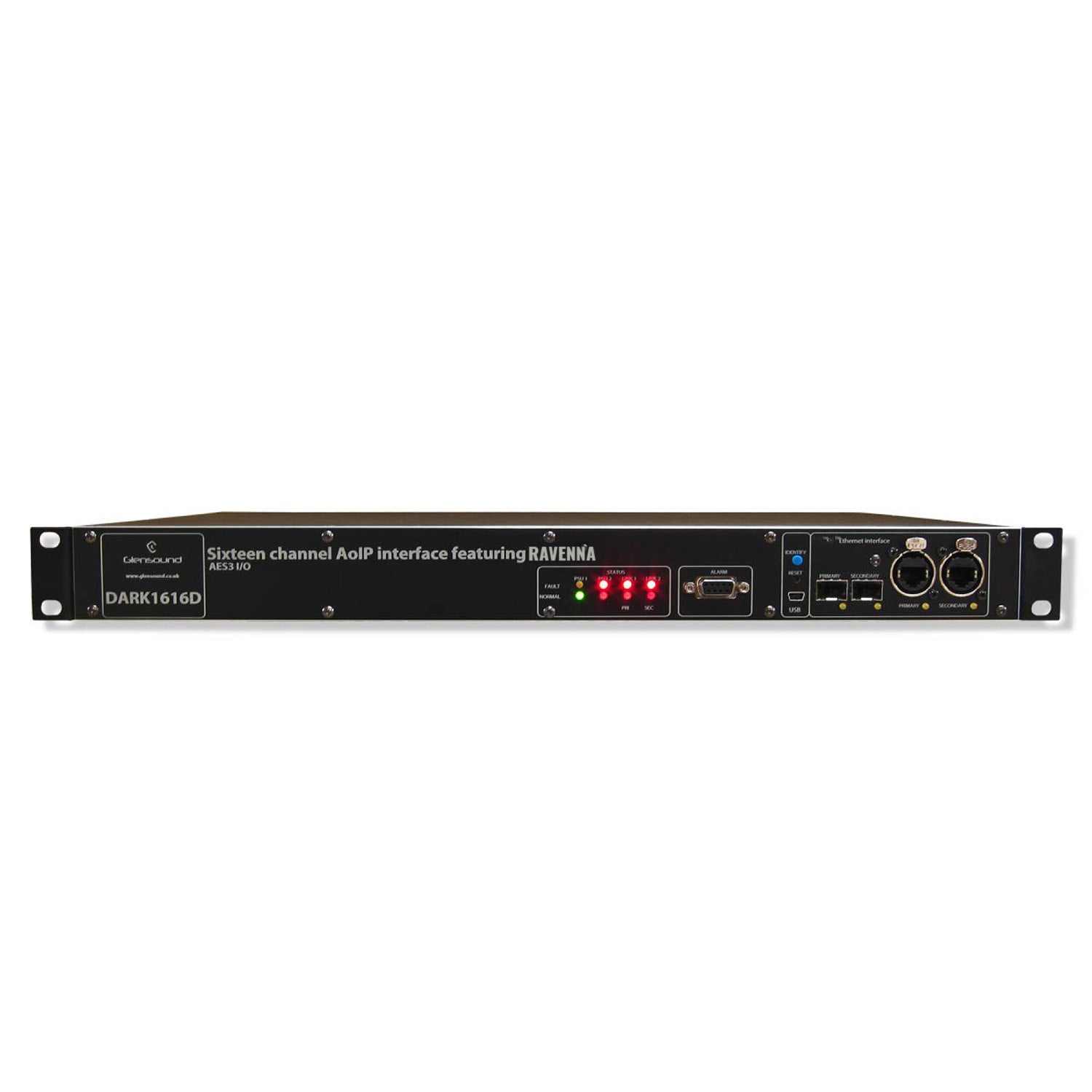

The Glensound DARK1616DR is a digital to digital converter designed to connect AES3 audio circuits to/ from a Ravenna/ AES67 audio network.
Ravenna network audio is a common protocol for distributing high quality linear audio over standard IP networks and it is widely used by many audio equipment manufacturers. The Glensound DARK1616D Ravenna audio interface will be compatible with any other manufacturers Ravenna audio interface.
Being designed for live on-air broadcast applications the Glensound DARK1616D has been designed with multiple redundancy capabilities. It has 2 mains power sources and it also has fully redundant network connections for both Copper and Fibre circuits.

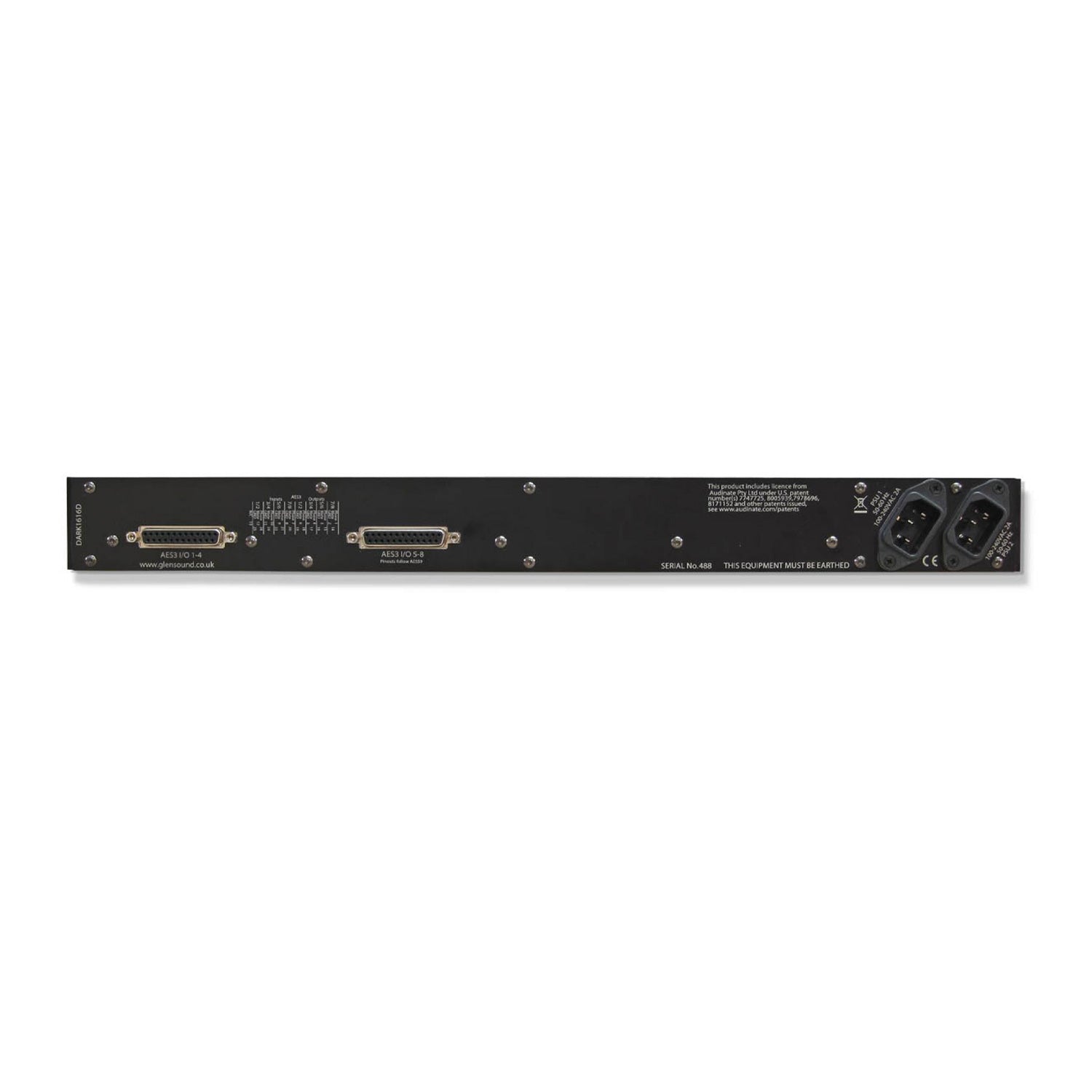

The DARK1616D provides 8 balanced AES3 inputs and 8 balanced AES3 outputs to the Ravenna network on rear panel D25 connectors wired to AES59 (also known as the Tascam standard).
Features:
- Ravenna /AES67
- 8 of AES audio inputs
- 8 of AES audio outputs
- Multiple redundancy capabilities
- 2 mains power sources
- Fully redundant network connections for both Copper / Fibre circuits
- 1u 19" Rack
- Also Available in AES67/Dante Version
| Physical | 2 x Neutrik Ethercons Cat6 RJ45s / 2 x SFP slots |
| Type | Fully redundant primary / secondary circuits |
| AES67 | Yes |
| High Sample Rates | 44.1kHz - 192kHz |
| PTPv2 | Master or Slave, IEEE-1588-2008 standard |
| SMPTE ST 2110-30 | Yes. Including level C and CX |
| SMPTE ST2022-7 | Yes. Seamless data switching |
| NMOS IS-04 (Discovery) | Yes |
| NMOS IS-05 (Routing) | Yes |
| Remote Control | Web browser or Aneman |
