DALE SKU # GLEN-DARK8MAIPMKII

Glensound DARK8MAI/P MKII - 8-Input Mic Amp for Dante / AES67

Sale price$2,691.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The DARK8MAIP (Microphone Analogue Input with phoenix connectors) is a very powerful Dante/ AES67 network audio interface, in a robust stage box/ throw down style. It has 8 off low noise mic/line inputs which are remotely controlled by a Windows 10/11 app. The outputs of the microphone amplifiers are transmitted on a fully redundant Dante/ AES67 network interface.

    Having 8 off low noise high quality microphone inputs makes the DARK8MAIP perfect for transporting audio circuits from a stage or a pitch side position to a mixer or other location within an audio network.

    The rugged design, PoE powering and remote control facility of the unit means that it can easily be placed and left unattended wherever audio sources are required.

    Eight Audio Inputs

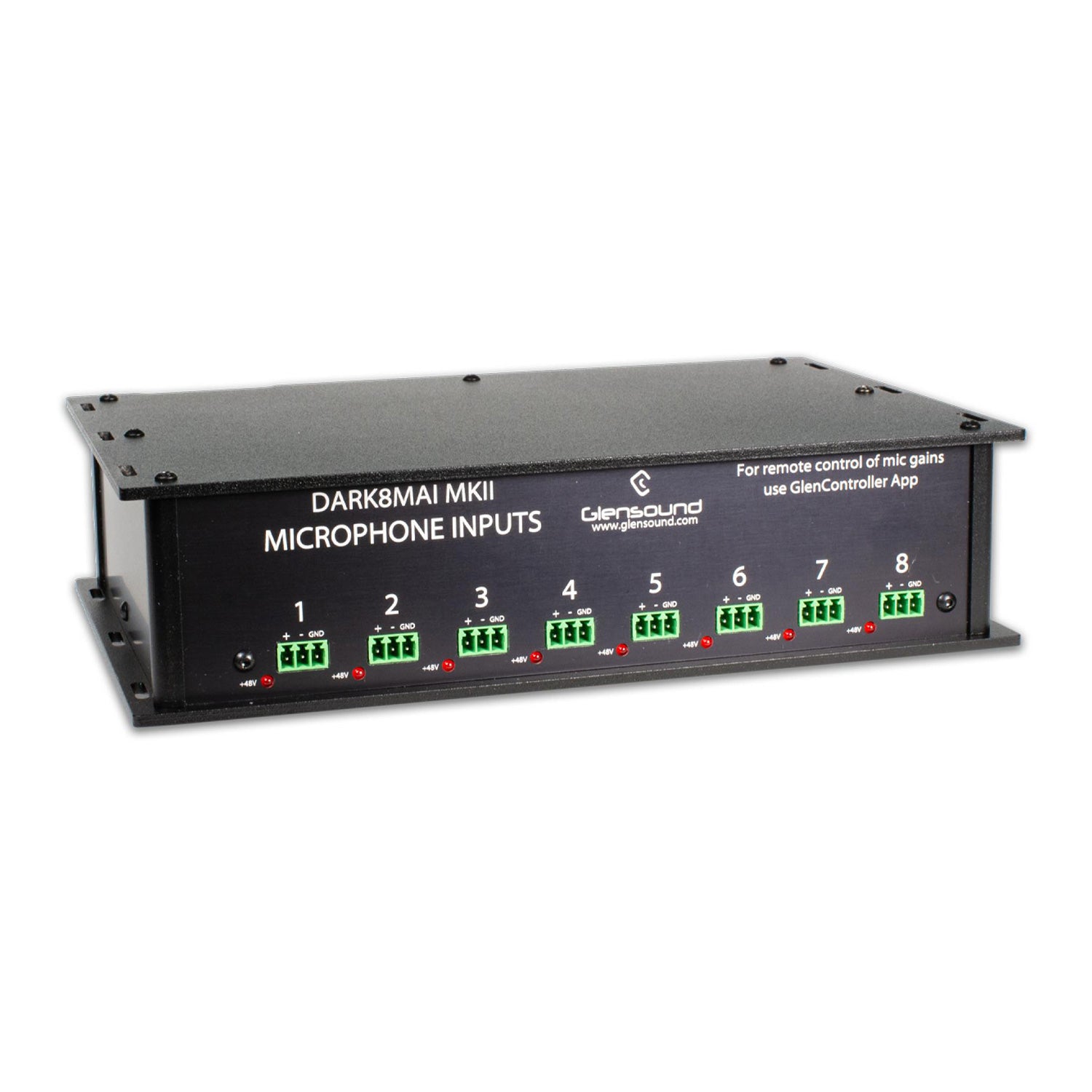

    The DARK8MAI MKII has 8 audio inputs. Each input is made available by integrator friendly phoenix connectors and each input can be set to accept line or mic level inputs. Clever internal circuitry even changes the input impedance to correctly match the input type.

    Low Noise Mic Amps
    The very best low noise and distortion microphone amplifier chipsets by Profusion are used in our very carefully designed pre-amp. The design of the pre-amp took our Chief Design Engineer over 3 months to develop and tailor to provide crystal clear sound unaltered by unwanted characteristics.

    Mic/Line/Phantom Power
    Each of the eight inputs can be individually switched to accept either a mic or line level input. The mic input can also have 48 Volt phantom power turned on/ off. Input selection and phantom power settings are enabled on the Windows 10 app.

    High Quality Analogue To Digital Converters
    As well as the best microphone amplifiers, the very best widest range analogue to digital converters (ADC) currently available are used to make sure the digital audio on your network is as good as it possibly can be. The filter settings of the ADC can even be changed via the app.

    Windows 10/11 App For Remote Control
    GlenController, our free Windows 10/11 app, provides full remote control of the DARK8MAIP. It allows switching of input types, gain control, level monitoring and more.

    Network Interface
    There are 4 network interfaces on the DARK8MAIP. There are 2 x Neutrik Ethercon (RJ45) connectors and there are also 2 x SFP slots for customers to fit their own preferred fibre interfaces.

    Redundant Network Interface
    When using the Dante protocol it is possible to set the DARK8MAIP to have a fully redundant network interface whereby a completely glitch free automatic redundant audio network link is provided across 2 of the network interfaces.

    Power
    DARK8MAIP can be powered from independent sources to provide a redundant power option. Each copper RJ45 network socket can accept PoE (this means that just 1 cable can carry power and audio data to/ from the unit). A DC input is also provided for powering the unit from an external DC source if no PoE is available, on alocking4 pin XLR.

    LINE INPUTS
    Frequency Response +/-0.25dB 20Hz to 22kHz
    Maximum Input Level +18dB
    Input Impedance >20k Ohm
    Distortion 0.0013% @ 100Hz
    0.0022% @ 1kHz
    0.00094% @ 10kHz
    All reference to +8dBu output
    Noise -93dB @ Line up A weighted RMS (22Hz to 22kHz)
    Interchannel Crosstalk >101dB @ 0dB with 1kHz Tone
    Dynamic Range >111dB
    Input Type Electronically balanced (can be wired unbalanced)
    MIC INPUTS
    Frequency Response +/-0.25dB 40Hz to 22kHz
    Input Range -67 to -15dB (for -24dBFs line up)
    -61 to -7dB (for -18dBFs line up)
    Input Gain Resolution 3dB Steps
    Input Impedance >2k4 Ohm
    Equivalent Input Noise 127dB (22Hz to 22kHz Terminated 300 Ohms)
    Distortion 0.013% @ 100Hz
    0.002% @ 1kHz
    0.003% @ 10kHz
    All Reference to +8dBu output
    Phantom Power +48 Volts
    NETWORK INTERFACE
    Physical 2 x Neutrik Ethercon RJ45 sockets and 2 x GBIC SFP module slots
    Protocol Dante / AES67
    Audio Sample Rates 32 - 192 kS/s
    POWER
    PoE Inputs 2 of standard 48V
    One on each network RJ45
    PoE Consumption Total unit consumption <15Watts
    PHYSICAL
    Size 59x 157 x 238mm (H x D x W)
    Weight 1.20Kg
    Mechanics All aluminium construction, anodized panels and laser etched front / rear panels
    Shipping Carton Rugged export quality cardboard carton 610 x 420 x 130mm (L x D x H)
    Shipping Weight 2.5Kg
    ENVIRONMENTAL
    Operating Temperature 0 to +50¡C (32 to 122¡F)
    Storage Temperature -20 to +70¡C (-4 to 158¡F)
    Relative Humidity 0 to 95% non-condensing
    INCLUDED ITEMS
    Network Cable 1 of 2 metre RJ45 Cable
    Handbook Available as download
    REMOTE CONTROL
    General Windows 10 application. Direct install on PC (not App store download)
