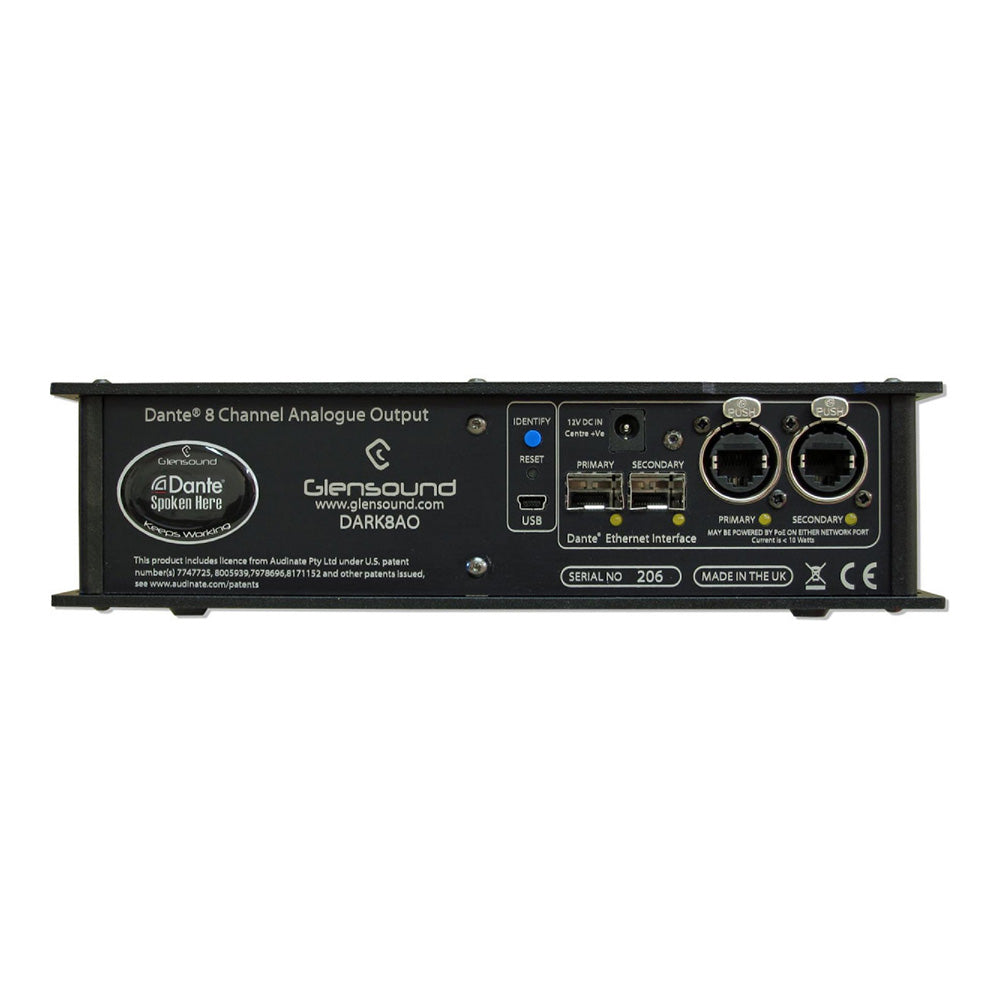

Glensound DARK8O - Portable 8-Channel Dante / AES67 Analog Network Audio Interface
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The DARK8O provides 8 analogue outputs from a Dante/AES67 network using XLR connections. The network link is via primary and redundant copper Ethernet or SFP fibre modules. Power is on PoE or external DC. The compact throw down box style makes the DARK8O very useful as a high quality utility output interface for your Dante or AES67 network.
| Maximum Output Level | +18dBu |
| Fs line up | 0dBFS = + 18dBu |
| Frequency Response | >-0.25dB 20Hz to 22kHz |
| Output Impedance | 50 Ohms |
| Distortion | (REF +8dBu output) 0.008% @ 100Hz 0.007% @ 1kHz 0.005% @ 10kHz |
| Noise | -93dB@line up A weighted RMS |
| Dynamic Range | 111dB |
| Interchannel Crosstalk | >109dB |
| Output Type | Electronically balanced (can be wired unbalanced) |
| Network Sample Rates | 32 - 192kHz |
| NETWORK INTERFACE | |
| Physical | 2 x Neutrik Ethercon RJ45 sockets and 2 x GBIC SFP module slots |
| Protocol | Dante and AES67 |
| Audio Sample Rates | 32 - 192 kS/s |
| POWER | |
| PoE Inputs | 2 of standard 48V One on each network RJ45 |
| PoE Consumption | Total unit consumption <15Watts |
| Ext DC Input | 2.5mm Barrel Connector, Centre +Ve, 9 to 15V |
| PHYSICAL | |
| Size | 59x 157 x 238mm (H x D x W) |
| Weight | 1.20Kg |
| Mechanics | All aluminium construction, anodized panels and laser etched front and rear panels |
| Shipping Carton | Rugged export quality cardboard carton 610 x 420 x 130mm (L x D x H) |
| Shipping Weight | 2.5Kg |
| ENVIRONMENTAL | |
| Operating Temperature | 0 to +50¡C (32 to 122¡F) |
| Storage Temperature | -20 to +70¡C (-4 to 158¡F) |
| Relative Humidity | 0 to 95% non-condensing |
| INCLUDED ITEMS | |
| Network Cable | 1 of 2 metre RJ45 Cable |
| Handbook | A5 paper handbook (download also available) |
The DARK8O provides 8 analogue outputs from a Dante/AES67 network using XLR connections. The network link is via primary and redundant copper Ethernet or SFP fibre modules. Power is on PoE or external DC. The compact throw down box style makes the DARK8O very useful as a high quality utility output interface for your Dante or AES67 network.
