Description

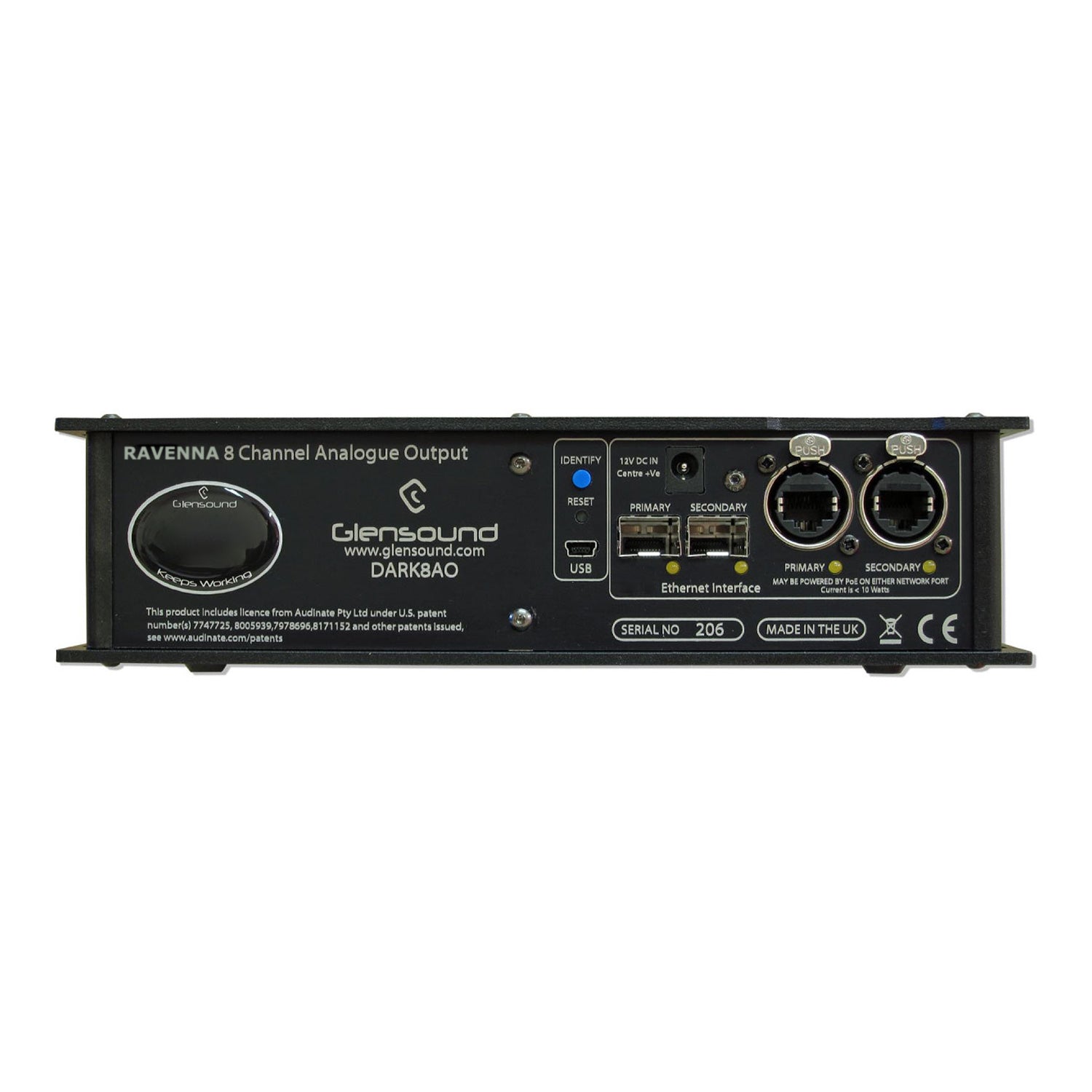

The DARK8O provides 8 analogue outputs from a RAVENNA network using XLR connections. The network link is via primary and redundant copper Ethernet or SFP fibre modules. Power is on PoE or external DC.
The compact throw down box style makes the DARK8O very useful as a high quality utility output interface for your network.
Features:
- Ideal for Broadcast, Theatre and Pro Audio
- 8 Analogue Audio Outputs
- RAVENNA Compatible
- Redundant Network interface
- Network Remote Control and Configuration
- Redundant PoE
AUDIO | |
Maximum Output Level | +18dBu |
Fs line up | 0dBFS = + 18dBu |
Frequency Response | >-0.25dB 20Hz to 22kHz |
Output Impedance | <=50 Ohms |
Distortion | (REF +8dBu output) 0.008% @ 100Hz 0.007% @ 1kHz 0.005% @ 10kHz |
Noise | -93dB@line up A weighted RMS |
Dynamic Range | 111dB |
Interchannel Crosstalk | >109dB |
Output Type | Electronically balanced (can be wired unbalanced) |
Network Sample Rates | 32 - 192kHz |
NETWORK INTERFACE | |
Physical | 2 x Neutrik Ethercon RJ45 sockets and 2 x GBIC SFP module slots |
Protocol | RAVENNA |
Audio Sample Rates | 32 - 192 kS/s |
POWER | |
PoE Inputs | 2 of standard 48V. One on each network RJ45 |
PoE Consumption | Total unit consumption <15Watts |
Ext DC Input | 2.5mm Barrel Connector, Centre +Ve, 9 to 15V |
PHYSICAL | |
Size | 59x 157 x 238mm (H x D x W) |
Weight | 1.20Kg |
Mechanics | All aluminium construction, anodized panels and laser etched front / rear panels |
Shipping Carton | Rugged export quality cardboard carton 610 x 420 x 130mm (L x D x H) |
Shipping Weight | 2.5Kg |
ENVIRONMENTAL | |
Operating Temperature | 0 to +50¡C (32 to 122¡F) |
Storage Temperature | -20 to +70¡C (-4 to 158¡F) |
Relative Humidity | 0 to 95% non-condensing |
INCLUDED ITEMS | |
Network Cable | 1 of 2 metre RJ45 Cable |
Handbook | A5 paper handbook (download also available) |
