Glensound DITTO 414J - 4 Input Mixer x 4 With Front Panel Jack Inputs
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

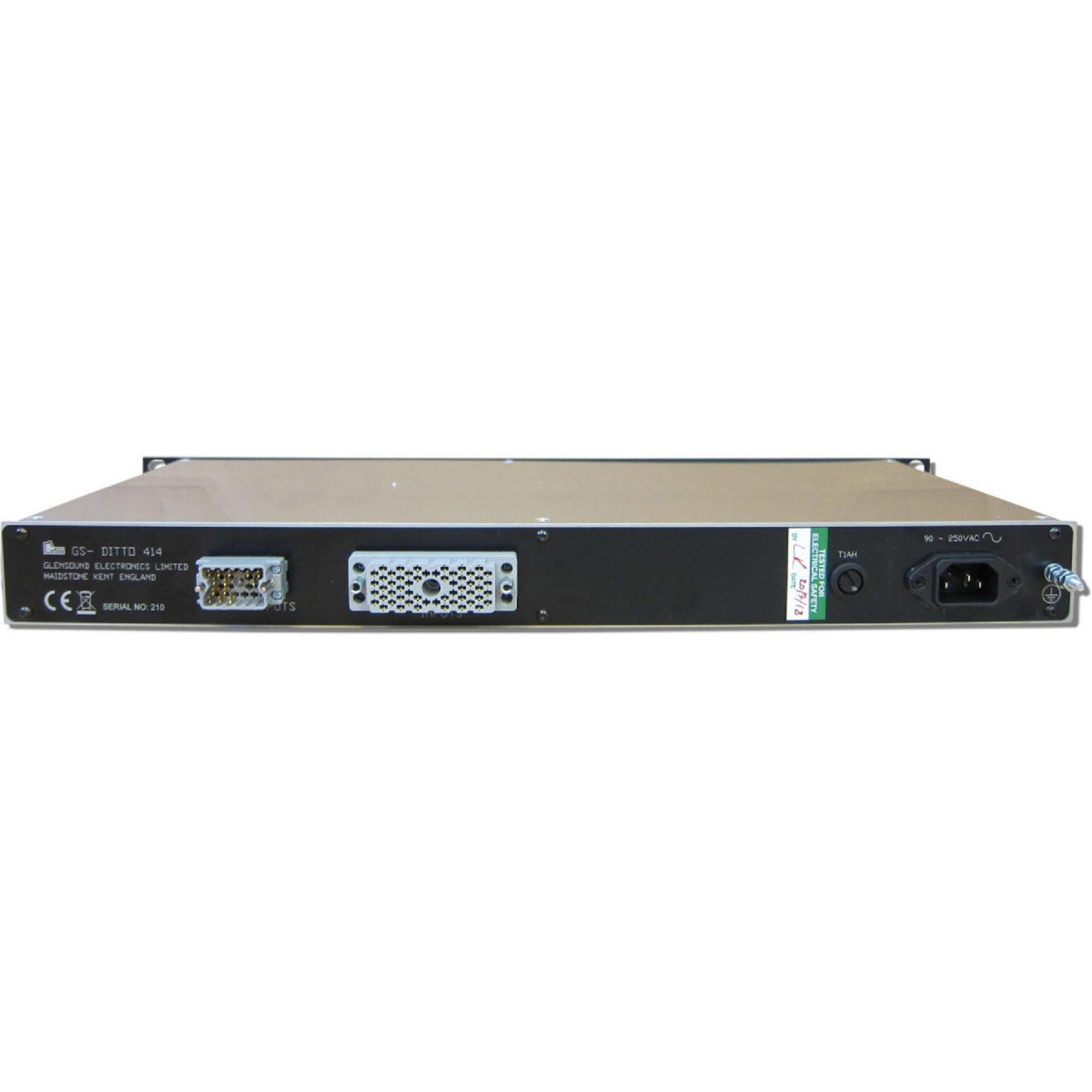

The Ditto range of line level mixers offer multiple independent line mixers in compact 1u or 2u subracks. Where multiple talkback channels need to be mixed, or any number of multiple sources need to be mixed, the Ditto units are a simple and cost effective choice. A typical use would be in outside broadcast or in studios for talk back mixing.
Features:
- 4 separate mixers
- 4 inputs per mixer
- Front panel break jack or parallel input
- Output mix control
- 1u 19" subrack
Every unit has the option of adding front panel patch points via 6.35mm jack sockets. There is one under each input and connects in parallel with the main rear input. There is also a jack socket under the output control for monitoring of the output mix.
There are two factory options with the 'J' Versions.
- Inputs are in parallel with the rear inputs (Standard)
- Inputs are break jacks and replace the rear inputs (add 'B' suffix)
| GENERAL SPECIFICATIONS | |
| 1U SUBRACKS | |
| HEIGHT | 44mm |
| WIDTH | 435mm |
| DEPTH (Excluding external connectors) | 207mm |
| POWER INPUT | 90 to 240 VAC 50 - 60 Hz |
| 2U SUBRACKS | |
| HEIGHT | 88mm |
| WIDTH | 435mm |
| DEPTH (Excluding external connectors) | 207mm |
| POWER INPUT | 90 to 240 VAC 50 Ð 60 Hz |
| ANALOGUE AUDIO INPUT SPECIFICATIONS | |
| QUANTITY OF SINGLE CHANNEL INPUTS | 16, or 18, or 32,or 38 |
| CIRCUIT TYPE | Electronically balanced |
| INPUT CONNECTORS (all units) | 56 pin EDAC (Varicon) connector |
| INPUT CONNECTORS (J VERSIONS ONLY) | 6.35mm jack socket |
| INPUT IMPEDANCE | > 80K |
| INPUT LEVEL | 0dBu |
| LINE INPUT GAIN RANGE | Off to +10dB |
| MAXIMUM LINE INPUT LEVEL (UNITY GAIN) | +24dBu |
| FREQUENCY RESPONSE (BANDPASS FILTER) | <-1dBu@20Hz and 20kHz |
| DISTORTION | <0.025% from 100Hz - 15kHz |
| LEVEL METERS (PPM STYLE) | |
| QUANTITY OF LEDS | 4 per meter |
| RANGE PER LED | 6 dB |
| LED INDICATION RANGE | +6 to -12dB |
| ANALOGUE AUDIO OUTPUT SPECIFICATIONS | |
| QUANTITY OF SINGLE CHANNEL OUTPUTS | 3, or 4,or 6, or 8 |
| SOURCE | Mix of all input channels |
| CIRCUIT TYPE | Electronically balanced |
| OUTPUT CONNECTORS | 20 pin EDAC (Varicon) connector |
| OUTPUT IMPEDANCE MAXIMUM OUTPUT LEVEL | +24dBu |
| OUTPUT GAIN RANGE | -20dBu to +10dBu |
| FRONT PANEL CONTROLS | |
| INPUT GAIN | Via front panel input pots. |
| OUTPUT GAIN | Via front panel gain pot. |
The Ditto range of line level mixers offer multiple independent line mixers in compact 1u or 2u subracks. Where multiple talkback channels need to be mixed, or any number of multiple sources need to be mixed, the Ditto units are a simple and cost effective choice. A typical use would be in outside broadcast or in studios for talk back mixing.
Features:
- 4 separate mixers
- 4 inputs per mixer
- Front panel break jack or parallel input
- Output mix control
- 1u 19" subrack
Every unit has the option of adding front panel patch points via 6.35mm jack sockets. There is one under each input and connects in parallel with the main rear input. There is also a jack socket under the output control for monitoring of the output mix.
There are two factory options with the 'J' Versions.
- Inputs are in parallel with the rear inputs (Standard)
- Inputs are break jacks and replace the rear inputs (add 'B' suffix)
| GENERAL SPECIFICATIONS | |
| 1U SUBRACKS | |
| HEIGHT | 44mm |
| WIDTH | 435mm |
| DEPTH (Excluding external connectors) | 207mm |
| POWER INPUT | 90 to 240 VAC 50 - 60 Hz |
| 2U SUBRACKS | |
| HEIGHT | 88mm |
| WIDTH | 435mm |
| DEPTH (Excluding external connectors) | 207mm |
| POWER INPUT | 90 to 240 VAC 50 Ð 60 Hz |
| ANALOGUE AUDIO INPUT SPECIFICATIONS | |
| QUANTITY OF SINGLE CHANNEL INPUTS | 16, or 18, or 32,or 38 |
| CIRCUIT TYPE | Electronically balanced |
| INPUT CONNECTORS (all units) | 56 pin EDAC (Varicon) connector |
| INPUT CONNECTORS (J VERSIONS ONLY) | 6.35mm jack socket |
| INPUT IMPEDANCE | > 80K |
| INPUT LEVEL | 0dBu |
| LINE INPUT GAIN RANGE | Off to +10dB |
| MAXIMUM LINE INPUT LEVEL (UNITY GAIN) | +24dBu |
| FREQUENCY RESPONSE (BANDPASS FILTER) | <-1dBu@20Hz and 20kHz |
| DISTORTION | <0.025% from 100Hz - 15kHz |
| LEVEL METERS (PPM STYLE) | |
| QUANTITY OF LEDS | 4 per meter |
| RANGE PER LED | 6 dB |
| LED INDICATION RANGE | +6 to -12dB |
| ANALOGUE AUDIO OUTPUT SPECIFICATIONS | |
| QUANTITY OF SINGLE CHANNEL OUTPUTS | 3, or 4,or 6, or 8 |
| SOURCE | Mix of all input channels |
| CIRCUIT TYPE | Electronically balanced |
| OUTPUT CONNECTORS | 20 pin EDAC (Varicon) connector |
| OUTPUT IMPEDANCE MAXIMUM OUTPUT LEVEL | +24dBu |
| OUTPUT GAIN RANGE | -20dBu to +10dBu |
| FRONT PANEL CONTROLS | |
| INPUT GAIN | Via front panel input pots. |
| OUTPUT GAIN | Via front panel gain pot. |
