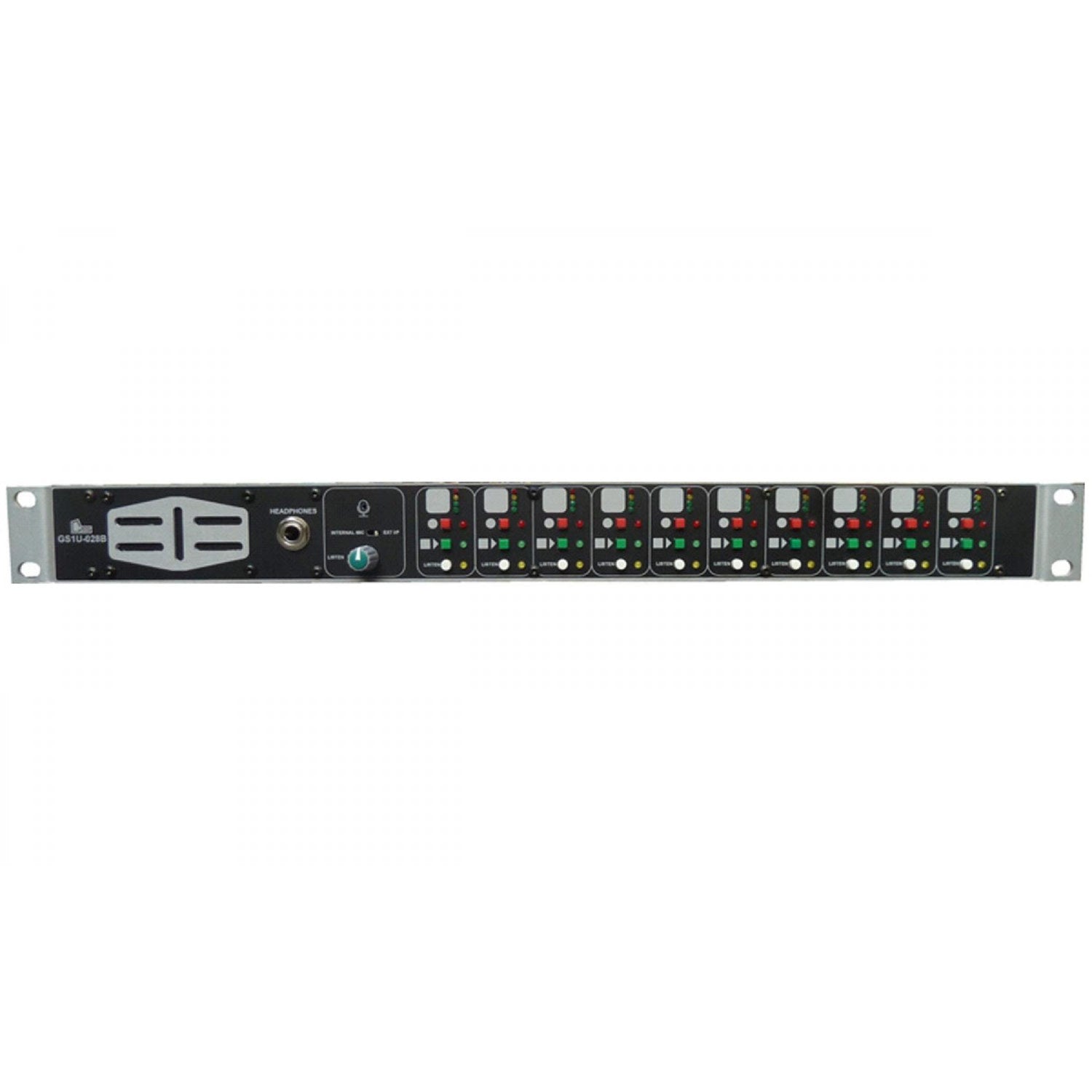

Glensound GS-1U028B - High Quality 10 Channel Line Ident
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Line identification units are often used in busy studios to record an audio message on a circuit, then playing it back on a loop. The GS1U-0288 provides 10 independent line idents,that allow each circuit to be identified by just listening to the pre-recorded message. The GS1U-0288 also provides a 1kHz tone at Od8 to allow correct audio level setting.
Features:
- 10 independent line identification circuits
- Each circuit records up to 20 seconds of message
- On playback, 4 seconds of a 1kHz tone at OdB is added after the recorded message
- On playback recorded message and tone is continually repeated Small 4 LED PPM to indicate playback levels for each identification channel
- New recording IC sampling at 12 kHz
- Messages are recorded into non volatile memory (saved even after power down)
- Front panel loudspeaker for monitoring of identification channels
- Front panel headphone jack (cuts LS)
- Front panel LS & headphone volume control
- Any identification channel can be routed via front panel listen switches to LS/ headphone
- Simple to use record/ playback/listen front panel switches
- Front panel microphone for recording messages
- Rear panel external line level input for recording messages
- Front mic/ ext input routing switch
- Compressor/limiter circuit on mic amp for clean audio messages
- Outputs on XLRs
- Record loop inputs for remote control of recording
- Play loop inputs for remote control of channel play operation Labelling points for designation of identification channels Stocked item for next day delivery
- Mains powered 100 - 250 VAC
Line identification units are often used in busy studios to record an audio message on a circuit, then playing it back on a loop. The GS1U-0288 provides 10 independent line idents,that allow each circuit to be identified by just listening to the pre-recorded message. The GS1U-0288 also provides a 1kHz tone at Od8 to allow correct audio level setting.
Features:
- 10 independent line identification circuits
- Each circuit records up to 20 seconds of message
- On playback, 4 seconds of a 1kHz tone at OdB is added after the recorded message
- On playback recorded message and tone is continually repeated Small 4 LED PPM to indicate playback levels for each identification channel
- New recording IC sampling at 12 kHz
- Messages are recorded into non volatile memory (saved even after power down)
- Front panel loudspeaker for monitoring of identification channels
- Front panel headphone jack (cuts LS)
- Front panel LS & headphone volume control
- Any identification channel can be routed via front panel listen switches to LS/ headphone
- Simple to use record/ playback/listen front panel switches
- Front panel microphone for recording messages
- Rear panel external line level input for recording messages
- Front mic/ ext input routing switch
- Compressor/limiter circuit on mic amp for clean audio messages
- Outputs on XLRs
- Record loop inputs for remote control of recording
- Play loop inputs for remote control of channel play operation Labelling points for designation of identification channels Stocked item for next day delivery
- Mains powered 100 - 250 VAC
