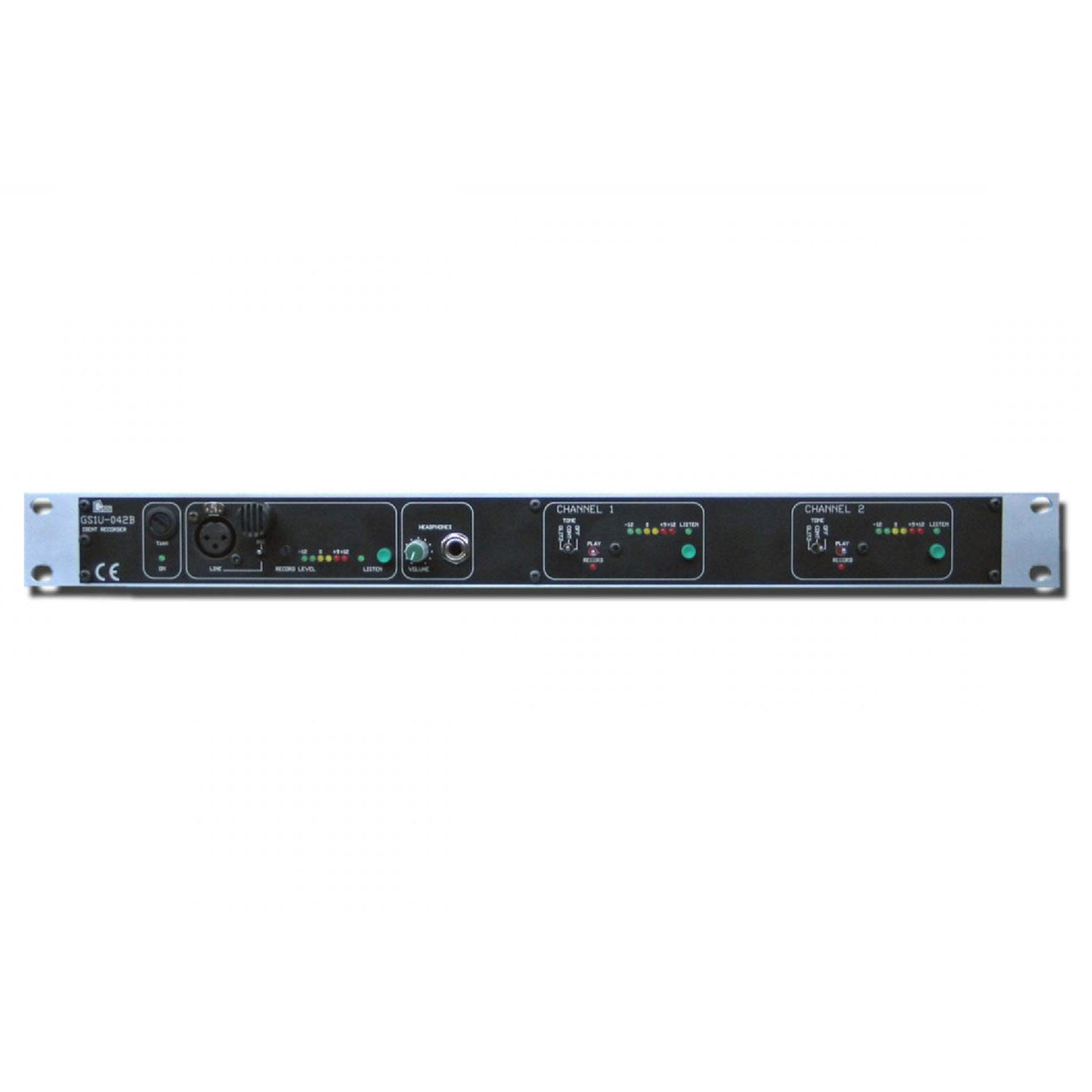

Glensound GS-1U042 - Stereo Line Ident With Glitz Tone

This mains powered 1U subrack utilises the same identification recording technology as the 2U-007. It has two channels of Identification, each of these channels records a mono signal the output of which is reproduced as a stereo signal.

Features:

• Stereo line ident
• Up to 25 seconds recording
• Plus 3 seconds of 1kHz tone or stereo GLITZ tone
• Stereo audio inputs
• Changeover relay
• Front panel mic
• Headphone monitoring

There are three playback modes each one continuously repeated:

• One: Up to 25 seconds of speech
• Two: Up to 25 seconds of speech followed by 3 seconds of tone.
• Three: Up to 25 seconds of speech followed by stereo GLITZ Tone.

Each channel has a balanced audio input, this audio input can be switched via a relay to the audio outputs instead of the recorded identification message. Control of the changeover relay is done via a rear panel 9 way 'D' socket, start and stop of playback can also be controlled via this D socket.

Monitoring is provided by an inbuilt headphone amp and recording can be done either by a front panel microphone or from an external line level input.
