Glensound GS-CU001B MkII Version 1 - Three Commentator Unit With Electronic Balancing

The GS-CU001B Mk II is a highly versatile commentary unit. It was designed after close consultation with end users and the result is a stand alone unit which offers a wide range of facilities, and it is equally at home on the terraces, as it is in a studio.

Features:

• Positions for 3 commentators 3 x mic/line inputs with 48v phantom power
• Individual outputs plus a mixed output
• 5 external inputs for monitoring plus sidetone
• Output compressor / limiter
• 3 common talkback outputs with Config+ push buttons
• 7 segment LED PPM
• Electronic balancing

The Mk II Version
The MkII version now adds the following as standard features:

• 48v phantom power
• upgraded input gain pot
• input gain range increased from -20 to +10 dB
• GPOs on Mic and talkback buttons to allow integration with main intercom or talkback system

VERSION 1 (EE): This version has electronically balanced audio input & output circuits.

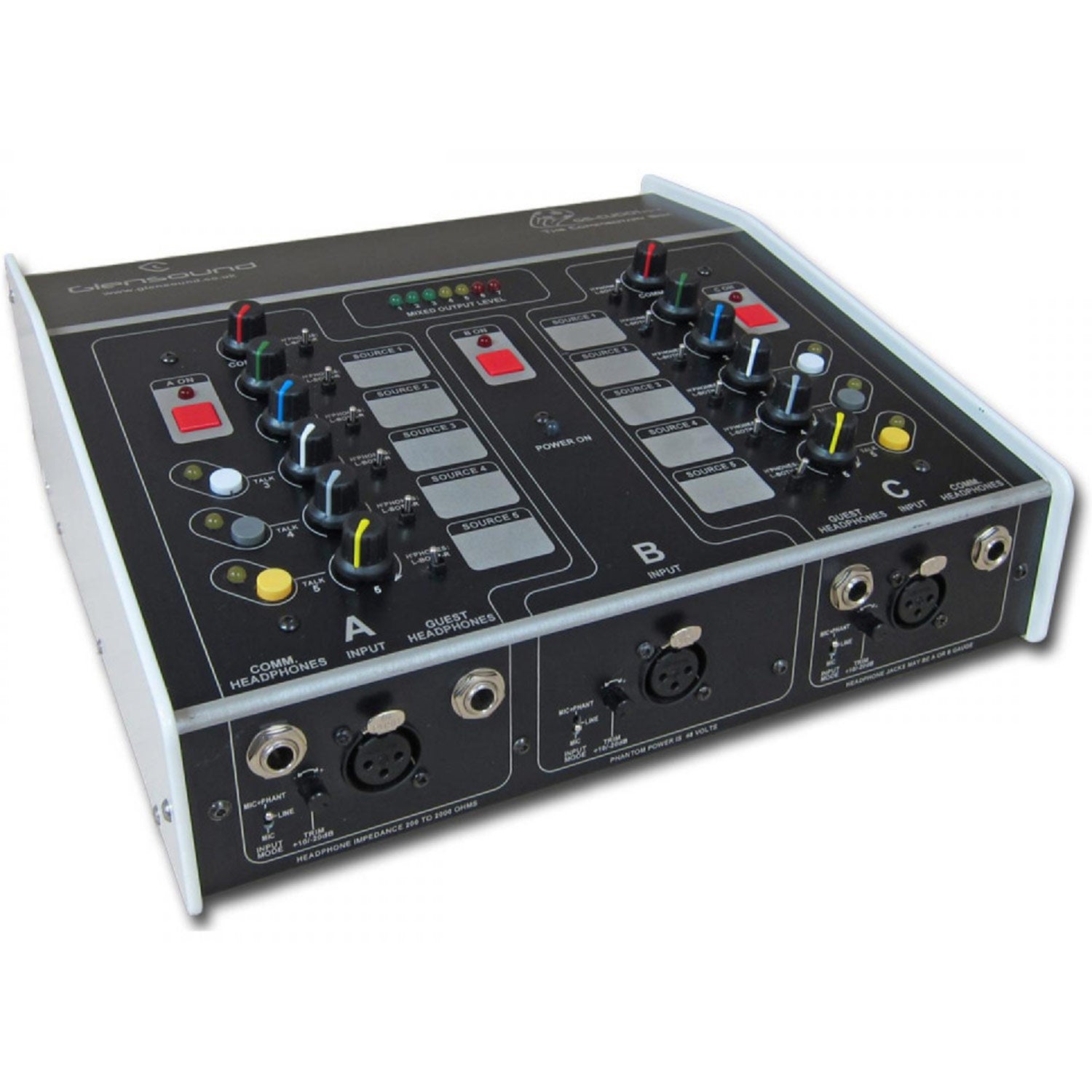

Inputs

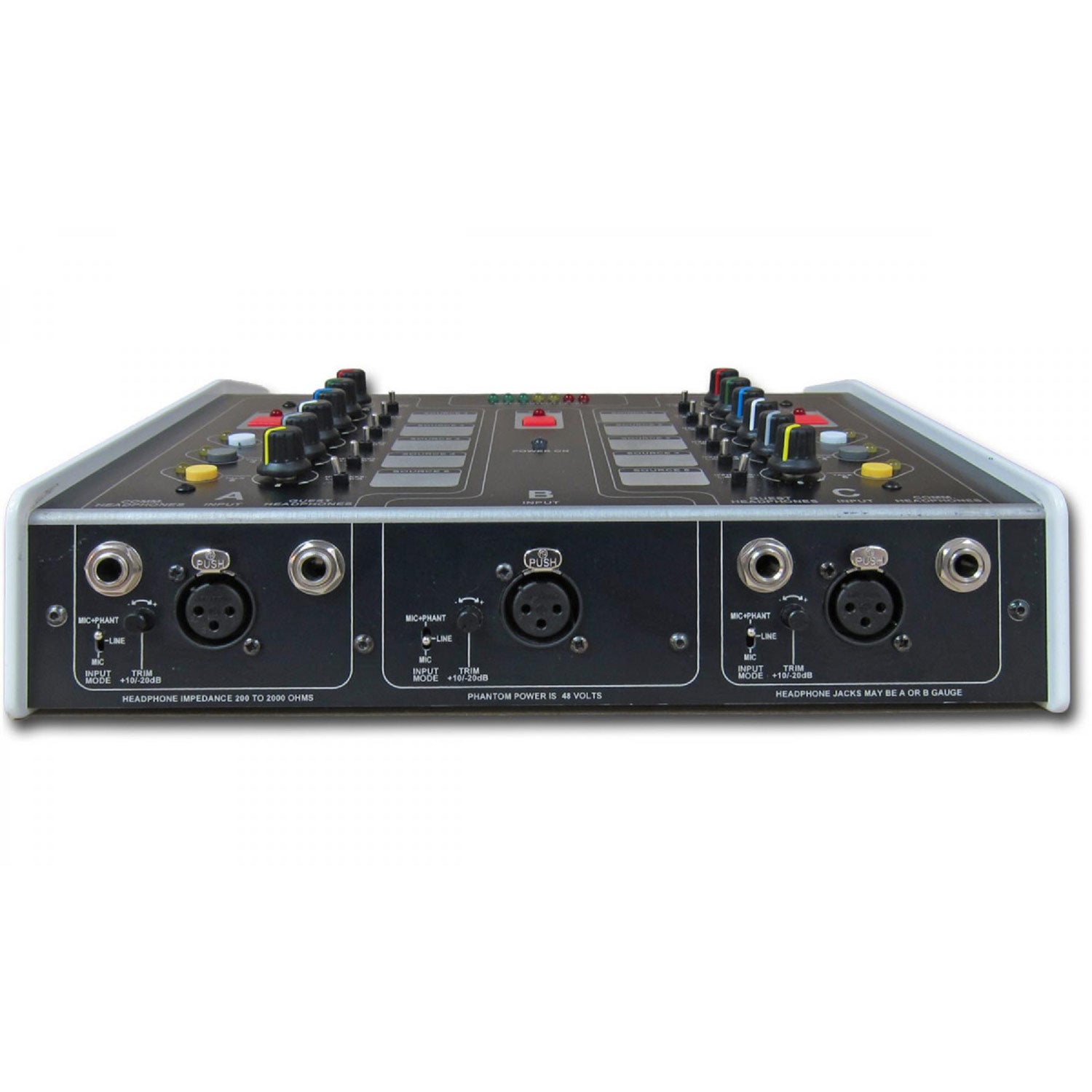

Three front panel inputs are mic/line switchable with selectable 48v phantom power. The front panel also has a small gain adjustment pot. Mic on/off switches can be selected in on/off mode or in cough mode. There is a global low frequency cut that can be selected on or off, and a preset compressor/limiter per input.

Outputs/Talkback

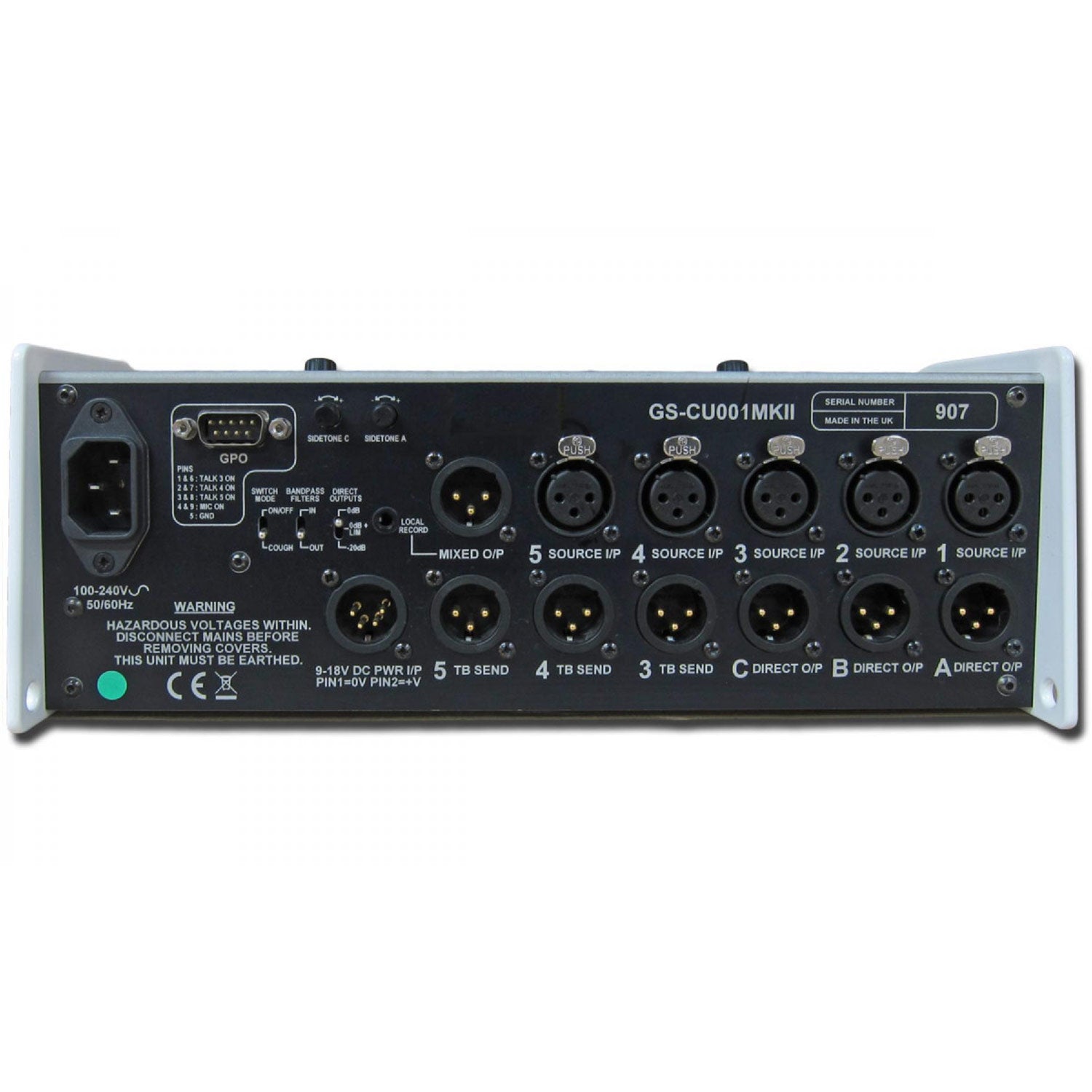

Each input has a direct discrete output on the rear panel along with a mixed output of all of the inputs, all on XLR. The mixed output is also available on an un-balanced 3.5mm jack socket as a local record. The direct output levels can be set in 3 positions:

1. 0dB + limiter: This is the normal operation and it limits peak levels.
2. 0dB: This feeds the output with an un-compressed nominal level of 0dB, for when the peak signal level will be controlled by outboard equipment.
3. -20dB: This feeds the output with a nominal level of -20dB providing extra headroom.

There are 3 common talkback circuits with individual buttons on the two main commentators’ sections (Position B's input cannot be switched to a talkback output). The operation of the talkback buttons features Config+ for configuring in different modes.

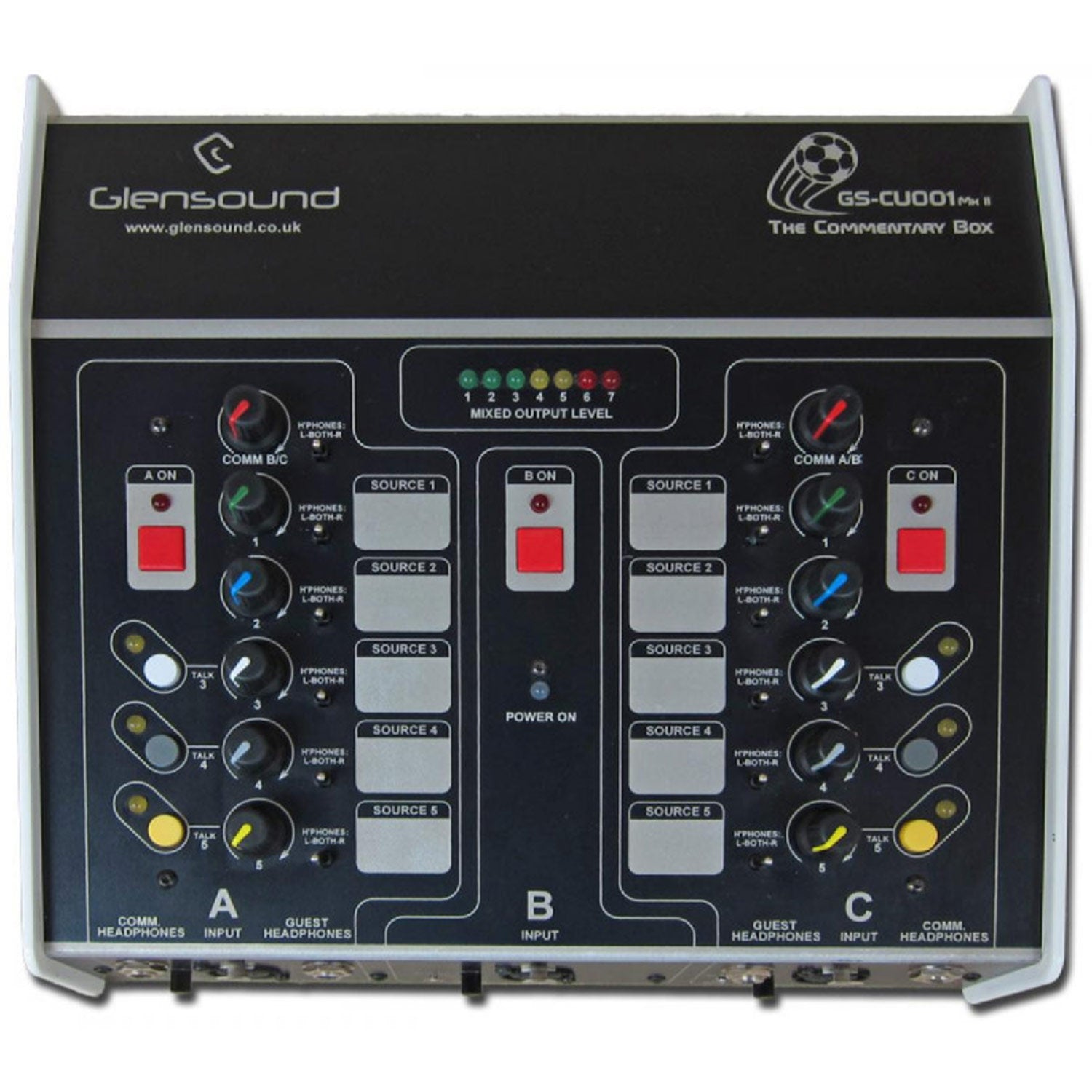

Monitoring
There are two main commentator monitoring sections, each with two separate 6.35mm A or B gauge jack sockets for headphones. In this way, the centre position B commentator can choose to share the monitoring of commentator A or C. There are 5 common external sources available for monitoring, plus an additional control which is the sum of the other 2 commentators/inputs. Each of the 6 pots has variable level control and left/both/right switching allowing commentator A and C to achieve their desired mix and balance levels. The sidetone control is located on the rear panel for commentator A and C to adjust the level of their own voice. There is a 7 segment LED PPM meter.

Power
There is an internal switch mode power supply 100-250v AC, with external power via a 4 pin XLR 9-18v DC.

Flight Case
By popular demand a hard wearing strong polypropylene flight case is now available for all of the GS-CU001 range. It features long life hinges, easy to use catches and being made out of hardwearing polypropylene plastic, it will last for years. Internally the case is lined with cut out medium density foam. The multipurpose cut outs can be adapted to accept any of the different size GS-CU001 units. A second small cut out is included suitable for two HMD25 headsets & mains cable.

Modifications
The GS-CU001 is a complete and versatile base system, and Glensound's most popular commentary unit. It is therefore a perfect starting point for custom requirements. This has resulted in many custom modified units, some listed above, and some not. Glensound are always happy to investigate a particular requirement that you may have. To give you an idea of what is possible, these are some of the modifications, they have designed previously for others:

• Added GPIO on a 9 pin D-type
• Moved the sidetone control to the top panel on a full size pot
• Added a talkback channel and monitor between the A and C commentary positions (GS-CU001D and E)
• Independent monitoring inputs for commentator A and C (GS-CU001E)
• Additional mic passive outputs (GS-CU001E)
• Added an additional headphone monitoring input (GS-CU001G)
• Added two mic inputs for commentator A and C with a simple toggle switch between them (GS-CU001L)

Other Versions are available:

VERSION 3 (TT):
Has transformer balanced inputs & outputs with high quality Llundhall transformers on the individual mic outputs.

Versions of GS-CU001 Mk II Commentary Box

GS-CU001B:
The standard version. Size 277 x 266 x 105mm

GS-CU001B/1:
With electronically balanced audio input & output circuits.

GS-CU001B/2
With electronically balanced inputs with transformer balanced outputs.

GS-CU001B/3
With transformer balanced inputs & outputs with high quality Llundhall transformers on the individual mic outputs.
