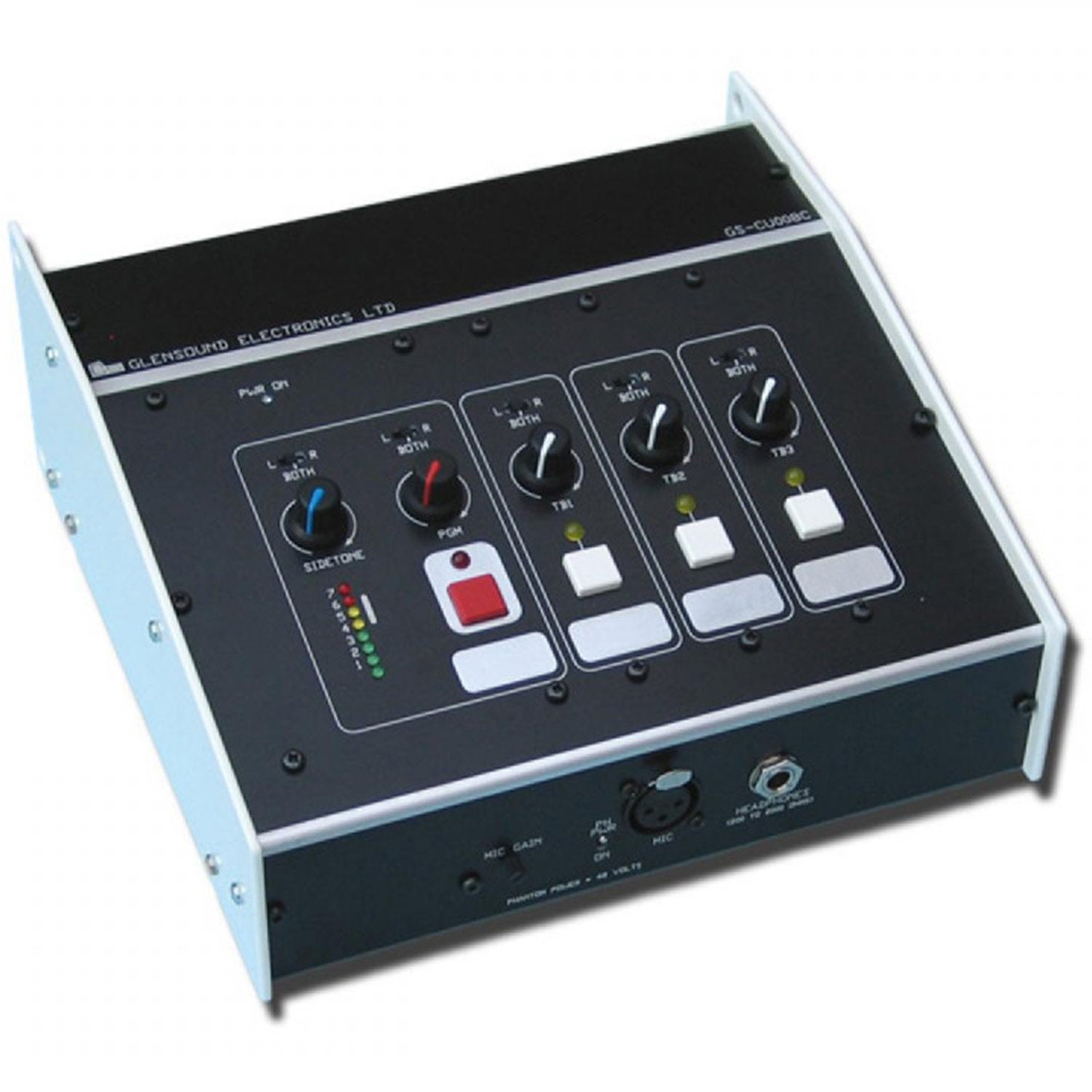

Glensound GS-CU008C - Single Commentators Box With Three Talkback Circuits
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The GS-CU008C is a popular general purpose mic and headphone interface. It's flexibility has resulted in various custom designs with multiple mic inputs, or multiple monitoring inputs. These options can interface with wireless systems, or be used for audio description.
Features:
- Single mic input with selectable 48v phantom power
- Band pass filter optimised for voice
- Transformer balanced inputs and outputs
- Output level feature limiter on/off, or extra headroom mode
- Three talkback circuits
- Talkback circuits features Config+
- LED PPM meter with 7 segments
- Commentator's headphone output on 6.35mm jack socket (A or B gauge)
- Headphone inputs have level control and left/right/both switching
- Commentator side tone level control
- Size: 190 x 92 x 222 mm (w x h x d)
Inputs
The front panel input is transformer balanced at microphone level with a selectable 48v phantom power switch. A small pot is on the front panel for adjusting gain control, and the mic on/off switch can also be set to act as a cough switch. For optimising the voice input, a band pass filter is used.
Outputs/Talkback
There is a single transformer balanced programme output. The output level is configurable by a three position selector switch which would typically be used with the compressor / limiter active above 0dB. The limiter can also be turned off for a 0dB output. If the compressor / limiter is not required, but more headroom is, the user can select a -10dB output without compressor/limiter. There are three talkback circuits with top panel push buttons and rear panel XLR outputs. Talkback buttons feature Config+ and can be configured as either lazy or momentary.
Monitoring
There are three audio inputs with a variable pot for headphone monitoring for a single commentator, with a control for adjusting sidetone level in the headphones. All pots have left/both/right headphone switching so to adjust any input to either side of the headphones. The operator has a single 6.35mm headphone socket. There is a 7 segment LED PPM meter.
Power
Internal switch mode power supply 90-240v AC. An external power input is also provided on a 4 pin XLR 10-18v DC.
| MIC INPUT GAIN | -66dBu to -42dBu |
| MIC + PHANTOM PWR GAIN | -56dBu to -31dBu |
| EQUIVALENT INPUT NOISE | 121dBu (22-22kHz RMS gain @ max) Input terminated with 300 Ohms |
| PHANTOM POWER | 48Volts @ 10mA |
| MAX INPUT LEVEL (COMPRESSOR OFF) | -41dBu (gain @ 60dB) |
| MAX INPUT LEVEL (COMPRESSOR ON) | -21dBu (gain @ 60dB) |
| INPUT LEVEL COMPRESSOR OUTPUT LEVEL | -62dBu -10dBu -52dBu 0dBu -42dBu +5dBu -32dBu +8.5dBu -22dBu +11dBu -14dBu +12.5dBu (Just clipping) |
| THD+NOISE | <0.2% (50Hz to 20kHz) |
| PPM METER | 8 LEDs dB Step between LEDs |
| PGM / TB OUTPUT IMPEDANCE | 50 OHMS Transformer Balanced |
| CUE / TB INPUT IMPEDANCE | > 15kOhms Transformer Balanced |
| HEADPHONE ROUTING | All headphone inputs switchable to either or both ears |
| HEADPHONE LEVELS MAX | ****Warning high headphone levels can be harmful to your hearing**** + 18dBu into 600 Ohms |
| HEADPHONE IMPEDANCE | 200 to 2000 OHMS |
| HEADPHONE CONNECTOR | A or B gauge jack socket |
| POWER MAINS | 100 - 240 Volts 50/60 Hz < 100mA @ 100 Volts IEC Connector |
| POWER DC | 10 - 18 Volts < 200mA @ 10 Volts 4 Pin XLR |
| POWER ON INDICATOR | Blue LED |
| OVERALL SIZE | |
| GS-CU008C | 222 x 222 x 92mm (W x D x H) |
| UNIT WEIGHT | |
| GS-CU008C | 1.9Kg |
