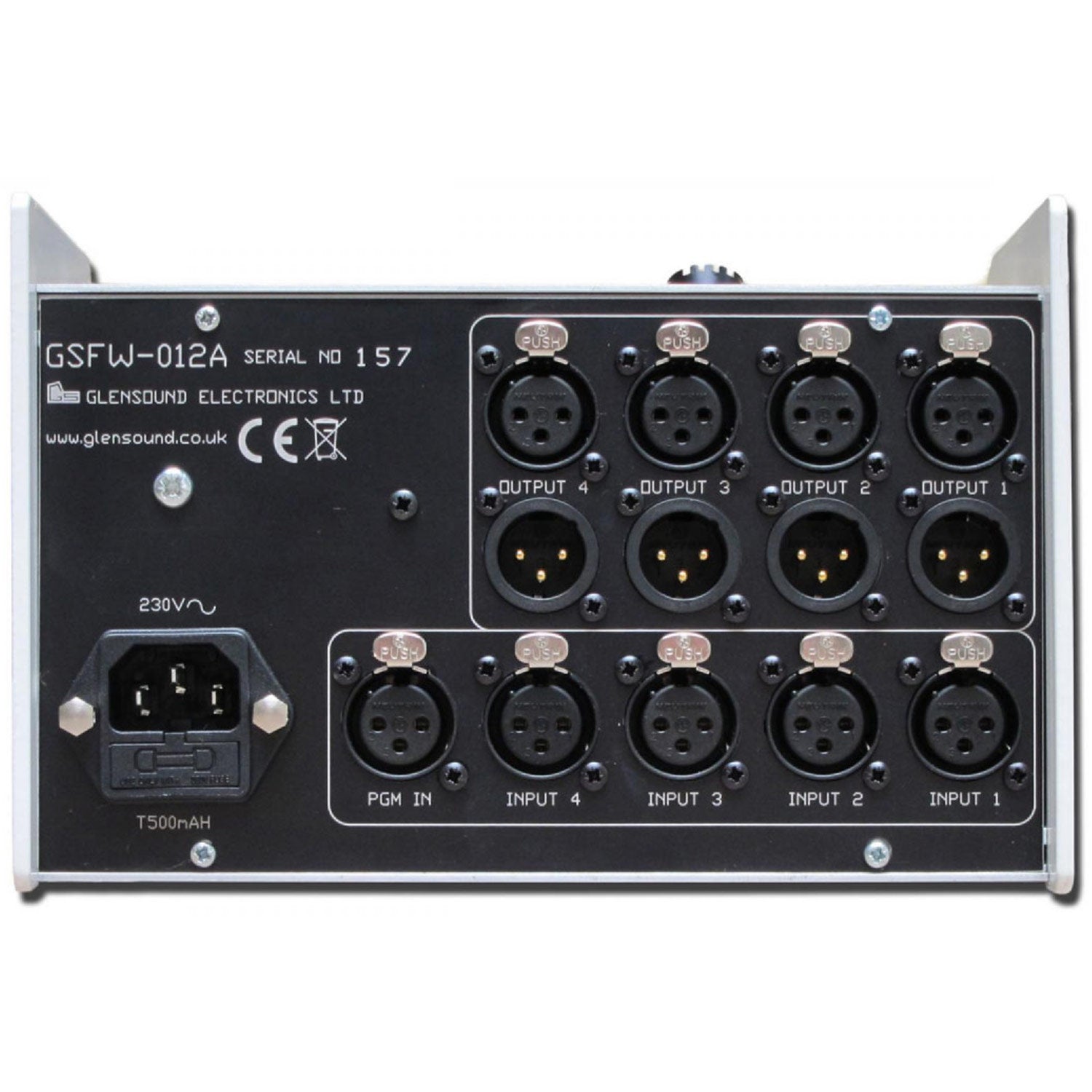

Glensound GS-FW012 - Four Channel 4 Wire Box

This is a mains powered desktop/ portable unit that provides 4 off 4 wire circuits with the useful addition of 1 extra audio input (PGM).

Features:

• Mains powered 230 VAC
• Four 4 wire circuits
• 1 x program input
• Internal or external Mic input with individual gain controls
• Compressor/ limiter circuit for mic
• Lever key switches send mic to 4 wire outputs
• 4 wire & program inputs are transformer balanced
• 4 wire & program inputs have volume level controls
• Audio present LEDs on all 5 audio inputs

OPTIONS:

• GS-FW012A
  • Circuits 1 and 2 have none latching push buttons instead of lever keys.
  • There is a solid plastic scribble strip above the lever keys
  • Four additional female XLR outputs (1 per circuit)
  • The A version was a customer modification. Glensound can also look at further variations for your requirement so please call or email with the requirements.
• GS-FW012B
  • This option maintains the features of the GS-FW012 but adds a lazy talkback output.
• GS-FW012C
  • This option maintains the features of the GS-FW012 but adds a script panel.
