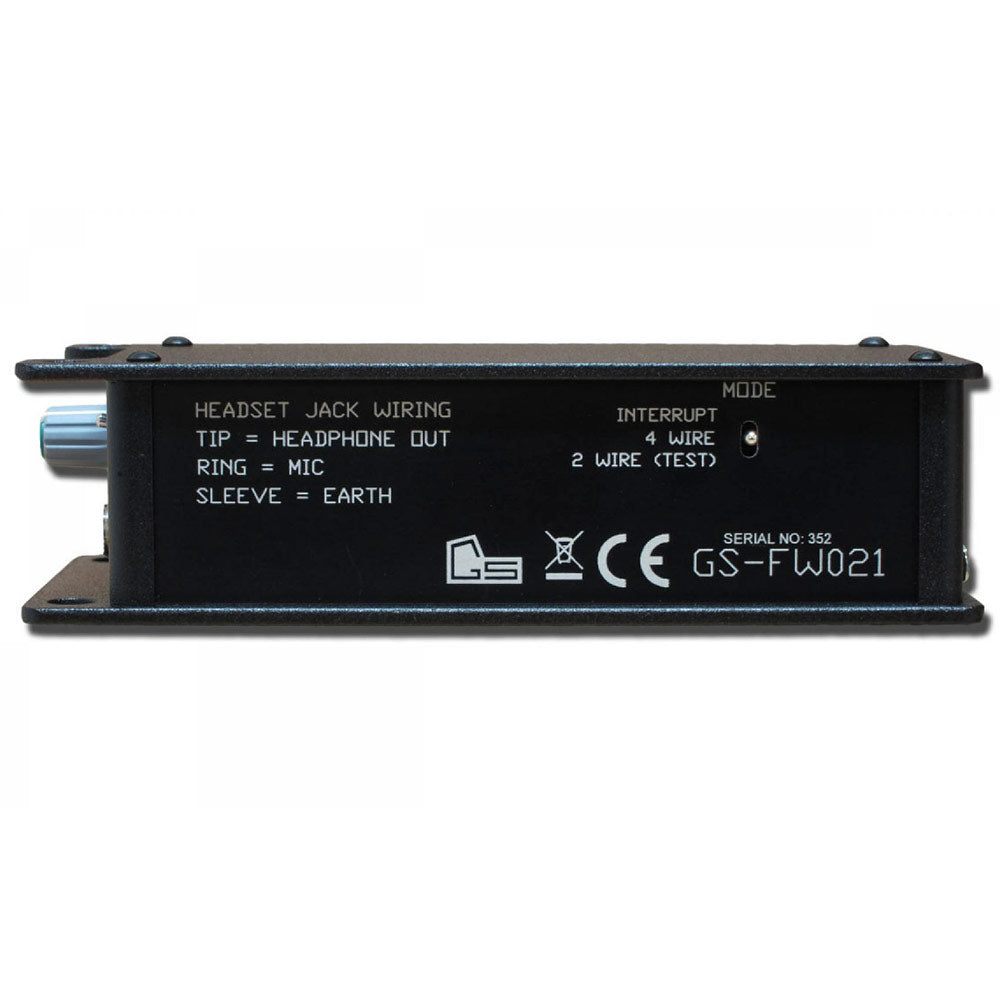

Glensound GS-FW021 Four Wire Box For Use With Headsets

Four Wire Box For Use With Headsets

• Battery powered from 9volt PP3
• Long battery life (in excess of 100 hours)
• Power on switch
• Power on LED
• Low battery indication
• 3 user selectable modes: 4 wire (for standard connection to other broadcast eqpt) Interrupt loop through (IFB) for monitoring & adding talkback over incoming audio 2 wire conference mode for connecting multiple GS-FW021 together 2 wire mode compatible with prospect C1B
• Headset connection on 3 pole 6.35mm (A/B gauge)
• Push to talk button for mic input
• Limiter circuit for mic input
• Headphone volume control

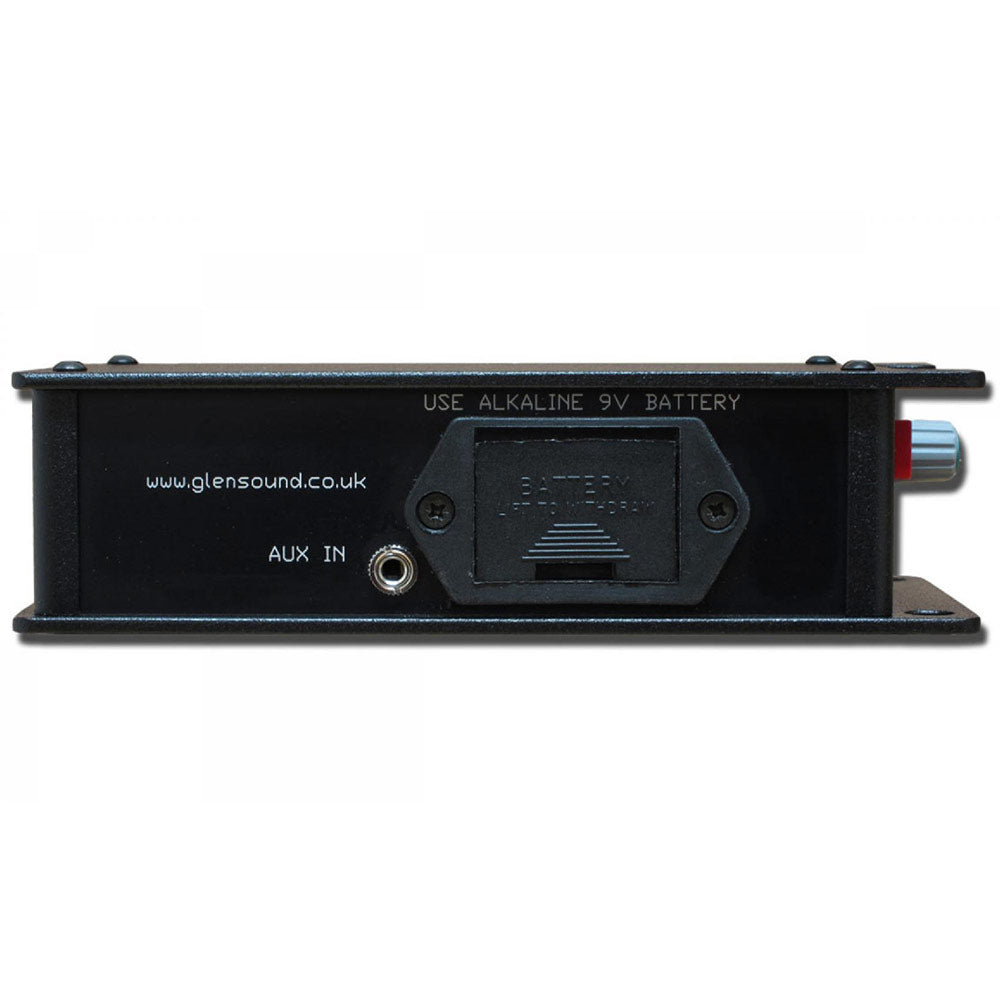

• Auxiliary audio input (on 3.5mm jack) fed to headphone circuit

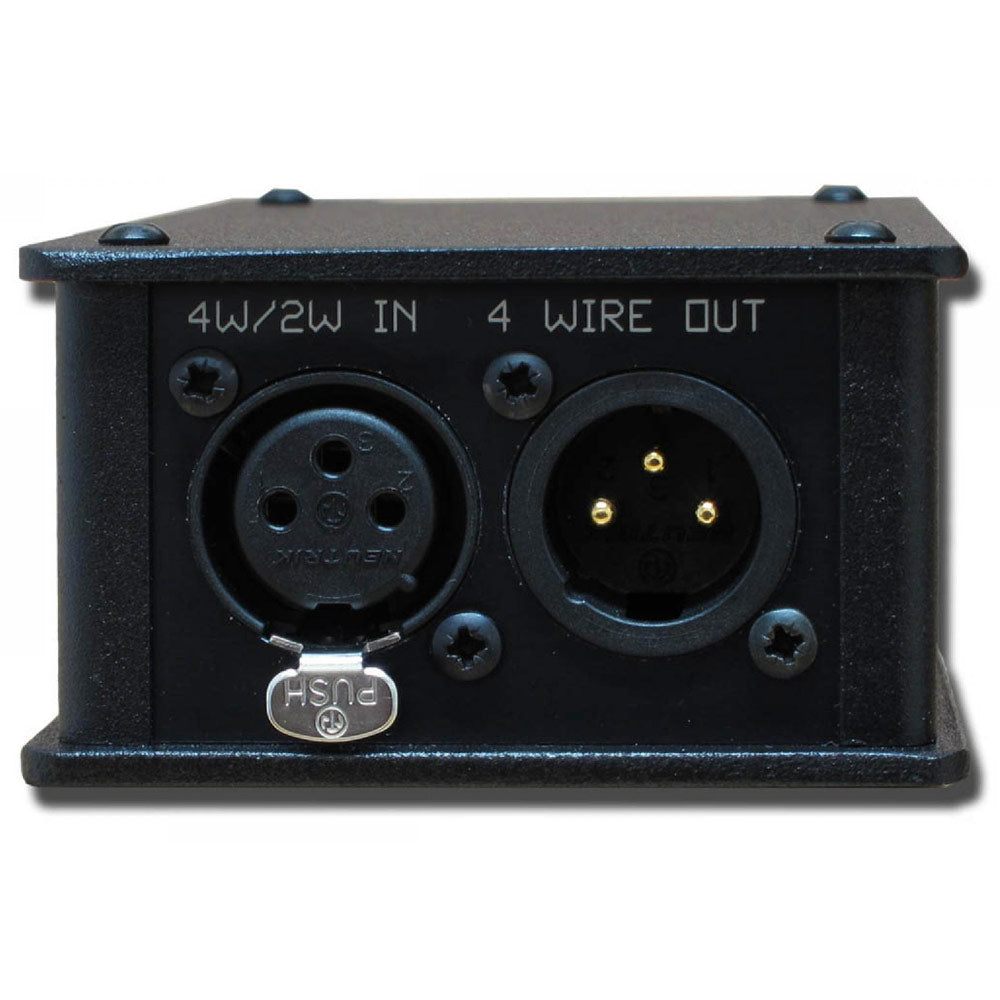

• Transformer balanced 4 wire input/ output
• Maximum dimensions just 152 x 42 x 72mm (l x w x d)
• Includes belt clip (not pictured)
