Glensound GS-FW023 - Versatile Single Channel Four Wire Desktop Unit
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Glensound GS-FW023 - Versatile Single Channel Four Wire Desktop Unit
Sale price$1,174.00
Description
Features:
- Internal switch mode power supply (100 to 250 VAC)
- Size 190 x 98 x 180 mm
- Single 4 wire circuit
- Program audio input

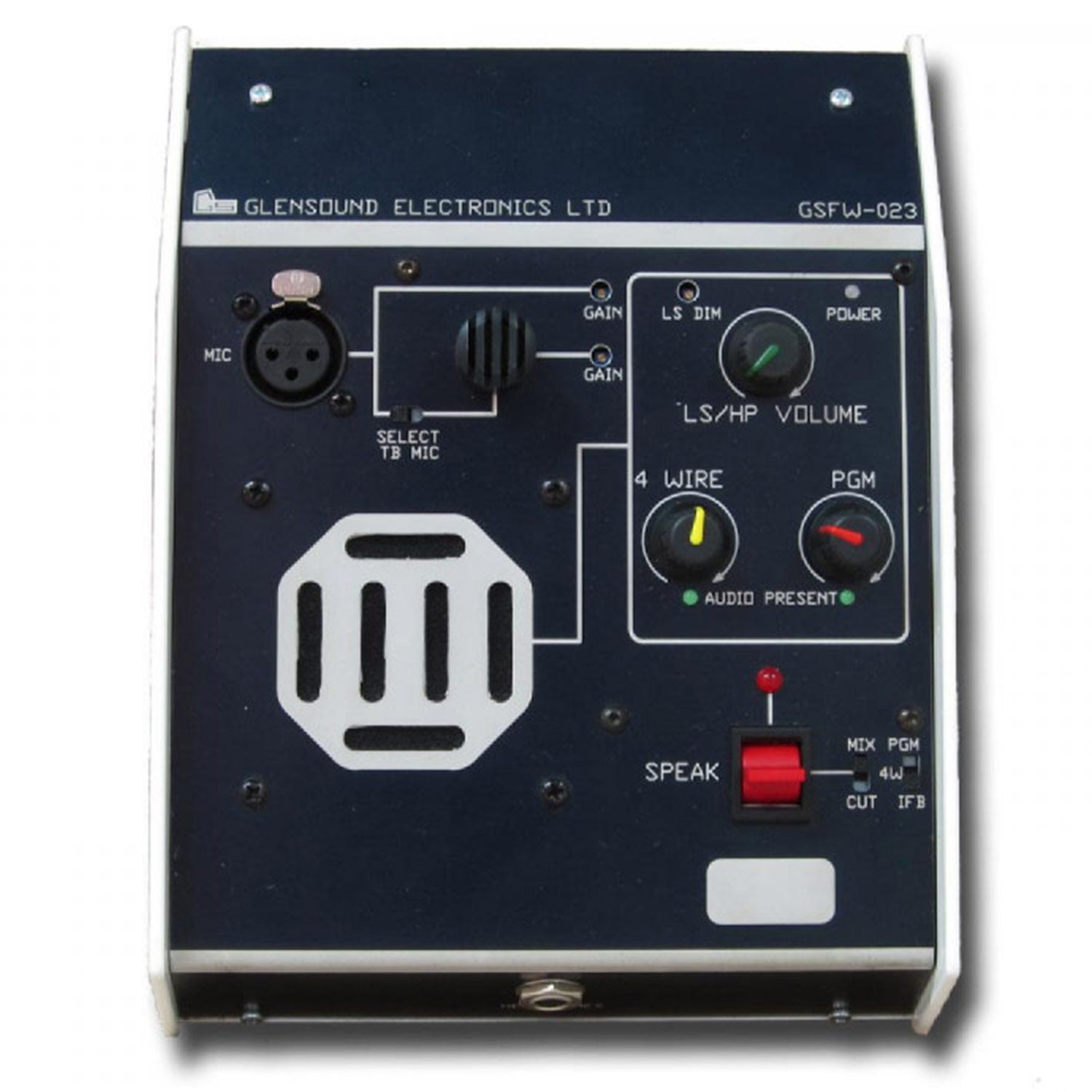

- Front panel or external Mic with gain control
- Compressor/ limiter circuit for mic
- Lever key for mic operation
- Relay output when mic live
- 4 wire & program inputs transformer balanced
- 4 wire & program Inputs have gain controls
- Audio present LED indication for 4 wire and program inputs
- Front panel Loudspeaker
- Headphone Jack (breaks LS)
- Overall LS/ Headphone volume control
- Variable LS dim (when lever key switched)
- 4 wire input can be switched to 4 wire output (IFB)
- Program input can be switched to 4 wire output
- When mic is operated if 4 wire or program inputs are selected to output the unit can be set to either mix or cut the incoming 4 wire/ program feed with the mic

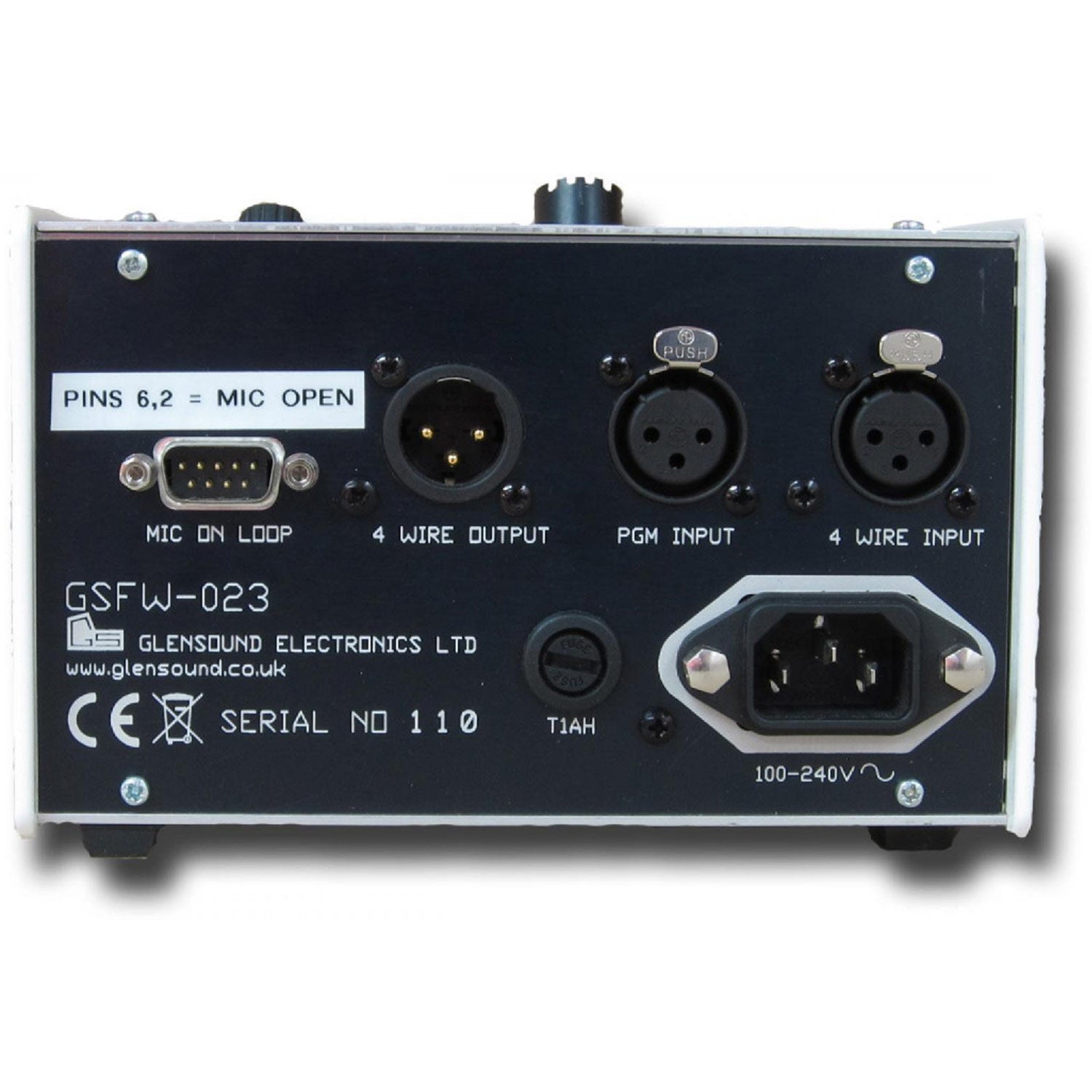

- Audio connections on rear panel XLRs
