Glensound GS-FW028 - 12 Circuit Desktop Four Wire Base Station

  • Dale #:

    GLEN-GSFW028
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

A large four wire base station for 12 circuits. Each circuit has its own talk button, return level control, and incoming audio present LED so that you can identify the incoming audio source. There is also a programme input with level control for the GS-FW028 speaker or headphones.Features: 12 ind... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

A large four wire base station for 12 circuits. Each circuit has its own talk button, return level control, and incoming audio present LED so that you can identify the incoming audio source. There is also a programme input with level control for the GS-FW028 speaker or headphones.

Features:

  • 12 independent 4 wire circuits with interrupt (IFB/ standing inputs)
  • Individual talk switches
  • Talk to all switch
  • Talk switches momentary or latch
  • Programme input with level control
  • 12 incoming 4 wire circuits each with it's own volume control
  • Incoming 4 wire circuits routed to front panel LS/ headphones
  • 12 IFB/ standing inputs
  • IFB inputs interupt the 4 wire outputs
  • Integral goose neck microphone with gain control
  • External Mic input on 3 pin XLR with gain control
  • Microphone amplifiers have inbuilt limiter/ compressor circuit
  • Presence LEDs on each incoming 4 wire circuit
  • Individual level controls for each incoming 4 wire circuit
  • Internal Loudspeaker with level control
  • Headphone jack (6.35mm) cuts internal LS when in use

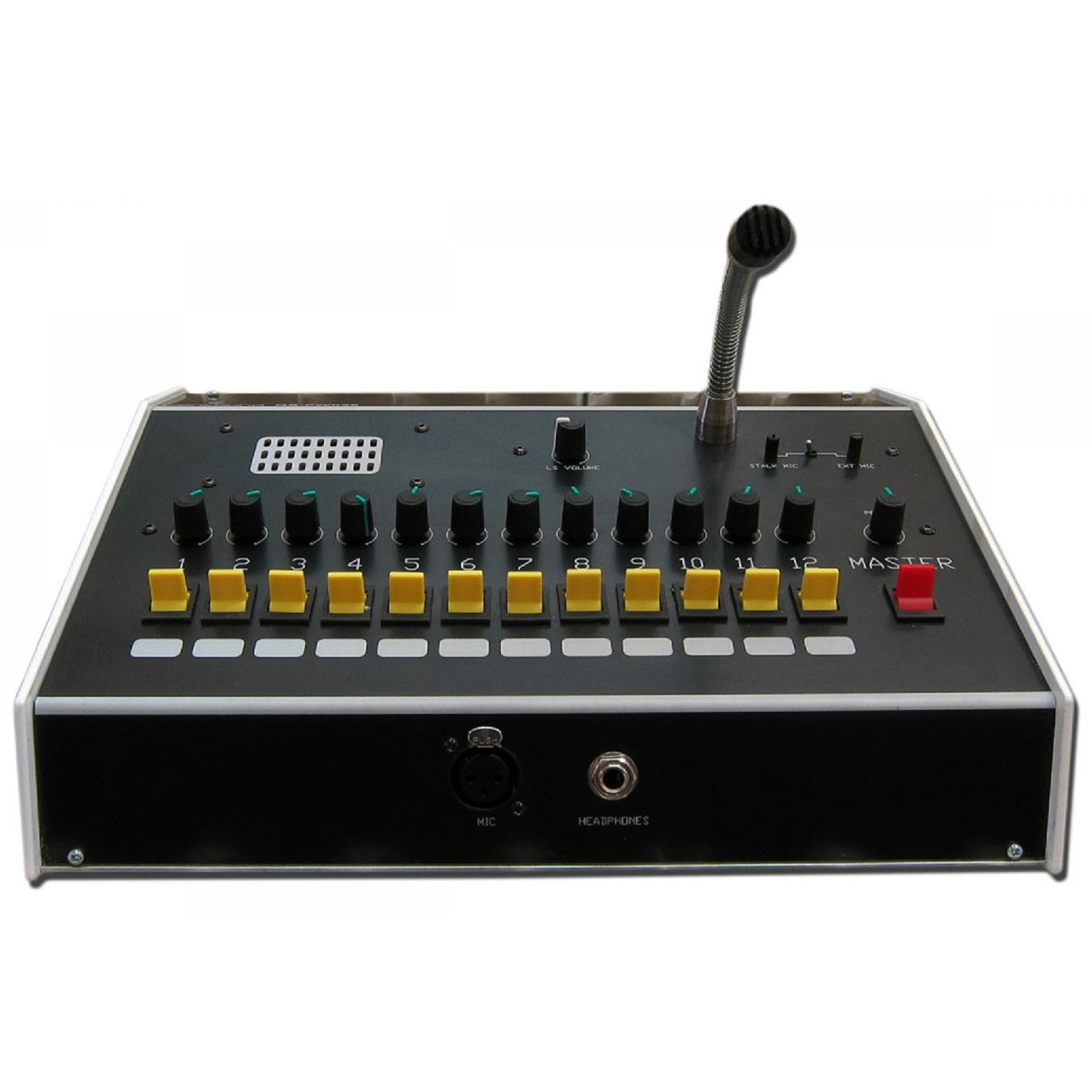

There is a gooseneck microphone with an adjustable level loudspeaker. A 3 pin XLR & 6.35mm jack is on the front panel for connecting a headset.

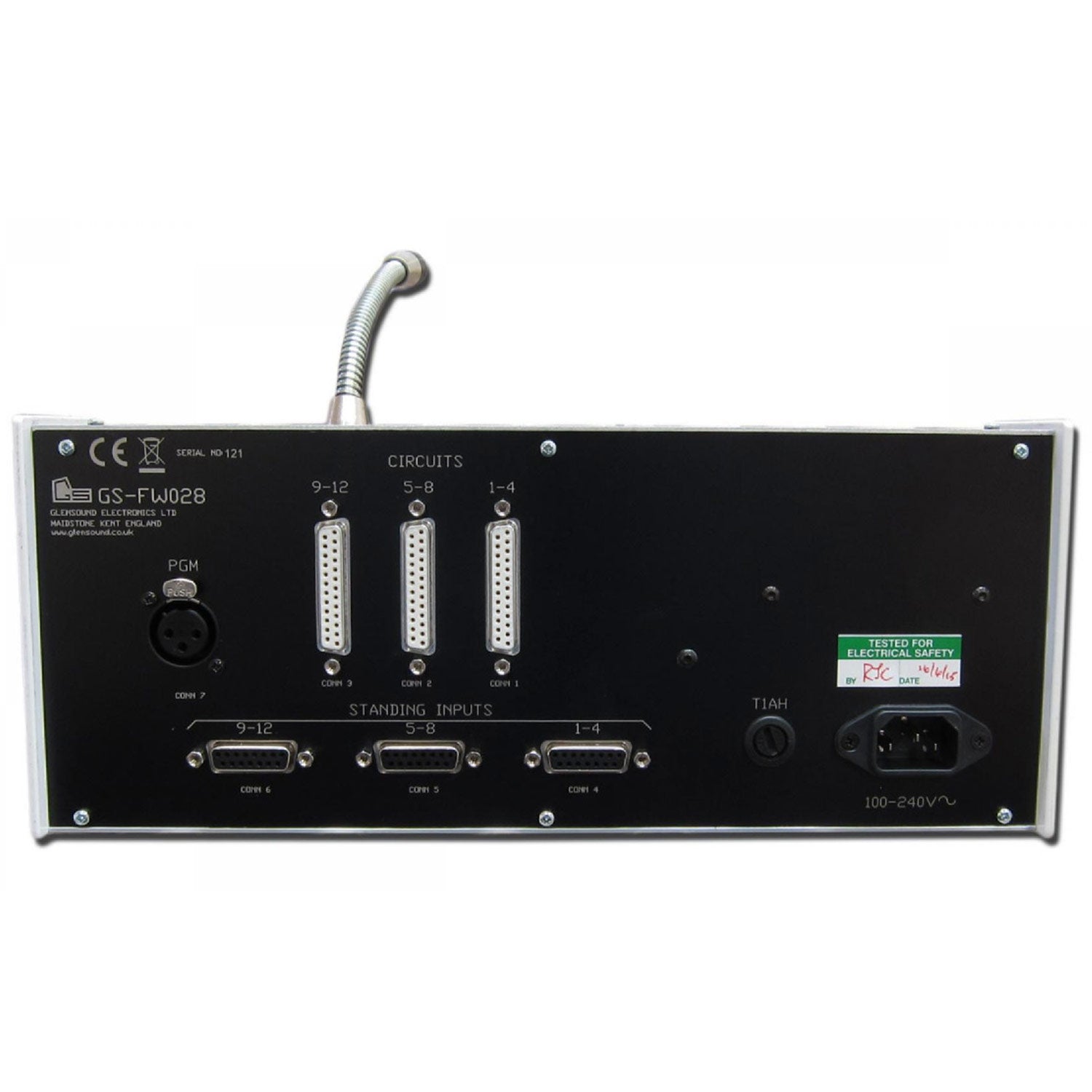

Connections are on rear panel D-types. Each circuit has two inputs - one that goes to the GS-FW028 monitoring system, the other is fed back down the four wire circuit and is interrupted when the GS-FW028 talk key is pressed.

The GS-FW028 was previously known as the GS-TC9

More +

Product Specs

Input level control rangeOff/ 0dBu (centre of pot) / +10dBu
LS Volume range-20dBu/ 0dBu (centre of pot) / +10dBu
LS Dim-17 dBu
Mic input level-34 to -62dBu
Mic Frequency Response+/- 0.5dBu
Mic Noise @ Mic Gain-84dBu (RMS 22-22 kHz)
Mic Noise @ max Gain-63dBu (RMS 22-22 kHz)
Standing (IFB) inputs to Outputs
Frequency Response+/- 1dB (30Hz to 16kHz)
Input to output level< +/- 0.5dB
Noise Distortion @ + 8dBu40Hz to 15kHz < 0.04%
Max input before clipping+23dBu
Presence LEDs on threshold<40dB
Presence LEDs hold time5 seconds
Input Impedance>50K
Input TypeElectronically balanced
Output impedance Output TypeElectronically balanced (protected)
Mains100 - 250 VAC
Power Consumption5.5 Watts
Weight2.66Kg
Size312 x 242 x 128 mm (W x D x H) excluding gooseneck mic
