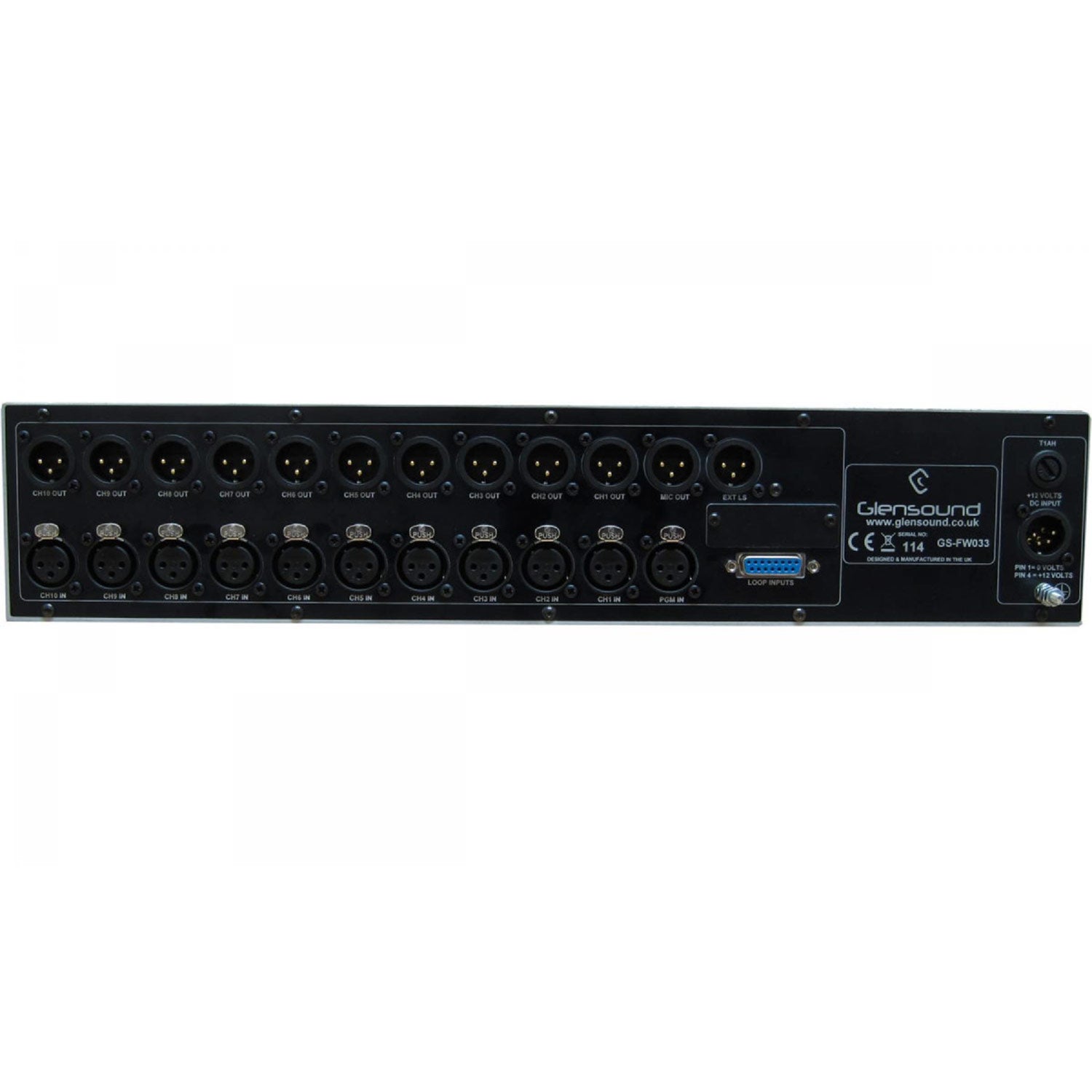

Glensound GS-FW033 - Ten Channel 4 Wire Subrack with Integral Matrix Mixer

  • Dale #:

    GLEN-GSFW033
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The GS-FW033 is a 2RU 19 inch subrack desigend to be the communication hub in small OB vans and studios. The GS-FW033 differs from many of Glensound's other 4-wire units by including a talkback matrix mixer, this makes it a very powereful device capable of setting up complex IFB cicruits to each ... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The GS-FW033 is a 2RU 19 inch subrack desigend to be the communication hub in small OB vans and studios. The GS-FW033 differs from many of Glensound's other 4-wire units by including a talkback matrix mixer, this makes it a very powereful device capable of setting up complex IFB cicruits to each of 10 outputs.

Features:

  • 10 Channel 4 wire Subrack
  • Integral matrix mixer
  • Fully programmable talkback keys
  • Programmable talk to group key
  • Illuminated talkback keys can be easily programmed to alter operation mode (latching, momentary, latching & momentary (intelligent lever key))
  • Channel input & output gain controls
  • IFB feeds mixes can be set up from any of the inputs to any of the outputs
  • Front panel mic & loudspeaker
  • External LS feed
  • Front panel XLR for gooseneck mic
  • Individual gain controls for both microphones
  • Glensound 'Referee' compressor/ limiter circuits on mic amps
  • Headphone Jack (cuts LS)
  • Programme input
  • Audio presence detectors on all inputs
  • External loop inputs for remote control of talkback circuits & LS Dim & LS Cut
  • External solid state relay loop outputs from individual talkback buttons & 1 global circuit
  • 12V DC powered
  • Optional mains input powering to replace 12V DC input
  • Audio input/ outputs on standard 3 pin XLRs
  • Matrix switches route a channels input to any of the 10 channel outputs
  • 4 wire inputs can be looped to 4-wire outputs via Matrix (IFB)
  • PGM input can be routed to 4 wire outputs
  • PGM inputs & IFBs can be mixed or cut when talkback keys are operated
  • Front panel switches for routing PGM & IFB & selecting mix/cut operation
  • Balanced external LS output (0dB)
  • Front panel LS/ Headphone volume control
  • Transformer balanced inputs
  • Highly reliable electronic 'transformer' balanced outputs

The unit also features Glensound's new brightly illuminated talkback switches. These give a quick indication of the channels on state and can easily be programmed to operate in a latching, momentary or intelligent lever key mode. The use of these talkback switches also allows a fully programmable talk to group switch to be present, where by straighforward programming a group can easily be set up for the operator to talk to at the press of a single button.

Being initially designed for installation in OB vehicles the unit features a 12V DC input power supply. If requested a mains power supply can be fitted as an alternative to the 12V DC during manufacture.
