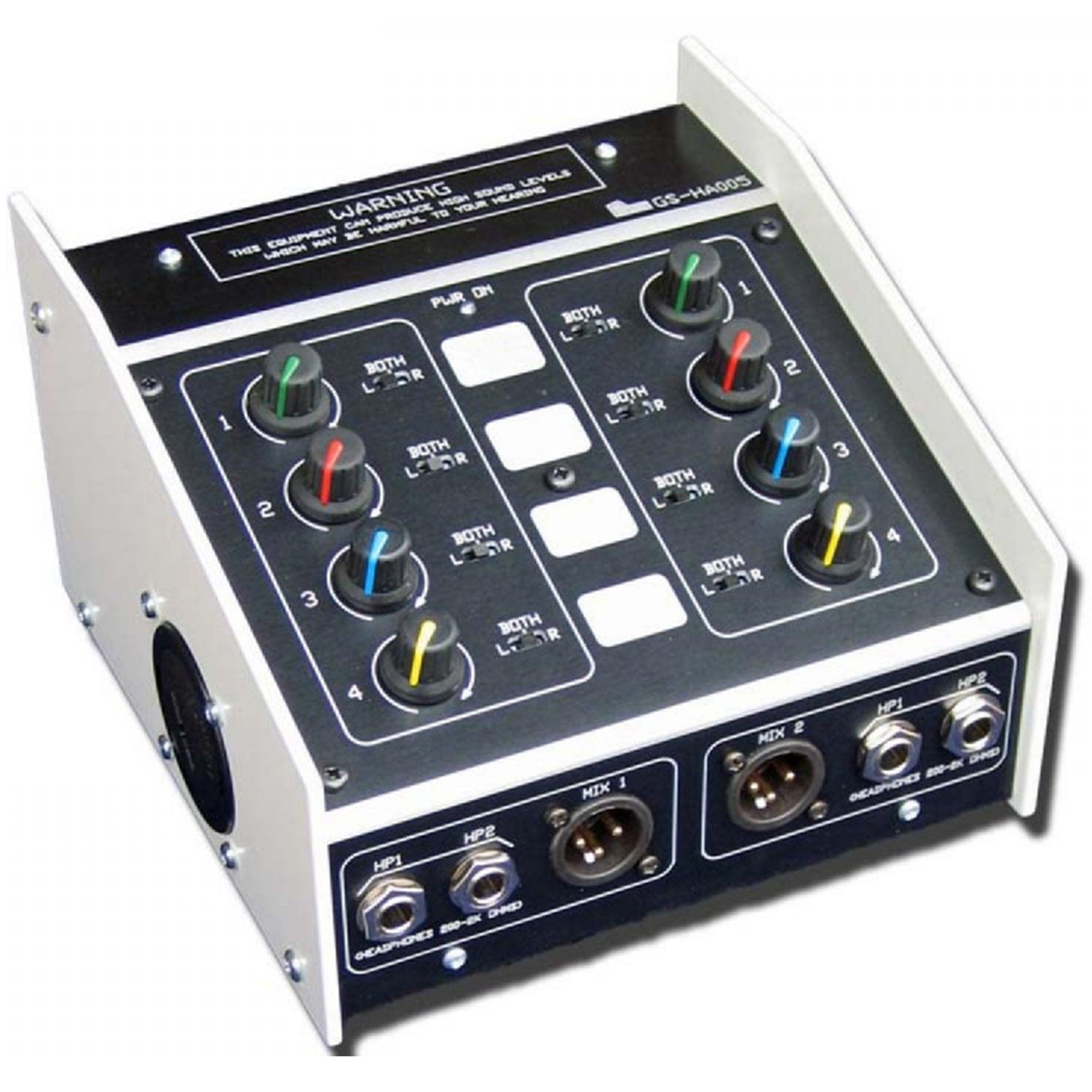

Glensound GS-HA005 - Twin Headphone Amplifier With Four Inputs

This robust battery powered twin headphone amplifier has been designed specifically for outside broadcast environments. It has 4 audio inputs (with loop through XLRs for connecting several units together) which are fed through 2 off 4 channel mixers the outputs of which have both a headphone amplifier and a balanced mix out.

Features:

• Powered from 2 x 'D' cells
• External DC power input (12 - 18volts)
• Size just 160 x 165 x 104 mm (W x D x H)
• 4 x audio inputs

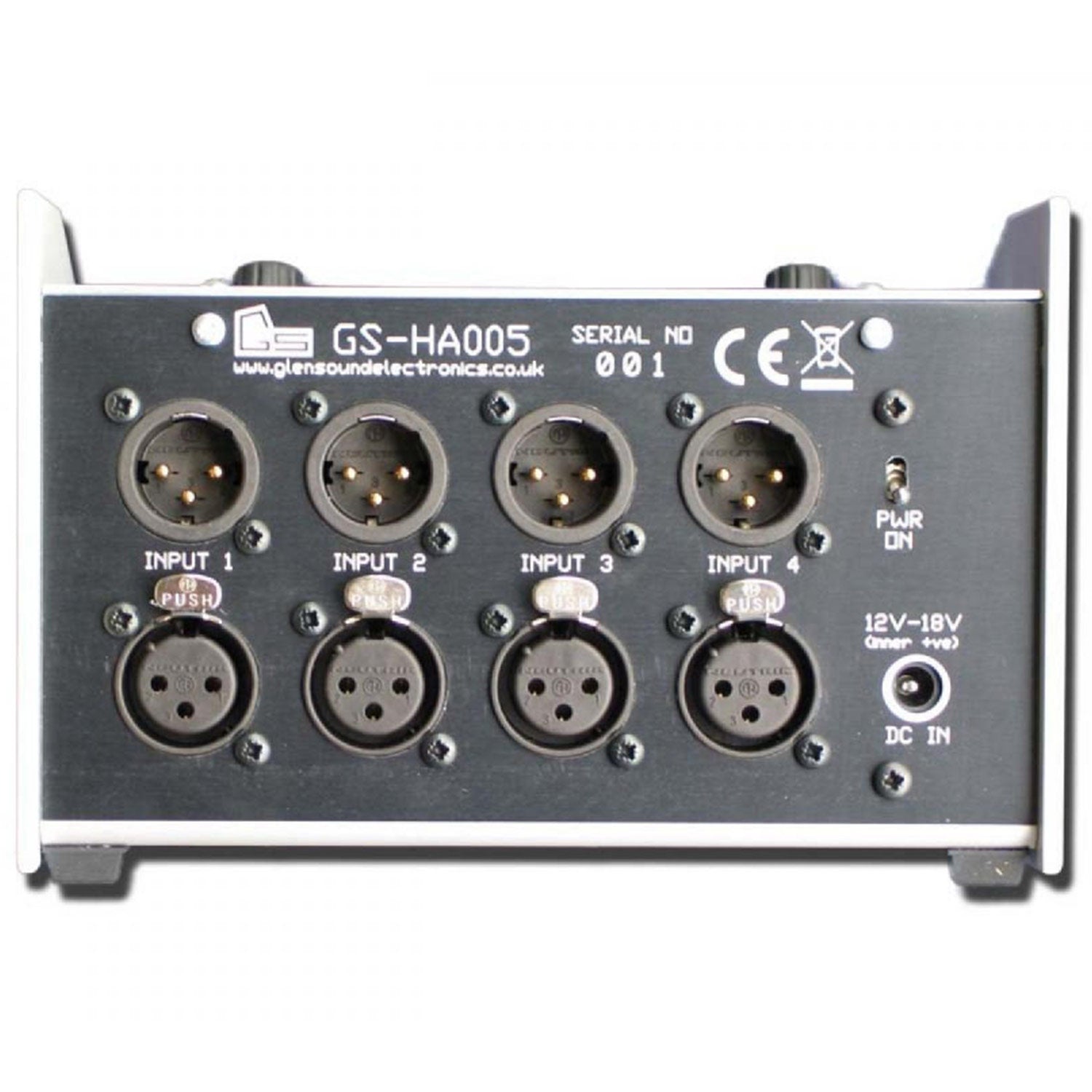

• Loop through audio connectors
• Transformer balanced inputs for reliability
• 2 x separate headphone mixes
• Inputs can be switched to left/ right or both sides of the headphone amplifier
• 2 x headphone jack outputs for each amplifier
• Headphone jacks are A/B gauge
• Designed for 200 to 2kOhm headphone impedances
• Can run lower impedance (80 Ohm headphones) with reduced battery life
• 2 x headphone jack outputs for each amplifier
• Headphone jacks are A/B gauge
• Balanced mix outputs of the 2 x 4 channel mixers
• Power on switch
• 2 x power indicating LEDs. 1 indicates power available from the external DC input and the other that power is available from the batteries.
• Low battery indication
