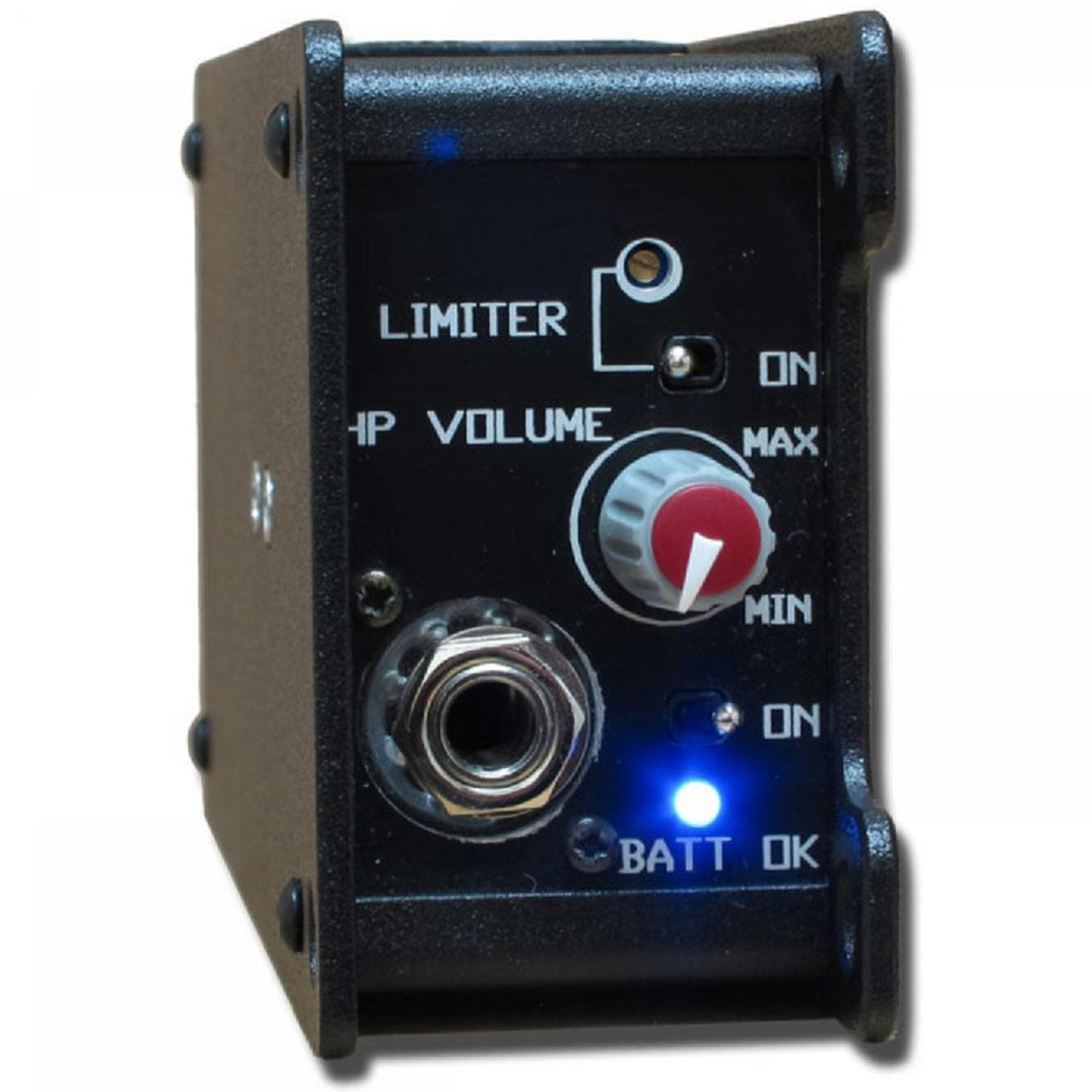

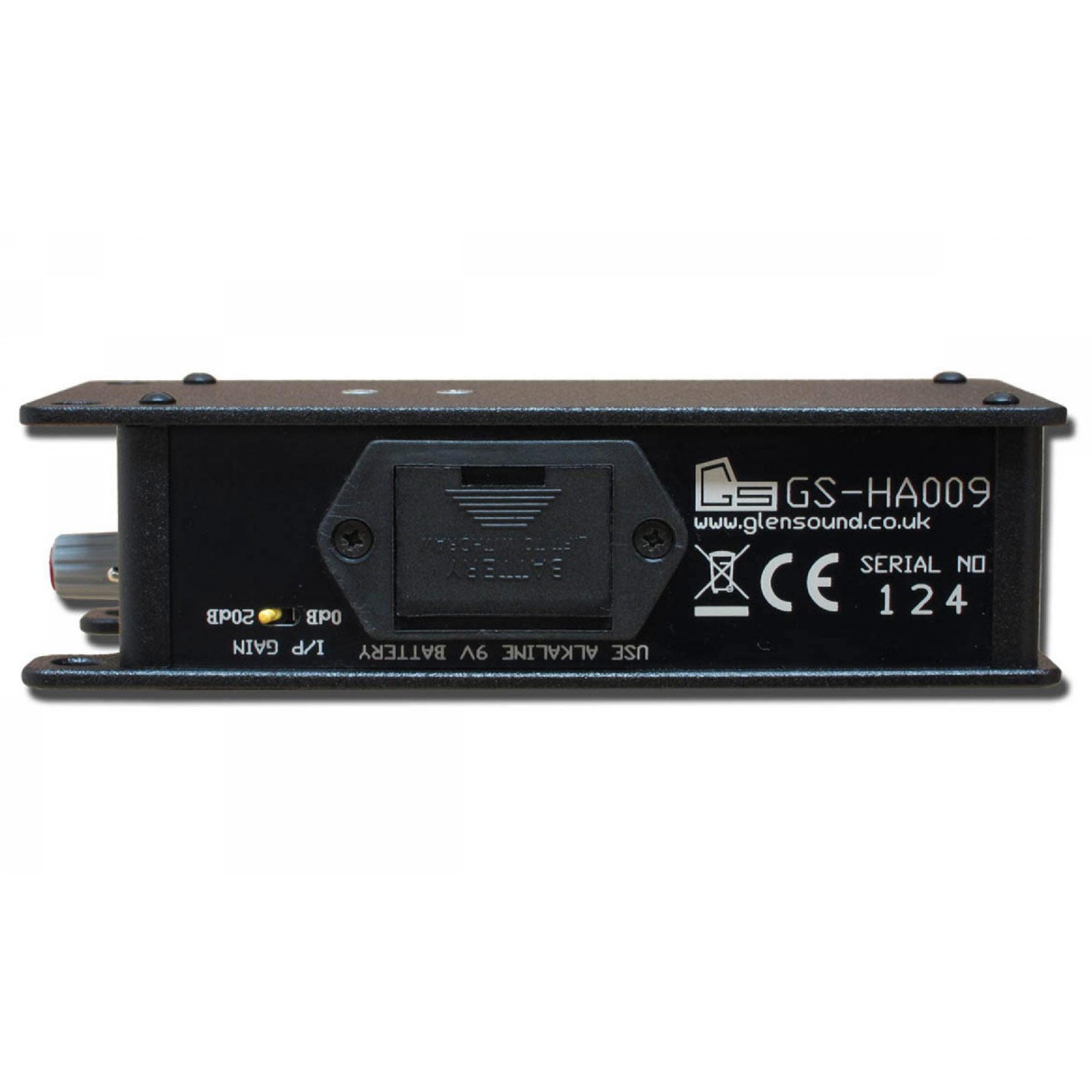

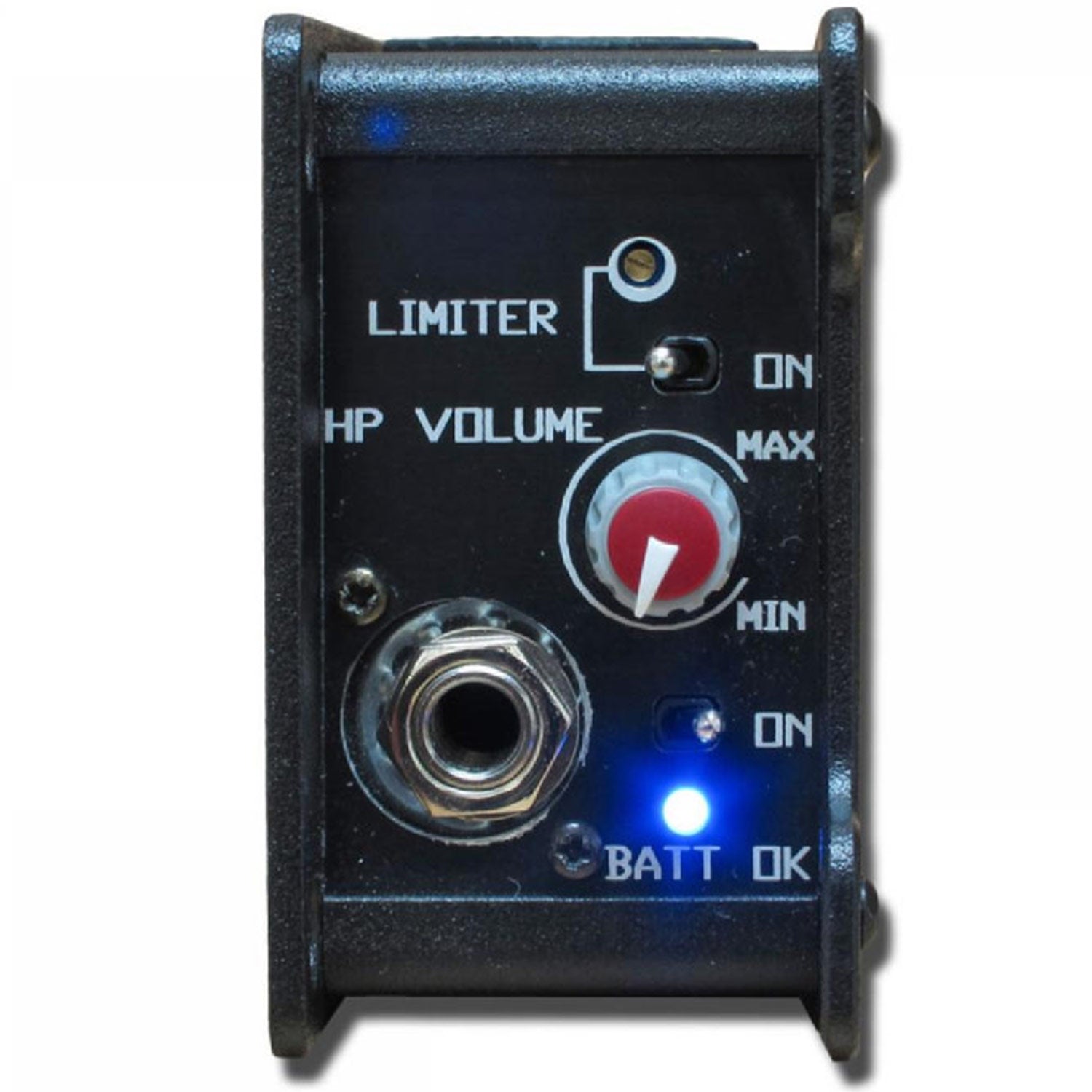

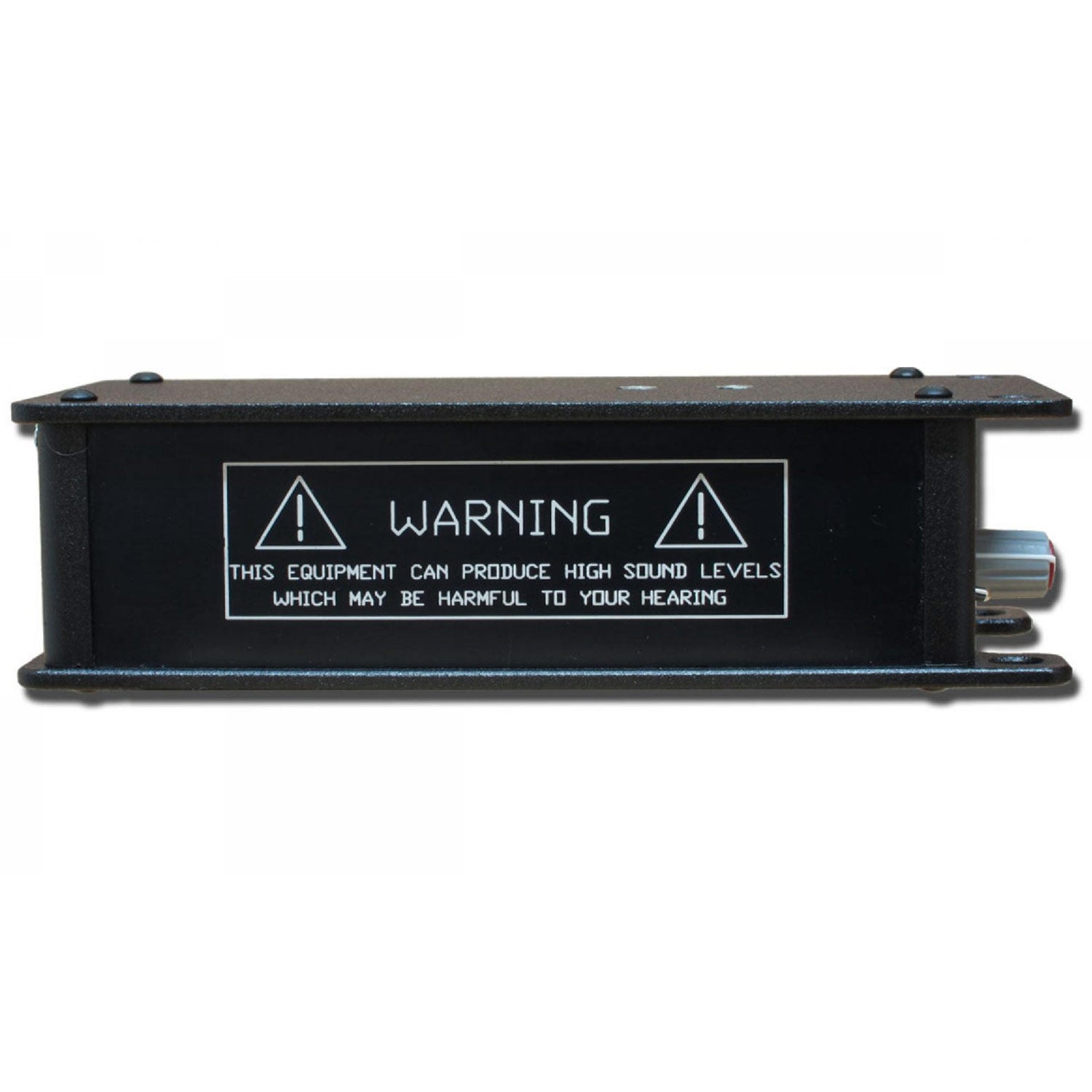

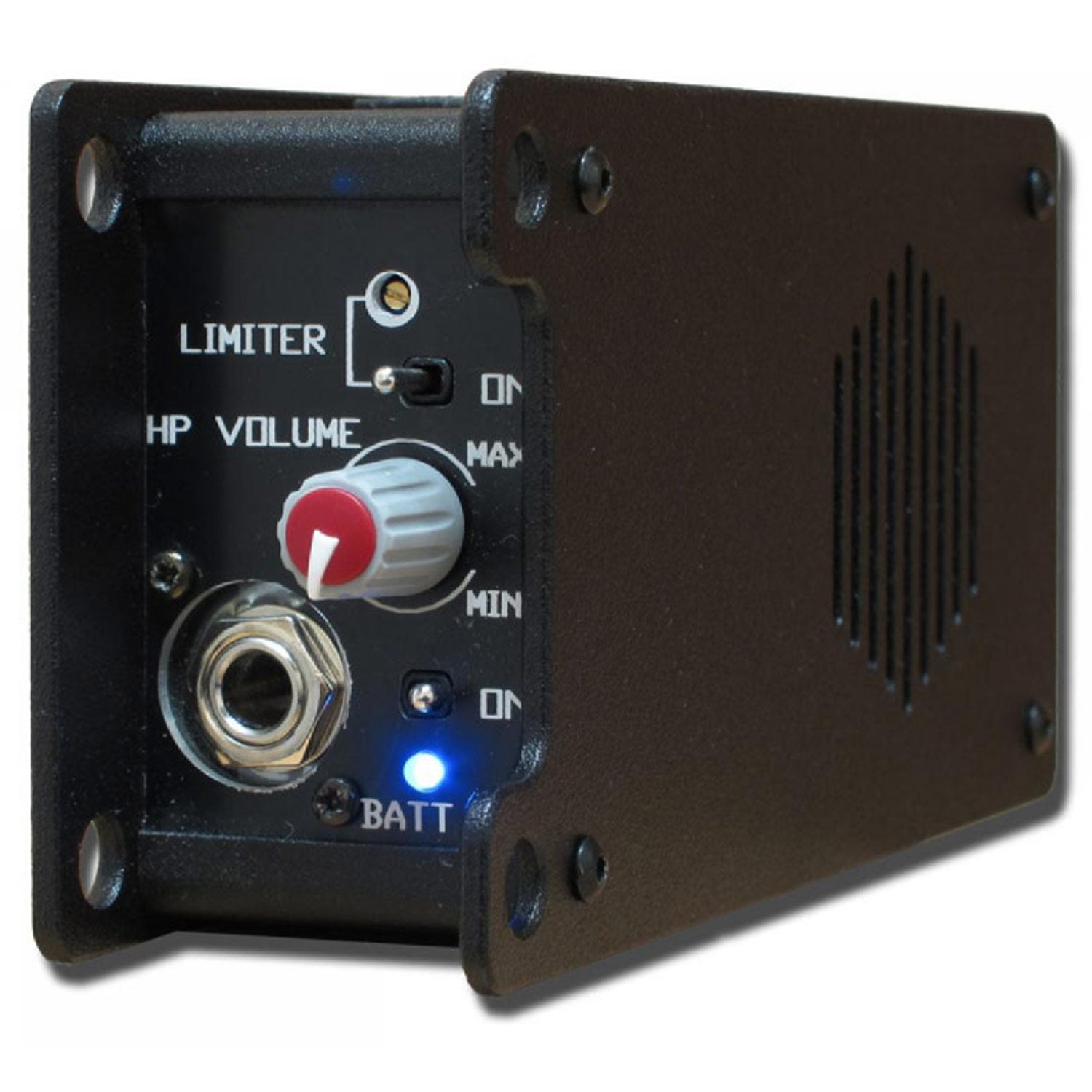

Glensound GS-HA009 - Belt Pack Earpiece Driver & Headphone Amp

This unit has been designed by popular request. The GS-HA009 is suitable for driving a wide range of impedance headphones and earpices from 8 to 2000 Ohms. It has a small inbuilt loudspeaker which can be used for simple monitoring and is disconnected when a headphone jack is inserted.

Features:

• Mono headphone amp
• Drives mono and stereo headphone/earpieces
• Drives headphones and earpieces from 8 to 2000 Ohms
• Inbuilt loudspeaker
• Inbuilt limiter
• Balanced XLR input
• Loop through on XLR
• Long battery life

The GS-HA009 is a mono headphone amplifier capable of driving both mono & stereo headphones & earpieces. A limiter is built in to protect the user from a sudden loud input level. The limiter can be switched into & out of the circuit.

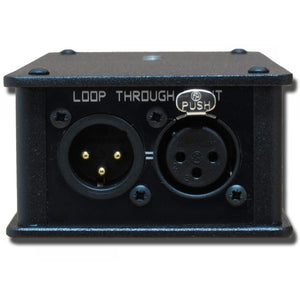

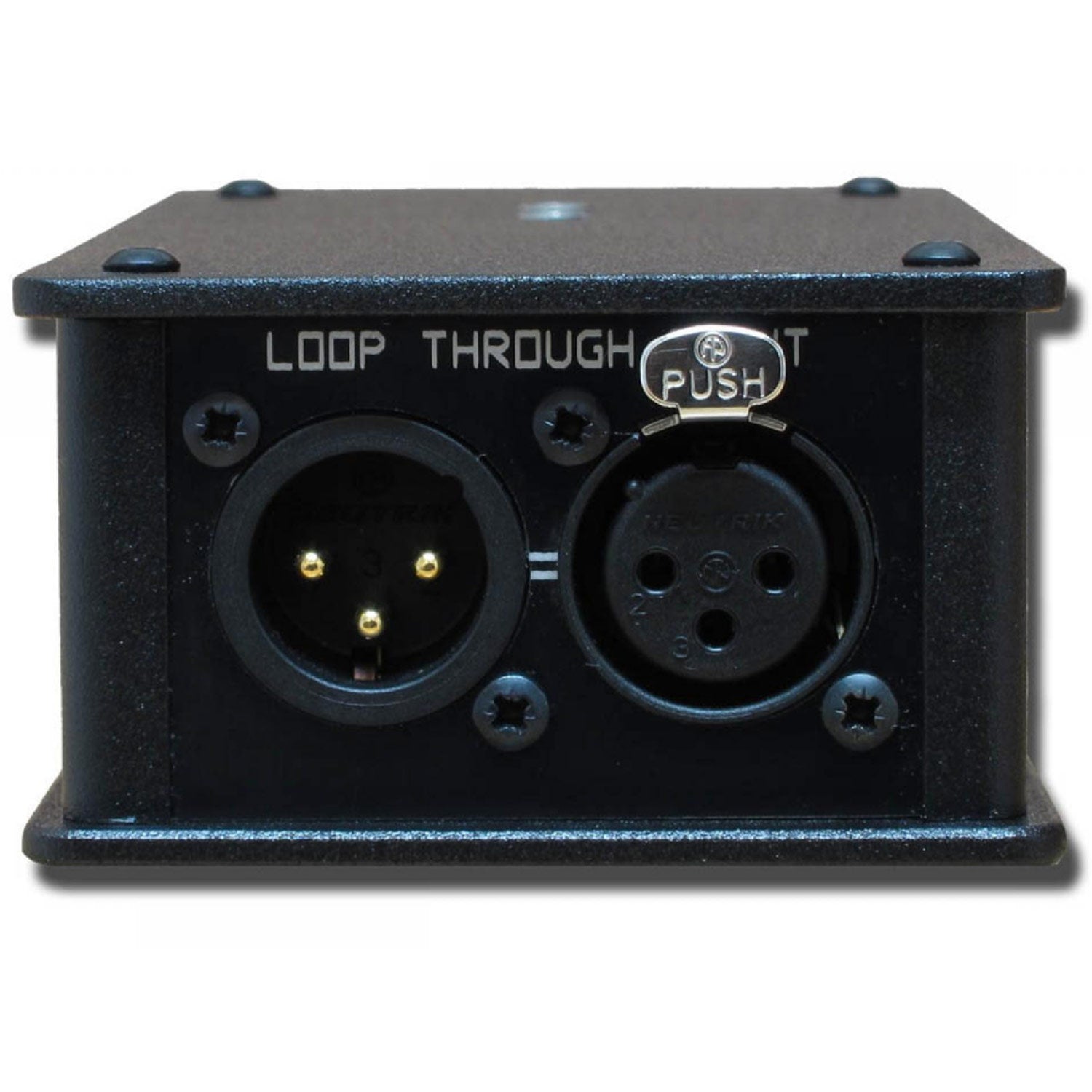

The audio input is balanced on an XLR (a loop through XLR is provided for daisy chaining several devices together). A 20dB gain switch is provided to boost the input level if required.

The design of the GS-HA009 is very low current and as such it provides a very long battery life.
