Glensound GS-HA011 - Single Input Headphone Amp w/ Input Gain Adjust & Transformer Balanced Inputs
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
A portable, belt pack style single channel headphone amplifier.
Features:
- Portable single channel headphone amplifier
- Transformer balanced inputs
- Input gain control
- Battery(PP3) or DC power
- Adjustable headphone level control
- 6.35mm and 3.5mm headphone sockets
- Audio input on XLR with loop through
- On/off switch
- Low battery light
- Belt clip

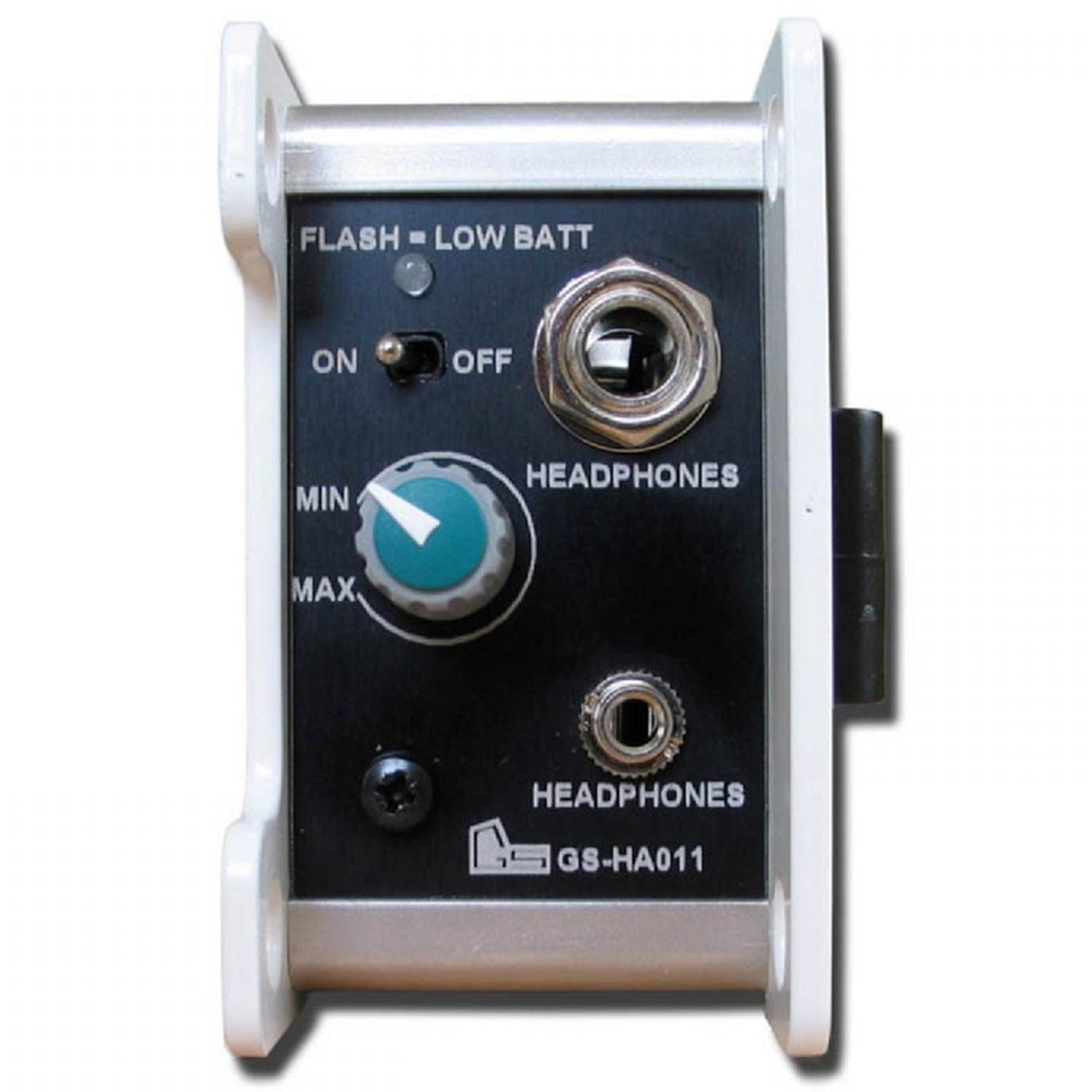

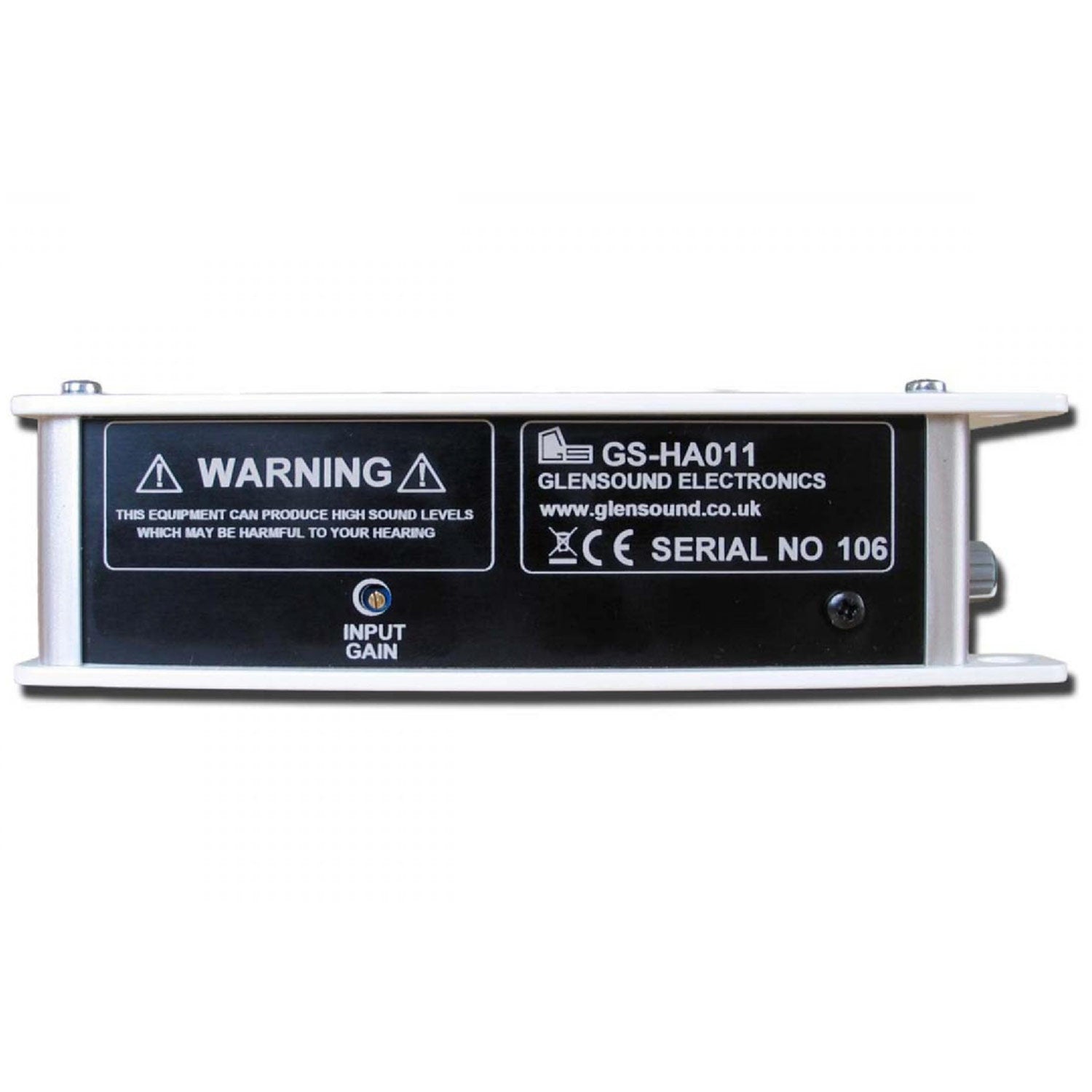

Audio input is transformer balanced with recessed adjustable gain control. Input connection is via XLR with a loop through XLR output. Two headphone sockets are offered, 1 on 6.35mm and the other on 3.5mm. These are wired tip & sleeve to allow connection of regular stereo headphones (with audio on both ears) or a single ear piece. There is a volume control for adjusting level to 32-1000ohm impedance headphones.
Power is via a 9v PP3 battery (>18 hours use) or via external DC power. There is an on/off switch and a low power LED light.
Glensound belt pack cases are very rugged to withstand the rigours of portable use. There are loop anchor points on each of the front corners for shoulder straps or tying down, and there is a belt clip.
| Input | Transformer balanced |
| Input Impedance | >20k ohms |
| Input Range | -20dBu to +8dBu |
| Output Range | -20dBu to +10dBu |
| Frequency response | < -1dBu 50Hz - 16KHz |
| Noise | >-80dBu CCIR Un-waited Q Peak @ Line up |
| Max O/P | +19dBu into 10K ohms |
| Max O/P | +16dBu into 600 ohms |
| Distortion | <0.25% 100Hz - 1kHz |
| Distortion | <0.02% 1K - 10KHz |
| DC supply | 12-20v <26mA |
| Battery | 9v alkaline PP3 |
| Battery life | >18 hours (Alkaline battery in normal conditions) |
| Low battery LED | at 6.0 volts |
| Optimal Headphone Impedance | 32-1000 ohm |
| Length | 153mm |
| Width | 73mm |
A portable, belt pack style single channel headphone amplifier.
Features:
- Portable single channel headphone amplifier
- Transformer balanced inputs
- Input gain control
- Battery(PP3) or DC power
- Adjustable headphone level control
- 6.35mm and 3.5mm headphone sockets
- Audio input on XLR with loop through
- On/off switch
- Low battery light
- Belt clip
Audio input is transformer balanced with recessed adjustable gain control. Input connection is via XLR with a loop through XLR output. Two headphone sockets are offered, 1 on 6.35mm and the other on 3.5mm. These are wired tip & sleeve to allow connection of regular stereo headphones (with audio on both ears) or a single ear piece. There is a volume control for adjusting level to 32-1000ohm impedance headphones.
Power is via a 9v PP3 battery (>18 hours use) or via external DC power. There is an on/off switch and a low power LED light.
Glensound belt pack cases are very rugged to withstand the rigours of portable use. There are loop anchor points on each of the front corners for shoulder straps or tying down, and there is a belt clip.
| Input | Transformer balanced |
| Input Impedance | >20k ohms |
| Input Range | -20dBu to +8dBu |
| Output Range | -20dBu to +10dBu |
| Frequency response | < -1dBu 50Hz - 16KHz |
| Noise | >-80dBu CCIR Un-waited Q Peak @ Line up |
| Max O/P | +19dBu into 10K ohms |
| Max O/P | +16dBu into 600 ohms |
| Distortion | <0.25% 100Hz - 1kHz |
| Distortion | <0.02% 1K - 10KHz |
| DC supply | 12-20v <26mA |
| Battery | 9v alkaline PP3 |
| Battery life | >18 hours (Alkaline battery in normal conditions) |
| Low battery LED | at 6.0 volts |
| Optimal Headphone Impedance | 32-1000 ohm |
| Length | 153mm |
| Width | 73mm |
