Glensound GS-HA013 - Headphone Amplifier

  • Dale #:

    GLEN-GSHA013
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The GS-HA013 like other units in this range is small, robust and economical. It provides 1 off headphone amplifier in a compact format. It builds on the successful GS-HA001 and adds switches to allow each input to be routed to the left ear, right ear, or both. A toggle switch turns the unit on/of... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The GS-HA013 like other units in this range is small, robust and economical. It provides 1 off headphone amplifier in a compact format. It builds on the successful GS-HA001 and adds switches to allow each input to be routed to the left ear, right ear, or both. A toggle switch turns the unit on/off and a bright blue LED indicates that the unit is on and flashes when the battery is getting low. Audio input is on 2 XLRs normally feeding left & right channels of the headphone amp. A switch is provided to allow an unbalanced stereo signal input on just 1 off these XLRs to be feed to both channels of the headphone amp. A phase reverse of the right ear facility is provided (operation by a small toggle switch). 2 off headphone jack connections are provided (in parallel) each connector is suitable for use with both A and B gauge jack plugs.

Features:

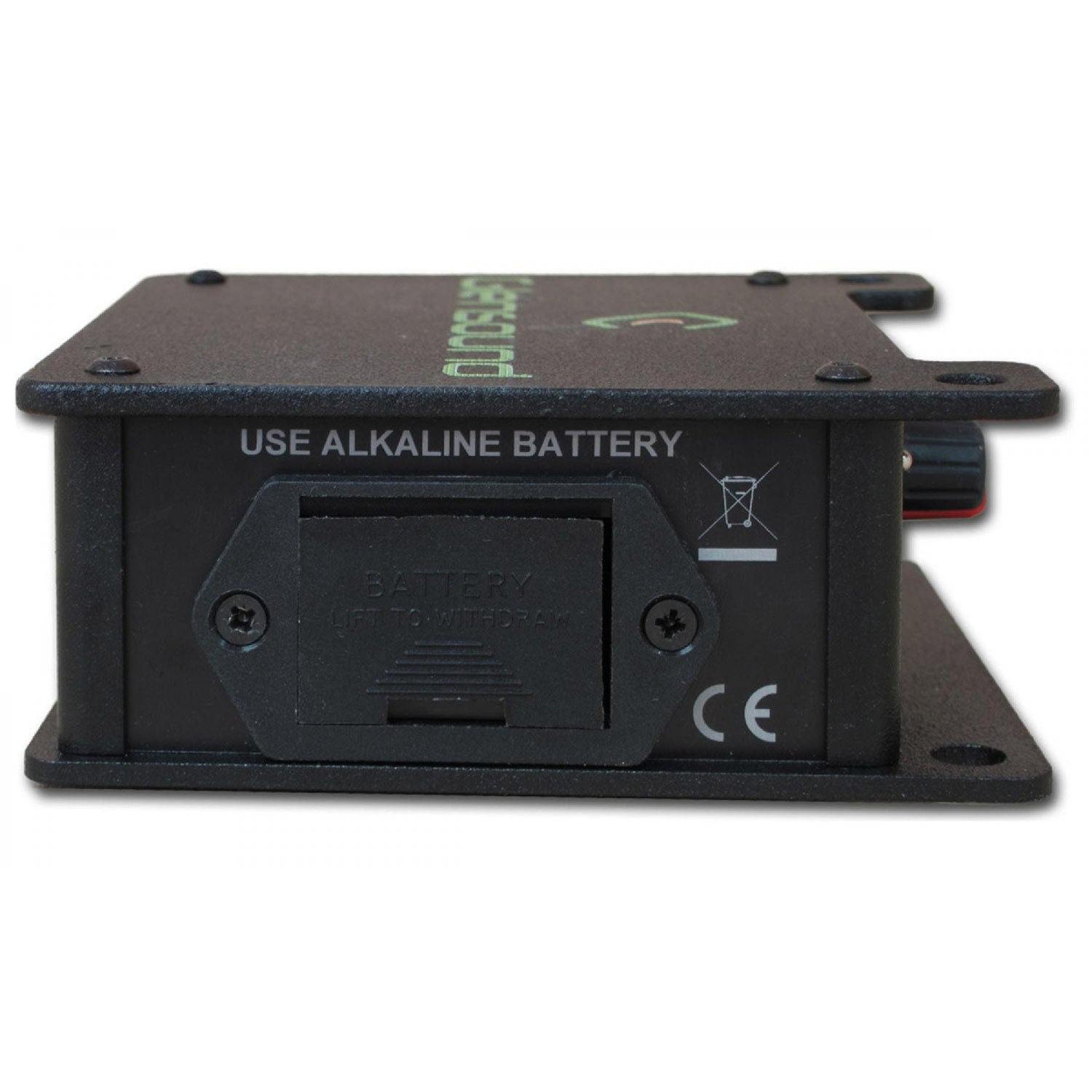

  • Powered from 1 x PP3 long life battery
  • External DC power input
  • On/off switch
  • Blue power on LED Compact size with belt clip

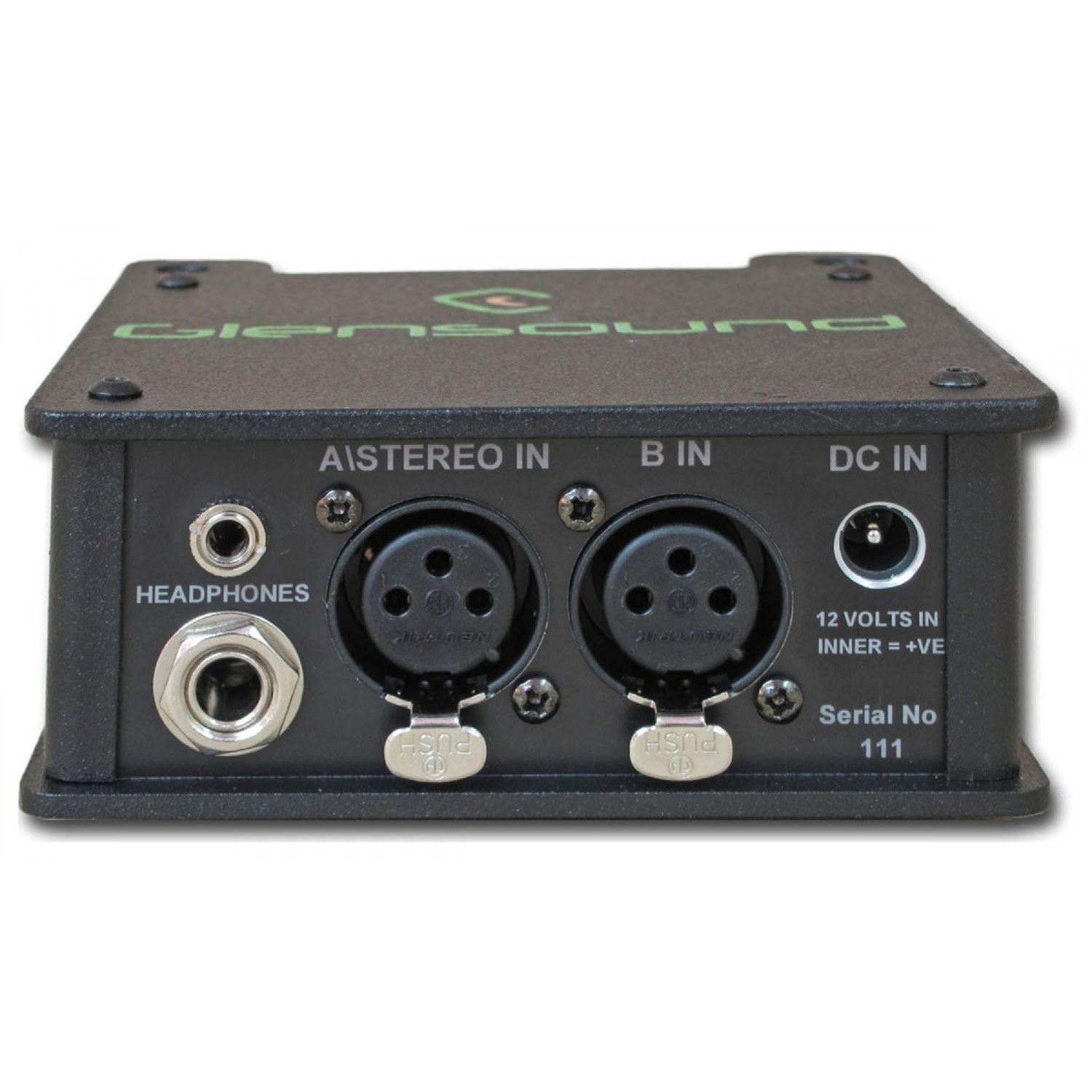

  • 2 balanced inputs on rear panel XLRs
  • 1 input switchable to unbalanced stereo

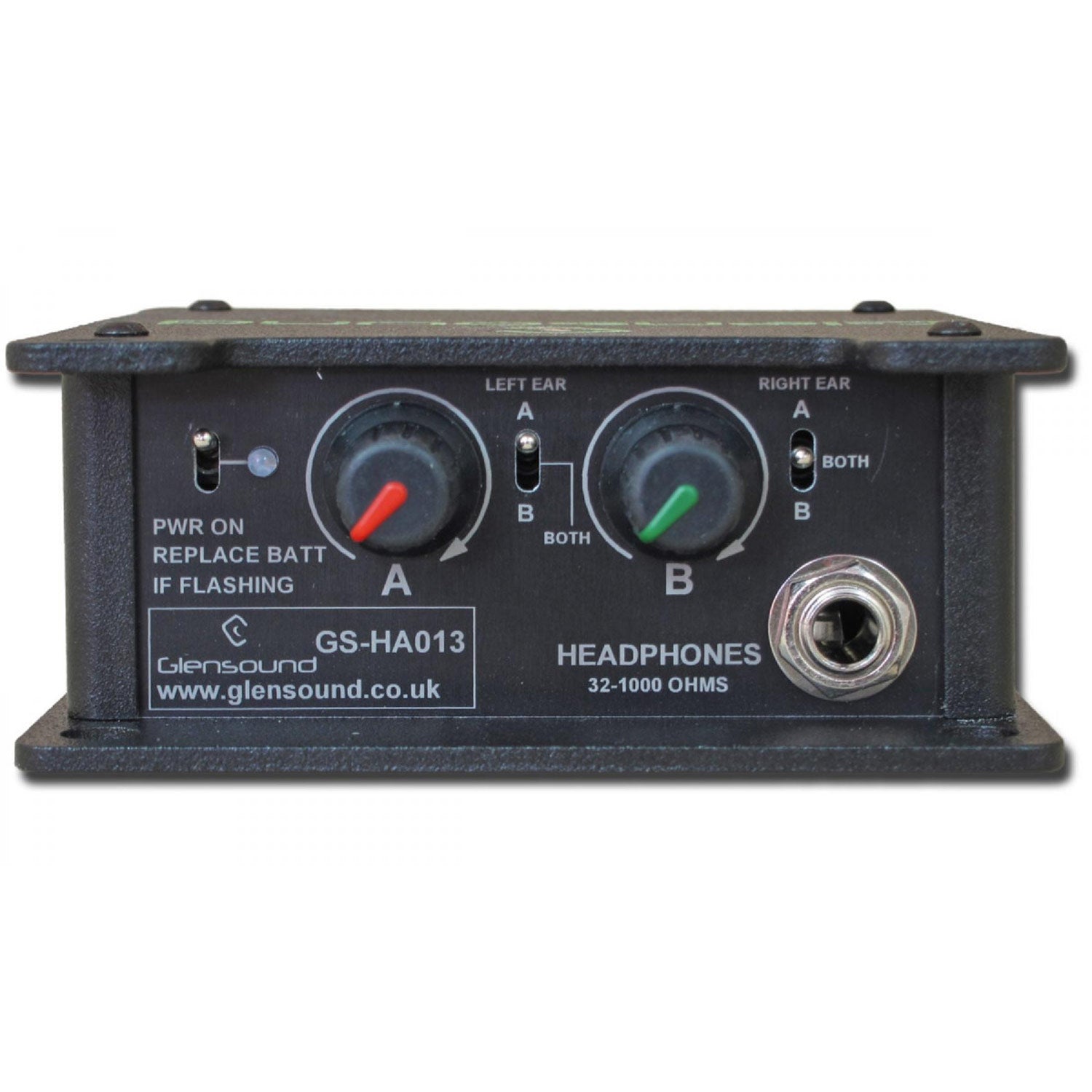

  • Input gain controls
  • Seperate left/right headphone gain controls

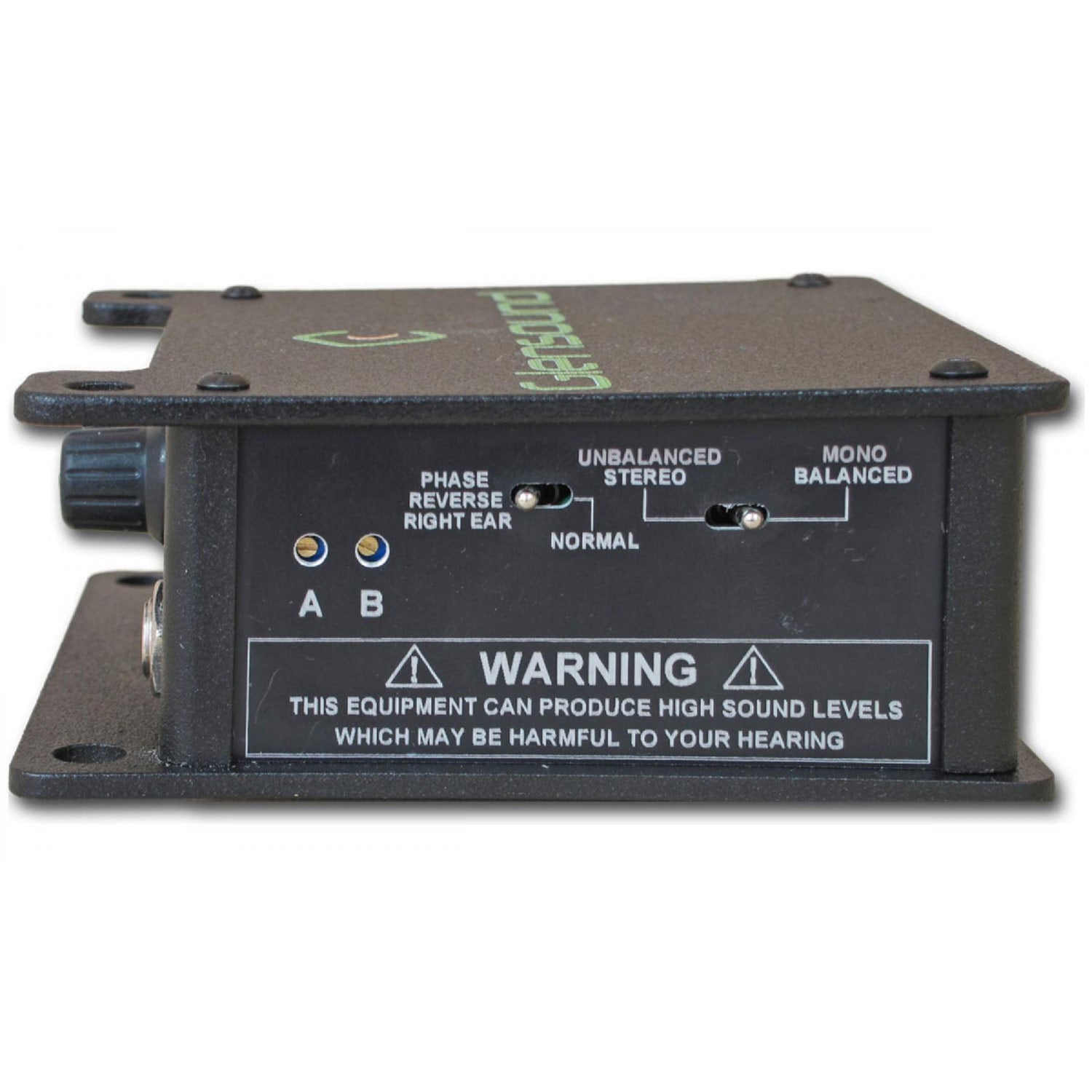

  • Phase reverse right ear switch
  • 2 x Headphone jacks 6.35mm (A/B gauge)
  • 1 x Headphone jack 3.5mm
  • Headphone impedances of 100 - 2000 ohms
  • Each input can be switched from left ear, right ear, or both

More +

Product Specs

BALANCED INPUT IMPEDANCE>50K Ohms
UNBALANCED STEREO INPUT IMPEDANCE>22K Ohms (On each side)
INPUT GAIN RANGE-20dBu to +8dBu
FREQUENCY RESPONSE-1dBu @ 20Hz & 20kHz
NOISE-54dBu (RMS 22-22kHz) @ Max Gain
-85dBu (RMS 22-22kHz) @ Min Gain
HEADPHONE IMPEDANCE200 Ohms to 2K Ohms
HEADPHONE LEVEL RANGE-20dBu to +10dBu
MAXIMUM HEADPHONE LEVELS****WARNING HIGH SOUND LEVELS CAN BE HARMFUL TO YOUR HEARING****
+19dBu into 2K Ohms
+18dBu into 600 Ohms
+16dBu into 200 Ohms
2 x HEADPHONE CONNECTORS6.35mm A & B gauge Wired in Parallel
POWER Internal1 x PP3 9 volt battery
External12 to 20V @ < 44Ma 2.5 mm Jack (inner positive)
BATTERY LIFE
BATTERY INDICATORSteady blue LED indicates good battery Flashing blue LED indicates low battery
OVERALL SIZE43 x 101 x 103 mm (H x W x D)
UNIT WEIGHT380 Grams (including battery)
