Glensound GS-HA014 - Headphone Amp For Under Desk With Loop
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
A very useful headphone amp for studio environments.
Features:
- Stereo headphone amp
- 6.35 and 3.5mm headphone jacks
- Volume Control
- Audio inputs on balanced 6.35mm jack sockets
- Under desk mounting
- Power loop via CAT5
- Selectable audio loop via same CAT5
- 9V DC power

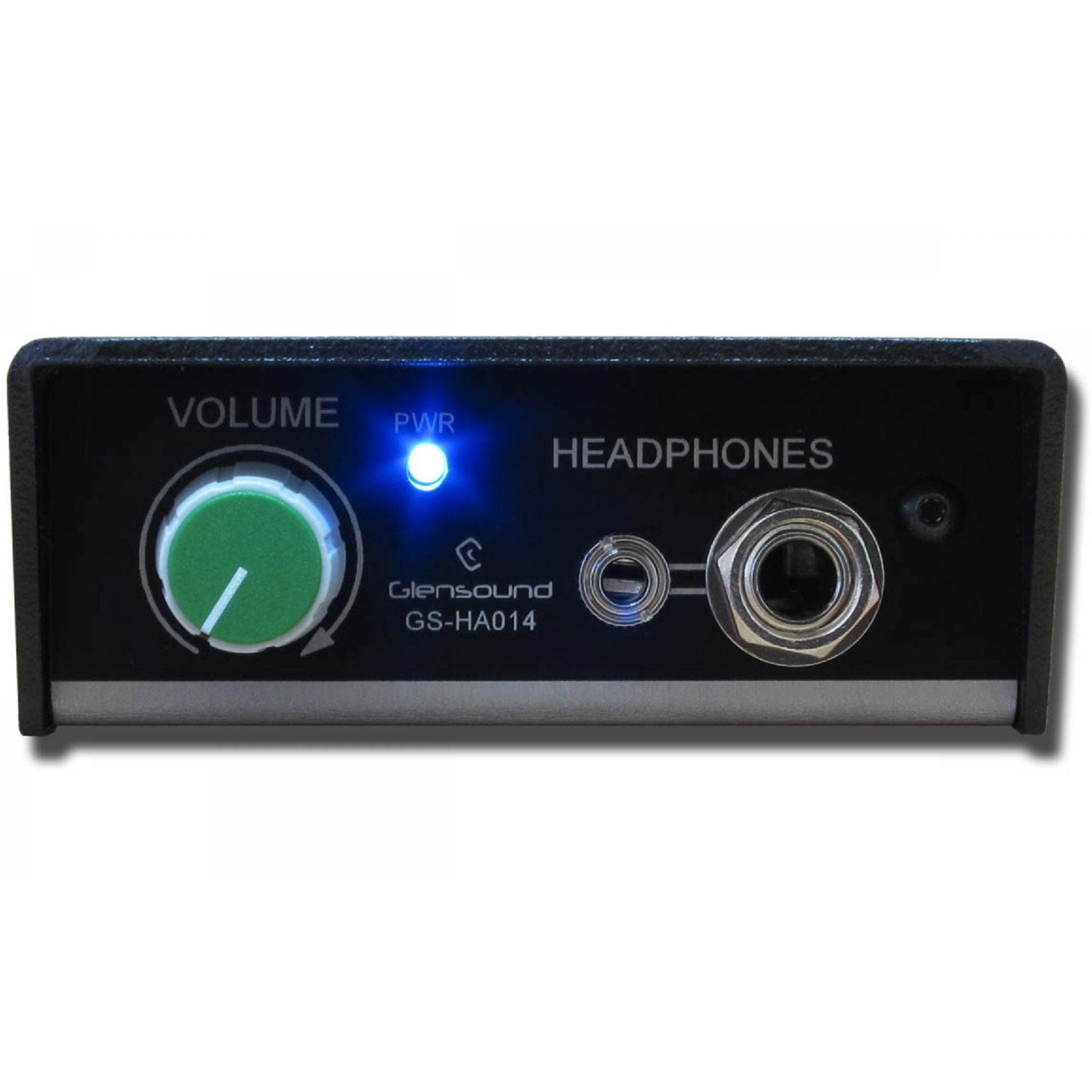

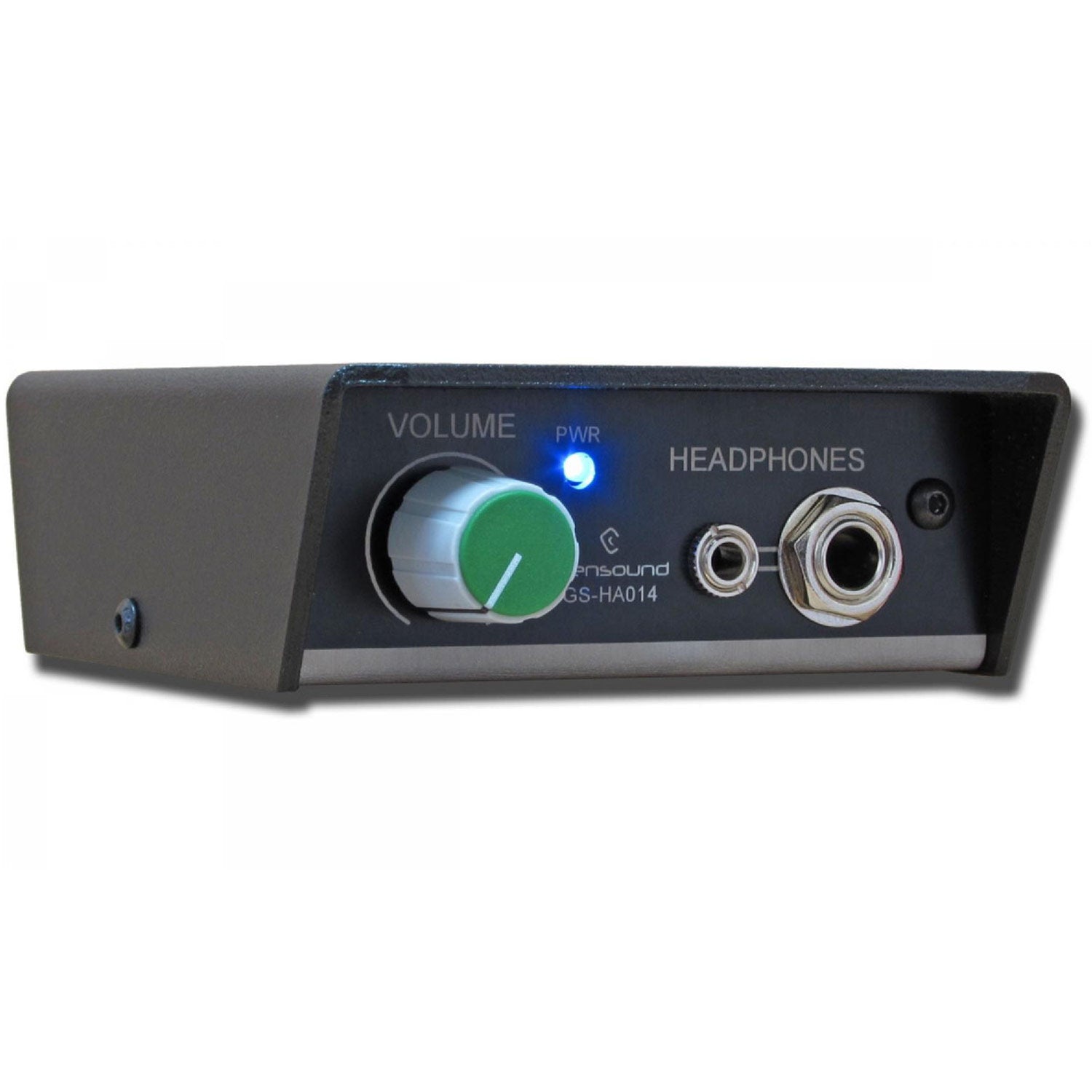

This stereo amp mounts underneath desks and allows easy headphone connections for presenters or guest users. A 6.35mm and 3.5mm jack socket is available for the headphones and a full size, covered pot allows level adjust. Audio inputs are on 2 x balanced 6.35mm jack sockets.

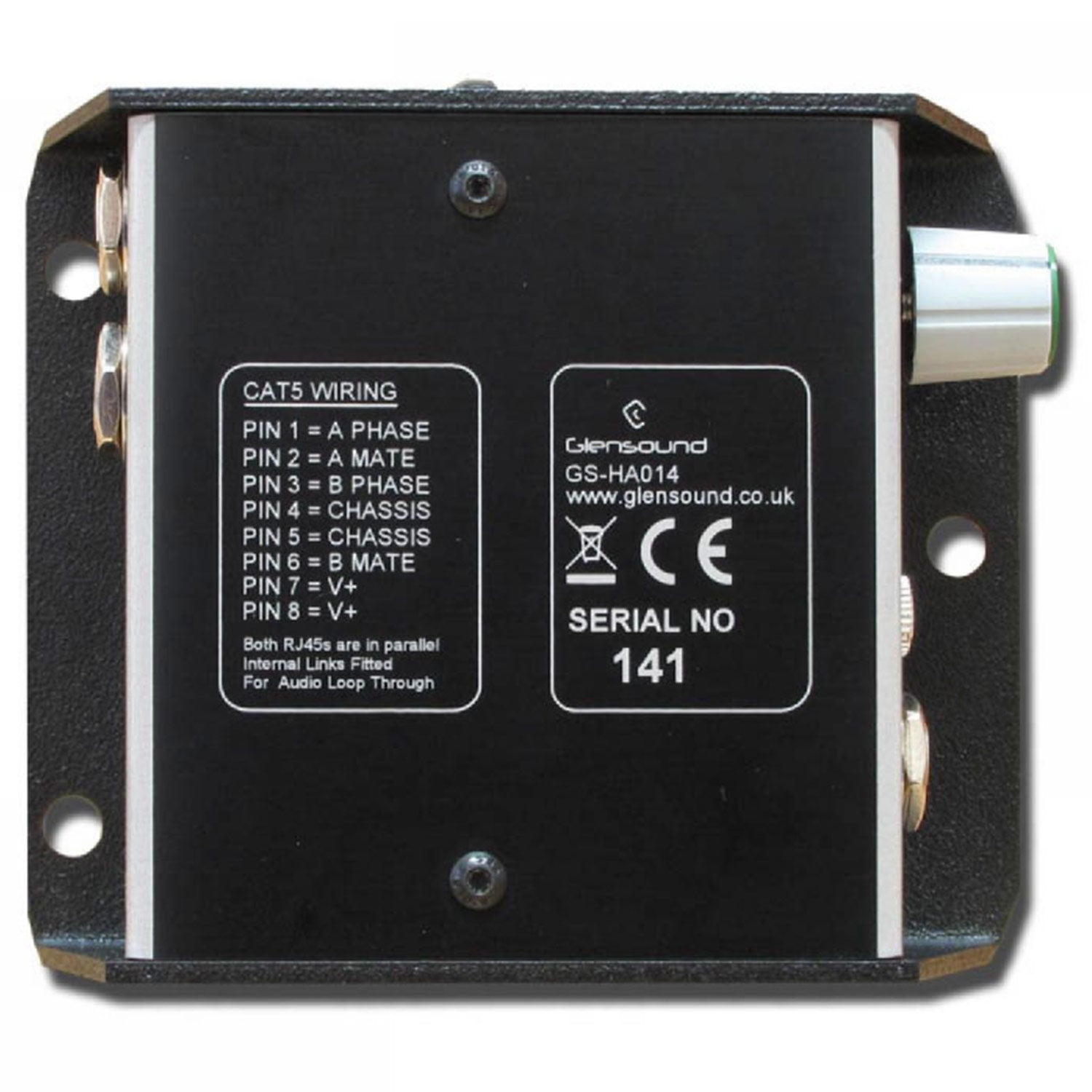

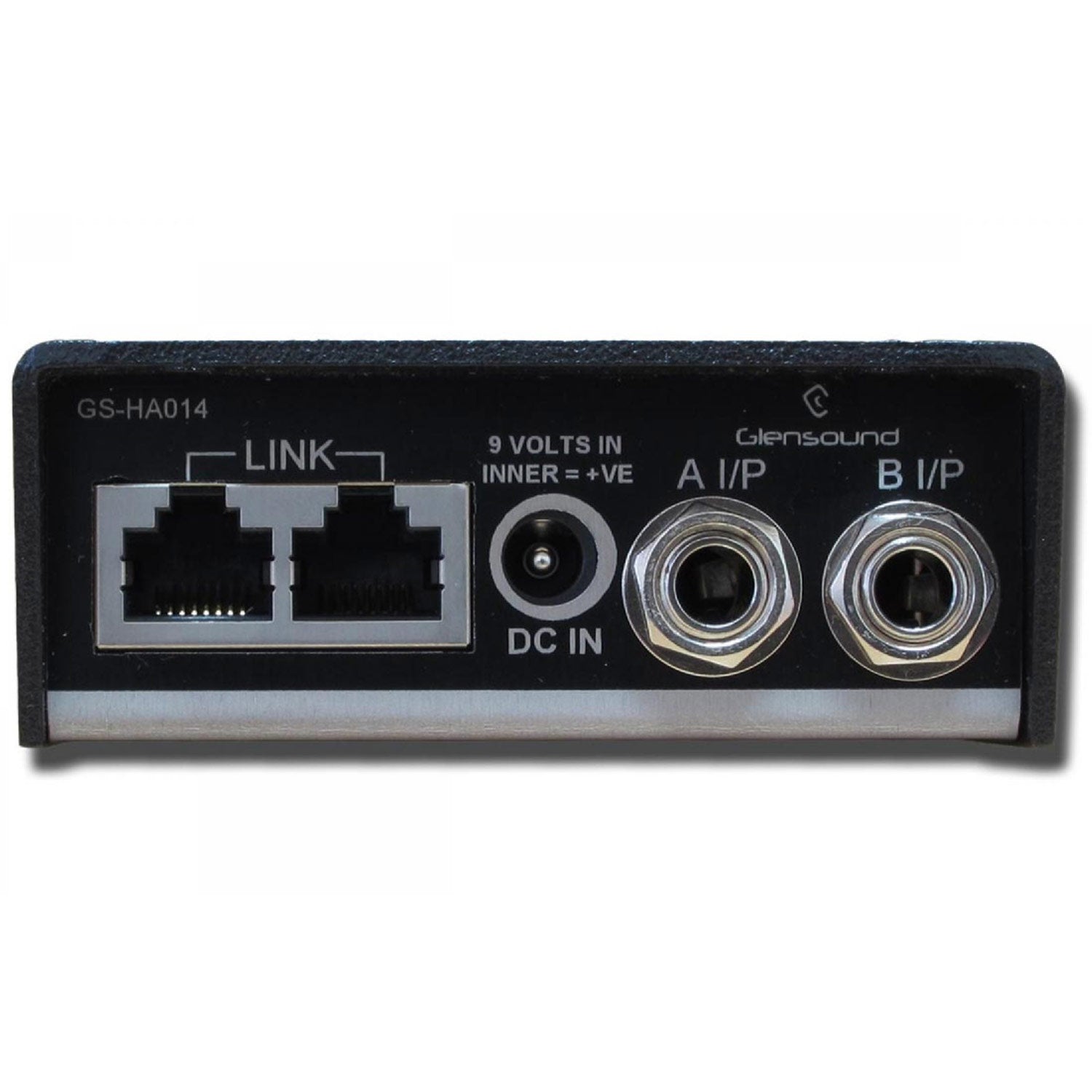

The units link power via CAT5. Up to 8 units can be connected from 1 external 9V DC supply. Via an internal jumper, audio can also be routed via the same CAT5 connections as the power. The external power supply is not included and at least 1 must be purchased separately.
The GS-HA014 is suitable for use with a wide range of input levels, a pair of preset gain controls accessed via small holes in the top of the unit allow both broadcast (0dB) and domestic (-10dB) input levels to be accomodated.
| Headphone impedance | 32 to 1000 Ohms |
| Maximum output level | +20dB |
| Headphone jacks | 1 x 6.35mm (1/4") 1 x 3.5mm stereo 3 pole sockets |
| 6.35mm Jack type | accepts both A and B gauge plugs |
| Front panel level pot range | -20 to + 10dB standard (-70 to + 10dB special order) |
| Maximum input level | +20dB |
| Frequency Response | >-0.1dB 22Hz to 22kHz |
| Distortion | <0.008% @ 1kHz (Ref +8dB) |
| Noise | < -74dB @ line up (residual noise) (22Hz to 22kHz) |
| Output Impedance | 180 Ohms |
| Input impedance | >80k |
| Input connectors | 2 x 6.35mm (1/4") balanced 3 pole sockets |
| Input course gain range | -20 to +10dB |
| DC input | 7 - 12 Volts |
| DC connector | 2.5mm centre 5.5mm outside |
| Max current consumption | 1 watt |
| Dimensions | 86.61mm wide 32.23mm high 104.31mm deep |
| Weight | 220g |
A very useful headphone amp for studio environments.
Features:
- Stereo headphone amp
- 6.35 and 3.5mm headphone jacks
- Volume Control
- Audio inputs on balanced 6.35mm jack sockets
- Under desk mounting
- Power loop via CAT5
- Selectable audio loop via same CAT5
- 9V DC power
This stereo amp mounts underneath desks and allows easy headphone connections for presenters or guest users. A 6.35mm and 3.5mm jack socket is available for the headphones and a full size, covered pot allows level adjust. Audio inputs are on 2 x balanced 6.35mm jack sockets.
The units link power via CAT5. Up to 8 units can be connected from 1 external 9V DC supply. Via an internal jumper, audio can also be routed via the same CAT5 connections as the power. The external power supply is not included and at least 1 must be purchased separately.
The GS-HA014 is suitable for use with a wide range of input levels, a pair of preset gain controls accessed via small holes in the top of the unit allow both broadcast (0dB) and domestic (-10dB) input levels to be accomodated.
| Headphone impedance | 32 to 1000 Ohms |
| Maximum output level | +20dB |
| Headphone jacks | 1 x 6.35mm (1/4") 1 x 3.5mm stereo 3 pole sockets |
| 6.35mm Jack type | accepts both A and B gauge plugs |
| Front panel level pot range | -20 to + 10dB standard (-70 to + 10dB special order) |
| Maximum input level | +20dB |
| Frequency Response | >-0.1dB 22Hz to 22kHz |
| Distortion | <0.008% @ 1kHz (Ref +8dB) |
| Noise | < -74dB @ line up (residual noise) (22Hz to 22kHz) |
| Output Impedance | 180 Ohms |
| Input impedance | >80k |
| Input connectors | 2 x 6.35mm (1/4") balanced 3 pole sockets |
| Input course gain range | -20 to +10dB |
| DC input | 7 - 12 Volts |
| DC connector | 2.5mm centre 5.5mm outside |
| Max current consumption | 1 watt |
| Dimensions | 86.61mm wide 32.23mm high 104.31mm deep |
| Weight | 220g |
