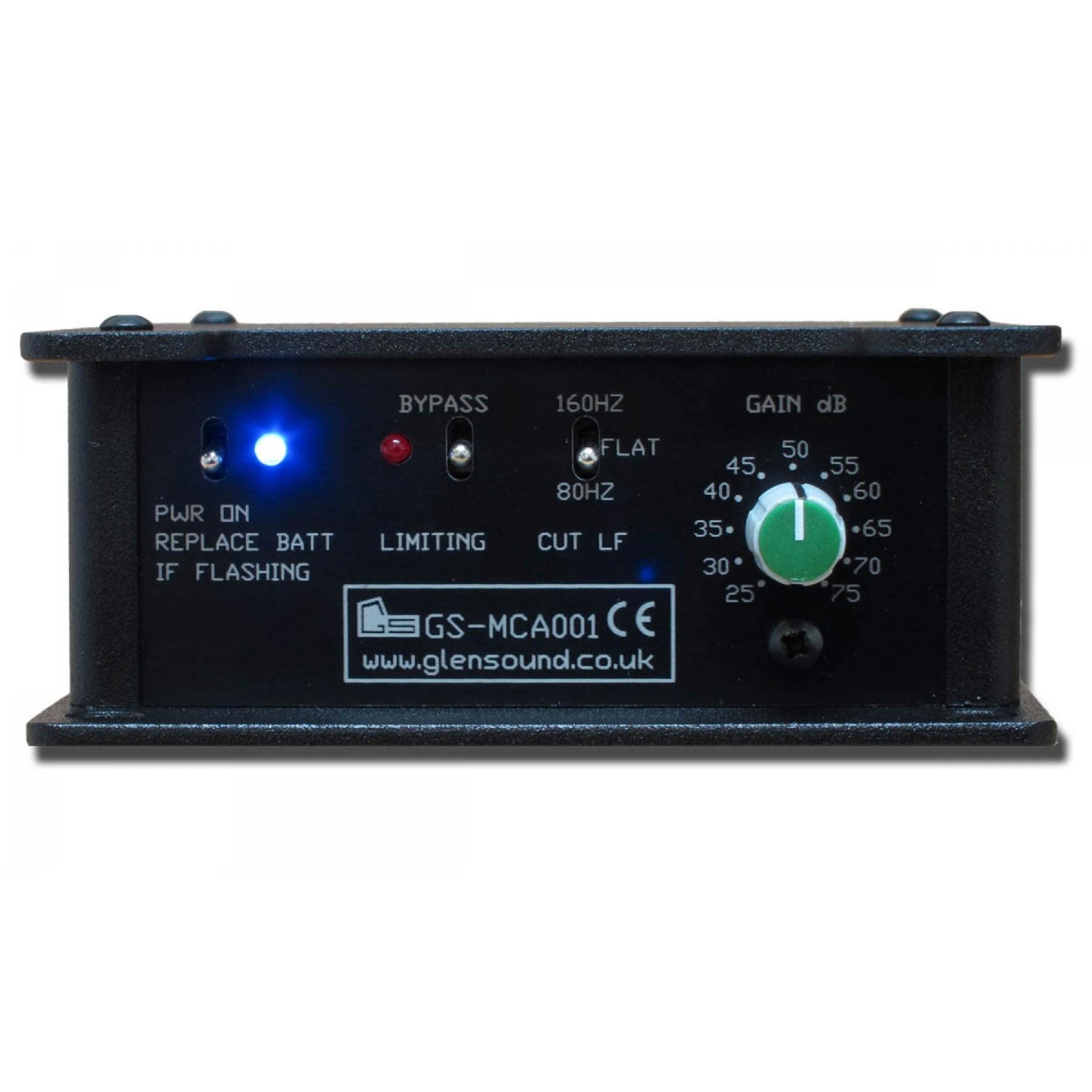

Glensound GS-MCA001 - Microphone Pre-Amplifier
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Glensound GS-MCA001 is a portable, battery powered microphone preamplifier with limiter. It's lightweight, small and rugged construction makes it ideal for outside broadcast and film production. As well as offering a high quality compressor/ limiter circuit (with bypass) it also has selectable LF cuts, 48 volts phantom power and a rotary stepped gain control. A belt clip is included for hands free operation and the single PP3 9 Volt battery offers good operational life. Manufactured in Glensound's UK factory using high quality components & trusted manufacturing techniques the GS-MCA001 will give many years of reliable performance.
| Frequency response | 20Hz to 20kHz> -1dB |
| Noise @ Minimum Gain | -72 dBu (RMS 20Hz to 20kHz) |
| Noise @ Maximum Gain | -52 dBu (RMS 20Hz to 20kHz) |
| Equivalent input noise @ maximum gain | 127 dBu |
| Input Gain | -25 to -75dB in 5dB steps |
| Gain accuracy | > +/- 0.3 dB in relation to front panel scale |
| Maximum Output level | +19 dBu into high impedance |
| Maximum Output level | +17 dBu into 600 Ohms |
| Input Type | Electronically balanced input |
| Input impedance | 1K2 Ohms |
| Output Type | Transformer Balanced Output |
| Output impedance | 50 Ohms |
| THD + Noise | Measured at any gain setting (no limiter) <0.05% |
| CUT | LF front panel switched 160Hz/ Flat /80Hz @ 12dB per octave |
| Dynamics | Limiter/ compressor circuit |
| Maximum input level before clipping | -6dBu (limiter off) |
| Maximum input level before clipping | +14dBu (limiter on) |
| Phantom power switch selectable (rear panel) | 48Volts |
| Approvals | CE marked |
| External Power input | +12 to 20 volts |
| Maximum Dimensions (excluding belt clip) | 101 mm x 104 mm x 45mm |
| Weight (without battery) | 355g |
The Glensound GS-MCA001 is a portable, battery powered microphone preamplifier with limiter. It's lightweight, small and rugged construction makes it ideal for outside broadcast and film production. As well as offering a high quality compressor/ limiter circuit (with bypass) it also has selectable LF cuts, 48 volts phantom power and a rotary stepped gain control. A belt clip is included for hands free operation and the single PP3 9 Volt battery offers good operational life. Manufactured in Glensound's UK factory using high quality components & trusted manufacturing techniques the GS-MCA001 will give many years of reliable performance.
| Frequency response | 20Hz to 20kHz> -1dB |
| Noise @ Minimum Gain | -72 dBu (RMS 20Hz to 20kHz) |
| Noise @ Maximum Gain | -52 dBu (RMS 20Hz to 20kHz) |
| Equivalent input noise @ maximum gain | 127 dBu |
| Input Gain | -25 to -75dB in 5dB steps |
| Gain accuracy | > +/- 0.3 dB in relation to front panel scale |
| Maximum Output level | +19 dBu into high impedance |
| Maximum Output level | +17 dBu into 600 Ohms |
| Input Type | Electronically balanced input |
| Input impedance | 1K2 Ohms |
| Output Type | Transformer Balanced Output |
| Output impedance | 50 Ohms |
| THD + Noise | Measured at any gain setting (no limiter) <0.05% |
| CUT | LF front panel switched 160Hz/ Flat /80Hz @ 12dB per octave |
| Dynamics | Limiter/ compressor circuit |
| Maximum input level before clipping | -6dBu (limiter off) |
| Maximum input level before clipping | +14dBu (limiter on) |
| Phantom power switch selectable (rear panel) | 48Volts |
| Approvals | CE marked |
| External Power input | +12 to 20 volts |
| Maximum Dimensions (excluding belt clip) | 101 mm x 104 mm x 45mm |
| Weight (without battery) | 355g |
