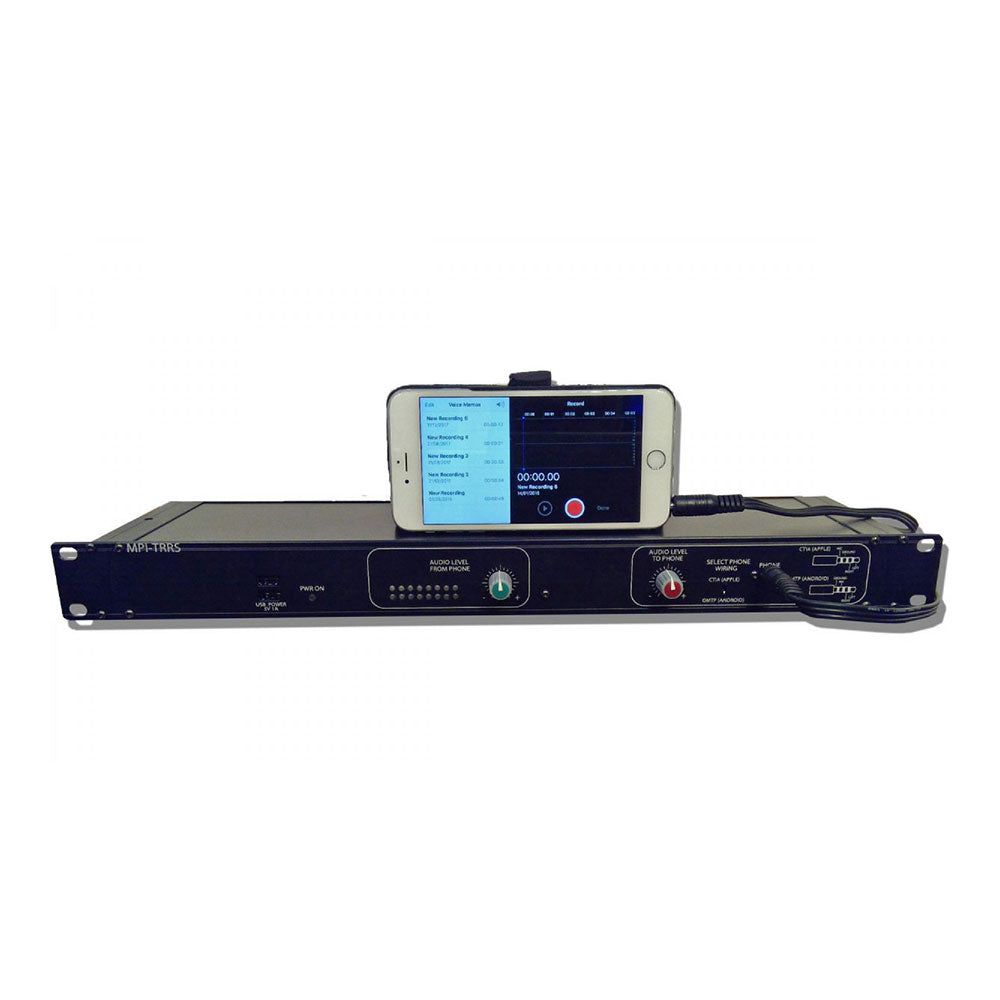

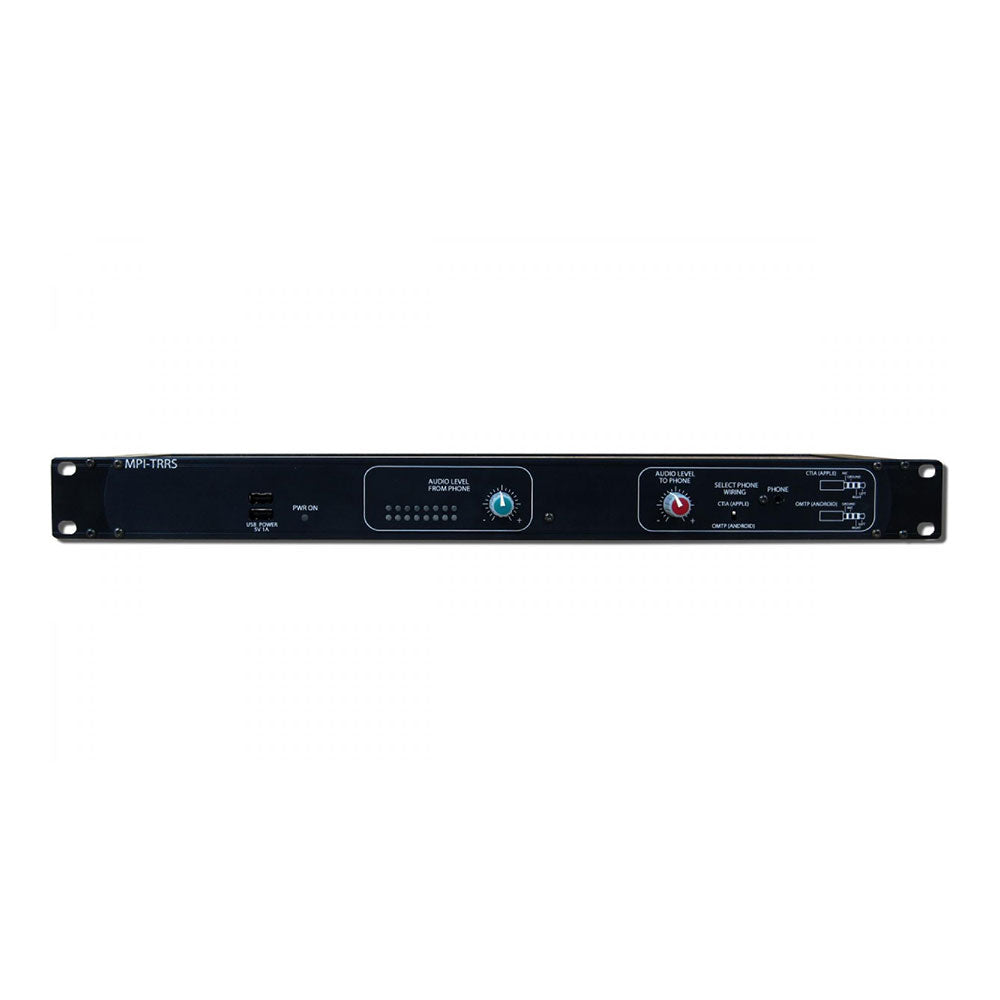

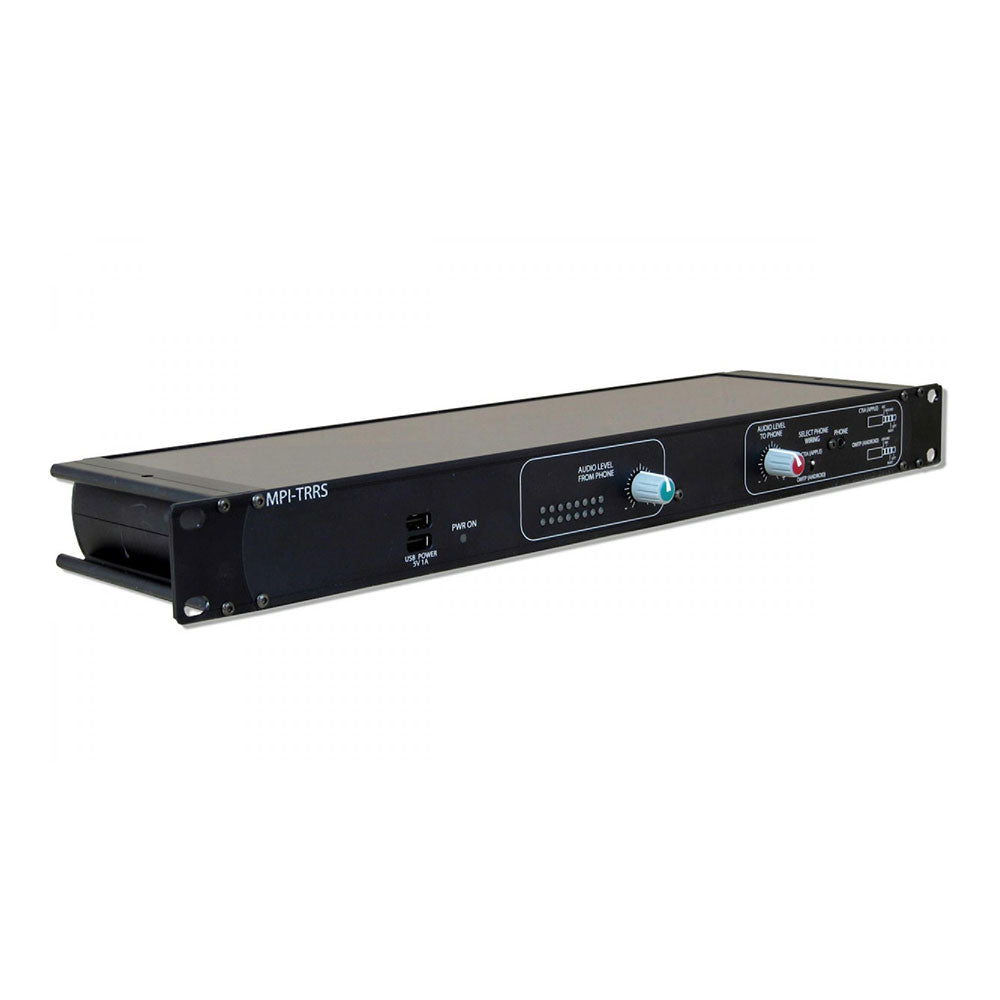

Glensound GS-MPI-TRRS - Mobile Phone Audio Interface

  • Dale #:

    GLEN-GSTRRS
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The GS-MPI-TRRS (Glensound-Mobile Phone Interface-Tip Ring Ring Sleeve) is a professional broadcast audio interface for connecting domestic mobile phones to broadcast equipment via the phones analogue headphone/ microphone jack socket. It converts a line level output from your broadcast equipmen... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The GS-MPI-TRRS (Glensound-Mobile Phone Interface-Tip Ring Ring Sleeve) is a professional broadcast audio interface for connecting domestic mobile phones to broadcast equipment via the phones analogue headphone/ microphone jack socket.

It converts a line level output from your broadcast equipment to a microphone circuit for providing audio to your mobile phone, while simultaneously taking the headphone output of your mobile phone and converting it to balanced line level outputs for interfacing to your broadcast equipment.

Easy to use front panel level controls for adjusting levels between the phone and your broadcast device, phone charging points and professional audio quality makes this unit ideal for use in busy news rooms and studios.

Features:

  • Audio Interface for Mobile Phones
  • Works with Apple and Android
  • Balanced stereo audio in and out
  • Un-balanced stereo in and out (In parallel with balanced)
  • Interfaces to the phones TRRS jack socket
  • Wide output range to phones mic input
  • Bi-directional audio
  • Low noise professional interface
  • Mains powered and DC backup input
  • Front panel level controls
  • Designed for journalists
  • Ideal for busy news rooms and radio studios
  • 4 x USB charging points


Works With Apple and Android Phones

Apple and some Android phones have different wiring standards of the 4 pin 3.5mm TRRS headset jack. A simple to use and clearly labelled front panel switch makes it very quick and easy for the user to select which of the 2 wiring standards needs to be selected for interfacing to their phone.

4 x Phone Charging Points
Four USB charging points are provided to allow phones to be charged while connected to the GS-MPI-TRRS. Two charging points are located on the front panel and a further two are located on the rear.
Each charging point can supply 500mA.

Balanced and Un-balanced Audio Connections
For complete versatility of interfacing to all types of audio broadcast equipment both balanced and unbalanced bi-directional stereo audio circuits are provided in parallel. This makes connections to such devices as news room PCs that only have unbalanced audio inputs and outputs as easy as connecting to your on air radio desk with balanced audio circuits in a studio.

Front Panel PPM and Level Control For Audio From Phone
Although the audio levels from recordings on mobile phones should be at fairly consistent levels between tracks in reality there is often a wide range of audio levels that need to be dealt with. Therefore an easy to view front panel level meter (PPM style) is provided to give a quick clear reference to the outgoing audio level from the phone. Conveniently located next to the meter is a level control providing a means for the operator to adjust the audio to a suitable level.

Level Control For Audio To Phone
To help provide a crystal clear audio signal to the operator’s mobile phone a front panel wide range level control is provided to allow the user to adjust the level between the output of the broadcast device and the input of the phone.

Mains and DC Powered
For maximum flexibility and reliability the GS-MPI-TRRS can be powered from mains (100 - 240 VAC) or an external DC (+/-12v) DC input. If both power sources are connected then they operate to provide redundancy on the power supply.

Front Panel and Rear Panel Phone Connections

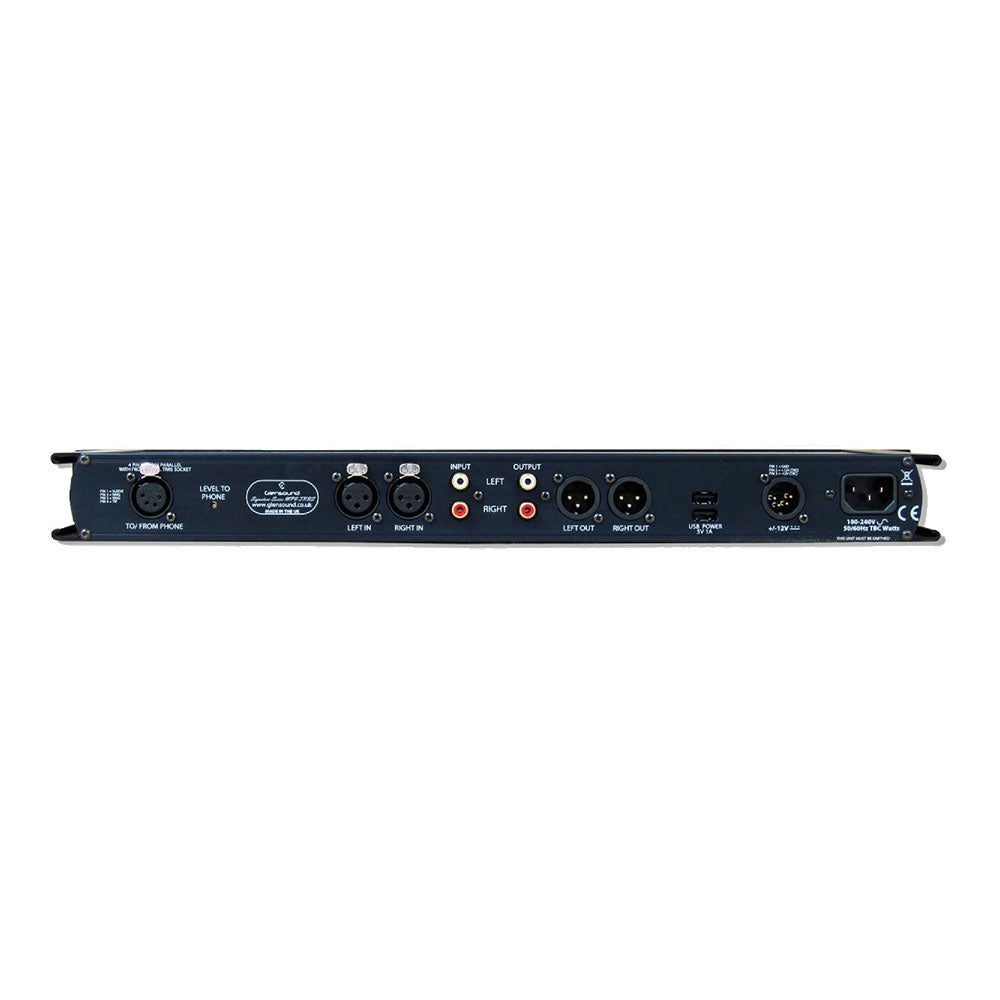

Both a front panel 4 pin TRRS (tip ring ring sleeve) jack socket and a rear panel 5 pin XLR socket are provided for audio connectivity to the mobile phone. The front panel socket makes it easy for the operator to see what is connected and the rear panel XLR is perfect for a studio that needs a permanent interface solution.

Simple To Use
The GS-MPI-TRRS was originally designed for a customer’s specific requirements and in particular their requirement was to make the device easy and intuitive to use for journalists. Therefore the ergonomics of the unit have been designed specifically with this in mind and customer feed back has been excellent.

Preset Output Gain
To allow connection to a wide range of different mobile phone handsets a rear panel preset gain control is provided that allows the microphone output level to the phone to be adjusted.

More +

Product Specs

AUDIO TO PHONE
Front Panel Level Control +/- 15dBu
Type Mono Sum of Left and Right
Output Level To Phone -17dBu to -57dBu (Front panel level control set to 0dB gain) (Actual output level set by rear panel preset potentiometer)
Maximum Input Level +22dBu
Balanced Input Impedance >28k Ohms
Un-balanced Input Impedance >22k Ohms
Output Impedance 2k35 Ohms
Frequency Response =< +/- 0.5dB 40Hz to 20kHz
Line Up Balanced Input 0dBu
Line Up Un-balanced Input -11.78dBu
AUDIO FROM PHONE
Front Panel Level Control +/-15dBu
Type Stereo
Maximum Output Level +24dBu
Maximum Input Level -2Bu
Balanced Output Impedance: Un-balanced Output Impedance < 20 Ohms
Input Impedance >22k Ohms
Frequency Response =< +/-0.5dB 40 Hz to 20kHz
Line Up Balanced Input 0dBu
Line Up Un-balanced Input -11.78dBu
POWER
Mains Input 100 – 240 VAC (+/-10%) 50 – 60 Hz
DC Input +/- 12V
Consumption Power On LED: Bright Blue
USB Charging Circuits 4 off each being 5 Volt 500mA
PHYSICAL
Size 19” 1RU 122mm deep
Weight 1.16Kg
Mechanics All aluminium construction, anodised and laser etched panels, powder coated sides
INCLUDED ITEMS Handbook: Physical A5 (download also available)
TRRS to TRRS Jack Cable: 2 metre TRRS Plug to TRRS Plug cable
IEC Mains Cable: 2 metre (UK and Europe only)
OPTIONAL ITEMS 4 Pin XLR to TRRS Cable: 4 Pin XLR Plug to TRRS Jack Plug 2 metre
External Power Supply: 1RU Mains powered subrack with +/-12V DC Outputs, c/w DC:DC Cable
