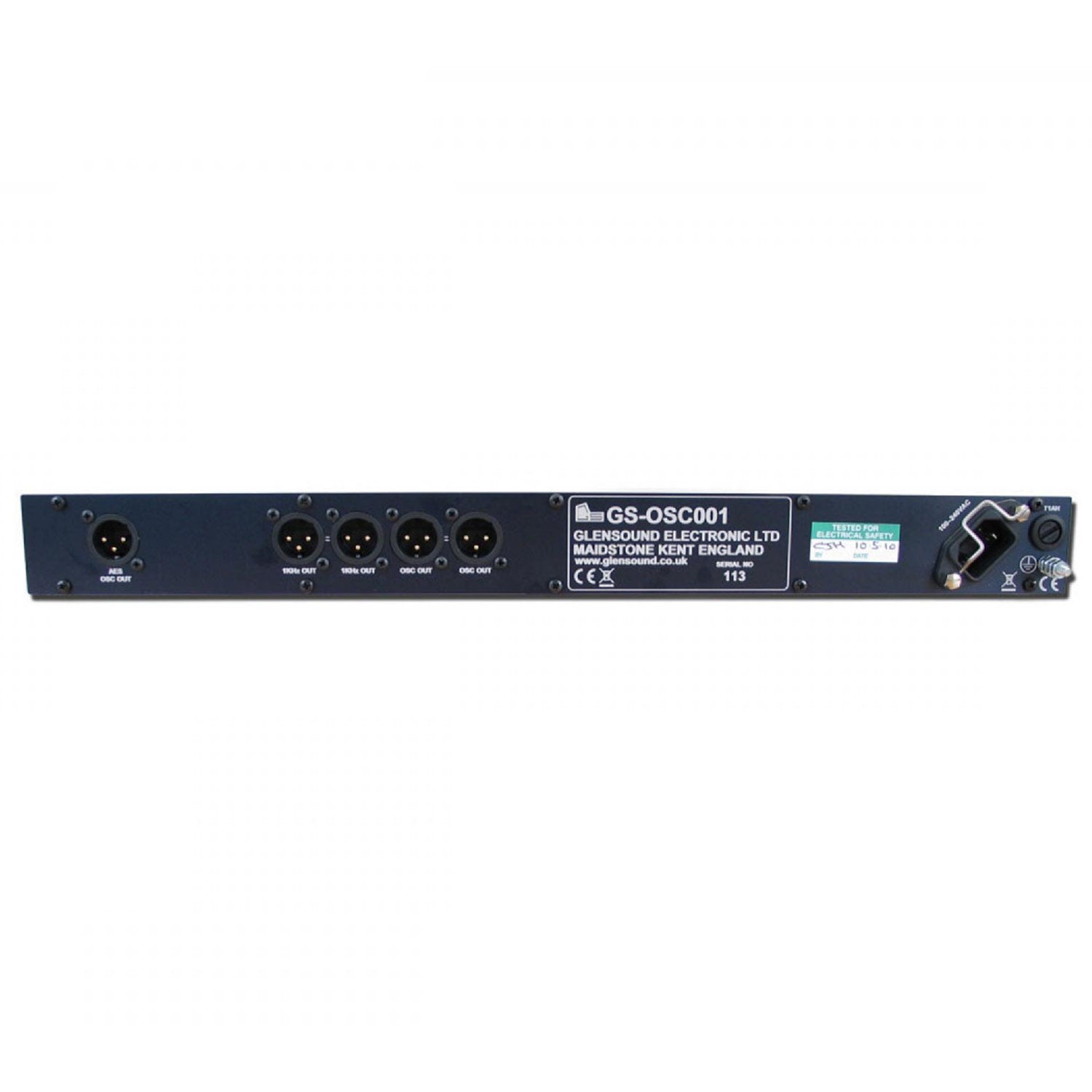

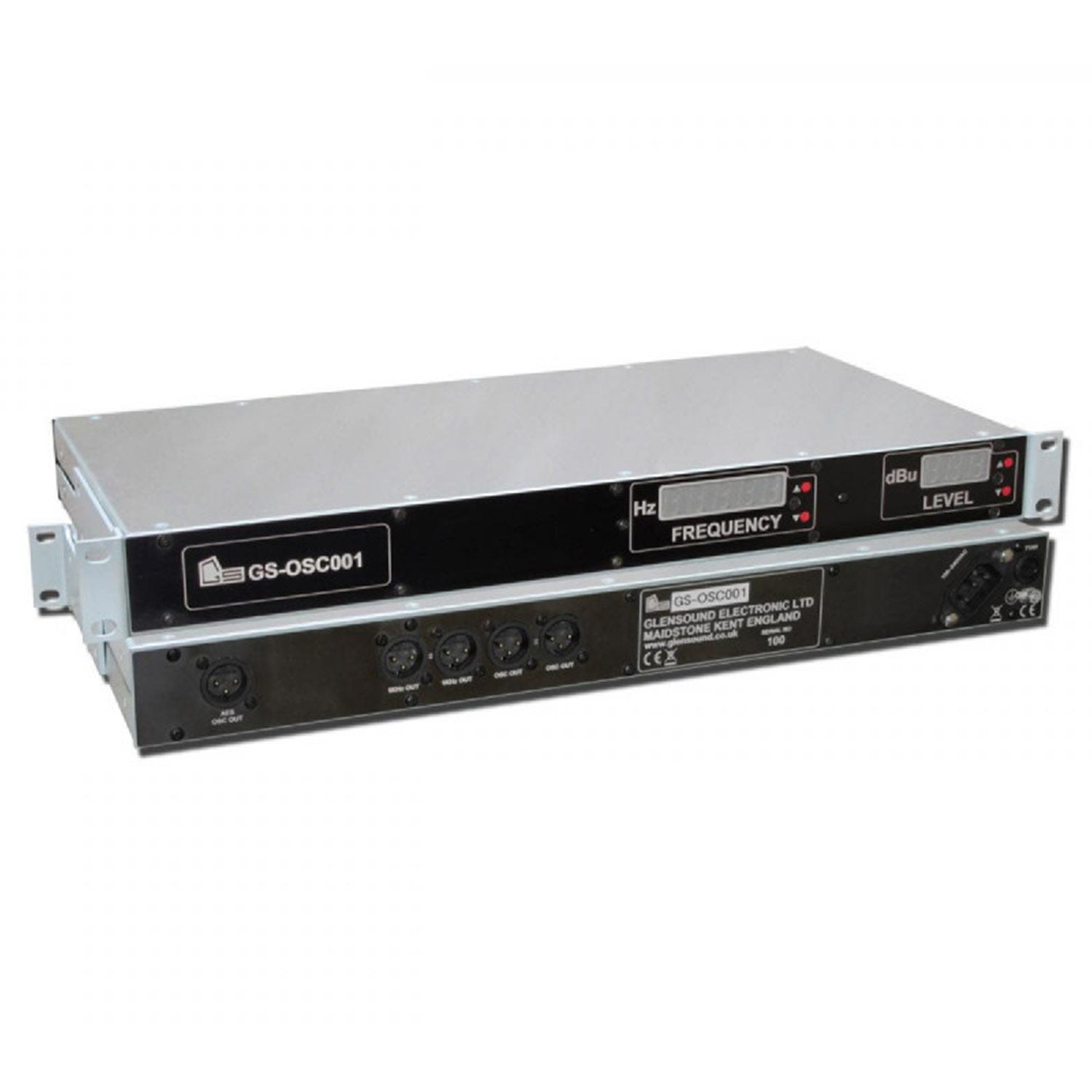

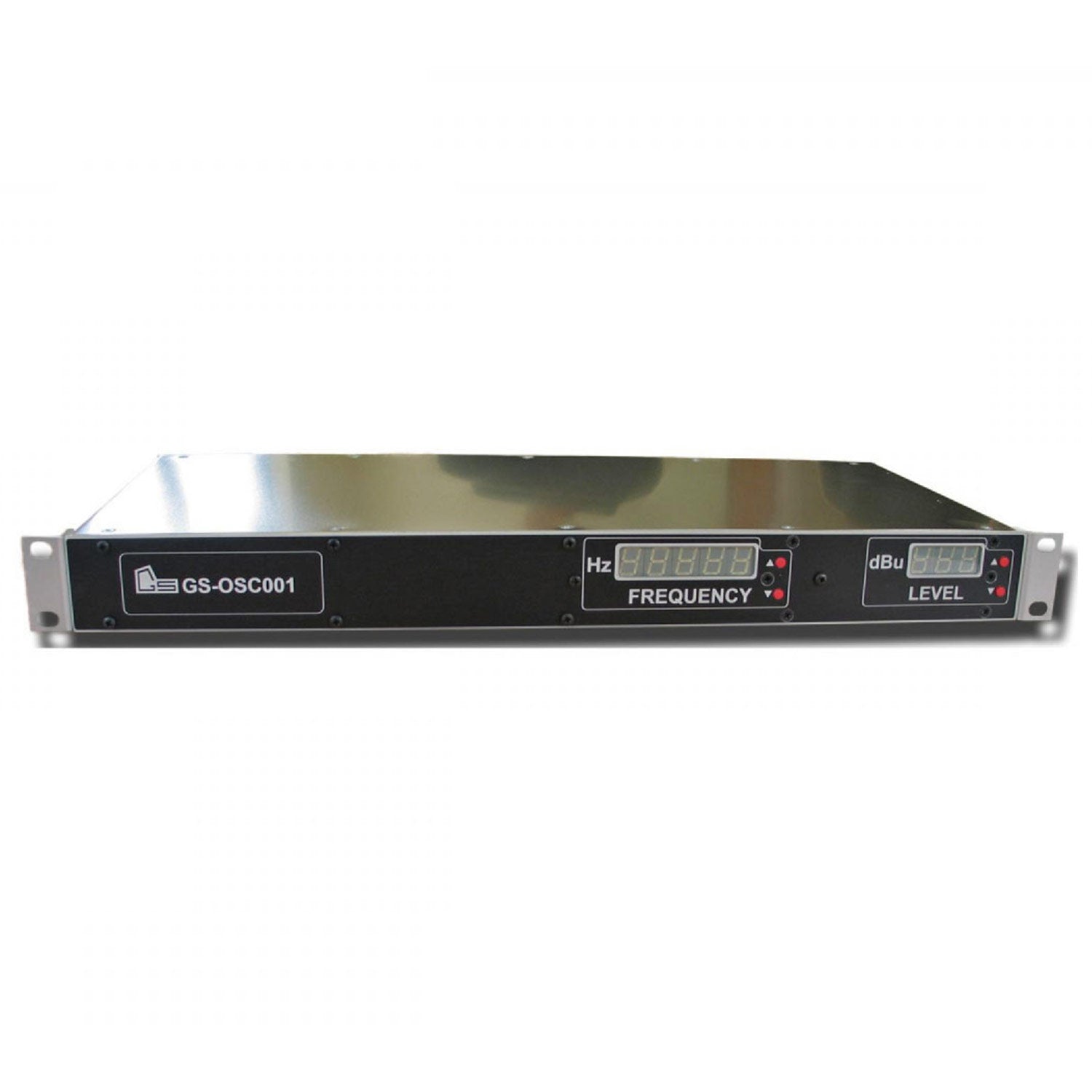

Glensound GS-OSC001 - Variable Frequency Tone Generator
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
A variable frequency tone generator for ident and general line up use. There are 2 fixed 1kHz analogue reference outputs, and 2 analogue outputs of the selected frequency. There is also a digital AES output of the selected frequency.
Features:
- Digital tone generator
- Two analogue outputs
- One digital AES output
- Two analogue fixed 1kHz outputs
- Variable frequency select
- Variable output level select
| Oscillator Frequencies | 40, 100, 1000, 2000, 6000, 10000, 12000, 15000 Hz |
| Oscillator Frequency Deviation | < +/- 0.05Hz |
| Oscillator Frequency Distortion | <0.01% @ all frequencies |
| Audio Output Levels (Oscillator Out) | OFF, -50dBu, -18dBu to +18dBu in 1dB steps |
| Audio Output Fine Level Adjustment | +/- 0.4dB (x 4 for the 4 outputs) |
| AES Output Reference | 0dBFs = +18dBu |
| AES Output Frequency | 48k |
| AES Output Resolution | 24bit |
| Analogue Output Impedance | 50 Ohms |
| Digital Output Impedance | 110 Ohms |
| AC Input | 100-240VAC |
| AC Consumption | 3.5 Watts |
| Size | 1RU 19", 208mm deep (excluding connectors) |
| Weight | 1.62Kg |
| Recommended Working Temperature | -5 to +40 Degrees Celcius |
A variable frequency tone generator for ident and general line up use. There are 2 fixed 1kHz analogue reference outputs, and 2 analogue outputs of the selected frequency. There is also a digital AES output of the selected frequency.
Features:
- Digital tone generator
- Two analogue outputs
- One digital AES output
- Two analogue fixed 1kHz outputs
- Variable frequency select
- Variable output level select
| Oscillator Frequencies | 40, 100, 1000, 2000, 6000, 10000, 12000, 15000 Hz |
| Oscillator Frequency Deviation | < +/- 0.05Hz |
| Oscillator Frequency Distortion | <0.01% @ all frequencies |
| Audio Output Levels (Oscillator Out) | OFF, -50dBu, -18dBu to +18dBu in 1dB steps |
| Audio Output Fine Level Adjustment | +/- 0.4dB (x 4 for the 4 outputs) |
| AES Output Reference | 0dBFs = +18dBu |
| AES Output Frequency | 48k |
| AES Output Resolution | 24bit |
| Analogue Output Impedance | 50 Ohms |
| Digital Output Impedance | 110 Ohms |
| AC Input | 100-240VAC |
| AC Consumption | 3.5 Watts |
| Size | 1RU 19", 208mm deep (excluding connectors) |
| Weight | 1.62Kg |
| Recommended Working Temperature | -5 to +40 Degrees Celcius |
