Glensound GS-TBMM002 - 12 x 12 Talkback Matrix Mixer
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

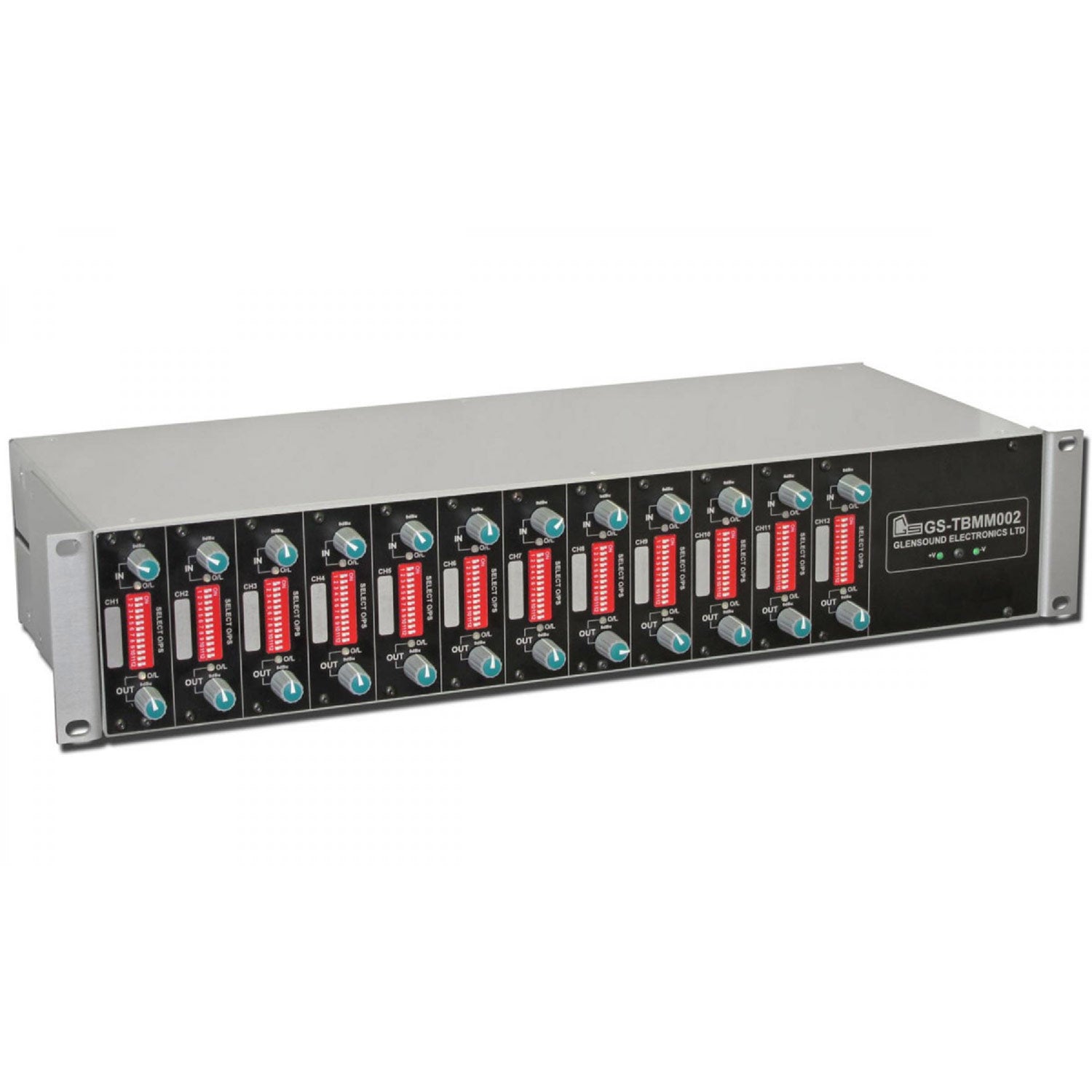

The GS-TBMM002 is a 2RU subrack designed to allow easy setup and alteration of talkback circuits from simple to use front panel controls. Features such as switch mode power supply & audio transformers on both inputs & outputs make it ideal for use in demanding environments such as OB trucks.
Features:
- Transformer balanced audio inputs
- Transformer balanced audio outputs
- Switch mode power supply (90 to 250 VAC)
- 12 inputs
- 12 outputs
- Front panel switches route any input to any output
- Individual input level controls
- Individual output level controls
- Input level controls provide +/- 20dB adjustment
- Input & output overload indication for easy level setup
- Band pass filters on each input
| AUDIO | |
| 0dB input for 0dB output (unity gain) | |
| Input gain | +/-20dB |
| Output gain | +/-10dB |
| Output overload led | indicates 3dB before output distorts |
| Input overload led | indicates 3dB before input distorts |
| Frequency response | <= -1dB 40 Hz to 16kHz |
| Distortion | > 0.05% (100Hz, 1kHz / 10kHz) |
| Noise @ lineup | > -80dB (22Hz to 20kHz RMS) |
| Crosstalk | > -70dB (20Hz to 20kHz) |
| SIZE, WEIGHT / POWER | |
| Width | 19" |
| Height | 2RU |
| Depth | 182mm |
| Weight | 3.6Kg |
| Power Consumption | 8.5 Watts |
