Glensound GTM Mobile - eSports Gamers Interface

The GTM Mobile combines the multiple functions required for the interfacing and communications required in eSports tournaments into one simple to use device. GTM Mobile enhances the standard GTM with the addition of features specifically designed for mobile phone games. GTM provides the interface for the gamers, provides the intercom mix, and allows remote control by tournament engineers. There are separate modes that also mean the GTM can be used by the Coaches, Referees, and arena Announcers.

Features:

• Single user eSports interface
• Data and charging interface to USB C mobile phones
• Multiple headset connection options
• Provides the team talkback mixers
• Full remote control / monitoring using Windows 10/11 App Glencontroller

Mobile Phone Support
A USB to Ethernet adapter is included allowing bi-directional data between an Android phone and the GTM Mobile over the USB C cable. This is important so that in large tournaments, you have a more reliable cable connection rather than a reliance on wi-fi.

As mobile games are often a high power drain on the battery, the GTM Mobile includes high power USB C charging via the same USB C cable, when the GTM Mobile is connected to a PoE++ switch.

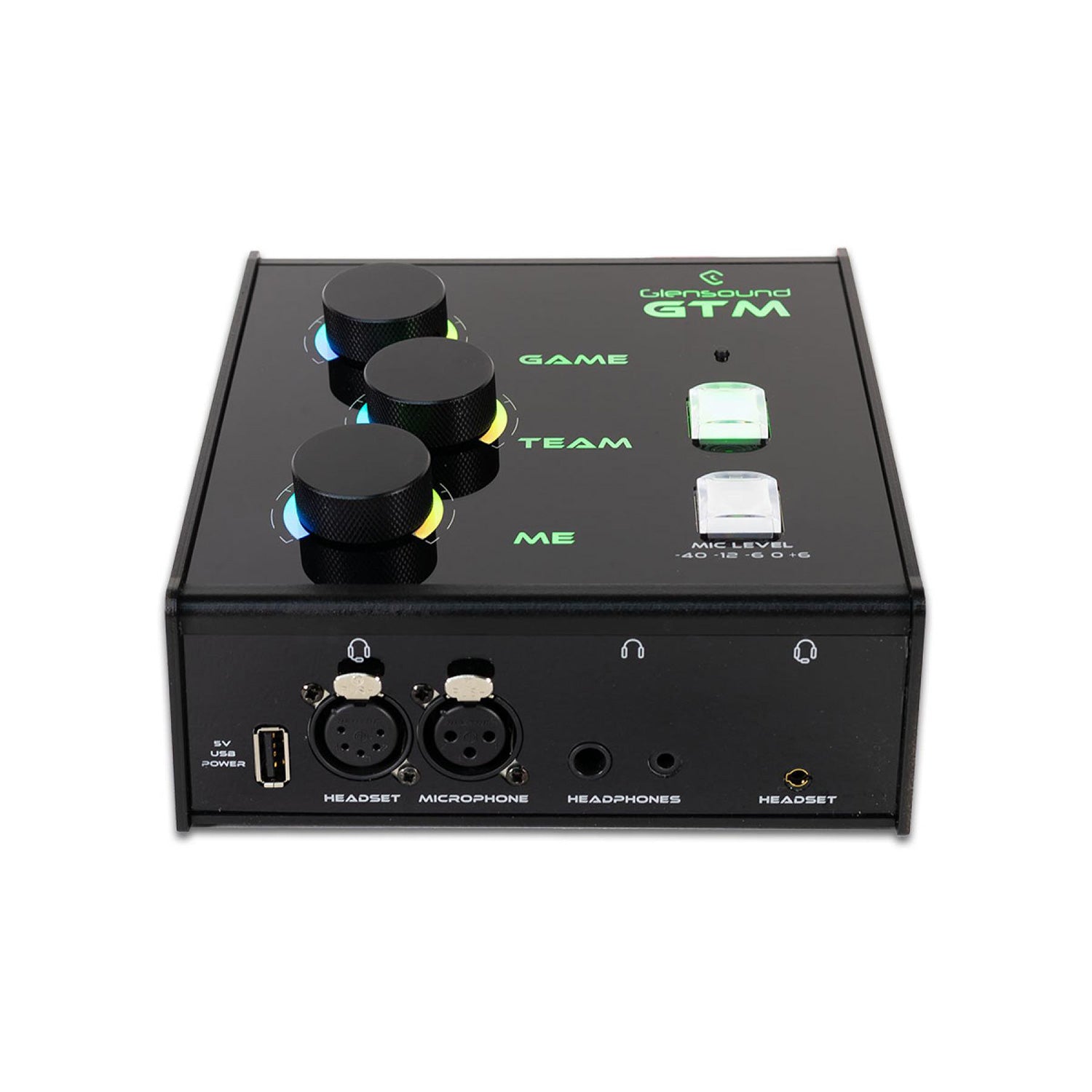

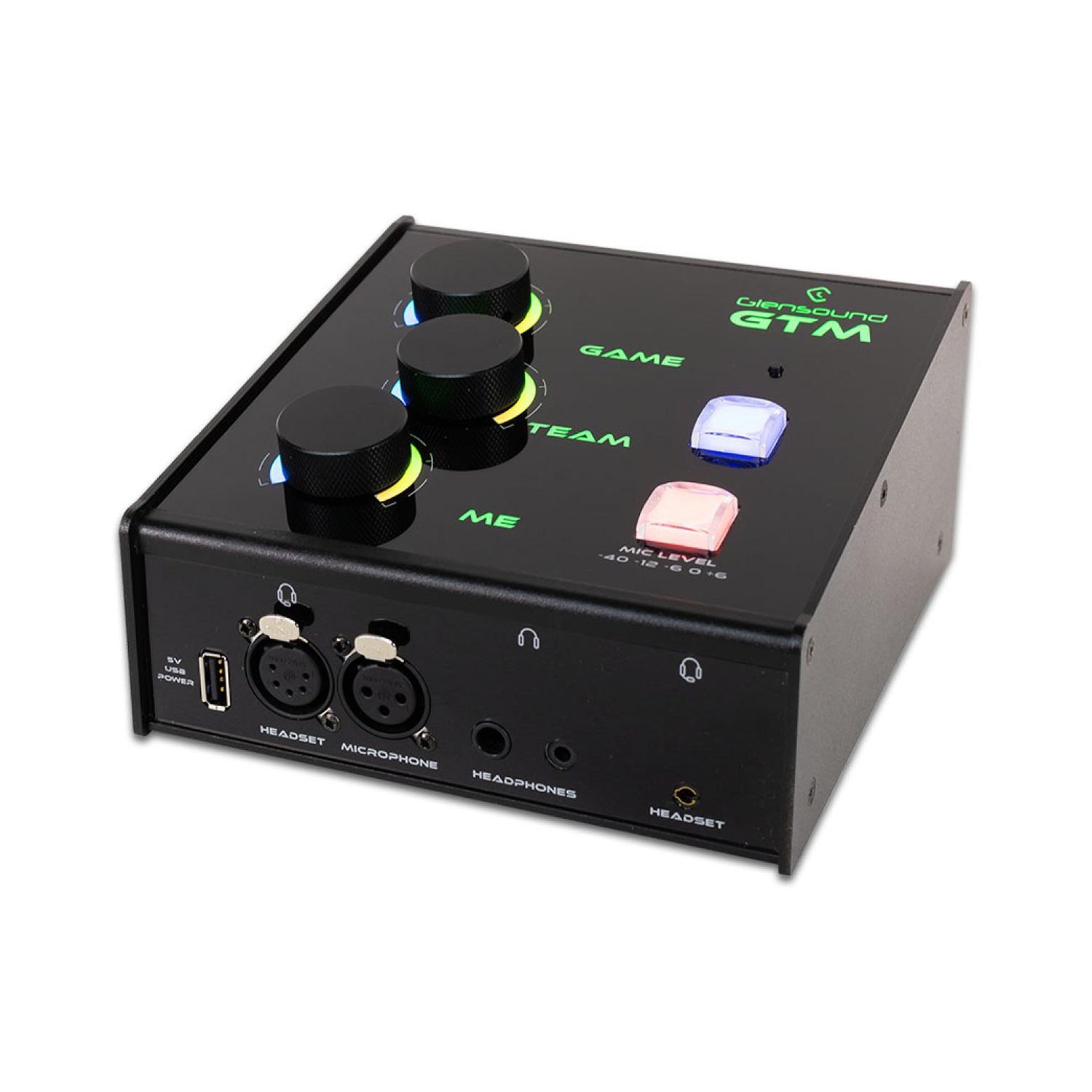

Top Panel Mixer
The top panel contains three level controls for the user to adjust their desired mix into their headphones from the following sources:

• GAME: This is the stereo level of the game audio
• TEAM: This is the overall level of the team comms channel
• ME: This is the level of the users own voice in their headphones

Large controls allow for quick and easy adjustments and a multicolour LED ring around the control indicates the level position
Each control is also a push button that can be used for future developments.

Game Audio Source
For compatibility with multiple tournaments and gaming platforms, there are 5 options of sources for the stereo game audio on the rear panel, which are routed to the GAME headphone level control.

• SPDIF: A stereo digital optical TOSLink connection
• AUX IN: An analogue stereo input on a 3.5mm (1/8") jack socket
• USB: Stereo USB audio input on a USB C connection. On a mobile phone there is 1x stereo input. On a PC this is 2x stereo inputs.
• DANTE: Two single channel sources are available from the network

Multi Channel Mix Sources

Dante
From the Dante/AES67 network there are 3 stereo inputs available. These can be mixed to 2 channel stereo using the separate GlenController Remote app. Each stereo pair also has a balance control. Typically only a single stereo pair is used for the game audio, but the further inputs allow for future options and flexibility.

Team Mixer
The top panel TEAM pot adjusts the level of the Team Group Mix to the user. The GTM has an internal mixer that generates a team group mix between all members of the same team. This allows all members of the team to be able to communicate with each other.

There is a multi input, Dante/AES67 mixer controllable via GlenController that sets the levels of all audio being mixed to the GTM TEAM pot of 1 of 7 teams. Typically this is just a mono mix of the 6 other team members but there are also further sources available:

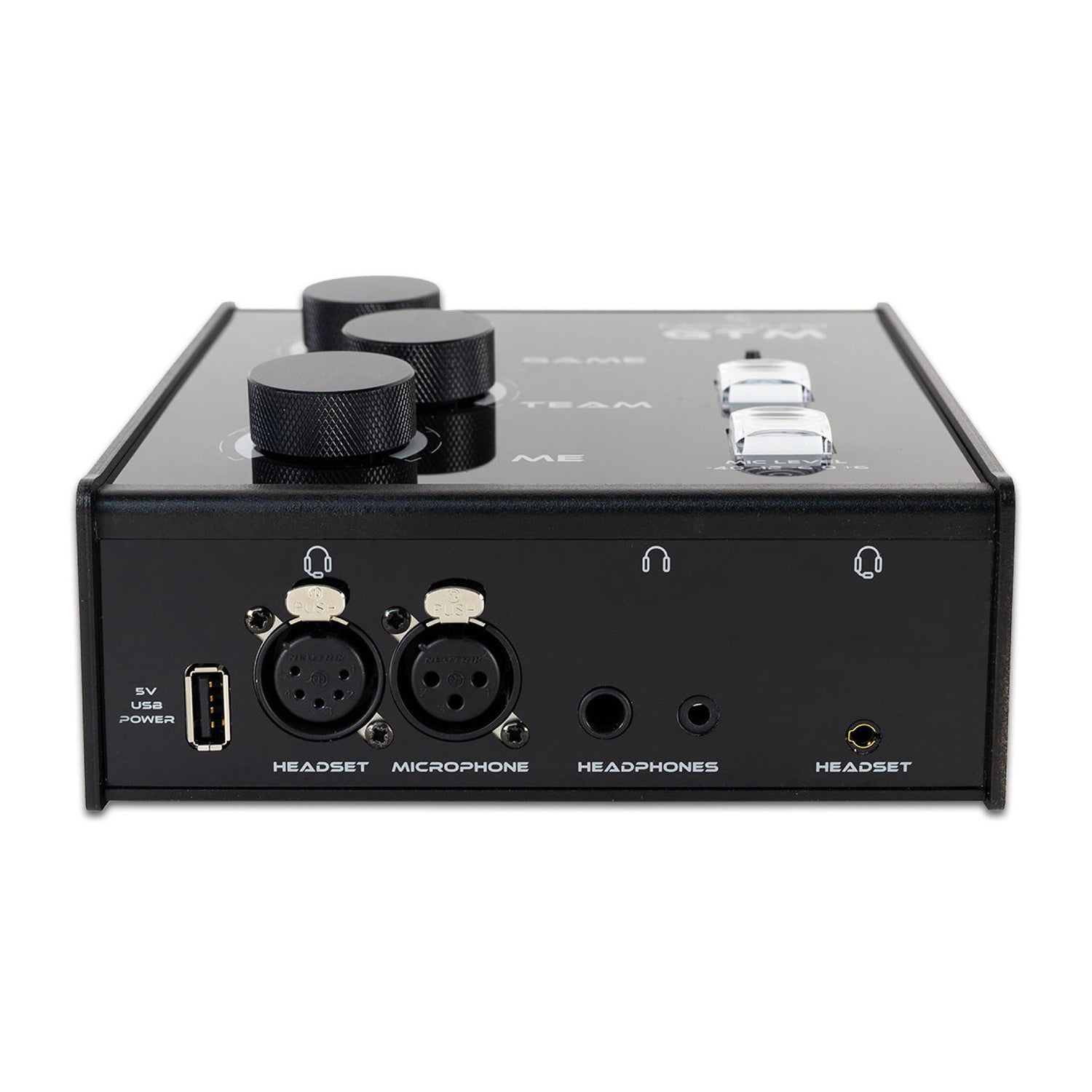

Headset Connection - 3.5mm (1/8" jack socket) TRRS
This allows connection of a typical gaming headset using a single jack for the headphones and microphone. 2.5v or 5v bias can be selected.

Headset Connection - 4 or 5 pin XLR (can be specified)
For connection of combined mic/headphone headsets, often aviation style. This can be specified as 4 or 5 pin.

Mic Input - 3 Pin XLR
For connecting a professional broadcast grade microphone using a separate 3 pin XLR plug. The input is dynamic with selectable 48v phantom power. A high performance mic compressor is selectable at 3 levels.

Headphone Output
The headphone output is available in parallel via a 3.75mm (1/4") and a 2.5mm (1/8") jack sockets.

Two Headphone Amplifiers
The two headphone outputs and the headset output use independent headphone amplifiers. The game audio and/or pink noise can be mixed to each output independentely.

Sources
The multiple input sources for the game monitoring are available via the rear panel. The input source can be selected via the push button. This can be locked to prevent local access if required.

Mic Gain
The mic input gain can be adjusted via the rear panel pushbuttons. This can be locked to prevent local access if required.

Phantom Power / Bias
48V phantom power can be selected, or if using the headset, 2.5V or 5V bias can be used.

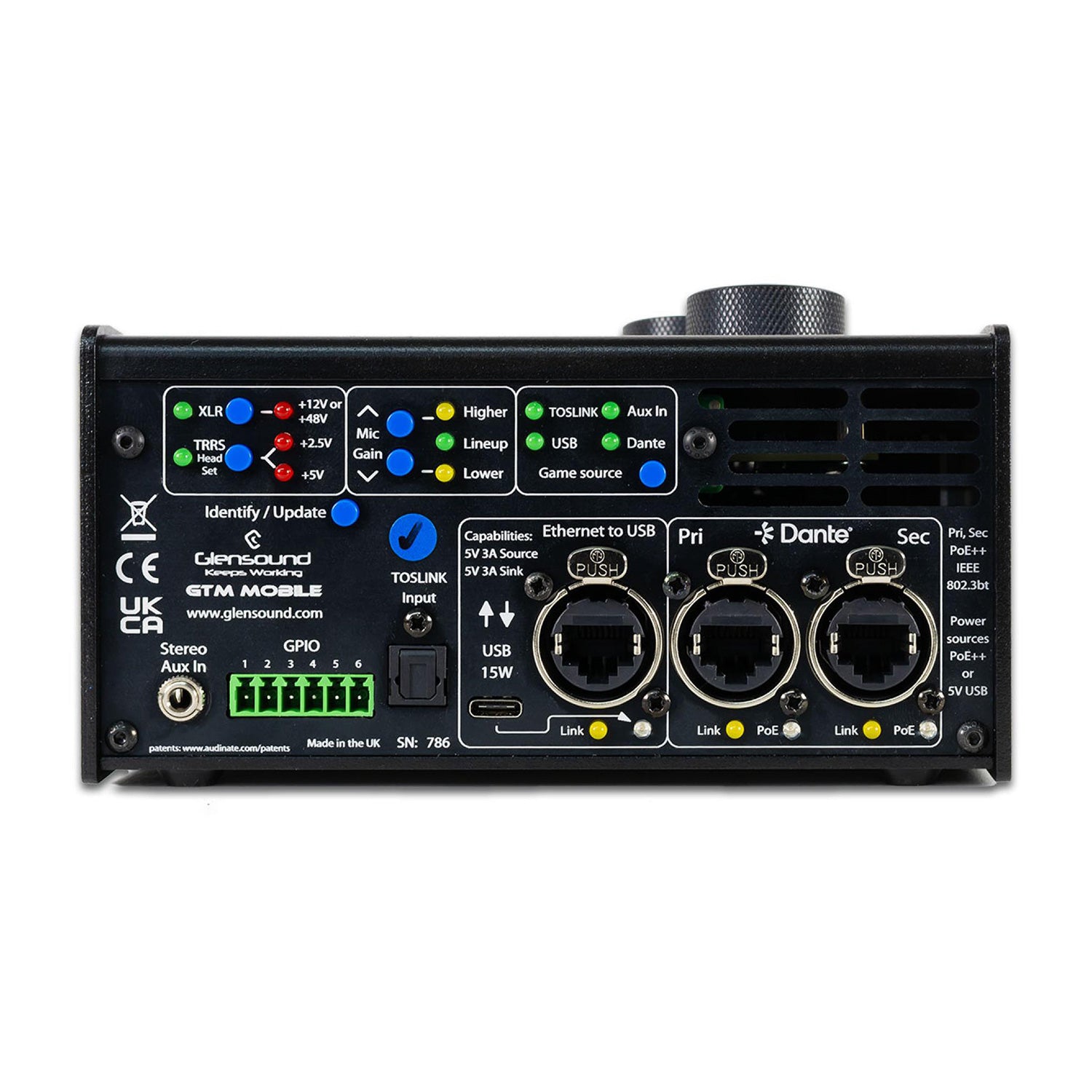

Network Connection
Two network connections are available so a redundant network can be available if required for backup. The GTM is powered via PoE from the network switch or via a midspan PoE injector.

USB Connection to Computer
The GTM Mobile also includes an enhanced PC USB interface. There are 2 pairs of audio channels available from the PC for monitoring. The GTM Mobile can also be powered from the PC when connected to a USB C with PD. Please note that in this mode, mobile phone charging is not available unless the PoE port has PoE++ power.

Background Audio Guard
The GTM has introduced the Background Audio Guard facility that allows reduction of the background noise by up to 50dB. There is separate gating at 34 different frequencies, to prevent unwanted arena noise from entering the mic and being shared across the team talk mix and the gamers own headset. This reduces the possibility of any team gaining a competative advantage from overhearing a potentiall advantagous comment leaking from the mic input.
