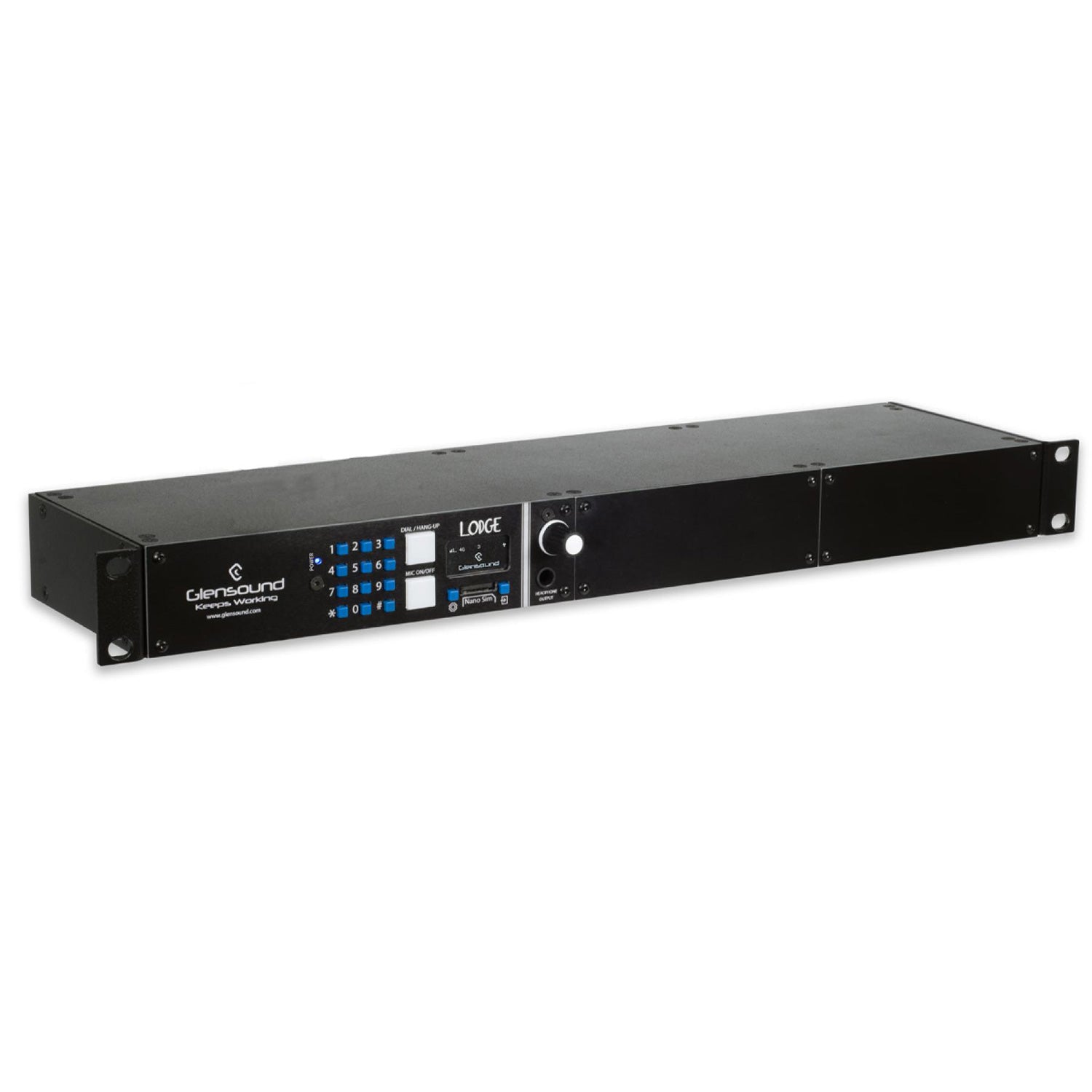

Glensound Lodge - Rack Mount Mobile Phone Hybrid
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Lodge is the 19-inch rackmount home of the NOMAD mobile phone hybrid. The Lodge is the latest mobile phone hybrid from Glensound building on the success of the classic GS-MPI004(HD). Using the latest phone module allowing greater worlwide compatibility and full HD voice over LTE for territories that no longer have 3G services. The Lodge is also compatible on existing 2G and 3G networks.
Using the same network provider (where HD Voice is available) on either end of the call allows 7kHz audio links to be made for perfect speech performance.
The OLED screen now allows simple configuration and monitoring of call functions such as signal strength and caller ID, and the input now has a configurable on/off or cough button.
The line output can now bet set for a true balancing unit with just the isolated remote end audio, or it can be mixed with the input for a complete programme feed.
Mains AC, external DC or USB power.
Features:
- 4G Vo-LTE Rack Mount Mobile Phone Hybrid
- One x mic/48V/line inputs with adjustable gain
- OLED screen
- Available with 1, 2, or 3 phone modules
- Mains AC, external DC or USB power
| NETWORK | |
| Frequency Bands | LTE-FDD: B1/B2/B3/B4/B5/B6/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28. LTE-TDD: B28/B39/B40/B41. WCDMA: B1/B2/B4/B5/B6/B8/B19 GSM: B2/B3/B5/B8 |
| Certifications Carrier | AT&T/ U.S. Cellular (America) *, Deutsche Telekom (Europe), Telus (Canada) * Please Check with Glensound on Network Compatibility |
| 2G Audio Frequency Response | Telephone networks provide 300Hz to 3.4 kHz audio bandwidth |
| 3G/4G HD Voice Frequency Response | HD Voice provides 50Hz to 7kHz audio bandwidth |
| Algorithm | HD Voice is AMR-WB (G722.2) |
| Network Compatibility | Will operate on most mobile phone network and most SIM cards Please Check with Glensound on Network Compatibility |
| HD Voice Compatibility | Will operate on any compatible HD voice networks |

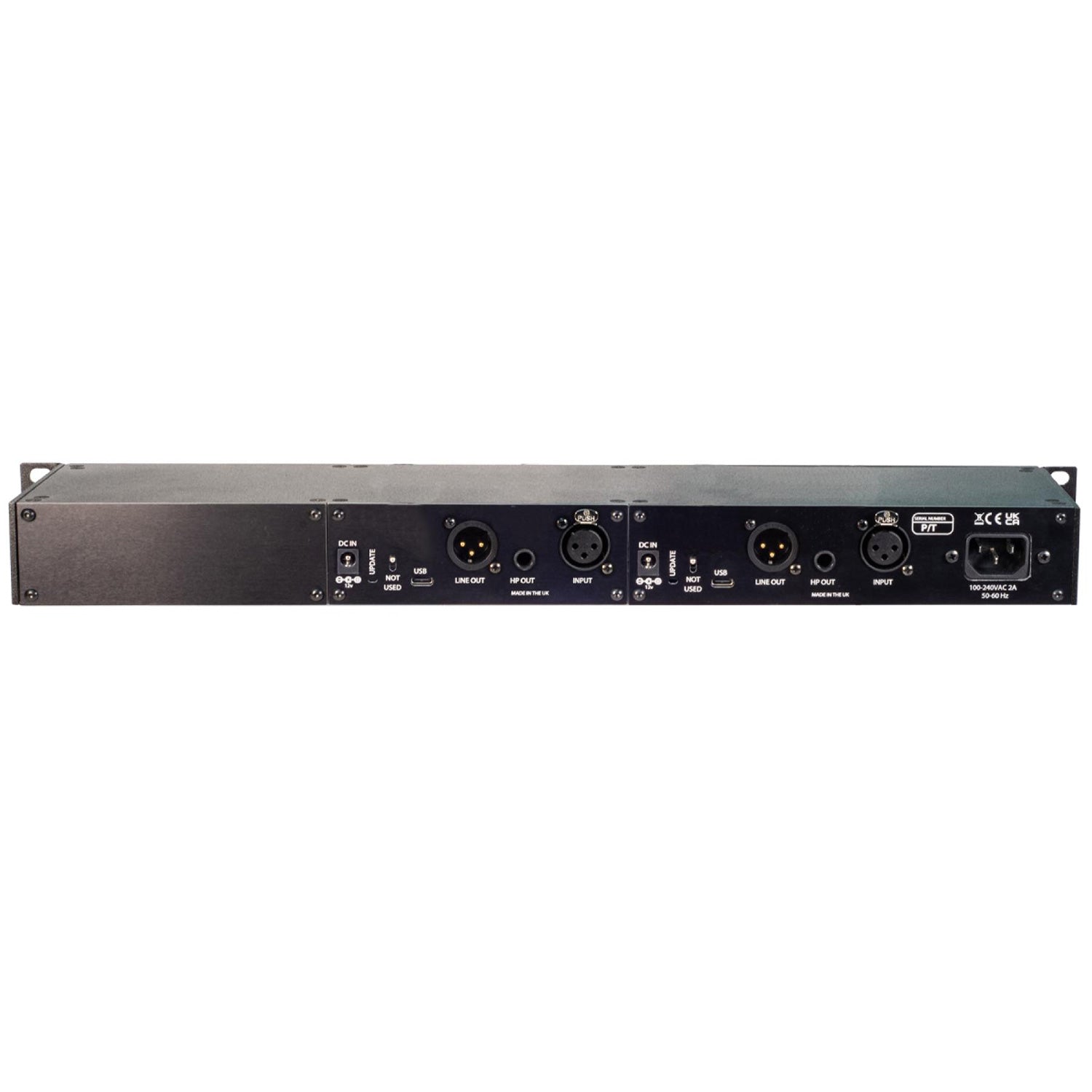

| INPUTS AND OUTPUTS | |
| Mic Input Connector | Neutrik balanced XLR |
| Line Out | Neutrik balanced XLR |
| Headphone Out | 6.35mm Jack Socket |
| Line in Level | 0dBu |
| Dynamic Mic Line Up | -46dBu |
| Phantom Mic Line up | -46dBu |
| Line Input Gain Range | +/- 15 dB |
| Mic Input Gain Range Rate | +/- 15dB |
| Headroom @ Mic Line Up | 30dB |
| Output Level | 1dBu |
| Output Gain Control | Fixed |
| Max Output Level | +19dBu |
| POWER | |
| Mains Input | Filtered IEC, 100-240VAC (+/- 10%) 50/60Hz |
| External DC Input | +10 to +15 VDC, 2.5mm barrel connector |
| USB | Type C connection |
| Power On LED | Bright Blue |
| AERIAL | |
| Aerial Connector Type | 2x SMA |
| Aerial Technology | Diversity |
| RF Output Power | 2 Watts |
| PHYSICAL | |
| Size | 19" Wide 1RU high 140mm Deep |
| Weight | 1.35 kg (with 3x Modules) |
| ENVIRONMENT | |
| Operating Temperature | 0 to +50 oC (32 to 122 oF) |
| Storage Temperature | -20 to +70 oC (-4¡C to 158 oF) |
| Relative Humidty | 0 to 95% non-condensing |
| INCLUDED ITEMS | Handbook: Available by Download Aerial: 2x 2.5 T Bar Antenna |
