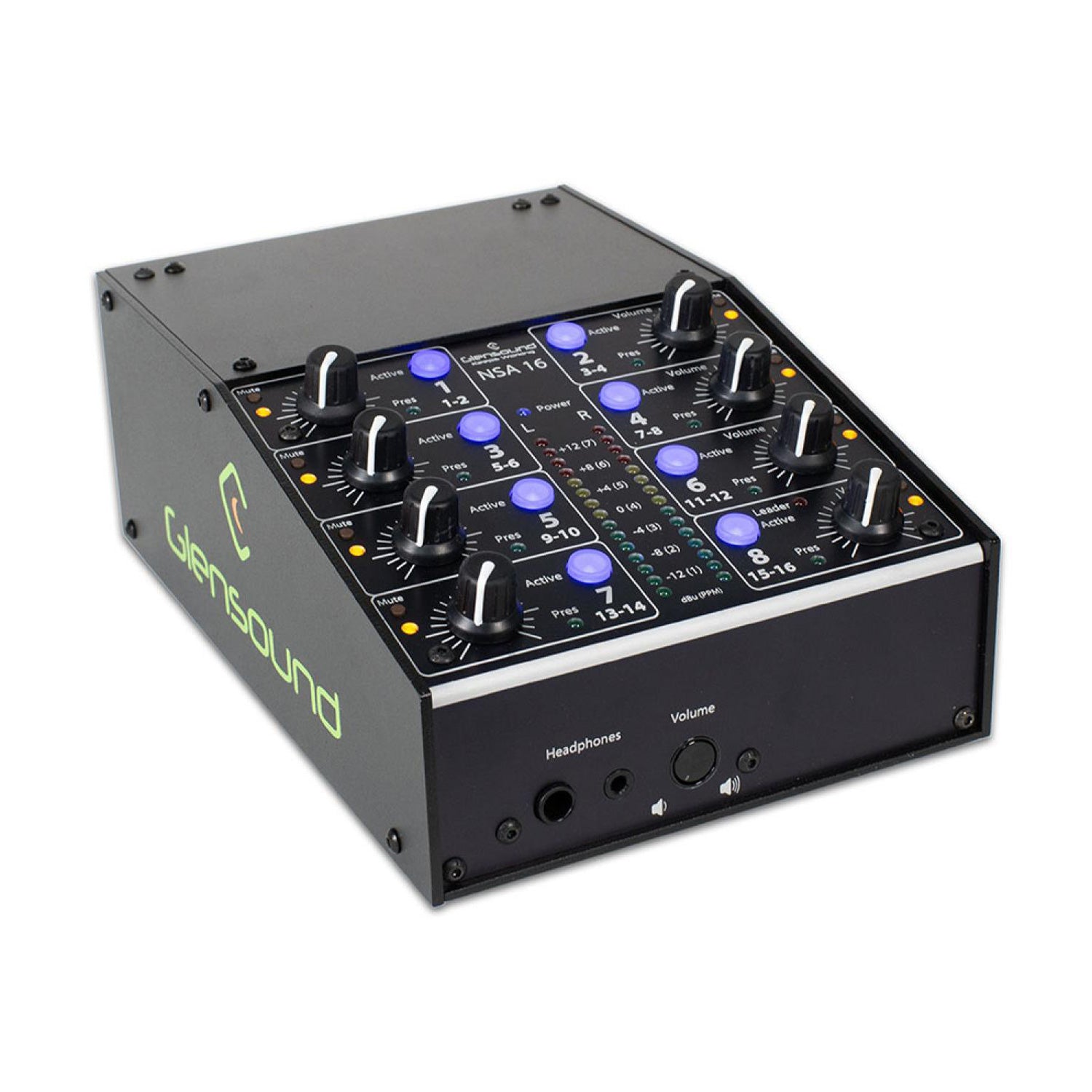

Glensound NSA16 - 16-Channel Dante / AES67 Inline Network Signal Adjuster
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Simplify your audio workflow with the NSA16, a 16-channel network audio controller designed for intuitive operation. Featuring 8 easily managed stereo or mono channel groups, the NSA16 offers precise volume control, mute functionality, and clear signal presence indication for each pair. Monitor your mix with the dedicated headphone output, ensuring perfect sound at every stage. Built for critical applications, the NSA16 boasts redundant network and power connections to ensure uninterrupted audio flow. Plus, the panel lock feature prevents accidental adjustments, providing peace of mind during live events or installations.
The NSA16 is available with either a Dante or Ravenna network audio interface.
Features:
- Adjusts the signal level of 16 Dante/AES67 channels
- 8 Stereo signals
- Channel mute with signal present per pair
- Primary and secondary Dante
- SPF fibre modules available
- PoE, Mains or DC powering options

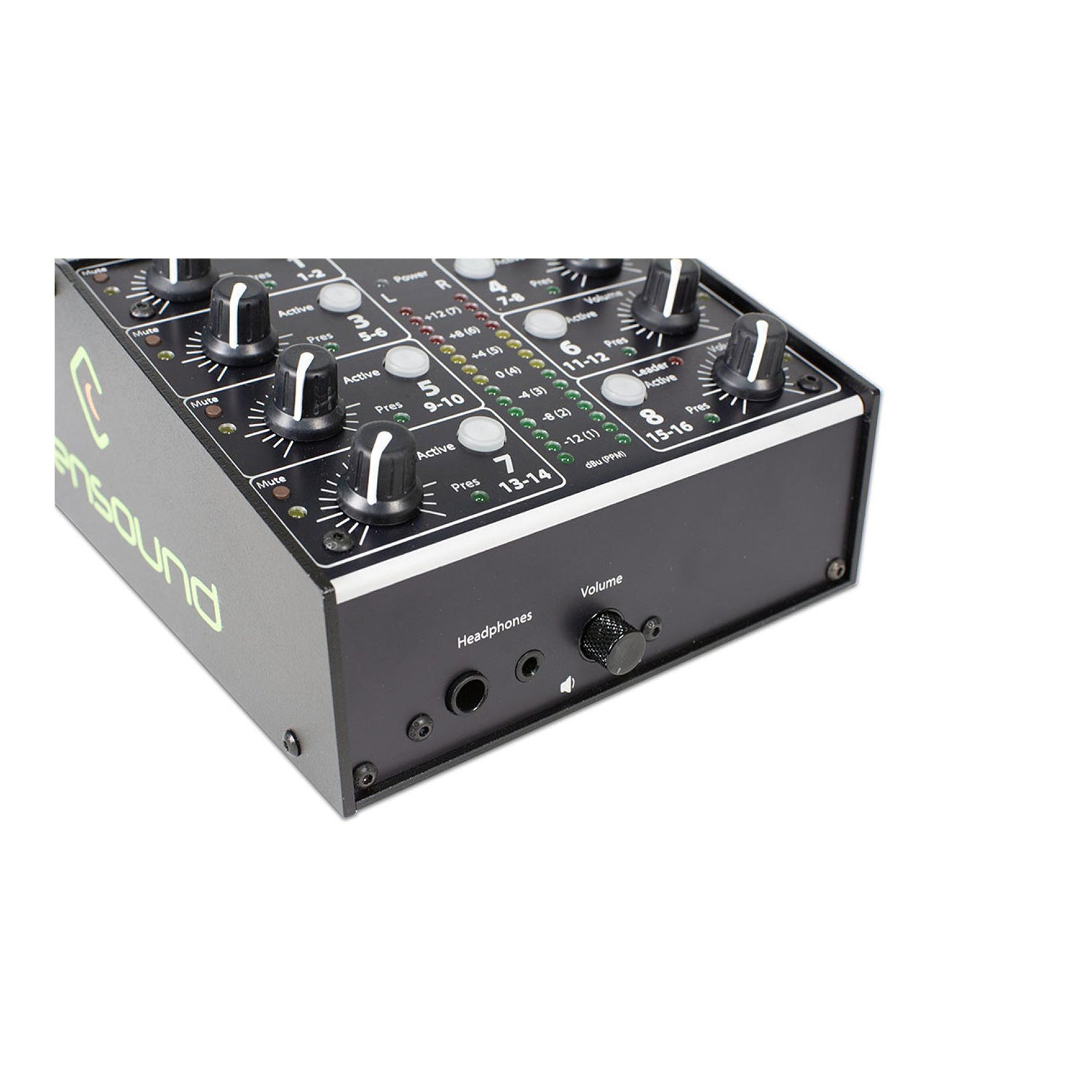

- Headphone output for monitoring with sprung recessed pot with 6.35mm, 3.5mm
- Recall current level with visual cue.

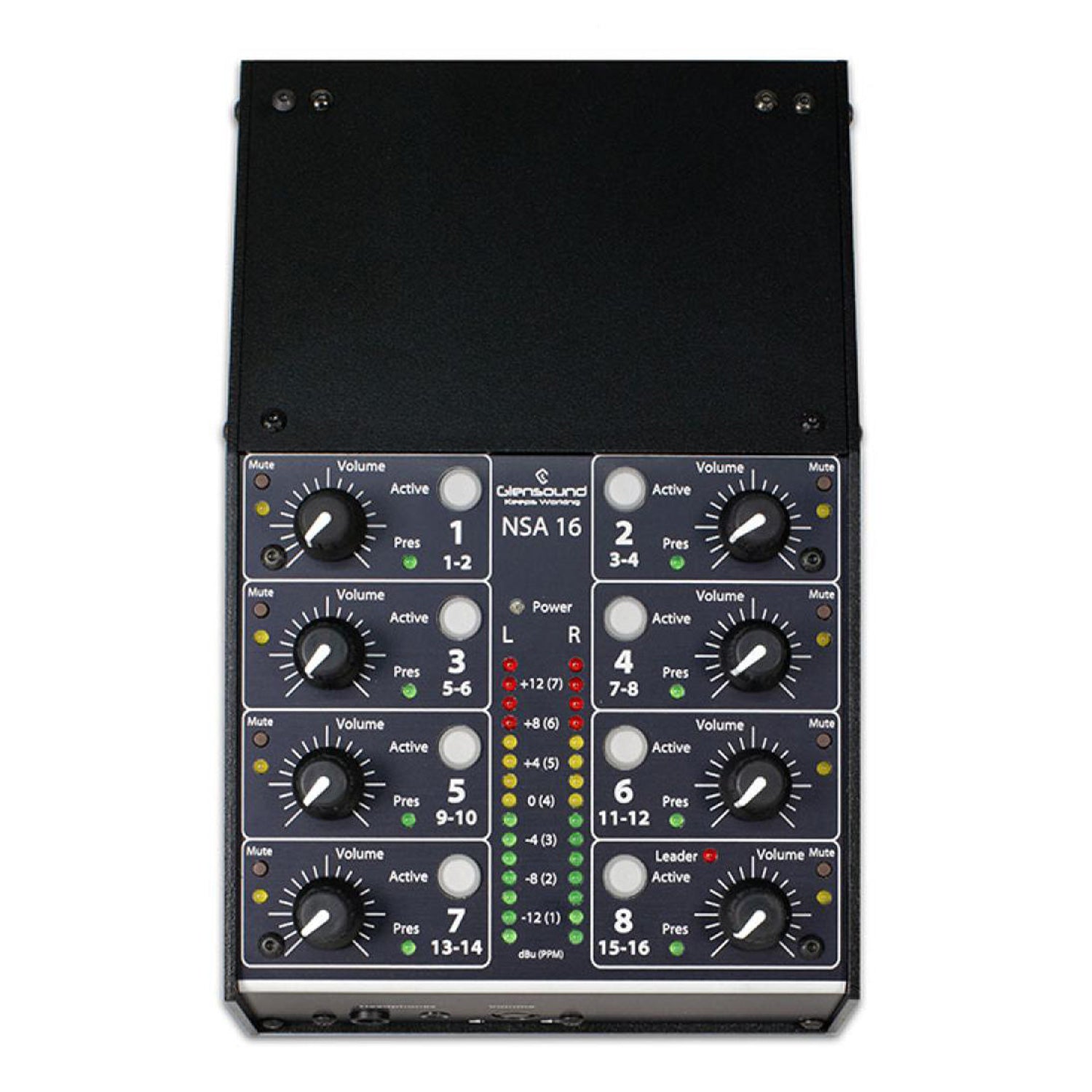

- VU meter to monitor signal levels
- Also Available in AES67/Ravenna Version

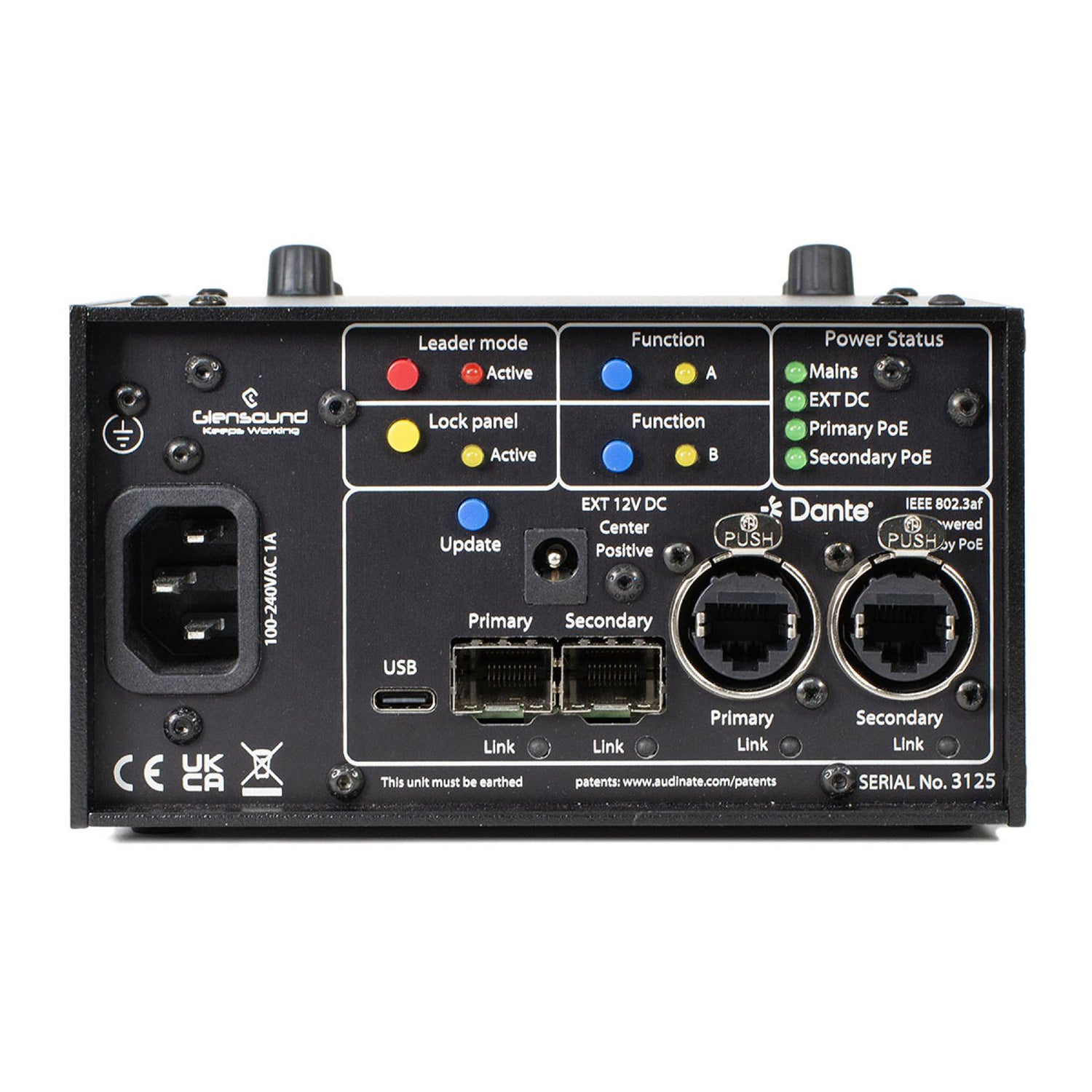

| Physical | 2 x Neutrik Ethercons Cat6 RJ45s / 2 x SFP slots |
| Type | Fully redundant primary / secondary circuits |
| Sample Frequency | 48K |
| Resolution | 24 Bit |
| Control / Routing | Via Free Dante Controller |
| AES67 | Can be configured for AES67 |
Simplify your audio workflow with the NSA16, a 16-channel network audio controller designed for intuitive operation. Featuring 8 easily managed stereo or mono channel groups, the NSA16 offers precise volume control, mute functionality, and clear signal presence indication for each pair. Monitor your mix with the dedicated headphone output, ensuring perfect sound at every stage. Built for critical applications, the NSA16 boasts redundant network and power connections to ensure uninterrupted audio flow. Plus, the panel lock feature prevents accidental adjustments, providing peace of mind during live events or installations.
The NSA16 is available with either a Dante or Ravenna network audio interface.
Features:
- Adjusts the signal level of 16 Dante/AES67 channels
- 8 Stereo signals
- Channel mute with signal present per pair
- Primary and secondary Dante
- SPF fibre modules available
- PoE, Mains or DC powering options
- Headphone output for monitoring with sprung recessed pot with 6.35mm, 3.5mm
- Recall current level with visual cue.
- VU meter to monitor signal levels
- Also Available in AES67/Ravenna Version
| Physical | 2 x Neutrik Ethercons Cat6 RJ45s / 2 x SFP slots |
| Type | Fully redundant primary / secondary circuits |
| Sample Frequency | 48K |
| Resolution | 24 Bit |
| Control / Routing | Via Free Dante Controller |
| AES67 | Can be configured for AES67 |
