Glensound Signature DDA 1:6 1 Input / 6 Output AES Distribution Amplifier
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

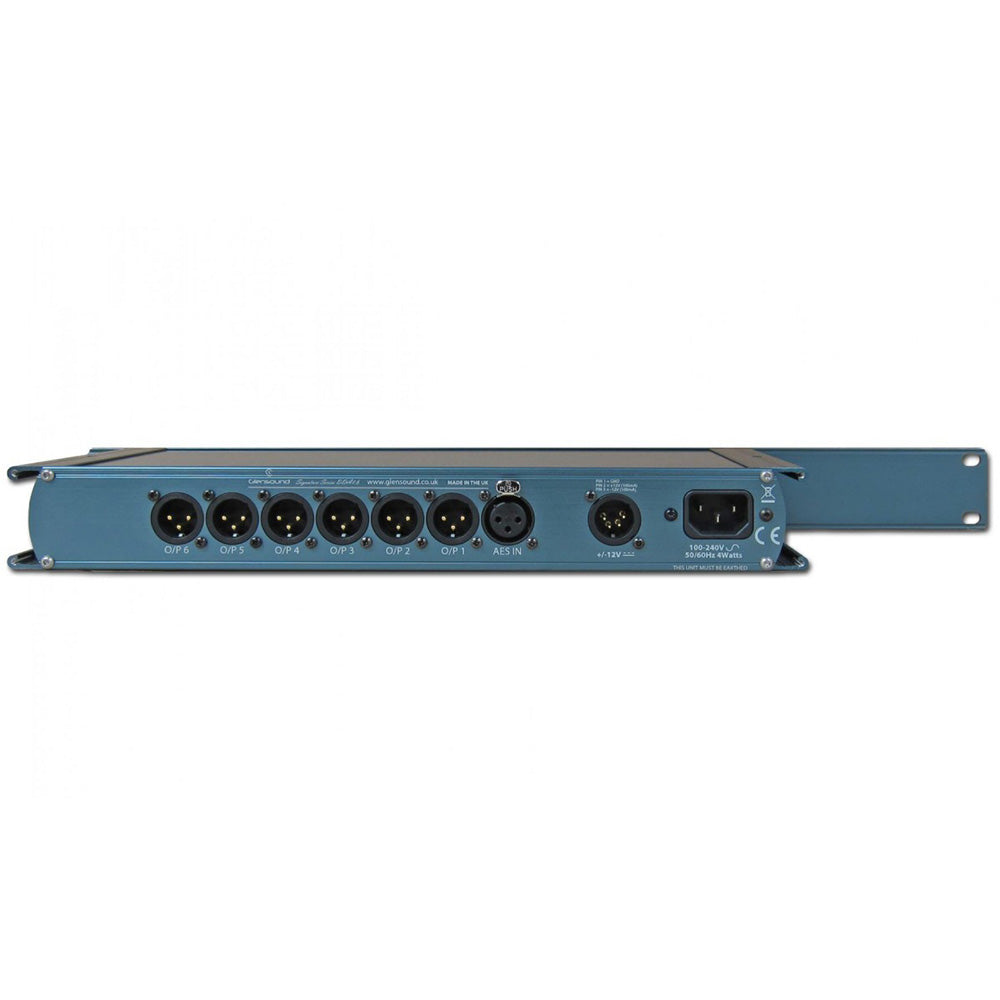

The DDA 1:6 is a cost effective distribution amplifier for digital AES signals. Via rear panel XLRs there is a single input and 6 outputs.
The output signals can pass straight through without any normalising. This is useful if you need syncronisation to be maintained. There is also an option to re-normalise all of the output signals to ensure that all outputs are at the full digital level again. It is important to realise that re-normalising a digital signal while often desirable, does cost one sample.
A headphone monitoring position is also provided on the front panel via a 6.35mm stereo jack socket. This allows monitoring of the incoming audio signal via a variable level pot.
LEDs indicate AES lock or if there is an AES error.
Features:
- 1 x AES input, 6 x AES outputs
- AES can be re-normalised
- AES can loop straight through un-normalised
- Front panel headphone connection with level control
- All I/O on XLR
| AUDIO AES INPUT TO OUTPUT | |
| Input Impedance | 110 Ohms |
| Output Impedance | 110 Ohms |
| Maximum / Minimum Levels | 200mV to 10V peak to peak |
| Sample Frequency Range | 32 - 192 kS/s |
| Resolution | 8, 16, 24 or 32 bit |
| Input Type | 3 pin Neutrik XLR transformer balanced |
| Output Types | 6 off 3 pin Neutrik XLRs each isolated / transformer balanced |
| Noise | -145.7 dBFs unweighted 22Hz to 22kHz |
| Distortion | 0.00005% (@ +8 from line up) |
| Loop Through | Output signal integrity matches input signal |
| Re-normalised | Output signal is reconstituted and signal integrity returned to normal |
| HEADPHONE MONITORING | |
| Headphone Level | 0dB (into 600 Ohms) with -18dBFs input |
| Gain Range | +6dB to Off |
| Output Clip Level | +18dB (into 600 Ohms) |
| Frequency Response | 25Hz: -0.25dBu to 32kHz: +0.25dBu |
| Noise | -77dBu @ Max Gain (Unweighted 22Hz to 22kHz) |
| Distortion | 100Hz = 0.006% 1kHz = 0.005% 10kHz = 0.011% |
| POWER | |
| Mains Input | Filtered IEC, 100 to 240VAC 47 - 63Hz |
| AC Consumption | 1.4 Watts @ 230VAC |
| DC Input | 4 Pin Neutrik XLR plug +/- 12V |
| DC Consumption | +/-12V Internal Mains Fuse: 20mm 1A Anti Surge |
| PHYSICAL | |
| Size | 336 x 123 x 44mm (LxDxH) no rack ears, 482mm 19Ó (1RU) with rack ears |
| Weight | 0.75kg |
| Shipping Weight | 2.25kg |
| Shipping Carton | Rugged export quality cardboard carton 610 x 420 x 130mm LxDxH |
| Mechanics | All aluminium construction, anodized and laser etched |
The DDA 1:6 is a cost effective distribution amplifier for digital AES signals. Via rear panel XLRs there is a single input and 6 outputs.
The output signals can pass straight through without any normalising. This is useful if you need syncronisation to be maintained. There is also an option to re-normalise all of the output signals to ensure that all outputs are at the full digital level again. It is important to realise that re-normalising a digital signal while often desirable, does cost one sample.
A headphone monitoring position is also provided on the front panel via a 6.35mm stereo jack socket. This allows monitoring of the incoming audio signal via a variable level pot.
LEDs indicate AES lock or if there is an AES error.
Features:
- 1 x AES input, 6 x AES outputs
- AES can be re-normalised
- AES can loop straight through un-normalised
- Front panel headphone connection with level control
- All I/O on XLR
| AUDIO AES INPUT TO OUTPUT | |
| Input Impedance | 110 Ohms |
| Output Impedance | 110 Ohms |
| Maximum / Minimum Levels | 200mV to 10V peak to peak |
| Sample Frequency Range | 32 - 192 kS/s |
| Resolution | 8, 16, 24 or 32 bit |
| Input Type | 3 pin Neutrik XLR transformer balanced |
| Output Types | 6 off 3 pin Neutrik XLRs each isolated / transformer balanced |
| Noise | -145.7 dBFs unweighted 22Hz to 22kHz |
| Distortion | 0.00005% (@ +8 from line up) |
| Loop Through | Output signal integrity matches input signal |
| Re-normalised | Output signal is reconstituted and signal integrity returned to normal |
| HEADPHONE MONITORING | |
| Headphone Level | 0dB (into 600 Ohms) with -18dBFs input |
| Gain Range | +6dB to Off |
| Output Clip Level | +18dB (into 600 Ohms) |
| Frequency Response | 25Hz: -0.25dBu to 32kHz: +0.25dBu |
| Noise | -77dBu @ Max Gain (Unweighted 22Hz to 22kHz) |
| Distortion | 100Hz = 0.006% 1kHz = 0.005% 10kHz = 0.011% |
| POWER | |
| Mains Input | Filtered IEC, 100 to 240VAC 47 - 63Hz |
| AC Consumption | 1.4 Watts @ 230VAC |
| DC Input | 4 Pin Neutrik XLR plug +/- 12V |
| DC Consumption | +/-12V Internal Mains Fuse: 20mm 1A Anti Surge |
| PHYSICAL | |
| Size | 336 x 123 x 44mm (LxDxH) no rack ears, 482mm 19Ó (1RU) with rack ears |
| Weight | 0.75kg |
| Shipping Weight | 2.25kg |
| Shipping Carton | Rugged export quality cardboard carton 610 x 420 x 130mm LxDxH |
| Mechanics | All aluminium construction, anodized and laser etched |
