Glensound Signature HA1M - 2 input Stereo Headphone Amplifier
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

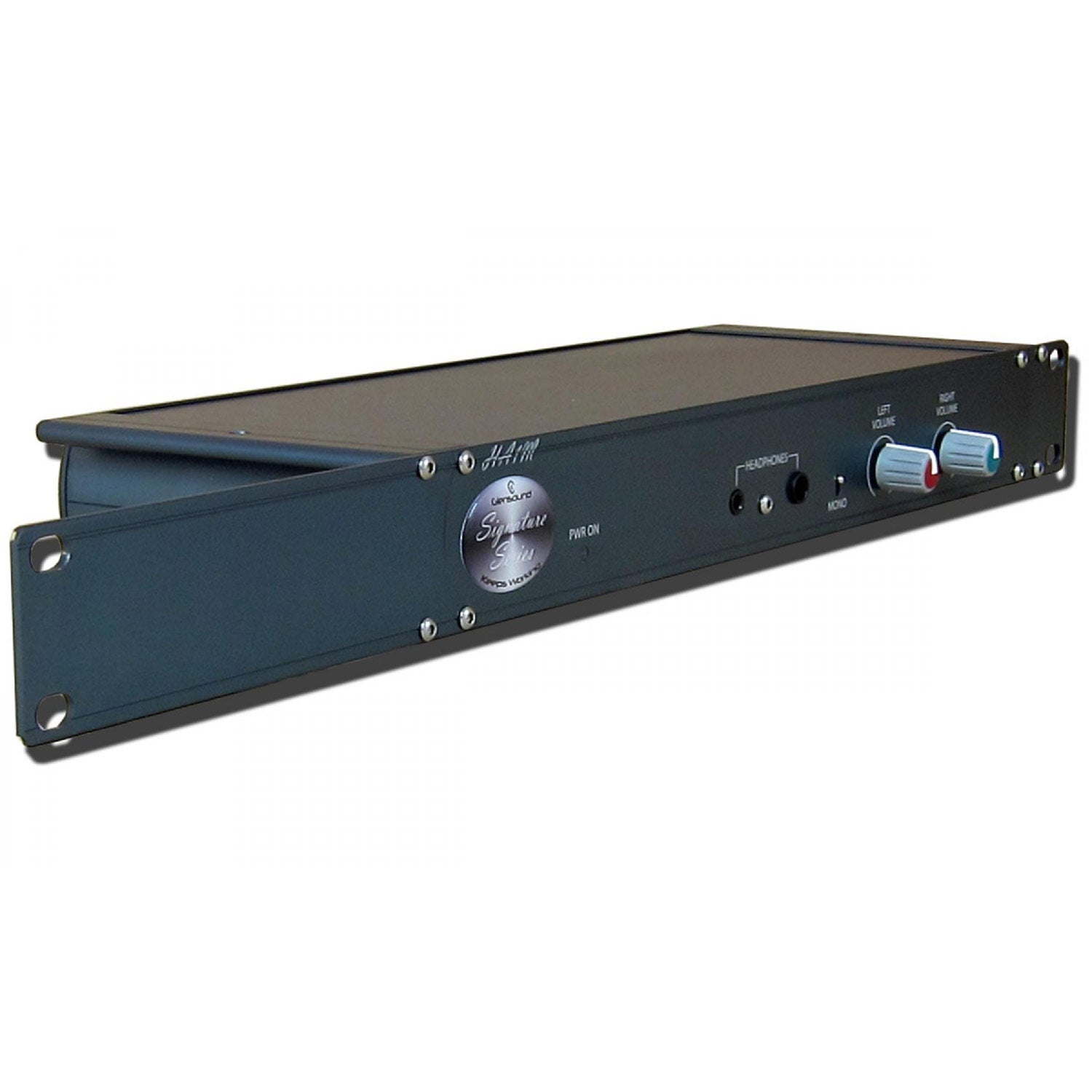

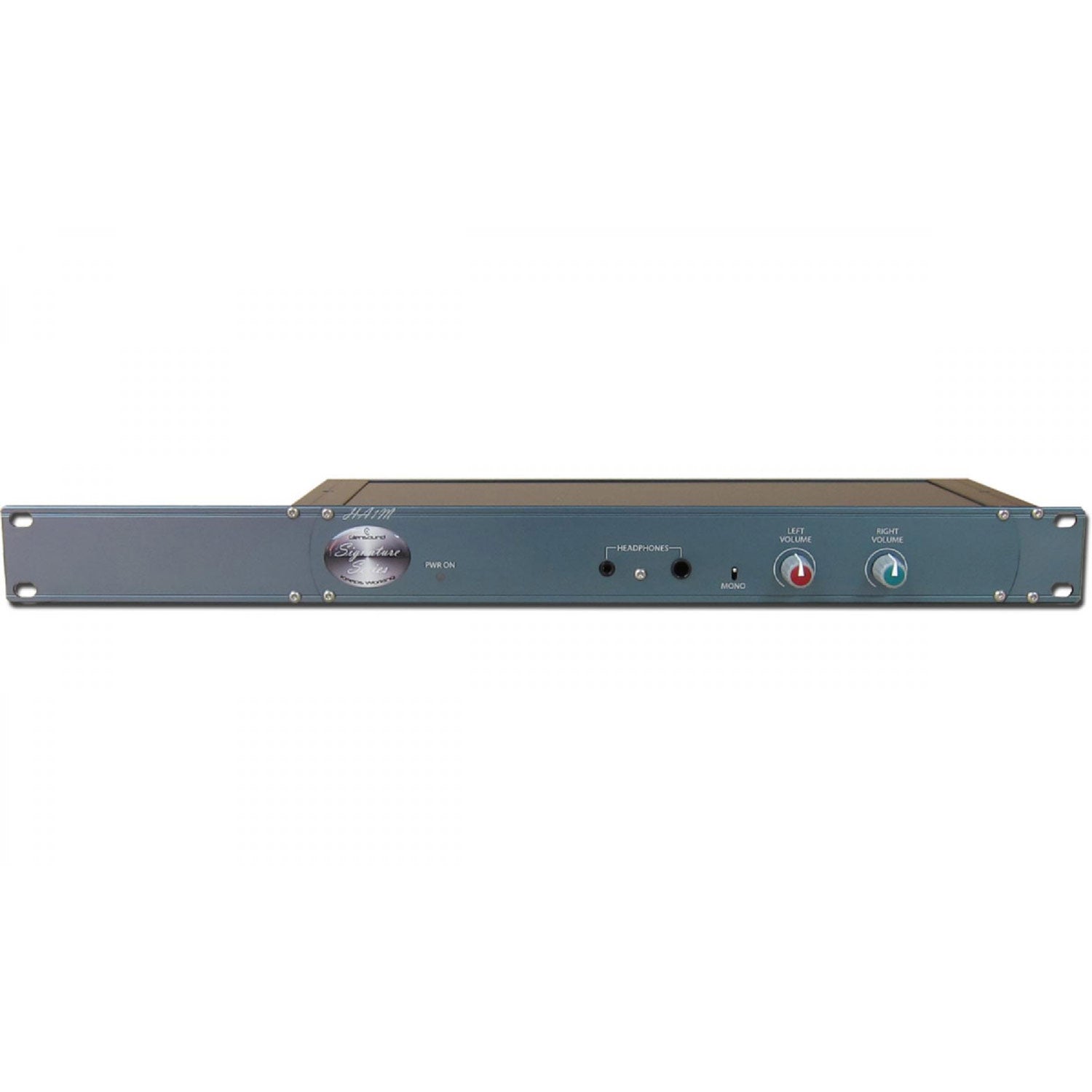

The Signature HA1M is a broadcast specification 2 channel headphone amplifier, designed to operate in a mono or a stereo mode. The HA1M has 2 x XLR inputs that can be used as either a stereo input, or as 2 x mono inputs. There is a selector switch to change between mono and stereo modes.
In stereo mode, the left input goes to the left ear, and the right input goes to the right ear. Each input has its own level pot for adjusting the volume level in the left or right ear.
In the mono mode, each input goes to both headphone outputs. The level pots adjust the relevant input levels in both ears.

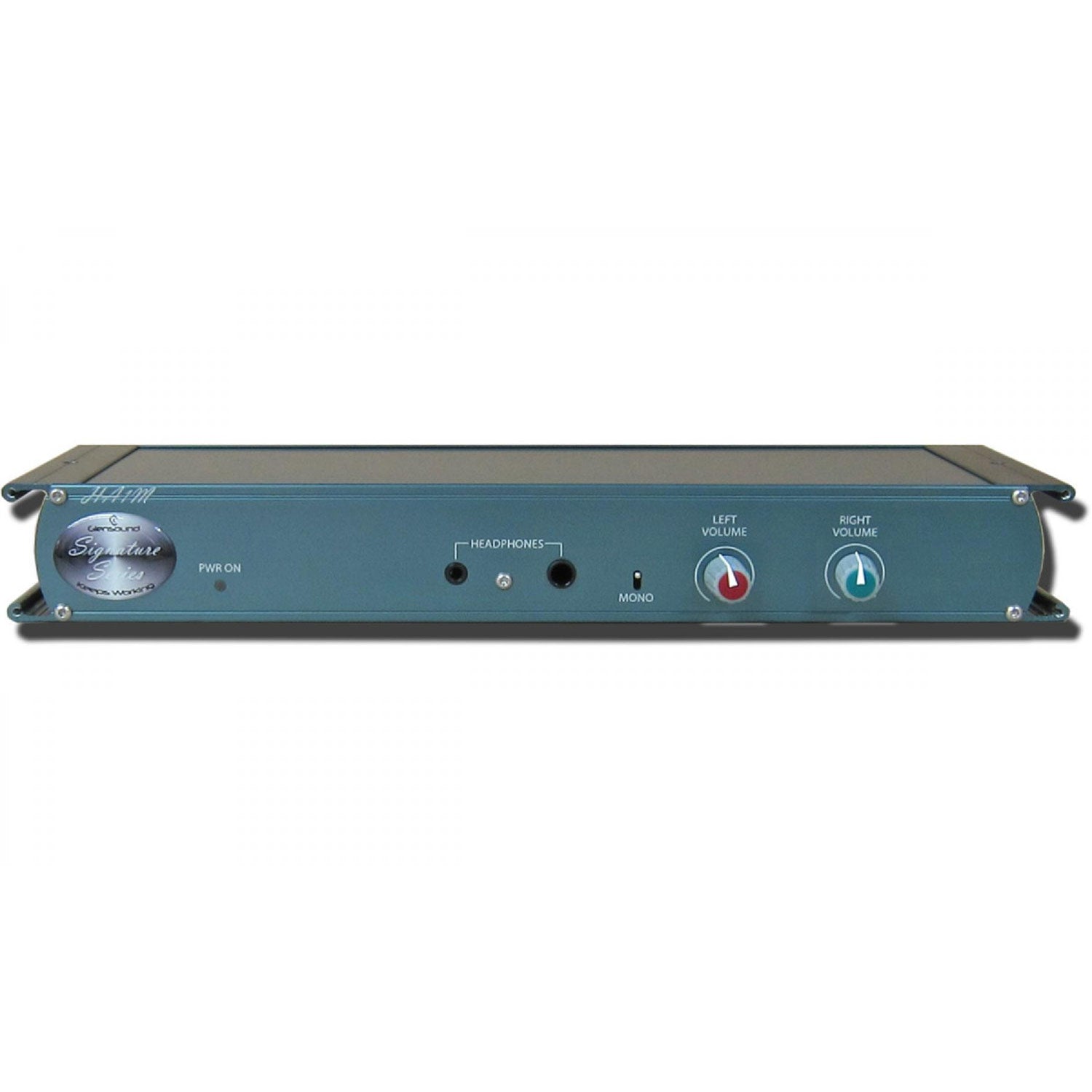

There are 2 x headphone outputs on jack sockets. One is 6.35mm and the other is 3.5mm. The headphone circuits can accept stereo connections, or mono connections from single earpieces. The headphone drivers are independent and so varying impedance connections can be used in either socket at the same time.

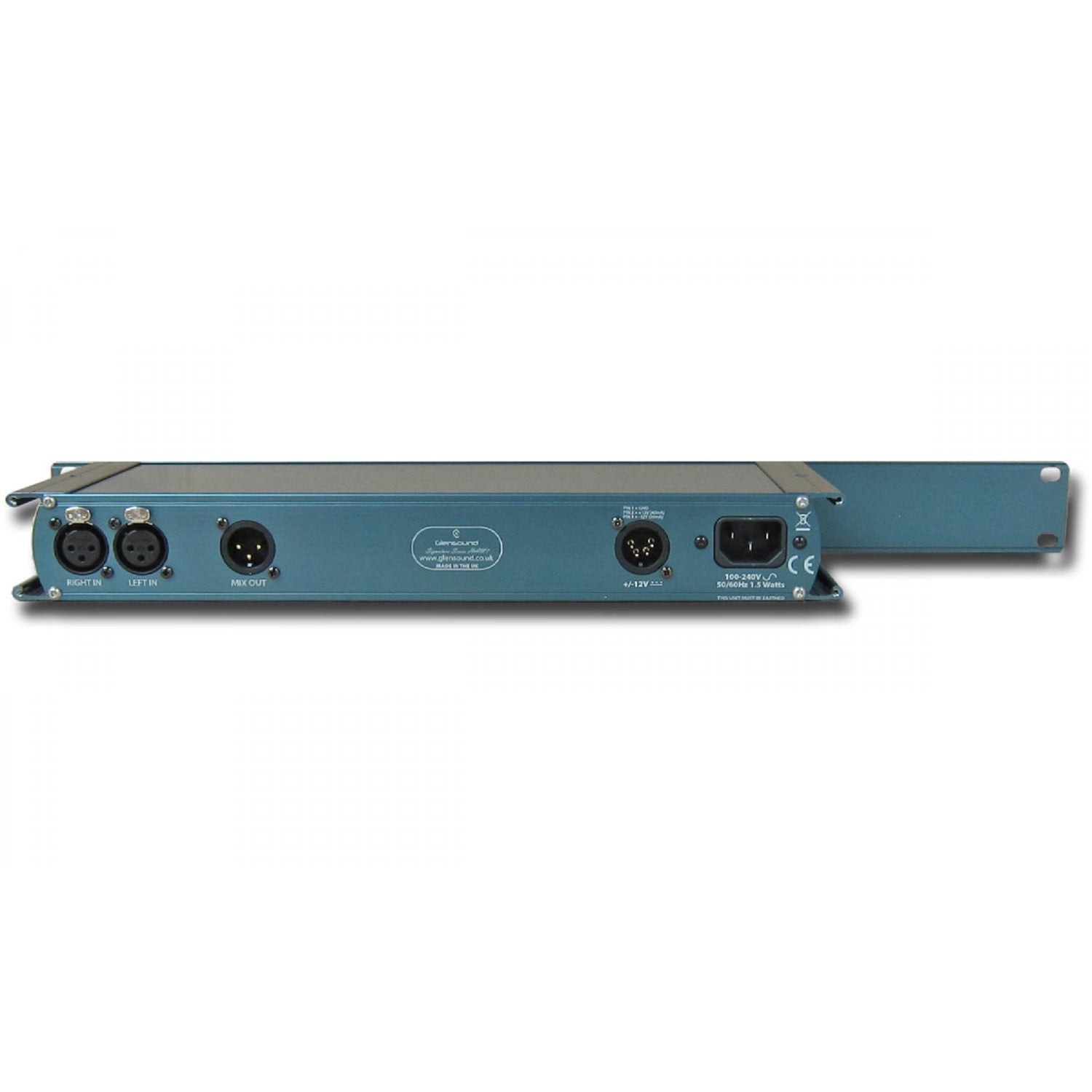

The rear panel has a single XLR output that is a mix of both inputs. Rear panel inputs and outputs are electronically balanced on XLRs and can accommodate unbalanced connections if required.
Power is provided by an internal switch mode power supply, with a wide input range. There is also an input for external 12v DC power. The 12v DC input can be connected to the optional Signature PS1external DC Master Power Station, for situations where a redundant power supply is desirable.
| AUDIO HEADPHONES | |
| Frequency Response | Maximum Output Leve : +20dB into 1KOhms |
| Distortion | <0.015% THD @ 100Hz / 10kHz Reference +8dBu output |
| Noise | >-89dB @ lineup unweighted RMS (22Hz to 22kHz) |
| Output Type | Sophistacted electronically balanced can accept mono or stereo jacks and automatic level correction for low or high imedance headphones |
| Headphone Impedance | 32 - 1000 Ohms |
| AUDIO MIX OUT | |
| Frequency Response | Maximum Output Level : +24dBu |
| Distortion | <0.02% @ 100Hz, 1kHz / 10kHz Reference to +8dBu output |
| Noise | >-90dB @ lineup unweighted RMS (22Hz to 22kHz) |
| Output Type | Electronically balanced (can be wired unbalanced) |
| Output Impedance | 50 Ohms |
| AUDIO GENERAL | |
| Maximum Input Level | +20dB |
| Front Panel Pot Gain Range | -70dB to +10dB |
| POWER | |
| Mains Input | Filtered IEC 100 to 240VAC 47-63Hz |
| AC Consumption | 1.5 Watts @ 230VAC |
| DC Input | 4 Pin Neutrik XLR Plug +/- 12V |
| DC Consumption | +12V 40mA, -12V 30mA |
| Internal Mains Fuse | 20mm 1A Anti Surge |
| PHYSICAL | |
| Size | 336 x 123 x 44mm (LxDxH) no rack ears 482mm 19" (1RU) with rack ears |
| Weight | 0.94Kg |
| Mechanics | All aluminium construction, anodized and laser etched |
| Shipping Carton | Rugged export quality cardboard carton 610 x 420 x 130mm (LxDxH) |
| Shipping Weight | 2.35Kg |
