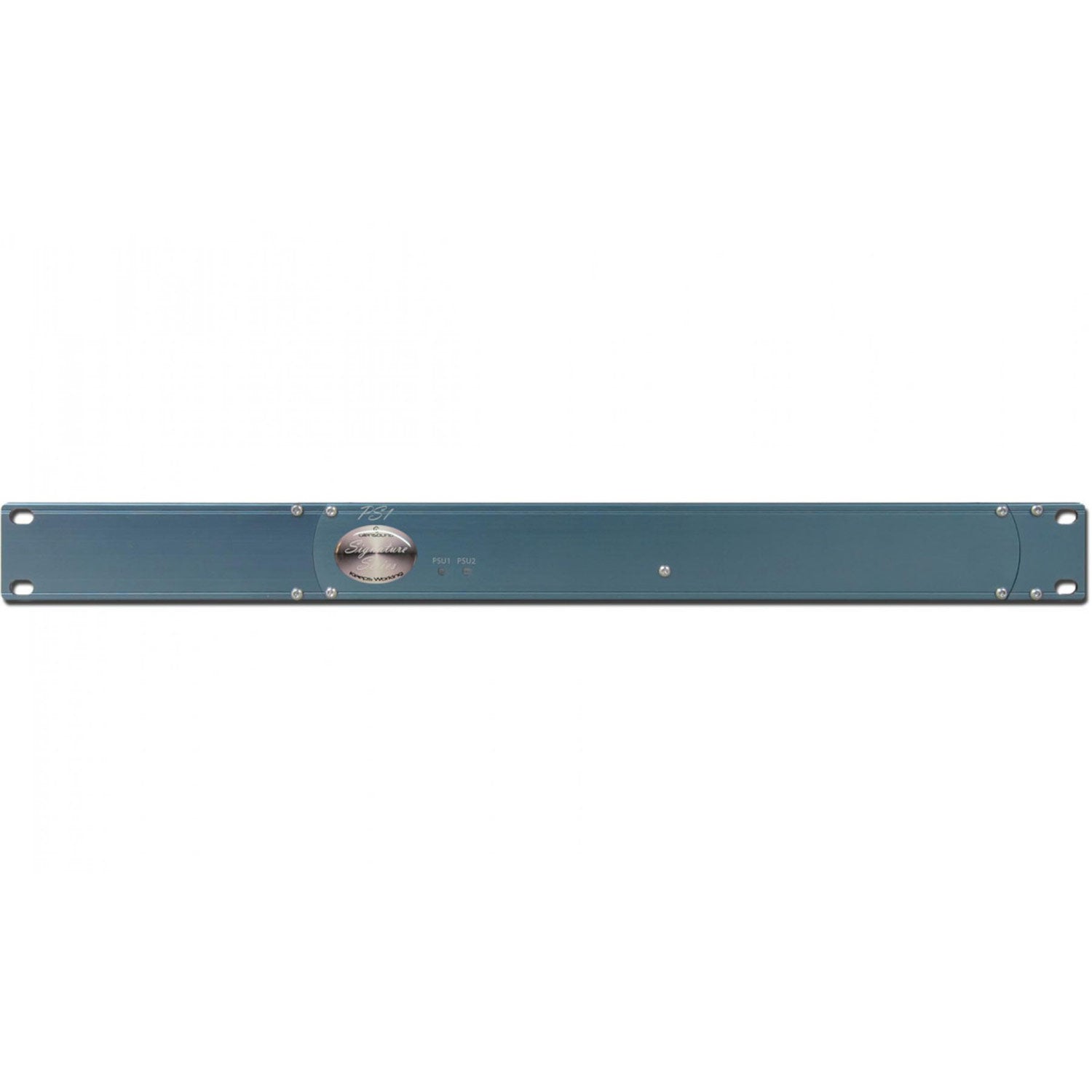

Glensound Signature PS1 - Power Station Master Power Supply
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Signature PS1 Power Station provides a fully resilient back up power supply to your Signature Series units. It contains two switch mode power supplies, each capable of powering up to three separate Signature Series units. A pair of bright front panel LEDs indicate that each power supply is on and active. The master AC power input accepts 100-240 VAC for worldwide compatibility.
Features:
- Master power distribution to 6 Signature units
- Provides individual +/- 12VDC outputs
- Redundant power to 6 Signature units
- Includes 6 x 4 pin XLR cables for powering Signature units
Master And Back Up Power
As well as providing a backup DC supply for up to six Signature Series units, the PS1 can also act as master DC power distribution to six Signature units.
Safety Features

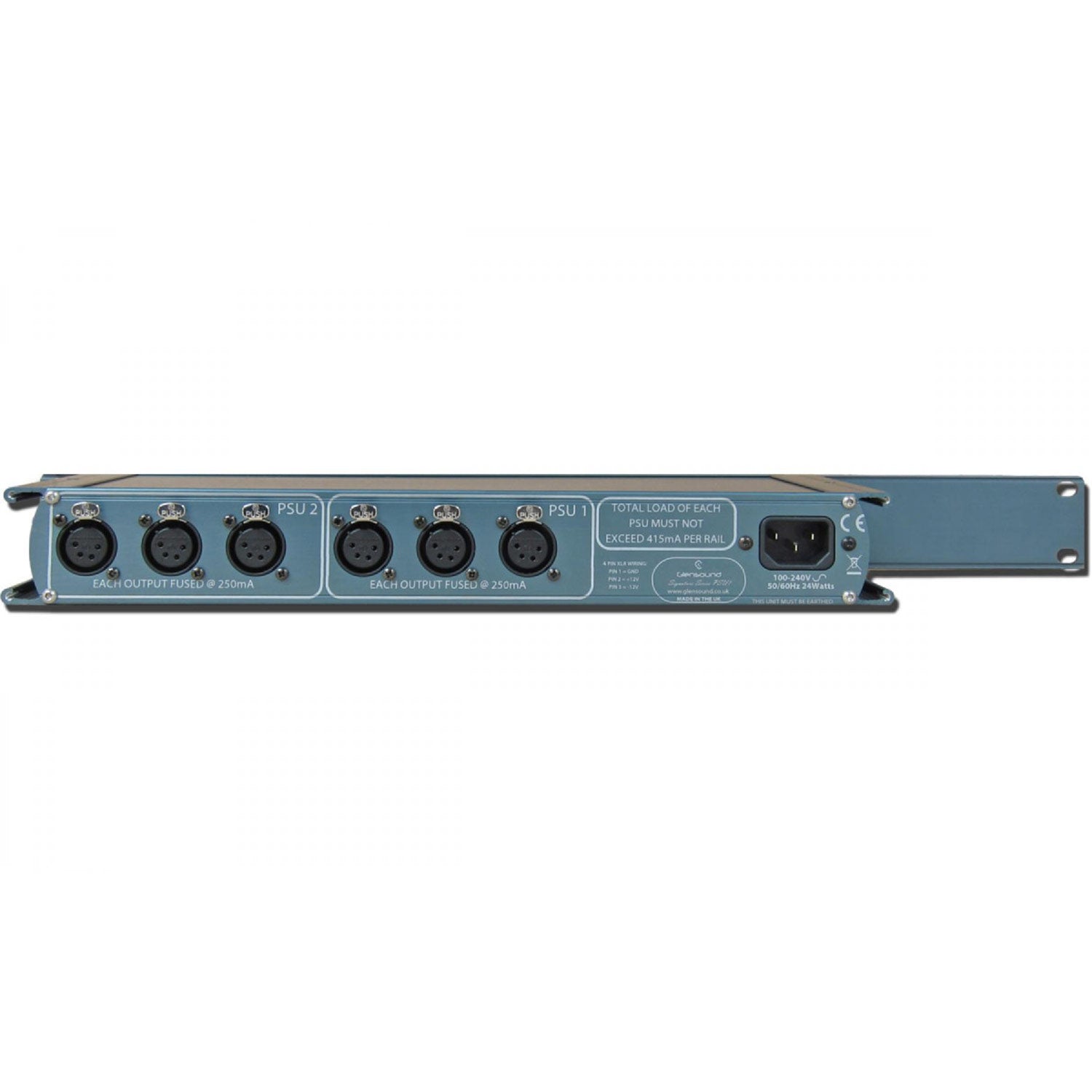

All outputs are individually fused so a short circuit on one will not affect any of the others.
Installation
For ease of installation and to allow quick connectivity to other Signature Series units, every Signature PS1is shipped with 6 x 4 pin XLR DC cables which are each two metres long.

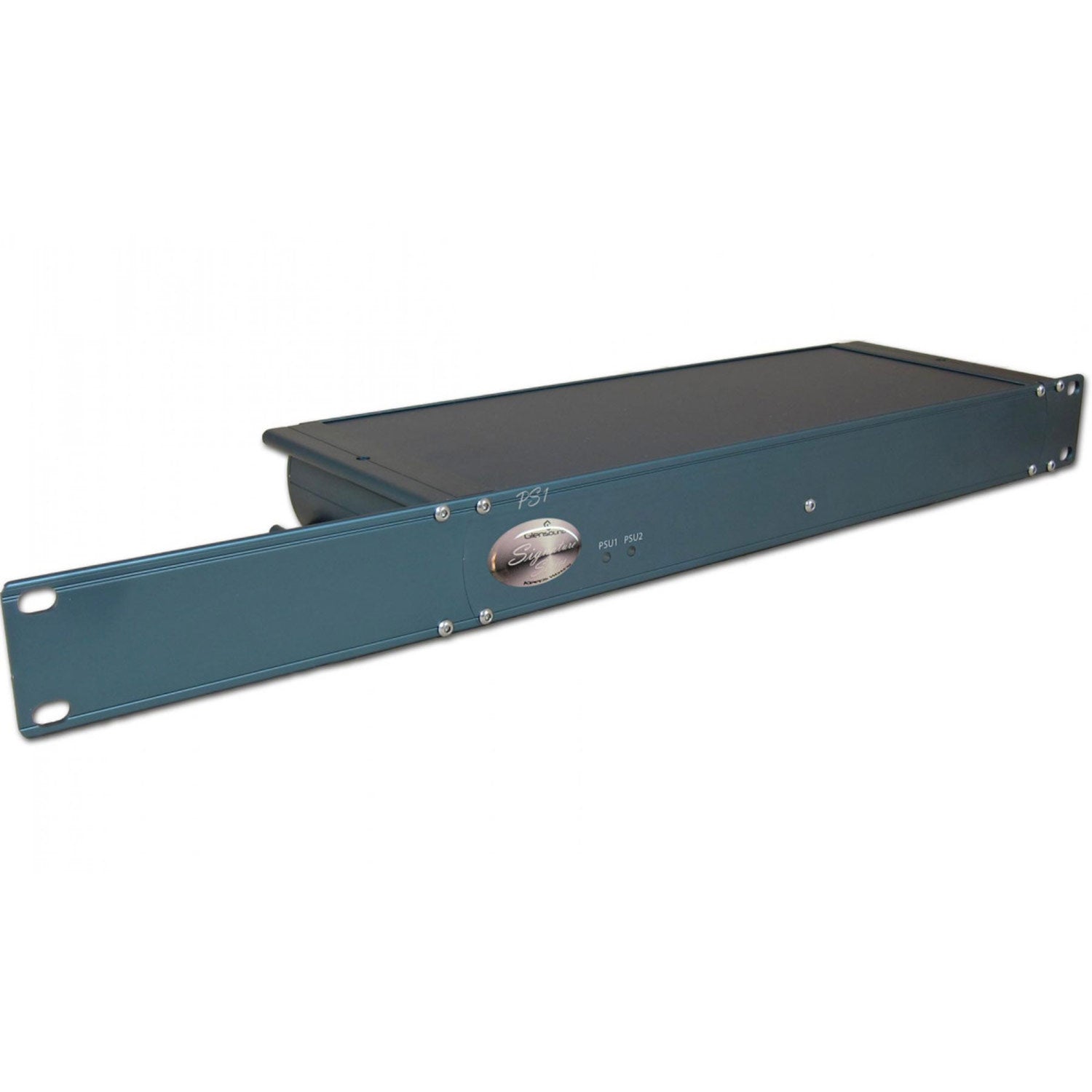

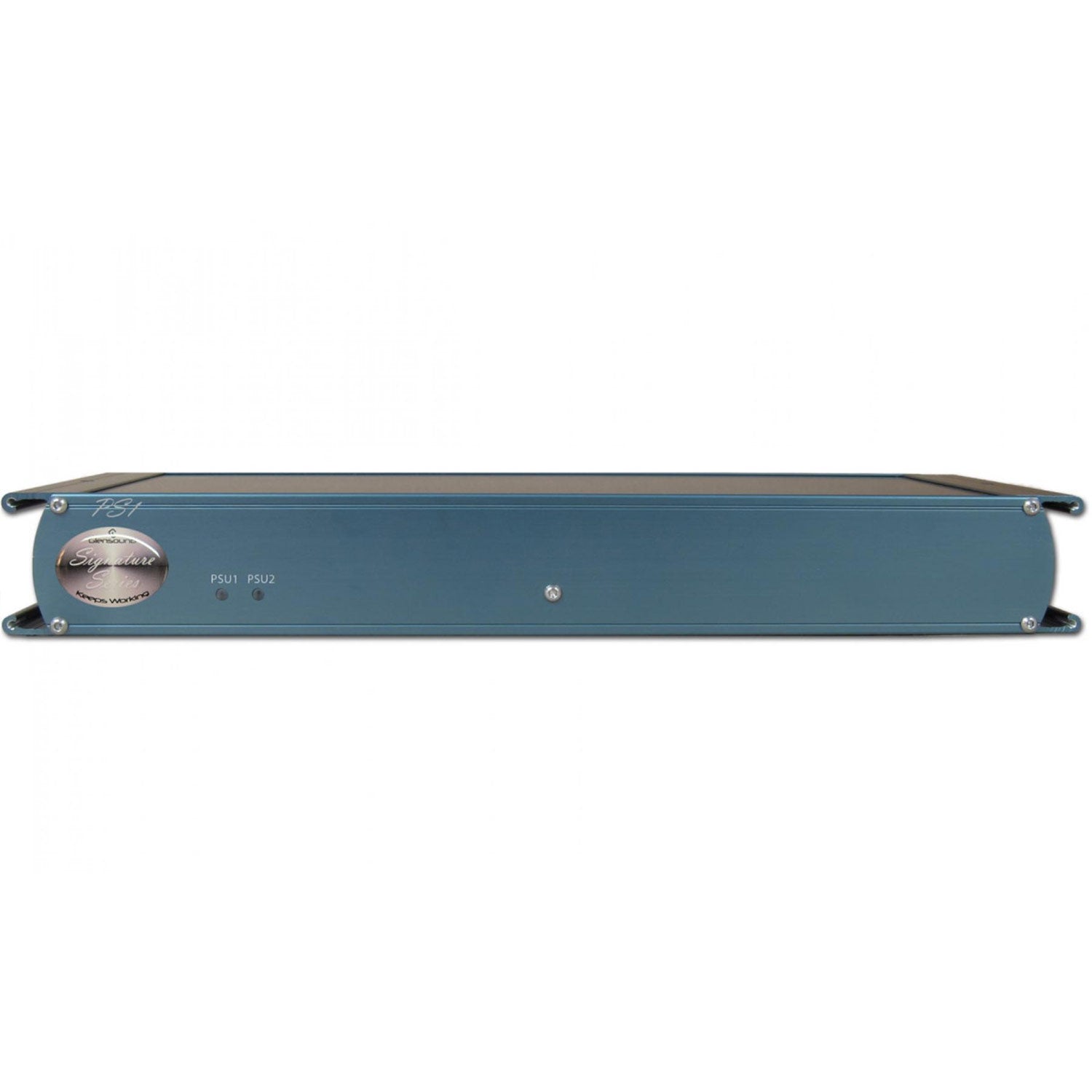

As the PS1 is only 336mm wide without the rack ears, it can easily be installed inside equipment racks, and fixed vertically via the flush mounting side wings. This will provides the convenience of power distribution or backup, without taking up any rack space.
| POWER | |
| Mains Input | Filtered IEC, 100 to 240VAC 47 - 63Hz |
| Internal Mains Fuse | 20mm 1A Anti Surge |
| DC Output | 6 off 4 Pin Neutrik XLR plug ± 12V |
| AC Consumption | 10 Watts @ 230VAC |
| DC Output Fuse | Internal polyfuse 250mA per rail per output |
| ACCESSORIES | |
| DC Output Cable | 6 x 2 metre long cables, 4 pin XLR plug to 4 pin XLR socket included |
| PHYSICAL | |
| Size | 336 x 123 x 44mm (LxDxH) no rack ears, 482mm (19") 1RU with rack ears |
| Shipping Weight | 3kg |
| Mechanics | All aluminium construction, anodized and laser etched |
| Weight | 0.85kg |
| Shipping Carton | Rugged export quality cardboard carton 610 x 420 x 130mm (LxDxH)l |
