Glensound Signature SW 8:2+ - 8 Channel Source Selector/ Switch/ Mixer with PPM
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

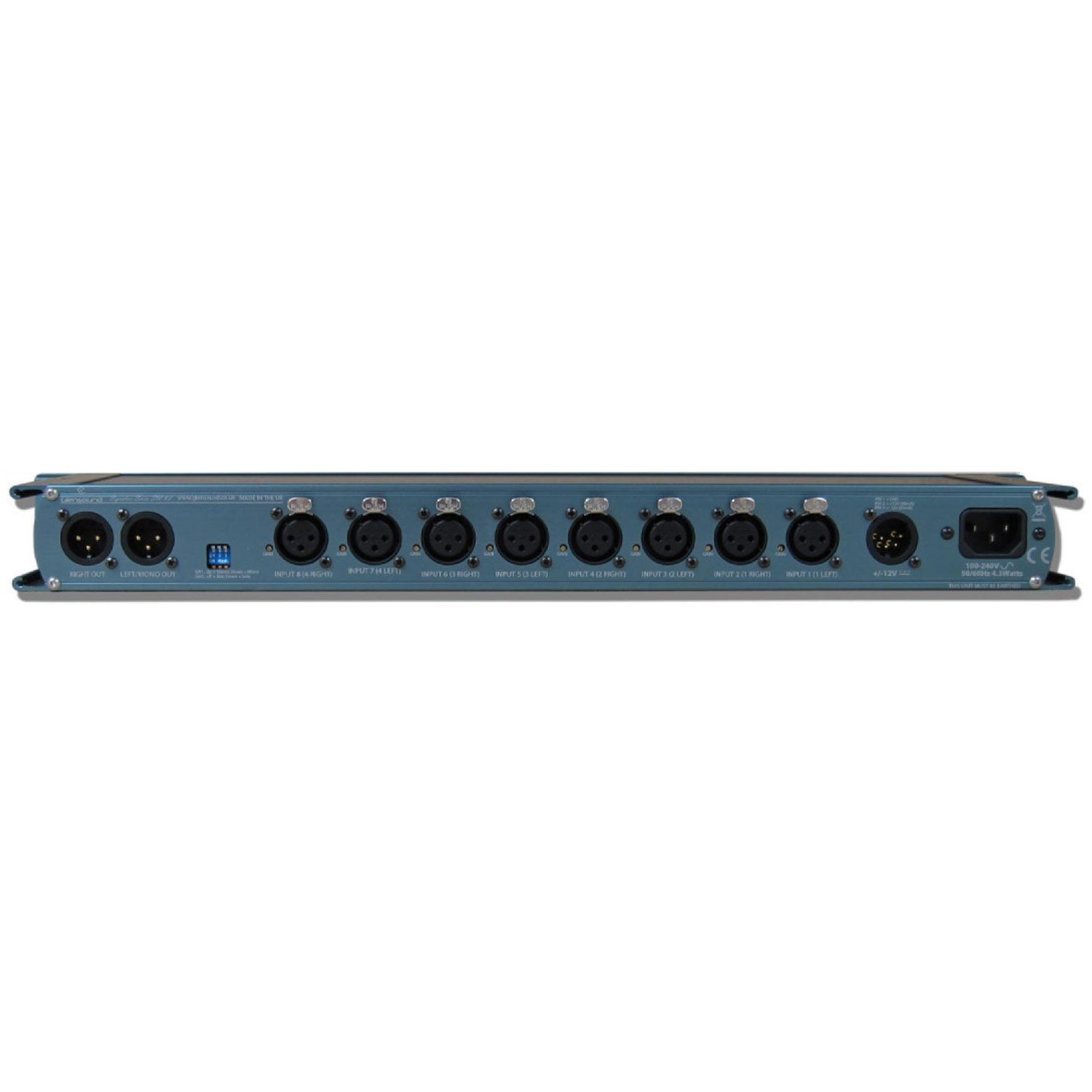

The Signature SW 8:2+ is a broadcast specification, 8 mono/ 4 stereo source selector switch/ mixer with PPM. There are 8 balanced audio inputs on 3 pin Neutrik XLR sockets on the rear panel and these can be set globally to be 8 mono inputs or 4 stereo inputs.
On the front panel there are 8 large illuminated buttons for turning sources on/ off. They work as 8 individual switches when in the mono mode and 4 pairs of stereo switches when the SW 8:2+ is set to stereo. The front panel features a 6.35mm stereo TRS jack socket for headphones monitoring, with a full size pot to adjust the volume level. This headphone circuit monitors the output audio.
Two balanced Neutrik XLR plugs on the rear panel provide the output of the unit, which will either be one single mono channel or 1 stereo channel when the unit is set to 'switch' mode or a mix of all selected sources when set to 'mix' mode. Three rear panel dip switches allow for setting mix/switch, mono/stereo & output pre/post headphone volume pot.
A stereo 28 LED Peak Programme Meter (PPM) is also provided on the front panel for a visual indication of the audio currently being routed/ mixed to the output. The PPM provides a 1 dB resolution per LED.
Power is provided by an internal switch mode power supply, with a wide input range. There is also an input for external +/-12v DC power. The +/-12v DC input can be connected to the optional Signature PS1external DC Master Power Station, for situations where a redundant power supply is desirable.
| AUDIO INPUTS | |
| Maximum Input Level | +28dBu |
| Input Impedance | 47k balanced, 23k unbalanced |
| Balanced Input Type | Sophisticated electronically balanced (Can be wired unbalanced) |
| Connectors | Neutrik 3 pin XLR sockets |
| Input Gain Control | +10/-10dB |
| AUDIO OUTPUTS | |
| Connectors | Neutrik 3 pin XLR plugs |
| Noise | >-86dBu RMS 22-22kHz (1 source selected) |
| Frequency Response | THD + Noise: < 0.008% @ 1kHz |
| Interchannel Cross Talk | >78dB 100Hz to 15kHz |
| Maximium Output Level | +24dBu |
| HEADPHONE OUTPUTS | |
| Gain Range | +10dB to Off |
| Headphone Impedance | 32 - 1000 |
| Maximum Output Level | +17dB into 600 |
| POWER | |
| Mains Input | Filtered IEC 100 to 230 VAC 47 - 63Hz |
| AC Consumption | 4.3 Watts @ 230VAC |
| DC Input | 4 Pin Neutrik XLR Plug +/-12V |
| DC Consumption | +12V = 88mA, -12V = 35mA |
| Internal Mains Fuse | 20mm 1A Anti Surge |
| PHYSICAL | |
| Size (LxDxH) | 445 x 163 x 44mm - no rack ears 482mm 19" (1RU) with rack ears |
| Weight | 1.35kg |
| Mechanics | All aluminium construction, anodized and laser etched |
| Shipping Carton | Rugged export quality cardboard carton 610 x 420 x 130mm LxDxH |
| Shipping Weight | 2.8kg |
| INCLUDED ITEMS | |
| Mains Lead | 2 metre long (UK / Europe only) |
| Rack Bolts | 4 off Pozi head M6 |
| Feet | 4 off rubber stick on feet |
| Handbook | Full A4 handbook available to download and linked by QR code on device |
| Quick Start Guide | Printed A4 double sided quick start guide |
The Signature SW 8:2+ is a broadcast specification, 8 mono/ 4 stereo source selector switch/ mixer with PPM. There are 8 balanced audio inputs on 3 pin Neutrik XLR sockets on the rear panel and these can be set globally to be 8 mono inputs or 4 stereo inputs.
On the front panel there are 8 large illuminated buttons for turning sources on/ off. They work as 8 individual switches when in the mono mode and 4 pairs of stereo switches when the SW 8:2+ is set to stereo. The front panel features a 6.35mm stereo TRS jack socket for headphones monitoring, with a full size pot to adjust the volume level. This headphone circuit monitors the output audio.
Two balanced Neutrik XLR plugs on the rear panel provide the output of the unit, which will either be one single mono channel or 1 stereo channel when the unit is set to 'switch' mode or a mix of all selected sources when set to 'mix' mode. Three rear panel dip switches allow for setting mix/switch, mono/stereo & output pre/post headphone volume pot.
A stereo 28 LED Peak Programme Meter (PPM) is also provided on the front panel for a visual indication of the audio currently being routed/ mixed to the output. The PPM provides a 1 dB resolution per LED.
Power is provided by an internal switch mode power supply, with a wide input range. There is also an input for external +/-12v DC power. The +/-12v DC input can be connected to the optional Signature PS1external DC Master Power Station, for situations where a redundant power supply is desirable.
| AUDIO INPUTS | |
| Maximum Input Level | +28dBu |
| Input Impedance | 47k balanced, 23k unbalanced |
| Balanced Input Type | Sophisticated electronically balanced (Can be wired unbalanced) |
| Connectors | Neutrik 3 pin XLR sockets |
| Input Gain Control | +10/-10dB |
| AUDIO OUTPUTS | |
| Connectors | Neutrik 3 pin XLR plugs |
| Noise | >-86dBu RMS 22-22kHz (1 source selected) |
| Frequency Response | THD + Noise: < 0.008% @ 1kHz |
| Interchannel Cross Talk | >78dB 100Hz to 15kHz |
| Maximium Output Level | +24dBu |
| HEADPHONE OUTPUTS | |
| Gain Range | +10dB to Off |
| Headphone Impedance | 32 - 1000 |
| Maximum Output Level | +17dB into 600 |
| POWER | |
| Mains Input | Filtered IEC 100 to 230 VAC 47 - 63Hz |
| AC Consumption | 4.3 Watts @ 230VAC |
| DC Input | 4 Pin Neutrik XLR Plug +/-12V |
| DC Consumption | +12V = 88mA, -12V = 35mA |
| Internal Mains Fuse | 20mm 1A Anti Surge |
| PHYSICAL | |
| Size (LxDxH) | 445 x 163 x 44mm - no rack ears 482mm 19" (1RU) with rack ears |
| Weight | 1.35kg |
| Mechanics | All aluminium construction, anodized and laser etched |
| Shipping Carton | Rugged export quality cardboard carton 610 x 420 x 130mm LxDxH |
| Shipping Weight | 2.8kg |
| INCLUDED ITEMS | |
| Mains Lead | 2 metre long (UK / Europe only) |
| Rack Bolts | 4 off Pozi head M6 |
| Feet | 4 off rubber stick on feet |
| Handbook | Full A4 handbook available to download and linked by QR code on device |
| Quick Start Guide | Printed A4 double sided quick start guide |
